Behringer ULTRA-CURVE PRO DSP8024 Manuel utilisateur

Version 1.2 June 2001

User’s Manual

www.behringer.com

ULTRA-CURVE® PRO

DSP8024

ENGLISH

ULTRA-CURVEPRODSP8024

Thissymbol,whereveritappears,alerts

you to the presence of uninsulated

dangerous voltage inside the

enclosure—voltage that may be

sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts

you to important operating and

maintenance instructions in the

accompanying literature. Read the

manual.

SAFETY INSTRUCTIONS

CAUTION: To reduce the risk of electric shock, do not remove

thecover (or back).No user serviceableparts inside;

referservicingto qualified personnel.

WARNING: To reduce the risk of fire or electric shock, do not

expose this appliance to rain or moisture.

DETAILEDSAFETY INSTRUCTIONS:

Allthe safetyand operationinstructions shouldbe readbefore the appliance is operated.

Retaininstructions:

Thesafety and operatinginstructions should beretained for futurereference.

Heed warnings:

Allwarnings on the appliance andin theoperating instructions should be adheredto.

Followinstructions:

Alloperation anduser instructionsshould be followed.

Water and moisture:

Theapplianceshould not beusednearwater(e.g. nearabathtub,washbowl,kitchen sink, laundrytub,ina wet

basement, or near a swimming pool etc.).

Ventilation:

Theapplianceshould besituatedsothat its locationorposition does notinterferewith its properventilaton.For

example, the appliance should not be situated on a bed, sofa rug, or similar surface that may block the

ventilation openings: or placed in a built-in installation, such as a bookcase or cabinet that may impede the

flowofair throughtheventilation openings.

Heat:

The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other

appliances(including amplifiers) thatproduce heat.

Power source:

Theappliance shouldbe connectedto a powersupply onlyof thetype describedin the operatinginstructions

or as marked on the appliance.

Grounding or polarization:

Precautionsshould be taken so thatthe groundingor polarizationmeans of an appliance isnot defeated.

Power-cord protection:

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to cords and plugs, convenience receptacles and the point

wherethey exitfrom theappliance.

Cleaning:

Theappliance shouldbecleaned onlyas recommended bythe manufacturer.

Non-useperiods:

Thepowercordof the applianceshouldbeunpluggedfrom the outletwhenleftunusedfor a longperiodoftime.

Object and liquid entry:

Careshould be takensothat objectsdonot fall andliquidsare notspilledinto the enclosurethroughopenings.

Damage requiring service:

Theapplianceshould beservicedby qualified servicepersonnelwhen:

- the power supply cord or the plug has been damaged; or

- objects have fallen, or liquid has been spilled into the appliance; or

- the appliance has been exposed to rain; or

-the appliancedoes notappear tooperate normallyor exhibits a marked changein performance;or

-the appliancehasbeen dropped,or theenclosuredamaged.

Servicing:

Theusershouldnotattempttoservicetheappliancebeyondthatwhichisdescribedintheoperatinginstructions.

Allother servicing shouldbereferred toqualifiedservice personnel.

ULTRA-CURVEPRODSP8024

FOREWORD

DearCustomer,

welcometo theteamof ULTRA-CURVE PROusersand thankyou very muchfor expressing yourconfidence

in BEHRINGER products by purchasing this unit.

It is one of my most pleasant tasks to write this letter to you, because it is the culmination of many months of

hard work delivered by our engineering team to reach a very ambitious goal: making an outstanding device

betterstill. TheULTRA-CURVE hasfor quite along timebeen astandard tool usedby numerousstudios and

PA rental companies. The task to improve one of our best-selling products certainly meant a great deal of

responsibility,which weassumed byfocusing on you, the discerninguser andmusician. Italso meanta lot of

work and night shifts to accomplish this goal. But it was fun, too. Developing a product usually brings a lot of

peopletogether, and whatagreat feelingitis wheneverybodywho participatedinsuch aprojectcan be proud

ofwhatwe’veachieved.

Itisour philosophytoshare our joywithyou, because youarethe mostimportantmemberof theBEHRINGER

family. With your highly competent suggestions for new products you’ve greatly contributed to shaping our

companyand making itsuccessful.In return,weguarantee you uncompromisingquality (manufactured under

ISO9000 certified management system) as well as excellent technical and audio properties at an extremely

favorable price. All of this will enable you to fully unfold your creativity without being hampered by budget

constraints.

Weareoftenaskedhow we canmanageittoproducesuch high-grade devicesatsuchunbelievablylowprices.

The answer is quite simple: it’s you, our customers! Many satisfied customers means large sales volumes

enablingus to get better conditionsof purchasefor components, etc. Isn’t itonly fairto passthis benefit back

to you? Because we know that your success is our success, too!

Iwouldliketothankallpeoplewhose help on “Project ULTRA-CURVE PRO” has made it all possible.Everybody

hasmadevery personal contributions,startingfrom the designersoftheunit viathemanystaff membersinour

company to you, the user of BEHRINGER products.

Myfriends, it'sbeen worththe trouble!

Thankyou very much,

UliBehringer

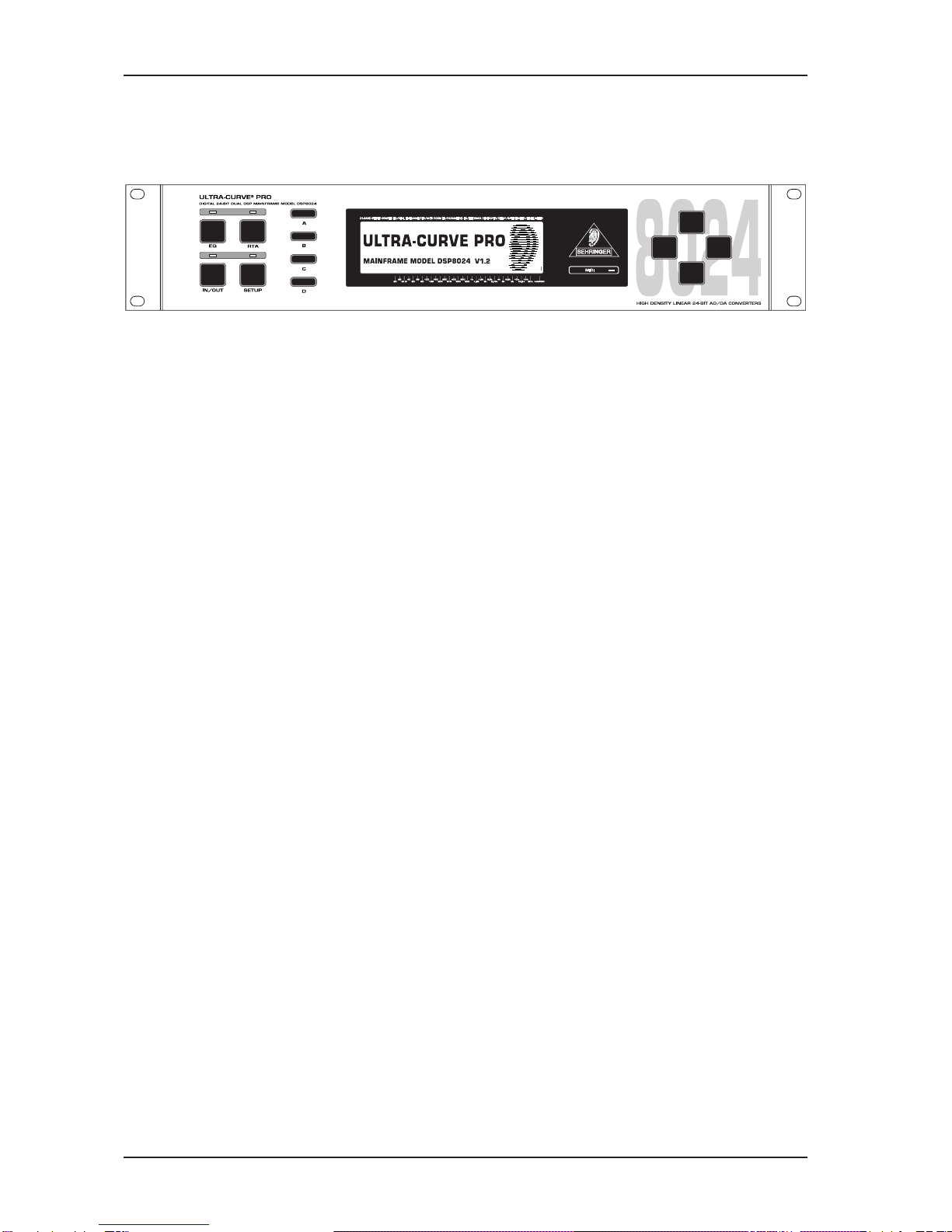

ULTRA-CURVEPRODSP8024

DSP8024

ULTRA-CURVEPRO

Ultra-high performa ce digital stereo mai frame powered by two 24-bit high-speed digital sig al processors

sHigh-endAKM and CRYSTAL24-bitAD/DA convertersforultra-high dynamicrangeand resolution

sOpen-ended&“future-proof”architecture allows forfuturesoftwareupgrades

sUltra-musicaldual 31-band graphicequalizer with “truefrequency response”characteristics

sLow/high/bellshelving tool withvariable slope(3- 30dB)

sRealtime analyzerwithpeak hold,variableintegration, cursorread-out and 10user-memories

sAutomaticroom equalizationusingmicrophone inputandinternal noisegenerator

sAdditional6 bandsof fully parametricequalizer/notch filterwith upto 1/60th octavebandwidth

sIntegral fully automatic feedback destroyer with intelligent signal analyzer for ultra-fast feedback

suppression

sIntegraldigital “brickwall” limiter protectsagainst anyclipping anddangerous sound pressurelevels

sIntegraldigitalnoise gatewithBEHRINGER’s unique IRC(InteractiveRatio Control)

sIntegral delay with up to 2.5 seconds delay time selectable in milliseconds, meter and feet

sUltra-accuratelevelpeak meterwithpeakhold andselectablereference levels (+4dBu/-10dBV/DIG MAX)

sFullMIDI parameterandsnapshot controlforrealtime editing

sFreeEQ-Design software allowsfortotal remotecontrolvia PC (downloadat www.behringer.com)

s100user memories canbe storedunder any alphabetic name. Memorybacked bya long-life battery

sSecuritykey passwordcanbe installedforuser selectiveRTA and EQmemory protectionandunattended

use

sEQ and analyzer curves may be copied, compared, added or subtracted for extreme flexibility

sCrossfade feature to fade between two settings and stereo link facility to synchronize both channels

s24-bit AES/EBU interface for digital inputs and outputs at 32, 44.1 and 48 kHz (optional)

sLargehigh-resolution LCDgraphicdisplay withhigh-contrastLED backlight

sServo-balancedinputs andoutputson gold-platedXLR and 1/4" TRSconnectors forhighsignal integrity

sRelay-controlledhard-bypasswith anauto-bypassfunction during powerfailure(failsafe relay)

sHigh-qualitycomponents andexceptionallyrugged constructionensure long lifeand durability

sInternalpower supply designforprofessional applications

sManufacturedunderISO9000 cerfified managementsystem

ULTRA-CURVEPRODSP8024

TABLE OF CONTENTS

1. INTRODUCTION.....................................................................................................................6

1.1 The designconcept......................................................................................................................... 6

1.2 Beforeyoubegin ............................................................................................................................. 6

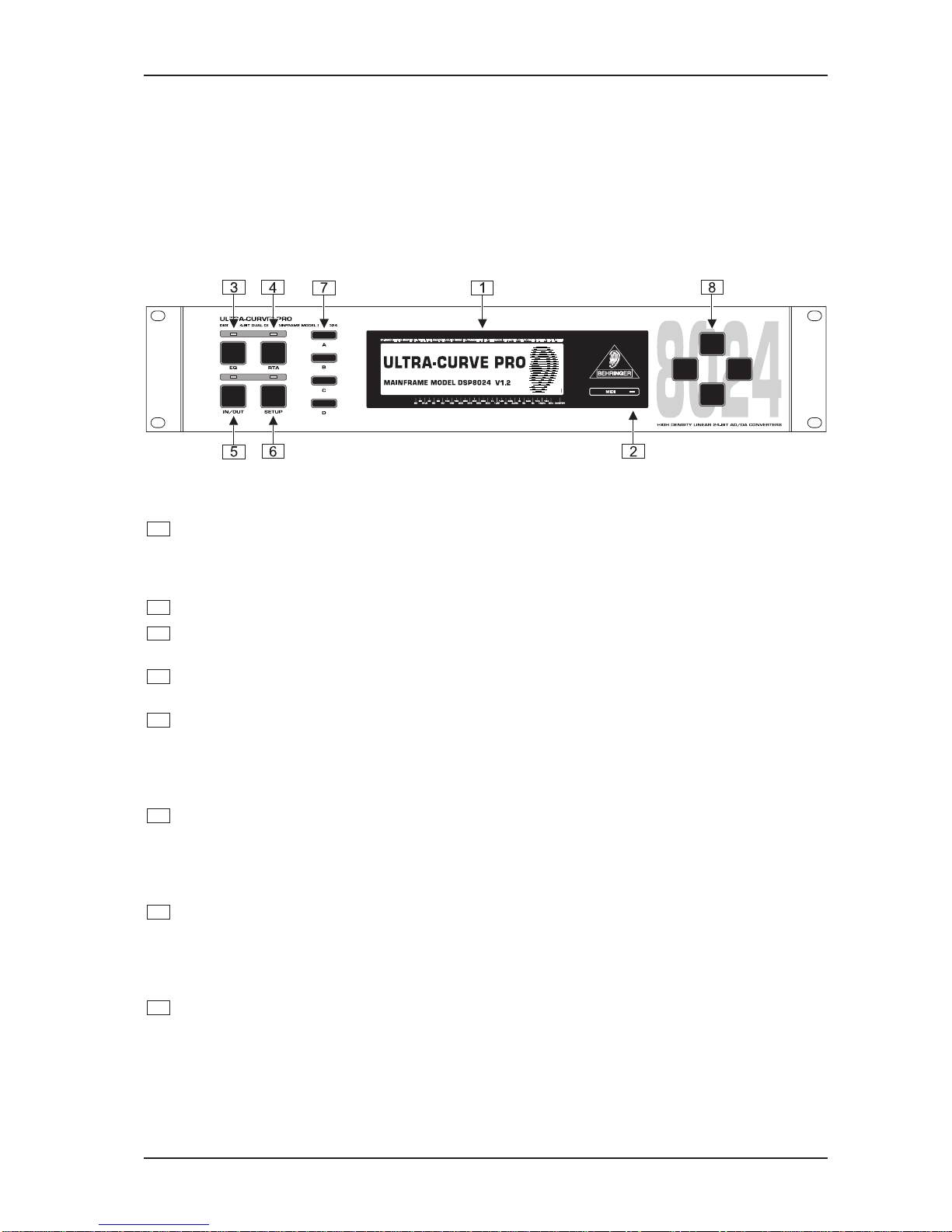

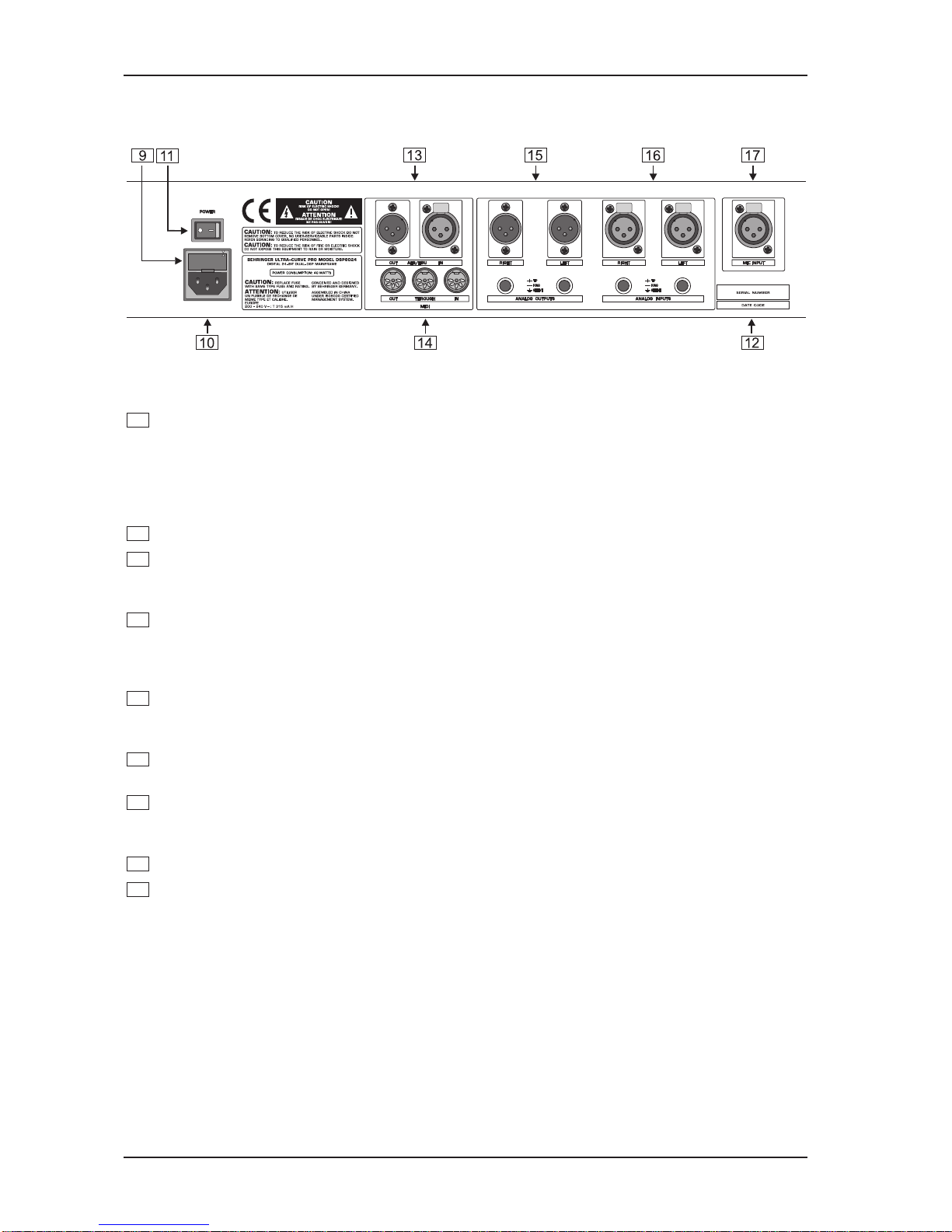

1.3 Controlelements............................................................................................................................. 7

2. OPERATION............................................................................................................................8

2.1 EQ mode ........................................................................................................................................ 9

2.1.1 Operatingthegraphic equalizer............................................................................................. 9

2.1.2 Thelevelmeter...................................................................................................................... 9

2.1.3 TheFEEDBACKDESTROYER........................................................................................... 10

2.1.4 Delay ...................................................................................................................................11

2.1.5 Equalizer editing ..................................................................................................................11

2.1.6 EQ setup ............................................................................................................................ 13

2.2 Realtime analyzer ........................................................................................................................ 14

2.2.1 Program administration ....................................................................................................... 15

2.2.2 Toolbox ............................................................................................................................... 15

2.2.3 Choosing asource .............................................................................................................. 15

2.2.4 Decay ................................................................................................................................. 15

2.2.5 RTAsetup........................................................................................................................... 16

2.3 AUTO-Qfunction........................................................................................................................... 17

2.4 Generalsetup ............................................................................................................................... 18

3. APPLICATIONS .....................................................................................................................20

3.1 Using the ULTRA-CURVE PRO as a summing EQ in a PA ........................................................... 20

3.2 Using the ULTRA-CURVE PRO for monitor EQ purposes ............................................................. 22

3.3 Usingthe ULTRA-CURVE PROin therecording studio ................................................................ 23

3.4 The ULTRA-CURVE PROas adelayunit ...................................................................................... 23

4. “TRUE RESPONSE” CHARACTERISTIC ..........................................................................25

5. ULTRA-CURVE PRO structure ...........................................................................................26

5.1 Hardware....................................................................................................................................... 26

5.2 EQ mode ...................................................................................................................................... 27

5.3 RTAmode ..................................................................................................................................... 28

6. INSTALLATION .....................................................................................................................29

6.1 Mains connection.......................................................................................................................... 29

6.2 Audioconnections ........................................................................................................................ 29

6.3 Digitalaudio connectionsper AES/EBU(optional) ........................................................................ 30

6.4 MIDIconnections .......................................................................................................................... 31

7. APPENDIX .............................................................................................................................31

7.1 AES8024 option............................................................................................................................ 31

7.2 Changingthe memoryprotect battery ........................................................................................... 31

7.3 MIDIimplementation ..................................................................................................................... 32

7.4 Software........................................................................................................................................ 33

8. TECHNICAL SPECIFICATIONS ...........................................................................................34

9. WARRANTY ...........................................................................................................................36

ULTRA-CURVEPRODSP8024

1. INTRODUCTION

TheBEHRINGER ULTRA-CURVE PROis afully digitalsound processingdevice based on DSPs and 24-bit

A/DandD/A converters. Thehigh-speedDSPsare capable ofperforminganyprocess in fractionsofasecond,

theonlyelementgoverning their performancebeing thesoftware.Theenormousflexibilityavailable meansthat

the ULTRA-CURVE PRO has a range of features greatly exceeding those found in a conventional analog

graphicequalizer—ata pricepreviouslyunimaginable.

The BEHRINGER ULTRA-CURVE PRO has two channels which can be used independently or coupled via

software.

+The following operational manual will introduce you to the ULTRA-CURVE PRO and its various

functions.After reading the manual carefully, makesureitis always on hand for futurereference.

1.1 The design concept

The philosophy behind BEHRINGER products guarantees a no-compromise circuit design and employs the

bestchoiceofcomponents.Top-quality24-bitAD/DAconverterswhichbelongtothebestcomponents available

owing to its outstanding specifications and excellent sonic characteristics. Two 24-bit DSPs are used as the

heart of the ULTRA-CURVE PRO. These perform the precise calculations needed for the processing of the

complex algorithms. Additionally, the ULTRA-CURVE PRO uses high quality resistors and capacitors with

very tight tolerances, high-grade switches, ultra low-noise operational amplifiers as well other selected

components.

The ULTRA-CURVE PRO DSP8024 uses SMD technology (Surface Mounted Device). These subminiature

componentsknown fromaerospacetechnology allowforan extremepacking density, plusthe unit's reliability

couldbeimproved.Additionally,theunitis manufactured in compliancewith theISO9000 certifiedmanagement

system.

Fail-safe relays have been incorporated into the design of the BEHRINGER ULTRA-CURVE PRO, which

automatically and silently bypass the unit in the event of power supply disconnection or failure. These relays

arealsoactiveatswitch-ontoisolatetheULTRA-CURVE PROuntilthepowerrailshavesettled,thuspreventing

the possibility of a potentially damaging switch-on thump.

1.2 Before you begin

YourBEHRINGERULTRA-CURVE PRO was carefullypackedin the factoryandthepackaging was designed

toprotecttheunit from roughhandling.Nevertheless,werecommend that youcarefully examinethepackaging

and its contents for any signs of physical damage, which may have occurred in transit.

+If the unit is damaged, please do not return it to us, but notify your dealer and the shipping

company immediately, otherwise claims for damage or replacement may not be granted.

Shipping claims must be made by the consignee.

The BEHRINGER ULTRA-CURVE PRO fits into two standard 19" rack unit of space (2 U). Please allow at

least an additional 4" depth for the connectors on the back panel.

Besurethatthereisenoughspacearoundtheunitforcoolingandpleasedonotplace the ULTRA-CURVE PRO

onhigh temperature devicessuch as poweramplifiers etc.toavoid overheating.

+Before you connect your ULTRA-CURVE PRO to the mains, please make sure that your local

voltage matches the voltage required by the unit!

The mains connection of the ULTRA-CURVE PRO is made by using a mains cable and a standard IEC

receptacle.It meetsall ofthe internationalsafety certificationrequirements.

+Please make sure that all units have a proper ground connection. For your own safety, never

remove or disable the ground conductor of the unit or of the AC power cable.

Asstandard,the BEHRINGERULTRA-CURVEPROis installedwithelectronically servo-balanced inputsand

outputs.Thecircuitdesignfeaturesautomatichumrejectionforbalancedsignals,permittingtrouble-freeoperation

even at the highest operating levels. Externally induced power-line hum, etc. is thus suppressed effectively.

1. INTRODUCTION

ULTRA-CURVEPRODSP8024

Theautomaticservofunction recognizesthe presenceofunbalancedconnectors and adjuststhenominallevel

internallyto avoidleveldifferences betweenthe input andoutput signals(6 dBcorrection).

The optional digital input and output (AES/EBU interface) connections are balanced with a negative ground.

High-qualityconnectors ensure isolated,noise-freesignal throughput.TheMIDI connections(IN/OUT/THRU)

havebeen realized withstandardized DINplug-inconnectors. Optocouplershavebeen usedforisolated data

communications.

1.3 Control elements

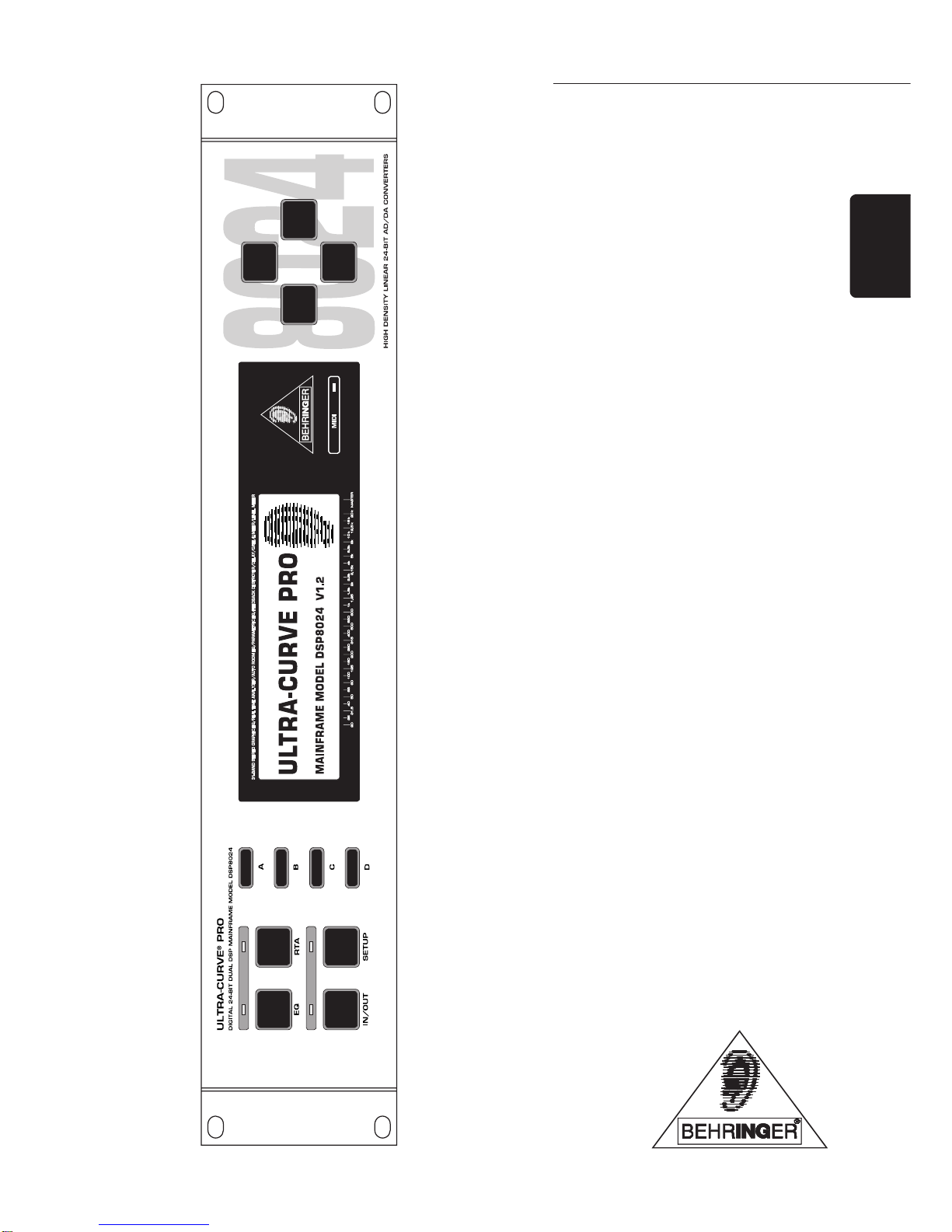

Fig. 1.1: The control surface of the ULTRA-CURVE PRO

The heart of the front panel is the LED backlighted 240 x 64 active DISPLAY. The control of the

ULTRA-CURVE PROincenteredaroundthecentraldisplay.Theuserinterfaceisforalargepartgraphical,

complemented by four text based setup menus. The function of the softkeys is displayed right next to

thesekeys, theirfunction changesto accommodate differentfeatures.

To the right of the display you will find the MIDI LED which registers incoming MIDI messages.

TheEQ keyswitches the ULTRA-CURVE PROintoequalizer mode.Inthis mode, theEQ,FEEDBACK

DESTROYER,LIMITER andDELAYfunctions maybeused.

The RTA key switches the ULTRA-CURVE PRO into analyzer mode. This mode is solely concerned

withmeasuring andsignal generation, thesound willnot be affected!

IN/OUTkey. TheULTRA-CURVE PROcan beswitchedinto thesignalpath (LED isgreen) or switched

out(bypass,LED dark).TheLEDflickering red indicatesDSPoverflow. This doesnotnecessarily mean

“clipping”. Flickering starts as soon as an internal overflow in one of the filters occurs, while input and

output levels may be o.k. When this LED lights up often, reduce the input level or the

ULTRA-CURVE PRO’sgainlevel.

The SETUPkey allowsentry intothe setup menuswhere allthe basicadjustments ofthe device are to

befound, suchasthe choiceofinput source,sample rate, passwordprotection, MIDIconfigurationetc.

Pressingoncewill open eithertheEQsetup or RTAsetup,dependingon the functionoftheunit. Holding

thekey downfortwo secondsor more willopen thegeneral setup windowsconsisting ofa global setup

andaMIDI setupwindow.Pressingthe setupkeyhere will togglebetweenboth general setupwindows.

Tothe leftof thedisplay four SOFTKEYS,labelledA, B,Cand Drespectively,are tobefound arranged

vertically. Their functions can be defined by the user software and displayed to the immediate right of

each key by the appropriate pictogram in the display. Each pictogram and its associated functions will

becomprehensively explainedinchapter 2.Youwill findfunction diagrams forboth EQ andRTA mode

as well as a list of all pictograms used on an extra sheet.

To the right of the display the CURSOR KEYS are to be found. These are used:

1.to selectindividual filter frequencies,and themaster fader inequalizer mode(horizontal)

2.to adjustthe value ofeach selectedfrequency (vertical)

3.to positionthe measurementcursor inanalyzer mode(horizontal)

4.in bothoperating modes,to choose the program position(vertical)

5. to select a field in the SETUP menu (horizontal and vertical)

1. INTRODUCTION

ULTRA-CURVEPRODSP8024

+In each case pressing on the opposite key while holding the key being used will accelerate

the operation being carried out.

Fig.1.2: The rearpanel layout of the ULTRA-CURVE PRO

This is the MAINS CONNECTOR/FUSE HOLDER/VOLTAGE SELECTOR. Before you connect the

unit,please makesure thatthe displayedvoltage corresponds to your mains supply. Please note that,

dependingon themainsvoltage suppliedto the unit,the correctfusetype andrate must beinstalled. In

someunits, thefuse holdercan beinserted in twopositions toswitch between220 to240 Vand 100 to

120 V. Please note that a higher fuse rating must be used when operating the unit outside of Europe

with115V (seechapter6 “INSTALLATION”).

Please use the enclosed mains cable to connect the unit to the mains power supply.

TheMAINS SWITCHis tobefound abovethe mainssocket. The switchis situatedon the rearpanel to

maketheULTRA-CURVE PROtamperproofwith unattendeduse.Theunit willbypassonpower failure

but cannot be bypassed when a password is set.

SERIALNUMBER.Pleasetakethetimetohavethewarrantycard filledoutcompletelybyyourspecialized

dealer, and return it within 14 days after the date of purchase, so as to be entitled to benefit from our

extended warranty. You may also use our online registration option available on the Internet at

www.behringer.com.

AES/EBUINand AES/EBUOUT.ThesearetheULTRA-CURVE PRO’sdigitalinputandoutput(optional).

The analog output signal is also present at the (analog) outputs when the digital out is used. Both

signals can be used in parallel.

These are the ULTRA-CURVE PRO’s MIDI connectors (MIDI IN/OUT/THRU). Via these connectors

total remote control is possible.

ANALOGOUTPUTS. These arethe ULTRA-CURVE PRO’sanalogoutputs. When theAES/EBUoption

isinstalled the analogoutputwill stillbepresent attheseoutputs, sothatboth analoganddigital out can

beused inparallel.

Thesearethe ULTRA-CURVE PRO’sANALOGINPUTS.

Thisis theMIC INPUTsocket forthe referencemicrophone.

2. OPERATION

TheBEHRINGERULTRA-CURVE PRO isaflexible,universallyapplicablesoundprocessingandmeasurement

device,whoseoperationsmay bedividedintotwobasic areas; signalprocessor(equalizer,limiter) or realTime

analyzer (RTA). For this reason, you always operate in either EQ or RTA mode. Simultaneous operation of

both is not possible!

Uponswitching on theULTRA-CURVE PROyou willbepresented eitherthemain equalizer (EQ),or analyzer

(RTA)window. By pressingtheEQ orRTAkey, theULTRA-CURVE PROwill switch fromRTA- into EQ mode

and vice versa. When the ULTRA-CURVE PRO is switched from one mode to the other, the outputs will be

brieflymuted.

2. OPERATION

ULTRA-CURVEPRODSP8024

2.1 EQ mode

Fig.2.1: Main EQwindow of theULTRA-CURVE PRO

Thedisplayshowsa31-bandgraphicequalizer,alongwiththemainfaderforoveralllevelcontrol—slightlyseparated

on the right hand side. On the left are the pictograms for the softkeys, which are used to open the sub-menus.

2.1.1 Operating the graphic equalizer

The selected controller is illustrated highlighted in the display. The vertical cursor keys are used to adjust

levels,thehorizontalkeystoselect the controllerto beadjusted. Whenyou depressa cursorkey, aninformation

window appears showing the selected frequency, the level of boost or attenuation applied to each of the two

channels,as wellas the programnumber andprogram name:

Fig.2.2: Graphic EQinformation window

Theinformation windowdisappearsafter fourseconds if no furtherkey hasbeen pressed.

Depressinga keyoncewill resultina parameterchangingby thesmallest applicable increment.The adjacent

faderwill beselected, ora level willbe adjustedby 0.5 dB.Depressing andholding the cursorkey resultsin a

continuous change in the parameter. The rate of change remains constant. You can increase the rate of

changeby first depressingand holding thekey used tochange the relevantparameter, and then—stillholding

the first key—depress the one opposite.

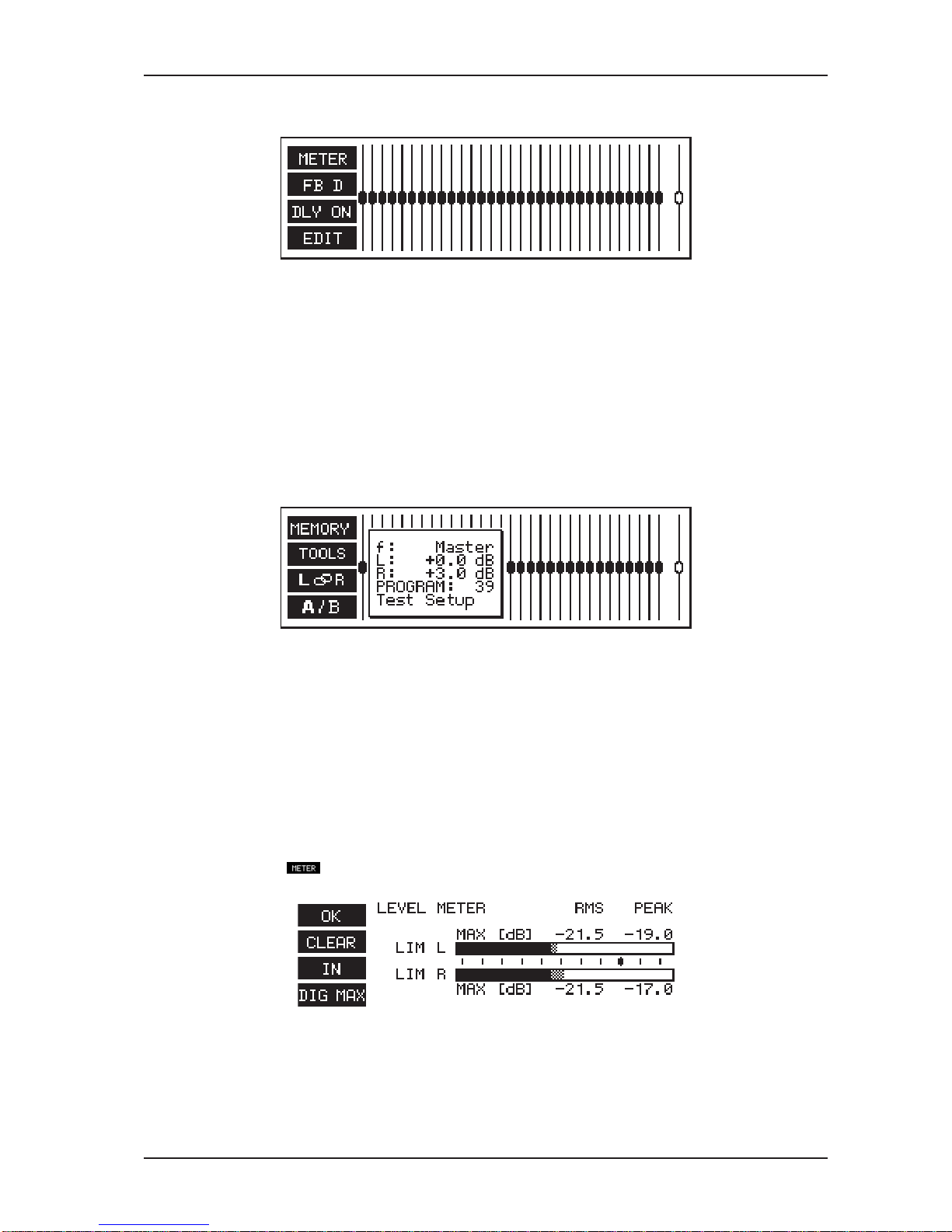

2.1.2 The level meter

By pressing softkey A you leave the main EQ window and access the menu to display levels.

Fig. 2.3: LEVEL METER display

Youcan use the level meterto controlthe input and output levelsof theULTRA-CURVE PRO. The bargraph

displaycontrols theeffective RMSlevel (massiveparts ofthe bars),and the peak level (checkered tips ofthe

bars),both simultaneously.To save youreyes, therelease time ofthe peakdisplay is 20 dB/s.The maximum

levelsare memorized andnumerically displayed.

2. OPERATION

ULTRA-CURVEPRODSP8024

Whenthe limiter thresholdisexceeded, theindicationLIM willappearin the levelmeterdisplay toindicatethat

the limiter is attenuating the output.

With softkey A you leave the level meter, and return to the main EQ window.

With softkey B you erase the maximum levels from the memory.

With softkey C /you switch the display from the ULTRA-CURVE PRO input and output.

Withkey Dyoucanchoosebetweenthreedifferenttablesofreferencelevels.The0dBpointisindicatedbyabold

marker,whileatthesametime,thenumericaldisplaychanges. referstothedigitalpeaklevel.Thislevelmay

not—underanycircumstances—beexceeded!Thiswillresultinaverynoticeableformofdistortion,whichoccurs

muchfaster,andsoundsvery much moreunpleasant,thanthefamiliardistortion associated with analogdevices.

refers to the operating level found in professional audio equipment (analog inputs and outputs of the

ULTRA-CURVE PRO). referstotheoperatinglevelfoundinhomerecordinganddomesticaudioequipment,a

typicalexamplebeingtaperecorderswithRCAconnectors.WhensettingtheULTRA-CURVE PROinternallevel,

orwhenusing the optionalAES/EBUinterface,thepeakleveldisplayoftheDIG MAXscaleistheonly onetouse.

The+4dBu and-10dBVscalesservetomonitortheanaloginputsand outputsoftheULTRA-CURVE PRO.

Please note that the RMS level will usually be quoted in the technical specifications of analog devices for

example,for theinputsensitivity ofpower amplifiers.Theeffective levelalways lies belowthe peaklevel.

+The difference between them depends on the signal characteristics for a static sine wave, the

effective level is about 3 dB below the peak level. For a dynamic signal the difference is in the

region of 8 dB.

TheDIG MAXlevel is, ofcourse, relatedto theanaloginput andoutput levels,as 0 dBDIG MAXcorresponds

tothemaximum output level oftheULTRA-CURVE PRO.Thefollowingexample,usingasinewaveatmaximum

amplitude,clearly illustratesthe relationshipbetween thevarious scales:

RMS PEAK

DIGMAX -3 dB 0 dB

+4 dBu +6 dB +12 dB

-10 dBV +21 dB +24 dB

Maximum level:

Reading

Scale

+16 dBu

Tab. 2.1: Level meter scale correlation

Ascanbeseenfromtheabovetable,theULTRA-CURVE PROsmaximumanalogoutputlevelis+16dBu,or+14dBV.

TheULTRA-CURVE PROs analog inputscanhandle signalsofup to+21dBu, but itisimportant toremember

that,incaseof such high input levels,thedigitallimitermayoperateifthelevelintheequalizerisnotappropriately

lowered. Please refer to the operation of the digital limiter explained in section 2.1.6.

2.1.3 TheFEEDBACK DESTROYER

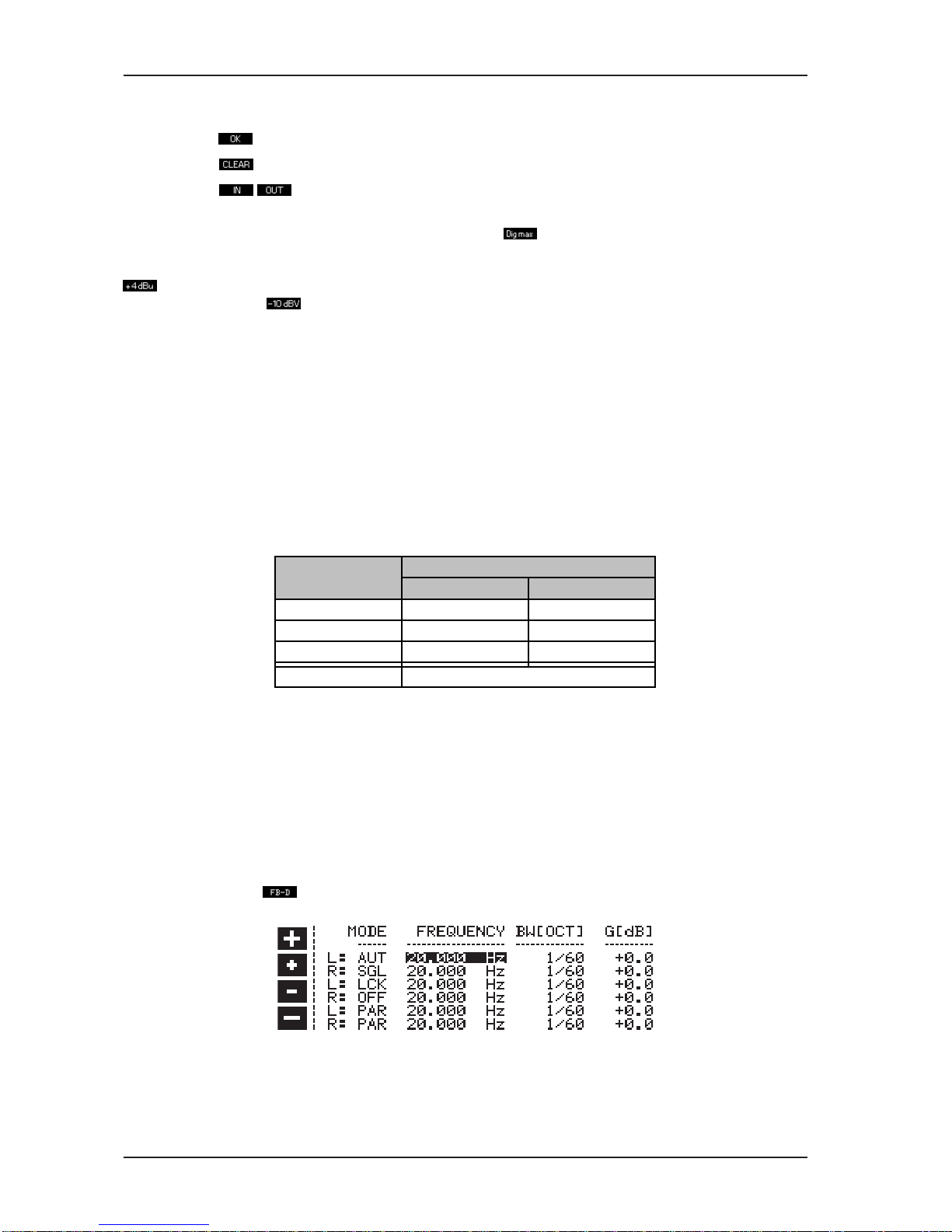

Bypressing softkeyB you leavethe main EQwindow andgo intothe FEEDBACK DESTROYERmenu.

Fig. 2.4: FEEDBACK DESTROYER menu

Thedisplaywillshowthe current settingsforallsixofthe ULTRA-CURVE PRO parametricequalizers(selected

frequency,bandwidthand degreeofboostor attenuation).Additionallyit will showwhetherthe parameters are

fixed(PAR), or aresetfor automaticsearch,to functionasthe FEEDBACKDESTROYER(AUT or SGL).Auto

2. OPERATION

Autres manuels pour ULTRA-CURVE PRO DSP8024

Table des matières

Autres manuels Behringer Équipement d'enregistrement

Behringer

Behringer ULTRADRIVE PRO DCX2496 Instructions de montage

Behringer

Behringer Virtualizer Pro DSP2024P Manuel utilisateur

Behringer

Behringer U-CONTROL UMA S UMA25S Manuel utilisateur

Behringer

Behringer Eurorack MX1604A Manuel utilisateur

Behringer

Behringer DD400 Manuel utilisateur

Behringer

Behringer ULTRA-DI DI400P Manuel utilisateur

Behringer

Behringer U-CONTROL UCA222 Manuel utilisateur

Behringer

Behringer GUITAR LINK UCG102 Manuel utilisateur

Behringer

Behringer B-Control-Audio BCA2000 Manuel utilisateur

Behringer

Behringer POWERPLAY 16 P16-I Instructions d'utilisation et de sécurité

Behringer

Behringer ULTRAPATCH PX1000 Manuel utilisateur

Behringer

Behringer ULTRAGAIN PRO-8 DIGITAL ADA8000 Manuel utilisateur

Behringer

Behringer EURORACK UBB1002 Manuel utilisateur

Behringer

Behringer XENYX 302USB Manuel utilisateur

Behringer

Behringer 923 FILTERS Manuel utilisateur

Behringer

Behringer PRO-1 Manuel utilisateur

Behringer

Behringer 2500 Series Manuel utilisateur

Behringer

Behringer Super-X Pro CX3400 Manuel utilisateur

Behringer

Behringer FEEDBACK DESTROYER PRO DSP1124P Manuel utilisateur

Behringer

Behringer FEEDBACK DESTROYER FBQ1000 Manuel utilisateur

Behringer

Behringer U-Control UMX610 Manuel utilisateur

Behringer

Behringer B-Control Fader BCF2000 Manuel utilisateur

Behringer

Behringer Bass V-Amp Pro Manuel utilisateur

Behringer

Behringer TM1 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
