Becker TRAFFIC ASSIST PRO Manuel utilisateur

Operating instructions GB

Index

The Traffic Assist Pro 7

Use 7

Navigation 7

Music 7

Pictures 7

Unpacking the Traffic Assist Pro 8

Checking the delivery 8

Delivery contents 8

Complaints procedure 8

Handling the packaging 8

Description of unit 8

Traffic Assist Pro – Basic unit 9

Adapter-Power Supply 9

Battery 9

SD memory card 9

USB connection cable 9

Accessories 10

mains charger 10

External GPS antenna 10

Headset 10

Information about

documentation 10

Quick start guide 10

Operating instructions 10

Maintenance and care 10

Registration 11

Repairs 11

Disposal 11

Emissions 11

Overview Traffic Assist Pro 12

Maintenance and care 17

Battery quality declaration 18

Display quality declaration 18

Start-up 18

SD-Card 18

Inserting the SD memory card 19

Ejecting the SD memory card 19

Power supply 20

Using the battery 20

Via the public mains grid 20

Connecting up to power supply 20

Removing power supply 20

Via the vehicle battery

(cigarette lighter socket) 20

Via the TMC receiver 21

Antenna 21

GPS antenna 21

TMC antenna 21

Switching the Traffic Assist

Pro on/off 22

Switching on 22

Switching off 22

Unit bracket 23

Traffic Assist Pro with TMC 23

Traffic Assist Pro without TMC 23

Fitting the unit bracket 24

On the windscreen 24

On the dashboard 24

Moving the unit holder 25

Vertical movements 25

Horizontal movements 25

Attaching the Traffic Assist Pro 25

Connecting the telephone mute

function 26

Basic information about the

touch screen 26

Operation 26

Calibration 26

Basic information about the

menus 26

The main menu 26

Entries made with the entry menu 27

Entering characters 27

Adopting suggestions 27

Scrolling through the lists 27

Special characters and umlauts 28

Entering numbers 28

Deleting characters 29

inserting spaces 29

The back key 29

More maps 29

Installation program 29

Transferring files 30

Transferring using the SD card

reader 30

Transferring via the USB interface 30

Transferring maps 30

Transferring music and images 31

Faults 31

Index

Navigational mode 32

What is navigation? 32

Selecting navigation 33

Aids for navigation 33

Rapid access 33

Navigation menu 33

Map display 33

Rapid access 33

Structure of rapid access 33

Navigation menu and map display 33

The list of destinations 34

Icons used 34

Operating rapid access 34

Starting using an existing

destination 34

Scrolling in the destinations

memory 34

Displaying or editing destination 35

Change to map display 35

Displaying current position 35

Calling up Navigation menu 35

TheNavigation menu 36

Structure of the navigation menu 36

Navigation 36

Route planning 36

Settings 36

Status 36

Load map 36

Home 36

Navigation menu: Navigation 37

Destination selection window 37

Destination: Selecting a country 37

Destination: select address and

start 38

Voice selection 41

Stopping navigation 42

Destination: Points of interest

select 42

Point of interest: nearby 43

Point of interest: nationwide 43

Point of interest: in a town 44

Destination: selecting from

the map 44

Navigation menu: Route planning 45

Route list 46

Scrolling through the list of routes 46

Using a route 46

The New route button 47

The Edit key 47

The Calculate key 48

The Start key 48

Navigation menu: Settings 48

The Route info key 49

The Signpost info button 49

The Routing options button 50

The Volume key 50

The Map info key 51

The Automode key 51

The Time Zone key 52

The Route planning key 52

The Format key 52

The Speedkey 53

The Home adress key 54

The TMC button 54

The Smart Speller button 55

The Factory settings key 55

Navigation menu: Status 55

Navigation menu: Load map 56

Navigation menu: Home 56

What is dynamic route guidance? 56

Displaying TMC messages on

the map 57

Using TMC 57

Updating the announcement list 58

Station selection 58

Taking announcements into

consideration when calculating

routes 58

Automatic recalculation 58

Manual recalculation 59

Map display 59

Map layout 60

Map display without driving

guidance 60

Map display with driving guidance 60

Map display with toolbar 61

Using the map display 61

Repeating the last announcement 61

Adjust voice prompt volume 61

Information rows 62

Zooming and the map (toolbar) 62

Display route (toolbar) 62

Index

Position and display mode

(toolbar) 63

Displaying TMC messages

(toolbar) 63

Change display (toolbar) 63

Point northwards (toolbar) 64

Move map (toolbar) 64

Call Options menu 64

Position information (toolbar) 65

Playback of MP3 files during an

active navigation 66

Music operations 67

Selecting music playback 67

The MP3 player 67

Operating the MP3-Players 68

Scrolling 68

Play 68

Pause 68

Folder overview 69

Opening the next folder 69

Repeat current track 69

Setting volume 69

Navigation during MP3 player

operation 69

Closing the MP3-Player 70

Pictures mode 71

Selecting pictures display 71

Picture viewer 71

Operating the Picture Viewers 71

Scrolling 71

Adjusting the music volume 71

Slideshow 72

Full screen 72

Shutting down the Picture Viewer 72

Folder viewing mode 72

Operating folder viewing mode 73

Subfolders 73

Scrolling 73

Selecting a picture 73

Changing folder levels 73

Closing folder viewing mode 73

Settings 74

Selecting the settings 74

The setting menu 74

Operation 74

Selection possibilities 74

Closing the setting menu 74

The individual menu points 74

Energy 74

Displaying the energy supply 74

Ending the status display 75

Brightness 75

Calibration 75

Starting calibration 75

Language 76

Calling up language selection 76

Turn the page 76

Selecting the language 76

Cancelling the language selection 76

Sounds 76

Information 77

Keywords 80

Technical Data 83

FACT SHEET 84

The information contained herein may

be changed at any time without prior no-

tification. This manual nor any parts the-

reof may not be reproduced for any

purpose whatsoever without the express

written consent of HARMAN/BECKER

Automotive Systems GmbH.

BECKER Automotive Systems GmbH

!Safety information

• The unit may only be operated if the traffic situation allows for this and if you are absolutely certain that you

yourself, your fellow passengers or other road users will not be put at risk, encumbered or disturbed by this. The

rules of applicable road traffic acts must be observed at all times. Destinations may only be input when the vehicle

is stationary.

• The navigational system is only an aid. The data/details provided may in some cases be incorrect. The driver must

always decide whether to follow the details given or not. We accept no liability for the navigational system issuing

incorrect details. As a result of traffic routing changes and deviating data, inaccurate or incorrect instructions

may be given. Drivers should always pay attention to the actual road signs and traffic control. In particular, the

navigational system cannot be used as a means of orientation in cases of poor visibility.

• The unit may only be used for its intended purpose. The volume of the Navigationsgerätes should be set so that

noises outside the vehicle can still be heard.

• The unit should be switched off immediately if faults occur (e.g. development of smoke or smells).

• For safety reasons, the unit may only be opened by a specialist. Please contact your local stockist if you require

repairs.

• The SD memory card can be removed. Caution! Small children could swallow it.

• The mains voltages (V) indicated on the mains charger, the car power adapter and the unit must not be exceeded.

Failure to observe this may result in destruction of the unit and the charger and cause the battery to explode.

• Never open the unit or the rechargeable battery. Any modification to the unit is also impermissible and renders

the type approval invalid.

• Use only genuine BECKER original accessories. This will ensure that all the relevant regulations are complied

with and damage to health and property is avoided. Dispose of defective units and the rechargeable battery

according to the applicable legal requirements.

• No warranty is granted in the case of improper use. These safety instructions also apply to genuine BECKER

original accessories.

The Traffic Assist Pro

Use

The Traffic Assist Pro is a powerful

PND (Personal Navigation Device) for

use in vehicles and closed spaces. The

unit should be protected from dampness

and dirt.

The Traffic Assist Pro can be used as:

• navigational unit

• MP3 (device for playing music)

• JPEG image viewer

Navigation

Thanks to GPS = Global Positioning

System, you no longer need to spend

hours searching through road atlases.

The folding receiving antenna gives you

constant access to navigation options

when outside in the open. Depending on

reception, you may not be able to use the

navigational function inside buildings.

When used in vehicles, you may not be

able to adequately receive GPS data de-

pending on how the Traffic Assist Pro is

installed. In such cases, you will have to

connect up an external antenna (does not

fall within the scope of supply).

Depending on the version, the Traffic

Assist Pro is equipped with TMC, which

gives you the option of receiving traffic

announcements via the TMC antenna

provided. Traffic announcements are

transmitted when the TMC is active. The

system plans an alternative route

automatically or on request to avoid

traffic problems, depending on the

setting.

The TMC receiver and antenna are also

available as accessories from your local

dealer.

Music

Thanks to the integrated MP3-Player,

you can listen to your favourite tracks

when on the go.

Pictures

The Traffic Assist Pro has a Picture

Viewer offering many functions for vie-

wing pictures.

3012

Unpacking the Traffic Assist

Pro

Checking the delivery

Before the Traffic Assist Pro is started

up, the delivery should be checked

to ensure that it is complete and in the

correct condition (see also page 12).

!Carefully unpack the content of the

package and check it.

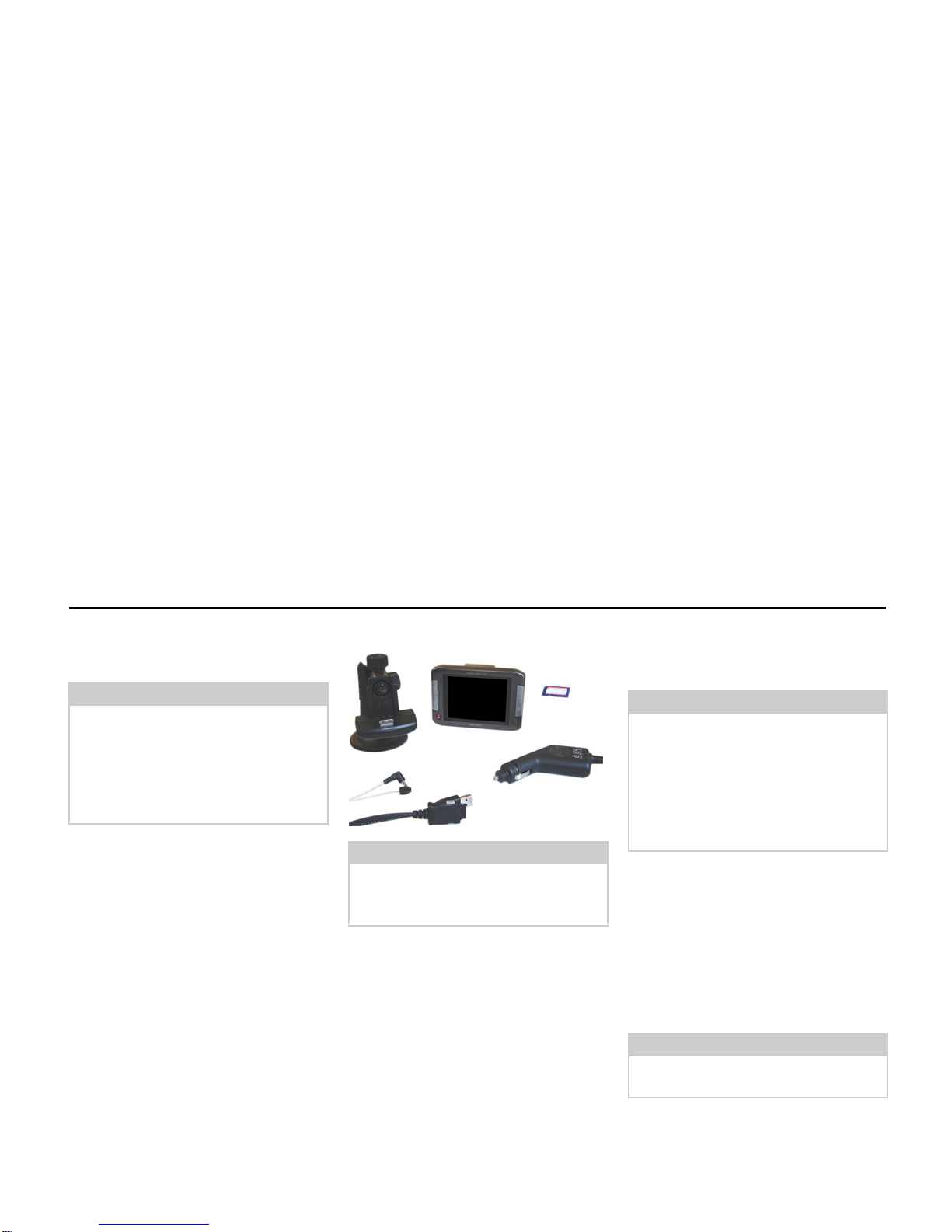

Delivery contents

Complaints procedure

Please contact your local stockist if you

have any complaints. The unit can also

be sent directly to Harman/Becker in its

original packaging.

Handling the packaging

Keep the original packaging in a dry

place, at least for the warranty period.

Description of unit

The Traffic Assist Pro consists of the

basic unit Traffic Assist Pro and the ac-

cessories included in the delivery.

You will find photos of the individual

parts under:

See “Delivery contents” on page 12.

Note:

Your Traffic Assist Pro is supplied in

stable packaging. Do not unpack the

unit in full if you discover any serious

damage to the packaging or its content.

If this happens, please contact your lo-

cal stockist.

Note:

The achievement without TMC has not

included a TMC-Antena or a TMC-ac-

ceptor.

4012

Note:

The packaging should be disposed of

correctly in accordance with national

disposal guidelines. The packaging

must not be burnt. Depending on the

country to which the unit is supplied, it

may be possible for local stockists to

accept packaging.

Note:

The basic unit and accessories must not

be opened or modified in any way.

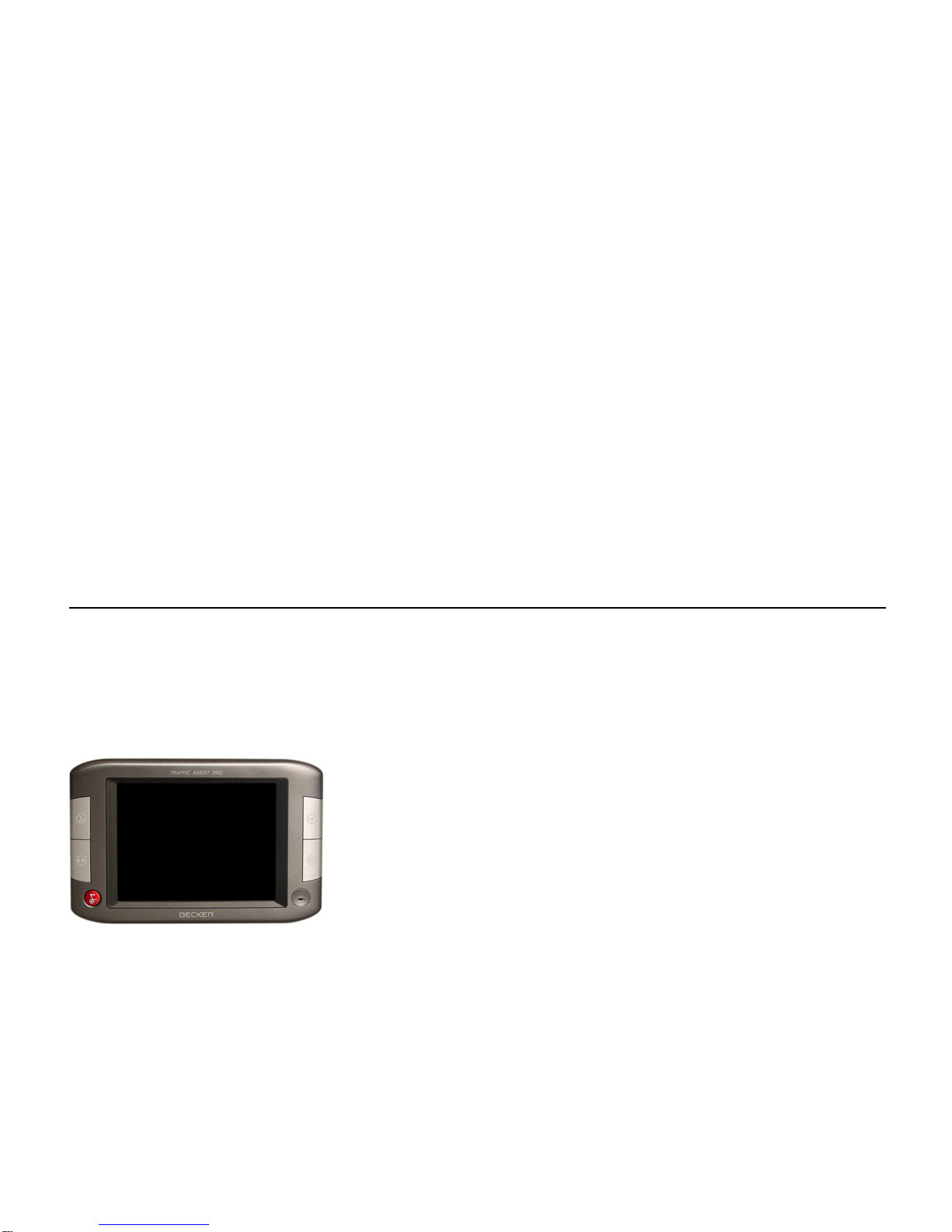

Traffic Assist Pro – Basic unit

The basic unit consists of a complete

electronic unit, a folding antenna for

receiving GPS signals, a touch screen

for communication, an integrated

speaker for broadcasting

announcements during navigation and

for MP3 files, a microphone for

recording voice commands and various

connections and interfaces.

Further information on the unit can be

found in "Technical Data" on page 83.

Adapter-Power Supply

This cable allows the unit to be connec-

ted up to the car's cigarette lighter.

The power supply must satisfy the follo-

wing requirements:

• DC current 12-36 volts

1.5 amps

Battery

When the replaceable battery is flat, it

can be recharged by connecting the

Traffic Assist Pro to the power supply.

Use the car adapter to connect the unit to

an on-board power socket in the vehicle,

the mains charger to connect to the

mains power supply (100-240V) or the

USB cable to connect to a PC.

SD memory card

A SD memory card serves as a storage

medium for road maps, music tracks and

images.

The card supplied with the unit has a

capacity of 2 GB and space for a set of

road maps and a limited number of MP3

files and/or images. The number of

music/image files that can be stored on

the card depends on the size of the files.

Alternatively, you can connect a USB

memory stick to the USB port to play

MP3 files or display images.

When removed from the unit, store the

SD memory card in the packaging

provided in a dry location away from

direct sunlight. Avoid touching the

contact strip and keep clean at all times.

• Further information on the SD me-

mory card can be found in See “SD

Card” on page 78.

USB connection cable

You can connect the unit to a standard

personal computer with a USB interface

using a USB connecting cable. You can

also charge the Traffic Assist Pro using

the USB cable.

Note:

Using USB memory sticks to play MP3

files or display images may

significantly decrease the capacity of

the battery.

Note:

Using USB memory sticks (for MP3s)

may interfere with the GPS signal.

Accessories

mains charger

This power supply allows connection of

the Traffic Assist Pro to a mains outlet

(not included in standard equipment).

Please consult your

local specialist dealer.

Requirements for power supply:

Alternating current

•100-240V

0.5 Amps

•50-60Hertz

External GPS antenna

Vehicles with limited GPS reception can

be fitted with an external antenna (not

included in standard equipment) to im-

prove the reception. Please consult your

local specialist dealer.

Headset

When using the Traffic Assist Pro as an

MP3 player, commercially available

headphones with a 3.5 mm jack or adap-

ter can be connected (not included).

Information about

documentation

Quick start guide

The Quick Start Guide is designed to

provide a brief introduction to operating

your Traffic Assist Pro. The most impor-

tant basic functions of the Traffic Assist

Pro are explained in the Quick Start Gui-

de.

Operating instructions

A comprehensive explanation of the

Traffic Assist Pro functionalities is con-

tained in these operating instructions.

Maintenance and care

Note:

The integrated GPS antenna is not

suitable for use in vehicles with anti-

glare windows (metalised thermo-glass

or metal foil, indicated by the window

label - SIGLA SOL, SIGLA CHROM,

SIGLA, KOOL-OF, SUNGATE, etc.)

and vehicles with fine-meshed heating

wires in the windows.

If this is the case, use an external GPS

antenna. Please consult your local

specialist dealer.

Danger!

Headsets must not be worn during tra-

vel. Observe national regulations and

legislation on this matter.

When using the headset, lower the vo-

lume so that your hearing is not dama-

ged.

Note:

Do not use aggressive or abrasive

agents or cloths which will scratch the

surface.

The unit must not be sprayed with wa-

ter.

Table des matières

Autres manuels Becker GPS

Becker

Becker Traffic Assist Z 102 Manuel utilisateur

Becker

Becker TRAFFIC ASSIST Z101 Manuel utilisateur

Becker

Becker Active 43 Series Manuel utilisateur

Becker

Becker TRAFFIC ASSIST Manuel utilisateur

Becker

Becker Highspeed 7934 Manuel utilisateur

Becker

Becker Traffic Assist Z 112 Manuel utilisateur

Becker

Becker Traffic Assist Pro Z 250 Manuel utilisateur

Becker

Becker MR 109 Series Manuel utilisateur

Becker

Becker TRAFFIC ASSIST HIGHSPEED Manuel utilisateur

Becker

Becker TRAFFIC STAR NAVIGATION Manuel utilisateur

Becker

Becker Traffic Assist Z 200 Manuel utilisateur

Becker

Becker Traffic Assist Z 201 Manuel utilisateur

Becker

Becker TRAFFIC ASSIST 7827 Manuel utilisateur

Becker

Becker BE7977 Manuel utilisateur

Becker

Becker Z 302 Instructions d'utilisation et d'installation

Becker

Becker MAP PILOT Manuel utilisateur

Becker

Becker GPS Navigator Manuel utilisateur

Becker

Becker Traffic Assist Z 098 Manuel utilisateur

Becker

Becker MAP PILOT Manuel utilisateur

Becker

Becker MAP PILOT Manuel utilisateur

Becker

Becker GPS Navigator Manuel utilisateur

Becker

Becker TRAFFIC ASSIST 7977 Manuel utilisateur

Becker

Becker MAP PILOT Manuel utilisateur

Becker

Becker Highspeed 7934 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
