Quick Start Guide

BEC 4700A / 4700AZ

(4G/LTE) Wireless Outdoor Router

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router

Package Contents

✓BEC Outdoor Router x 1

✓M25 Cable Gland x 2

✓2.4G Wi-Fi Antennas x 2

✓This Quick Guide x 1

✓Outdoor LAN Cable x 1

✓5G Wi-Fi Antennas x 4

✓Gigabit PoE Injector x 1

✓Grounding Wire x 1

✓The Mounting Kit x 1

❖PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER MANUAL.

❖INDUSTRIAL SIM IS RECOMMEND! (BEC 4700AZ)

Quick Start Guide

Hardware Overiew (BEC 4700AZ)

PORT & LED

MEANING

WIFI Antenna

Connectors

(2.4GHz)

Screw the supplied 2.4GHz antennas onto the antenna connectors on both sides.

RESET

After the device is powered on, press it 6 seconds or above: to restore to factory

default settings (this is used when you cannot login to the router, e.g. forgot your

password)

SIM Card Slot

Insert the mini SIM card (2FF) with the gold contact facing down.

Push the mini SIM card (2FF) inwards to eject it

* Power off the BEC 4700AZ before inserting or removing the SIM card(s)

2.4GHz WIFI LED

Green

Wireless connection established

Blinking

Data being transmitted / received

5GHz WIFI LED

Green

Wireless connection established

Blinking

Data being transmitted / received

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router

PORT & LED

MEANING

LTE LED

(Received

Signal Strength

Indicator)

Green

RSSI greater than -69 dBm. Excellent signal condition

Green Flashing Quickly

RSSI from -81 to -69 dBm. Good signal condition

Orange Flashing Quickly

RSSI from -99 to -81 dBm. Fair signal condition

Orange Flashing Slowly

RSSI less than -99 dBm. Poor signal condition

Orange

No signal and the 4G LTE module is in service

Off

No LTE module or LTE module fails

Power LED

Green

System is up and ready

Red

Boot failure

Internet LED

Green

IP connected; WAN connection is ready

Red

IP request failed

Off

Either in bridged mode or WAN connection is not available

Gb Ethernet

WAN

Use an outdoor Ethernet cable to connect to an internet device.

Note: The Ethernet WAN port is a configurable LAN/WAN port, which automatically becomes an

Ethernet WAN port when the internet interface is being configured in the GUI.

Green

Transmission speed is at Gigabit speed (1000Mbps)

Orange

Transmission speed is at 10/100Mbps

Blinking

Data being transmitted/received

Gb Ethernet

LAN/PoE

LAN & PoE interface. Connect to the supplied 802.3at Gb PoE injector to provide

power & data

Green

Transmission speed is at Gigabit speed (1000Mbps)

Orange

Transmission speed is at 10/100Mbps

Blinking

Data being transmitted/received

WIFI Antenna

Connectors

(5GHz)

Screw the supplied Wi-Fi antennas onto those 4 antenna connectors.

Quick Start Guide

Hardware Overiew (BEC 4700A)

PORT & LED

MEANING

WIFI Antenna

Connectors

(2.4GHz)

Screw the supplied 2.4GHz antennas onto the antenna connectors on both sides.

RESET

After the device is powered on, press it 6 seconds or above: to restore to factory

default settings (this is used when you cannot login to the router, e.g. forgot your

password)

2.4GHz WIFI LED

Green

Wireless connection established

Blinking

Data being transmitted / received

5GHz WIFI LED

Green

Wireless connection established

Blinking

Data being transmitted / received

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router

PORT & LED

MEANING

Power LED

Green

System is up and ready

Red

Boot failure

Internet LED

Green

IP connected; WAN connection is ready

Red

IP request failed

Off

Either in bridged mode or WAN connection is not available

Gb Ethernet

LAN

Use an outdoor Ethernet cable to connect to an Ethernet equipment.

Green

Transmission speed is at Gigabit speed (1000Mbps)

Orange

Transmission speed is at 10/100Mbps

Blinking

Data being transmitted/received

Gb Ethernet

WAN/PoE IN

WAN & PoE interface. Connect to the supplied 802.3at Gb PoE injector to provide

power & data.

Green

Transmission speed is at Gigabit speed (1000Mbps)

Orange

Transmission speed is at 10/100Mbps

Blinking

Data being transmitted/received

WIFI Antenna

Connectors

(5GHz)

Screw the supplied Wi-Fi antennas onto those 4 antenna connectors.

Quick Start Guide

Mounting Kit Installation

Mounting Kit includes:

1. Articulation Pole x 1

2. T-formed Bracket x 1

3. M8x40 Screw Bolt x 1

4. M8 Nut x 1

5. M8 Washer x 1

6. M6 Washer x 4

7. M8 Spring Washer x 1

8. M6 Spring Washer x 4

9. M6x16 Screw x 4

For Wall Mount Installation, you will

need:

10. Wood Screw x 4

11. Wood / Gyprock x 4

For Pole Mount Installation, you

will need:

12. W-Bar x 1

13. Stainless Hose Clamp x 2

14. M6 x 60 Screw Bolt x 2

15. M6 Washer x 2

16. Spring Washer x 2

T-form Bracket x 1

Articulation Pole x 1

M8x40 Screw Bolt x 1

Wood Screw x 4

Wood / Gyprock Plug x 4

Spring Washer M6 x 2

M6 Washer x 2

M6 x 16 Screw x 4

M8 Nut x 1

Spring Washer M8 x 1

Spring Washer M6 x 4

M8 Washer x 1

M6 Washer x 4

M6 x 60 Screw Bolt x 2

W-Bar x 1

Stainless Hose Clamp 1”~3” x 2

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router

1. Attach the Articulation Pole to the Enclosure

Attach the articulation pole to the back of the BEC 4700A/4700AZ ODU enclosure using the

supplied M6 screws, M6 spring washers and M6x16 screws which are included in the

mounting kit.

Tool Advice :

Use #10 HEX. Wrench to

tighten or loosen the

bolt(s).

od /

pro

Plu

od /

pro

Plu

M6 Washer

M6 Spring Washer

n21

a11

rT-formed Bracket

M6x16 Screw

Quick Start Guide

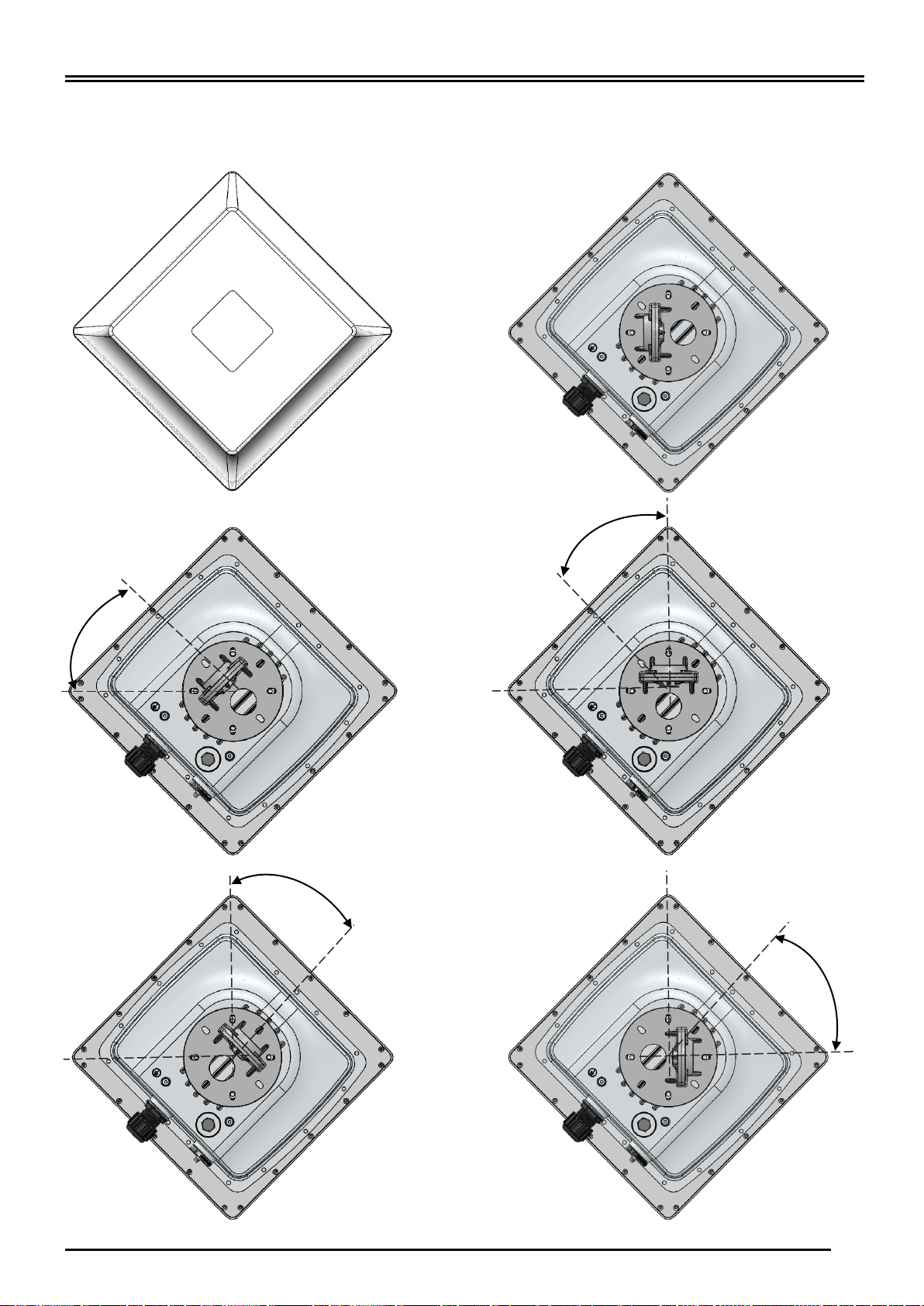

Note: The flexible mounting kit can be adjusted in multiple angles to align with the base station

for higher efficiency.

45∘

∘

45∘
