Beamreach networks BeamPlex BRU-100 Mode d’emploi

BeamPlex

BRU-100 and BRU-150

Remote Unit

Installation and

Maintenance

Service Utilities

1106333-01

Rev. 3

Nov. 2003

Legal Notices

This document is published in association with the products of BeamReach Networks Incorporated.

Due to ongoing product development and improvements, BeamReach Networks makes no

representations or warranties with respect to the accuracy or completeness of this document and

reserves the right to make changes without notice.

Patents

Products and technologies described herein include those covered by one or more U.S. patents owned

by BeamReach Networks Incorporated.

Copyrights

copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-

readable form without prior written consent from BeamReach Networks Incorporated.

Printed in the United States of America.

Trademarks

BeamPlex and Adaptive MultiBeam OFDM are trademarks of BeamReach Networks Incorporated.

All other brand names are trademarks of their respective holders.

Revision History

Document number 1106333-01

This document applies to System Software versions subsequent to that which is listed here, unless the

document is reissued due to software feature upgrades. The software release notes will indicate the

applicable document revision level.

BeamReach Networks

755 North Mathilda Ave.

Sunnyvale, CA 94086

408.869.8700

www.BeamReachNetworks.com

Revision Status Revision Level Date System Release

Pre-Production Rev 1 April 2003 1.1

Pre-Production Rev 2 June 2003 1.1

Pre-Production Rev 3 November 2003 1.1

1106333-01 Pre-Production iii

Revision 3

Table of Contents

Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Scope and Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote Unit Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote Unit Service Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

BRU Installation Tool (BRUIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

BRU Status Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

BRU-150 Transceiver Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

BRU-150 Self-Install Remote Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

BRU-100 Professional Install Remote Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 2 – Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Service Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Service Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Software Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Service Order File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

BRU-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

BRU-150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Equipment and Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 3 – Installation Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

BRU-150 Pre-Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Antenna Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installation Tool Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Step 1 Physical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

LAN Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Step 2 Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Step 3 Status Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

BRU Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

BRU Software Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Step 4 Antenna Pointing Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Calculate Base Station Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Remote Unit Installation

Service Utilities Table of Contents

1106333-01 Pre-Production iv

Revision 3

Step 5 Antenna Pointing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Background Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Working the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Signal Strength Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Message Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Step 6 Service Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Step 7 IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Step 8 Installation Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Other Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Default Configuration Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Shortcut Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Chapter 4 – Status Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Status Monitor Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Signal Strength Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

IP Address Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Appendix A – Remote Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Functional Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

User Throughput . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Antenna Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Environmental Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

1106333-01 Pre-Production v

Revision 3

List of Figures

Chapter 1 – Introduction

Figure 1-1 Remote Unit Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 1-2 Transceiver Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 1-3 Transceiver Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 2 – Preparation

Figure 2-1 Service Order File Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

vi Pre-Production 1106333-01

Revision 3

1106333-01 Pre-Production 1

Revision 3

CHAPTER

Introduction

In This Chapter:

 Overview, page 2

 Remote Unit Service Utilities, page 5

 BRU-150 Transceiver Features, page 6

 Installation Overview, page 8

 Reference Documents, page 9

This chapter introduces the service utilities for the

BRU-100 and BRU-150 Remote Unit. It also provides

reference information regarding the installation

process.

Ch. 1 Introduction Remote Unit Installation

Overview Service Utilities

2 Pre-Production 1106333-01

Revision 3

Overview

This section describes the intended use of this document and introduces

the service utilities used for remote unit installation and maintenance.

A remote unit is the subscriber termination equipment for the BeamPlex

broadband wireless access system. It communicates with its associated

base station through an RF signal path; and it communicates with the

subscriber’s computer through an Ethernet cable.

The service utilities are used to set configuration parameters, initiate the

phases of service activation, and monitor the status of a remote unit.

Scope and Purpose

The service utilities are applicable for professional installation and

diagnosis of both the BRU-150 and BRU-100 models of remote unit, which

are described below. Both models are designed with the same electronics so

the service utilities will work with either one of them.

Caution: Read the section BRU-150 Self-Install Remote Unit on page 8

about required configuration before delivery to the subscriber.

This document is primarily for technicians who perform a manual BRU-

150 installation. The BRU-150 is designed for subscriber self-installation.

If the subscriber encounters problems during or after self-installation,

technicians will use these service utilities to resolve the problems.

For system release 1.1, the existing installation manuals listed in the

section Reference Documents on page 9 accurately describe the physical

installation process. However, the BRU-100 documents describe the use of

the RIT (Remote Unit Installation Tool) which has now been replaced by

the service utilities described here. Installers should use this document for

configuring the BRU-100 until the installation manuals have been revised.

Remote Unit Installation Ch. 1 Introduction

Service Utilities Overview

1106333-01 Pre-Production 3

Revision 3

Important Notices

Warning: This device is a radio frequency transmitter. It is required to comply

with FCC RF exposure requirements for transmitting devices. A

minimum separation distance of 8 inches (20 cm) or more must be

maintained between the antenna and all persons during device

operations to ensure compliance with the FCC's rules for Radio

Frequency Exposure. If this minimum distance cannot be

maintained, exposure to RF levels that exceed the FCC's limits may

result. This equipment must not be co-located with any other

transmitting antenna.

Note: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and the receiver.

– Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Note: Any changes or modifications to this equipment that are not

approved by BeamReach Networks could void your authority to

operate the equipment if such changes or modifications affect the

regulatory compliance specified in Appendix A.

Remote Unit Models

The BeamPlex Broadband Wireless Access System offers two models of

remote units for CPE, as shown in Figure 1-1:

Ch. 1 Introduction Remote Unit Installation

Overview Service Utilities

4 Pre-Production 1106333-01

Revision 3

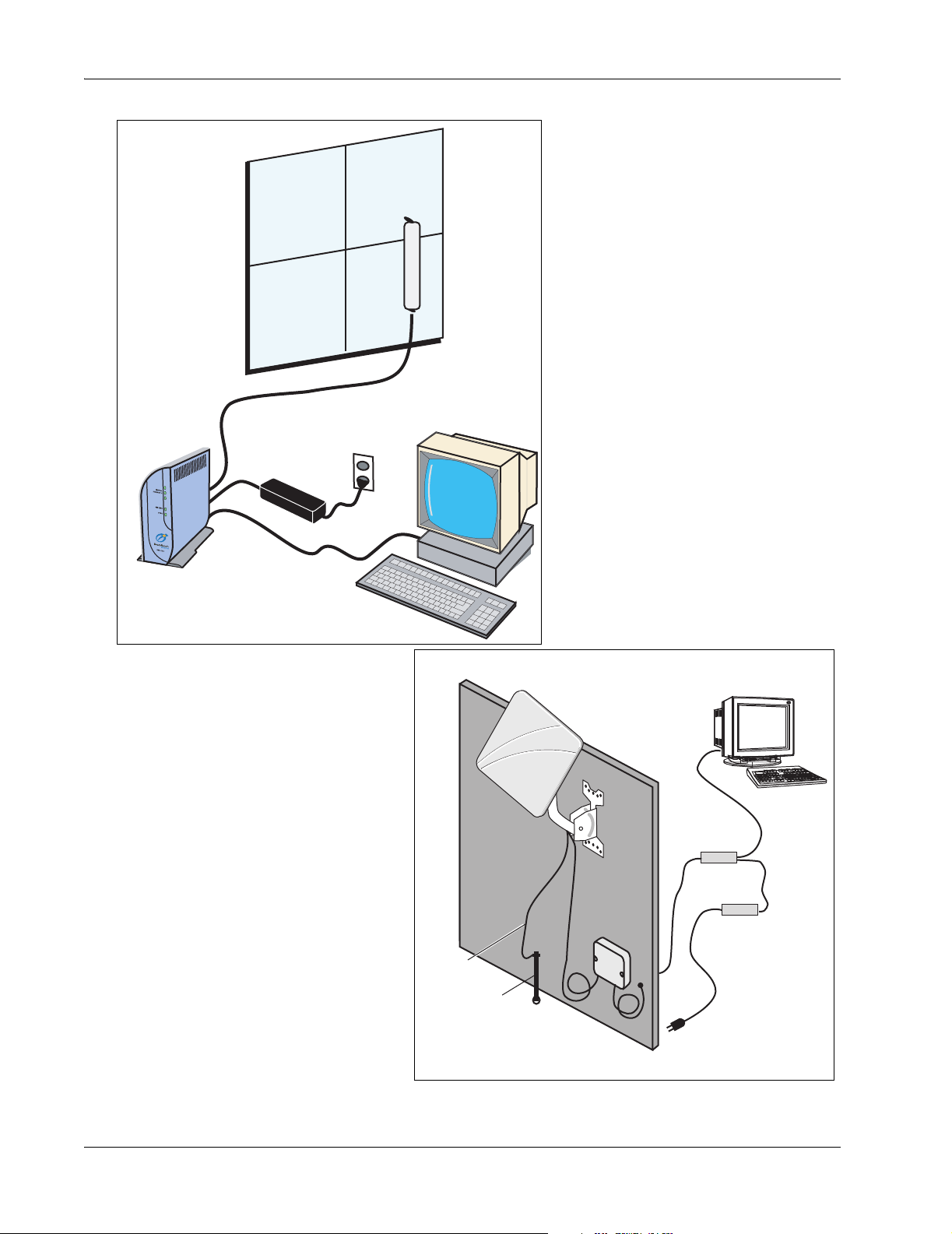

Figure 1-1 Remote Unit Models

SD 008

Power

Adapter

BRU-150

Transceiver

Antenna

BRU-150

BRU-100

SD 017

Outdoor Unit

(ODU)

Service

Interface Box

(optional)

Power Injector

Power Adapter

Ground

Wire

Ground Rod

Self-install, Indoor Unit

Professional-install, Outdoor Unit

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Beamreach networks Système de microphone

Beamreach networks

Beamreach networks BeamPlex BRU-150 Manuel utilisateur

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
