BEA IXIO-DT1 Manuel utilisateur

IXIO-DT1

20.5349

75.5751.12 IXIO-DT1 20230913 Page 1 of 12

MOTION AND PRESENCE SENSOR FOR

AUTOMATIC SLIDING DOORS

ENGLISH

Visit website for

available languages of

this document.

1. cover

2. LED window

3. radar antenna

4. AIR curtain width adjustment

5. LCD

6. AIR lenses

7. AIR curtain angle adjustment knob

8. main adjustment knob

9. main connector

DESCRIPTION

This device can be expected to comply with Part 15 of the FCC Rules, provided it is assembled in exact accordance with the instructions

provided with this kit. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause undesired operation.

10ICA

Ceiling accessory

10CDA

Curved door accessory

10IMB

Bracket accessory

35.1609: black cover

35.1302: white cover

35.1303: silver cover

10URA

Universal rain accessory

10IXIOSPACER

Spacer

ACCESSORIES

Download the BEA DECODER app

for a quick overview of settings

Page 2 of 12 75.5751.12 IXIO-DT1 20230913

INSTALLATION

The sensor should

be mounted securely

to avoid extreme

vibrations.

Avoid highly reﬂective

objects in the infrared

ﬁeld.

Avoid moving objects

and light sources in the

detection ﬁeld.

Do not cover the sensor.

Only trained and

qualiﬁed personnel

are recommended for

installation and setup of

the sensor.

The warranty is invalid if

unauthorized repairs are

made or attempted by

unauthorized personnel.

Following installation,

always test for proper

operation (according

to ANSI 156.10) before

leaving the premises.

The door control unit

and the header cover

proﬁle must be correctly

grounded.

SAFETY

It is recommended to clean

the optical parts at least once

a year or more if required due

to environmental conditions.

Do not use aggressive

products to clean

the optical parts.

MAINTENANCE

READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SETUP

BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or incorrect adjustments of the sensor/device;

therefore, BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose.

BEA, Inc. strongly recommends that installation and service technicians be AAADM-certiﬁed for pedestrian doors, IDA-certiﬁed for doors/

gates, and factory-trained for the type of door/gate system.

Installers and service personnel are responsible for executing a risk assessment following each installation/service performed, ensuring

that the sensor/device system performance is compliant with local, national, and international regulations, codes, and standards.

Once installation or service work is complete, a safety inspection of the door/gate shall be performed per the door/gate manufacturer’s

recommendations and/or per AAADM/ANSI/DASMA guidelines (where applicable) for best industry practices. Safety inspections must

be performed during each service call – examples of these safety inspections can be found on an AAADM safety information label (e.g.

ANSI/DASMA 102, ANSI/DASMA 107, UL294, UL325, and International Building Code).

Verify that all appropriate industry signage, warning labels, and placards are in place.

BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS

75.5751.12 IXIO-DT1 20230913 Page 3 of 12

TECHNOLOGY / PERFORMANCE

Detection mode: Motion

minimum detection speed: 2 in/s

Presence

typical response time: < 200 ms (max: 500 ms)

Technology: Microwave doppler radar

Transmitter frequency: 24.150 GHz

Transmitter radiated power: < 20 dBm EIRP

Transmitter power density: < 5 mW/cm2

Active infrared with background analysis

Spot: 2” × 2” (typ)

Number of spots: max. 24 per curtain

Number of curtains: 2

Mounting height: 6’6” – 11’6”

local regulations may impact acceptable mounting height (pedestrian applications only)

Sensor temperature

range:

-13 – 131 °F *

0 – 95% relative humidity, non-condensing

LCD screen is operational from 14 – 131 °F.

The sensor may still be programmed in colder temperatures, but with the remote control.

ELECTRICAL

Output

Relay 1 Electromechanical relay (potential and polarity free)

Max. contact current: 1 A

Max. contact voltage: 30 VAC

Adjustable hold time: 0.5 – 9 s

Relay 2 Solid-state relay (potential and polarity free)

Max. contact current: 100 mA

Max. contact voltage: 42 VDC / 30 VAC

Test/Monitoring

input:

Sensitivity:

Low: < 1 V

High: > 10 V (max. 30 V)

Response time on test request: typical < 5 ms

Supply voltage: 12 – 24 VAC ±10%

12 – 30 VDC ±10%

to be operated from SELV-compatible power supplies only

Power consumption: < 2.5 W

Noise: < 70 dB

PHYSICAL

Degree of protection: IP54

COMPLIANCE

FCC certiﬁcation: FCC: G9B-100606

IC: 4680A-100606

Compliance: ISO 13849 PL «c» CAT. 2

(under the condition that the door control system monitors the sensor at least once per door cycle)

TECHNICAL SPECIFICATIONS

Speciﬁcations are subject to change without prior notice.

All values measured in speciﬁc conditions.

...

Page 4 of 12 75.5751.12 IXIO-DT1 20230913

To adjust contrast, push and turn

the grey button simultaneously.

During normal function only.

Negative display = active output

= scroll = select

3) Select language before entering the ﬁrst LCD menu.

During the ﬁrst 30 seconds after power-on of the

sensor or later in the diagnostics menu.

Select Back to

return to previous

menu or display.

Select More to go to next level:

- basic settings (MENU 1)

- advanced settings (MENU 2)

- diagnostics (MENU 3)

1) Push to enter the LCD menu.

1) Navigate to menu 3 (Diagnostics). 2) Select "ZIP code". 3) Change the code as desired.

displayed value

factory value

displayed value

saved value

Activation

impulse

Safety

2) Enter password, if necessary.

Not during the ﬁrst minute after

power-on of the sensor.

Password

XX X X

ZIP code

To activate the new ZIP code, you must validate the last digit (see below):

v = valid ZIP code (values will be changed accordingly)

x = invalid ZIP code (no values will be changed)

v/x = valid ZIP code, but from a different product

*only available values

will be changed*

ZIP code

H24 1 56-KG4

01 0 800/02F

ZIP code

ID #

ZIP code

E24 1 56-KG4

01 0 800/02F

ZIP code

E24 1 56-KG4

01 0 800/02F

ZIP code

E24 1 56-KG4

01 0 800/02F

ZIP code

H24 1 56-KG4

01 0 800/02F

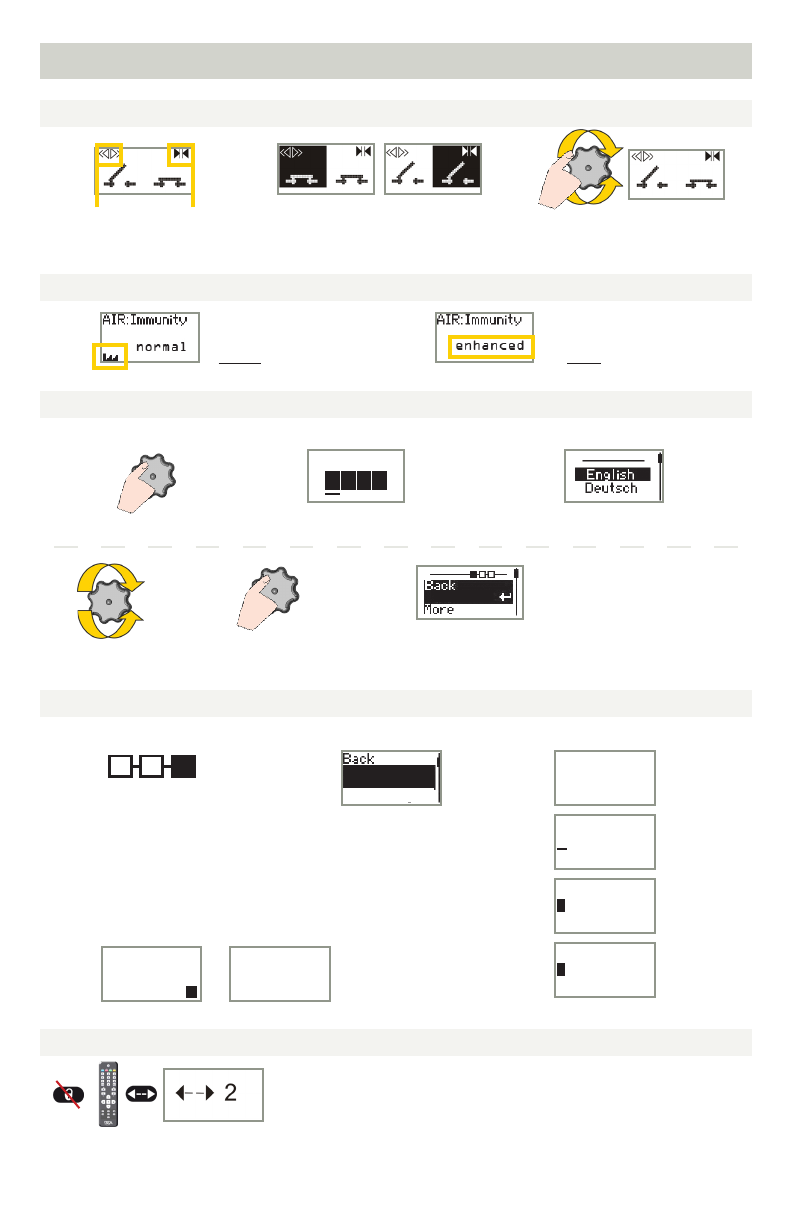

HOW TO USE THE LCD

DISPLAY DURING NORMAL FUNCTION

FACTORY VALUE VS. SAVED VALUE

NAVIGATING IN MENUS

CHANGING A ZIP CODE

VALUE CHECK WITH REMOTE CONTROL

See application note on ZIP CODE (76.0024).

Pressing a parameter symbol on your remote control displays the saved value

directly on the LCD screen. Additionally, the green LED will blink the number

of times that the parameter is set to. Do not unlock ﬁrst.

Note: When querying FIELD SHAPE, the green LED will blink the number of

times that it is set to, and then the green LED will blink either 1 time (narrow

shape) or 2 times (wide shape).

75.5751.12 IXIO-DT1 20230913 Page 5 of 12

* The sensor LED will brieﬂy ﬂash RED during monitoring communication with door control, indicating that

external monitoring is functional. Monitoring functionality must be active on the sensor, door control, and

monitoring wires must be properly connected to the door control.

Mounting is compatible with the WIZARD.

Using the provided mounting template, mount the sensor, ensuring that the bottom of the sensor is

within 2 inches of the bottom of the door header.

Refer to Application Note 76.0035 if an IXIO Spacer is required for the given application.

Route the harness (20.5349) using the harness clip as shown in the exploded view of the mounting

illustration.

MOUNTING

RED

SENSOR

DOOR CONTROL

BLACK

BROWN

BLUE

WHITE (COM)

YELLOW (N.C)

GREEN (N.O.)

PURPLE

POWER SUPPLY

SAFETY INPUT

TEST OUTPUT*

OPENING INPUT

Sensor connectivity (power and relays) must utilize only the supplied harness.

Sensor power must be supplied from a Class 2 supply source limited to 15 W.

Sensor is intended to be monitored for proper operation by the door operator or system.

Harness shall be routed separated from any Mains or non-Class 2 voltage cable for correct operation or shall be rated for the Mains

voltage, and suitable protection and routing means shall be used according to National and Local Codes to prevent damage to the

harness and/or IXIO sensor.

WIRING

max. 2 in

MOUNTING & WIRING

VOLTAGE

Power: 12 – 24 VAC, 50/60 Hz

12 – 30 VDC

2.5 W (max)

Test: low: < 1 V

high: > 10 V (30 V max.)

response time: typ. < 5 ms

Page 6 of 12 75.5751.12 IXIO-DT1 20230913

RADAR OPENING IMPULSE FIELD

ANGLE

ﬁeld size: 9

immunity: 2

ﬁeld size: 9

immunity: 2

The size of the detection ﬁeld varies according to the mounting height of the sensor.

The following graphics are representations – not default settings.

from 15° to 45°, default 30 °

from -15° to 15°, default 0°

WIDTH

ﬁeld size: 9

immunity: 2

ﬁeld size: 9

immunity: 2

13’ x 6’6" (wide)

6’6" x 8’ (narrow)

1 × 1 grid is approximately 3.28 ft × 3.28 ft.

7.2 ft

green LED = motion

detection

75.5751.12 IXIO-DT1 20230913 Page 7 of 12

INFRARED SAFETY FIELD

If necessary, adjust the AIR curtain angle

(from -7° to 4°, default 0°).

Activate the visible spots to verify the position of the AIR curtain.

Visibility depends on external conditions. When spots are not visible, use

the Spotﬁnder to locate the curtains.

ANGLE

DOOR

max. 3 in

The distance between the inner curtain of the inside

door sensor and the inner curtain of the outside

door sensor should always be smaller than 8 in.

C1 = closest to sliding door

C2 = farthest from sliding door

Part of the detection ﬁeld can be masked to reduce its width. The arrow position determines the width of the detection ﬁeld.

The size of the detection ﬁeld varies according to the mounting height and the settings of the sensor.

Wide setting has 1:1 ratio. For example, a 6-foot mounting height will project a 6-foot detection width at ﬂoor.

WIDTH

Always verify the actual detection ﬁeld width by walk-testing according to ANSI 156.10.

Additional adjustments are possible by LCD or remote control

(see OVERVIEW OF SETTINGS).

CLOSERCLOSER

AWAYAWAY

red LED = presence

detection

green LED = motion

detection

2 s

4 s

Page 8 of 12 75.5751.12 IXIO-DT1 20230913

BASICADVANCEDDIAGNOSTICSDIAGNOSTICS

SETUP

Set up the sensor using either push-buttons or the remote control.

TEST THE PROPER OPERATION OF THE INSTALLATION BEFORE LEAVING THE PREMISES!

SETUP 1 QUICK

SETUP 2 ASSISTED

test of full door cycle + reference picture

either hold the knob for 2 seconds, or use the remote

control buttons as speciﬁed

either hold the knob for 4 seconds, or use the remote

control buttons as speciﬁed

STEP OUT OF THE INFRARED FIELD!

LED ﬂashes red-green

0 987654321

75.5751.12 IXIO-DT1 20230913 Page 9 of 12

all parameter settings in zipped format (see application note on ZIP CODE –76.0024)

unique ID-number

last 10 errors + day indication

view of spot(s) that trigger detection

signal amplitude received on curtain

signal amplitude received on curtain 2

supply voltage at power connector

power duration since ﬁrst startup

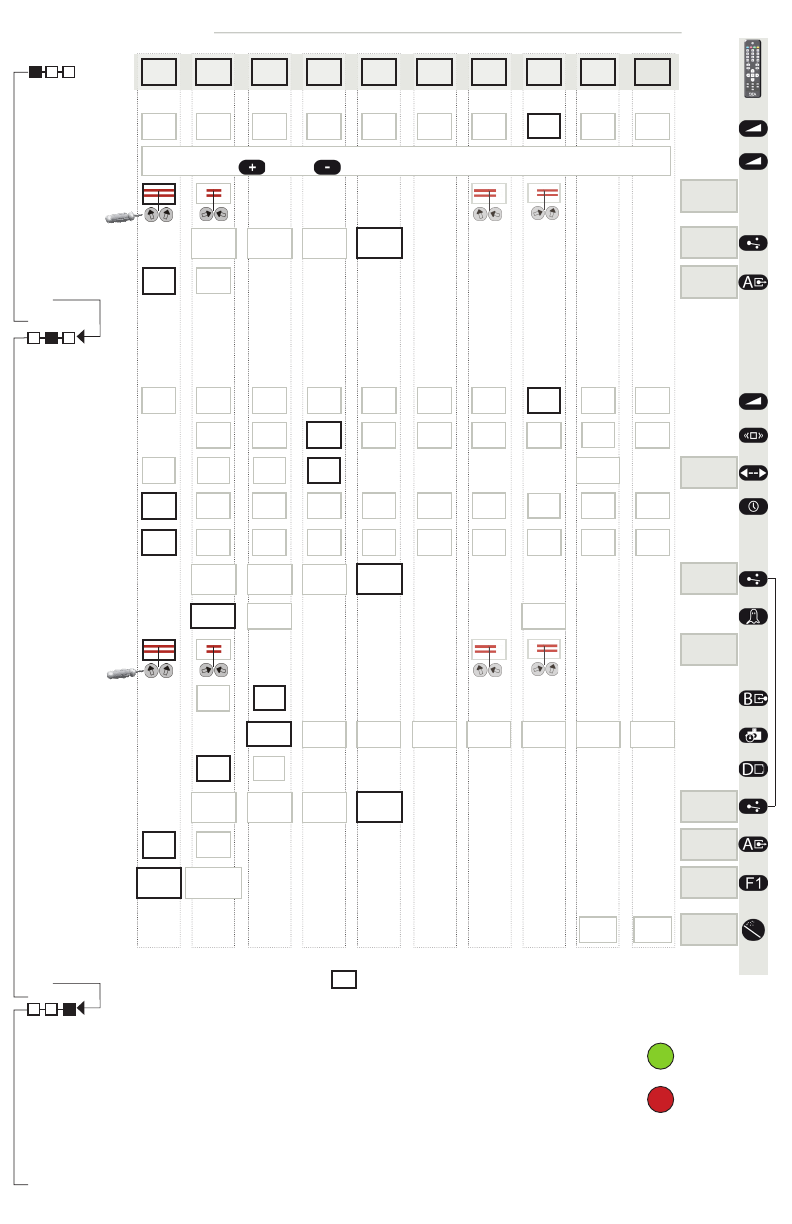

OVERVIEW OF SETTINGS

Back

RAD: FIELDSIZE

RAD: SHAPE

RAD: FIELDSIZE

RAD: IMMUNITY

RAD: DIRECTION

RAD: HOLDTIME

RAD: REENTRY

RAD: OUTPUT

AIR: WIDTH

AIR: OUTPUT

TEST

BASICADVANCEDDIAGNOSTICS

factory value

RC BUTTONS

see note 1

see note 2

see note 3

see note 4

see note 2

see note 3

see note 5

see note 6

see note 1

small

0.5 s

8 s

highlow

large

LCD: "narrow" and "wide" setting options (default = wide)

Remote Control: = wide, = narrow

large

9 s

> >

6 s

7 s

5 s

4 s

3 s

1 s

2 s

MTFunioff bi

onoff

AIR: IMMUNITY

AIR: WIDTH

AIR: NUMBER

AIR: FREQ

AIR: OUTPUT

TEST

REDIRECTION

FACTORY RESET

AIR: PRESENCE TIME

ZIP CODE

ID #

CONFIG P/N

SOFT P/N

ERROR LOG

AIR: SPOTVIEW

AIR: C1 ENERG

AIR: C2 ENERG

POWERSUPPLY

OPERATINGTIME

RESET LOG

PASSWORD

ADMIN

delete all saved errors

LCD and remote control password (0000= no password)

enter code to access admin mode

normal

60 min

full

reset

inﬁnte

partial

reset

10 min

mode B

20 min5 min2 min1 min

enhanced

30 s

R1 MW or IR

R2 IR

off

R1 MW

R2 IR

DeEner/NO

Energ/NC

DeEner/NO

DIAGNOSTICS

(green)

motion

(red)

presence

uni +

reentry

Page 10 of 12 75.5751.12 IXIO-DT1 20230913

OVERVIEW OF SETTINGS (cont.)

NOTES

Note 1 Always use a screwdriver when making further AIR adjustments to the arrow position on the

sensor.

Note 2 RADAR AIR

NO = normally open

NC = normally closed

DeEner = de-energized relay (active)

Energ = energized relay (passive)

NO = normally open

NC = normally closed

Note 3 The sensor LED will brieﬂy ﬂash RED during monitoring communication with door control. This

indicates that external monitoring is functional.

Monitoring functionality must be active on the sensor and door control, and monitoring wires

must be properly connected to the door control.

Note 4 MTF = uni-directional with motion-tracking feature

uni + reentry: BEA recommends only adjusting using the LCD

Note 5 REDIRECTION setting (F1 on remote control):

R1-MW, R2-IR (F1=0):

R1 = MW (i.e. motion detection)

R2 = IR (i.e. presence detection)

R1-MW or IR, R2-IR (F1=1):

R1 = MW or IR (i.e. motion or presence detection)

R2 = IR (i.e. presence detection)

Note 6 partial: outputs are not reset

Autres manuels pour IXIO-DT1

Table des matières

Autres manuels BEA Capteur de sécurité

BEA

BEA LZR FLATSCAN SW Manuel utilisateur

BEA

BEA IXIO-SO1 I Manuel utilisateur

BEA

BEA Matrix2-S Manuel utilisateur

BEA

BEA FALCON Manuel utilisateur

BEA

BEA CRYSTAL Manuel utilisateur

BEA

BEA FALCON EXXL Manuel utilisateur

BEA

BEA MATRIX-3 Manuel utilisateur

BEA

BEA EAGLE X-MTF Manuel utilisateur

BEA

BEA FLY Manuel utilisateur

BEA

BEA Eagle5 Manuel utilisateur

BEA

BEA LZR FLATSCAN S Manuel utilisateur

BEA

BEA LZR-FLATSCAN SW Manuel utilisateur

BEA

BEA IXIO-ST INDUSTRIAL Manuel utilisateur

BEA

BEA IXIO-SO1 I Manuel utilisateur

BEA

BEA G3 Manuel utilisateur

BEA

BEA ACTIV8 ONE ON Manuel utilisateur

BEA

BEA IXIO Series Manuel utilisateur

BEA

BEA IXIO-S CAN Manuel utilisateur

BEA

BEA LZR- FLATSCAN REV-PZ Manuel utilisateur

BEA

BEA LZR-FLATSCAN 3D SW Manuel utilisateur

BEA

BEA PHOENIX EX Manuel utilisateur

BEA

BEA LZR-WIDESCAN Manuel utilisateur

BEA

BEA IXIO-DT1 Manuel utilisateur

BEA

BEA IXIO-DT3 Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur
