BEA COLIBRI ONE DRO Manuel utilisateur

COLIBRI ONE

TWO DRO

Speciﬁcations are subject to changes without prior notice.

Measured in speciﬁc conditions

TECHNICAL SPECIFICATIONS

DESCRIPTION

Opening sensors for automatic doors

Technology:

Transmitter frequency:

Transmitter radiated power:

Transmitter power density:

Detection mode:

Min. detection speed:

Supply voltage:

Mains frequency:

Max. power consumption:

Output:

Max. contact current:

Max. contact voltage:

Mounting height:

Degree of protection:

Temperature range:

Dimensions:

Tilt angles:

Material:

Weight:

Cable length:

microwave doppler radar

24.150 GHz

< 20 dBm EIRP

< 5 mW/cm²

motion

5 cm/s (measured in sensor axis)

12 V to 24 V DC +30% / -10% (The Equipment must be powered by a SELV limited power

source ensuring double insulation between primary voltages and the Equipment supply. The supple

current should be limited to 1.5 A.)

50 to 60 Hz

< 2 W

250 mA

50 V DC/V AC

from 1.8 m to 3 m

IP54

from -20 °C to + 55 °C

80 mm (W) x 60 mm (H) x 50 mm (D)

0° to 90° vertical; -30° to +30° lateral

ABS & polycarbonate

70 g

2.5 m

Other use of the device is outside the permitted purpose and can not

be guaranteed by the manufacturer.

The manufacturer cannot be held responsible for incorrect installations

or inappropriate adjustments of the sensor.

Please keep for further use

Designed for colour printing

1. main connector

2. potentiometer for ﬁeld size adjustment

3. LED

4. radar antenna (wide ﬁeld)

5. cover

User’s Guide for software version 0100 and higher

(refer to tracking label on product)

COLIBRI ONE DRO : Unidirectional detection

COLIBRI TWO DRO : Bidirectional detection

Before ﬁxing After ﬁxing

Avoid proximity to neon

lamps or moving objects.

Do not cover the sensor.Avoid vibrations.Do not touch electronical

parts.

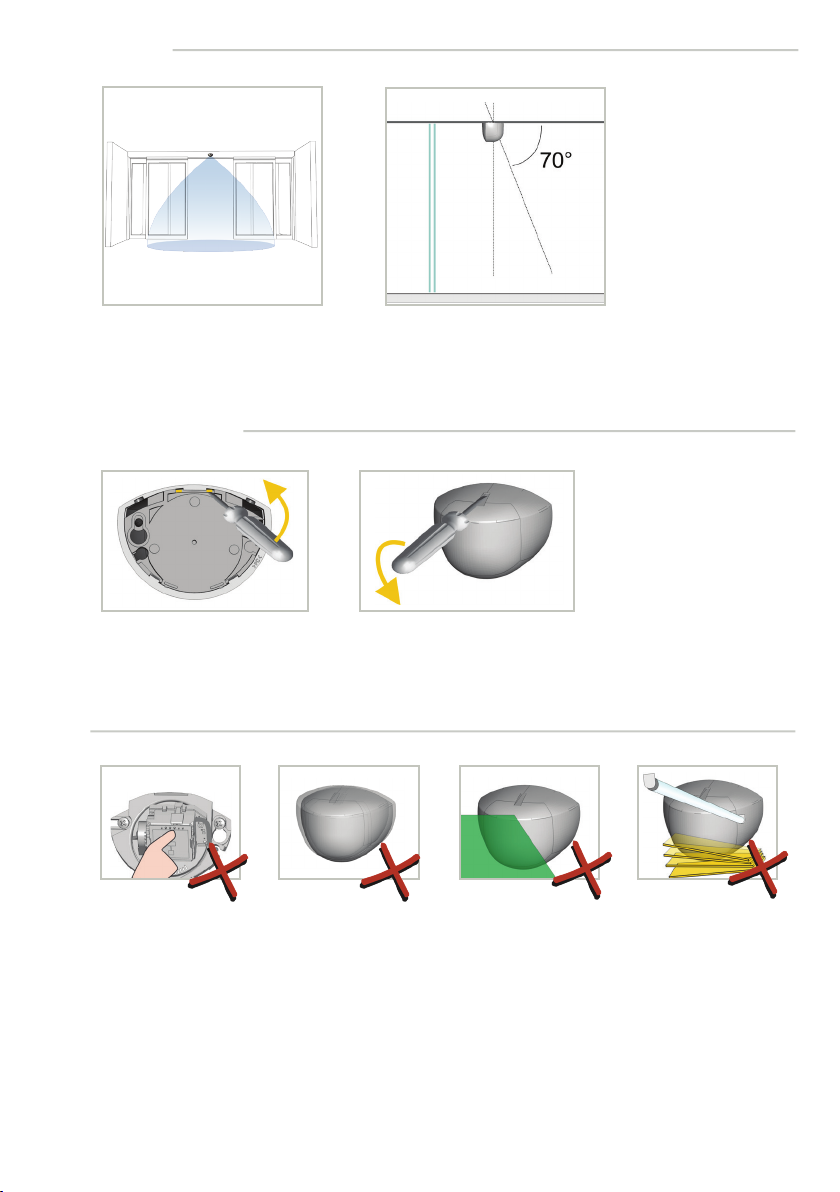

Wall mounting above sliding or

revolving doors

Ceiling mounting in front of sliding,

revolving or swing doors

(outside of the door motion range)

OPENING THE SENSOR

TIPS

APPLICATIONS

MIN MAX

FIELD ADJUSTMENTS

Apply the mounting template.

Drill 1 hole for the cable.

Drill 2 holes for the screws.

Fix the sensor ﬁrmly.

ANGLE

2.2 m

Connect the cable and insert it

through the hole.

Connect the wires as follows:

SIZE

ﬁeld size: max

vertical angle: 30°

2.2 m 2.2 m

MOUNTING & WIRING

BROWN - POWER SUPPLY

GREEN - POWER SUPPLY

WHITE - NO

YELLOW - COM

BEA | A-B Area, 3rd Floor | No.1 Building, No.5 Xinghai Road, Beijing Economic Technological Development Area, Beijing | China

©BEA | Original instructions | 69.0612 / V3 - 11.20

BEA hereby declares that the equipment type COLIBRI ONE/TWO DRO is in compliance with the

European Directives 2011/65/EU (RoHS), 2014/53/EU (RED). The full text of the EU declaration

of conformity is available on our website.

TROUBLESHOOTING

The door remains

closed.

The LED is OFF.

The sensor power is off. Check the wiring and the power supply.

The door does not

react as expected.

The door closes and

opens constantly.

Improper output

conﬁguration on the sensor.

The sensor is disturbed by

the closing of the door or

vibrations caused by the

door motion.

Make sure the sensor is ﬁxed properly.

Increase the antenna angle.

Reduce the ﬁeld size.

For EU countries: This product should be disposed of separately from unsorted municipal waste.

Change the output conﬁguration setting on

each sensor connected to the door operator.

SAFETY INSTRUCTIONS

The manufacturer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system

in compliance with applicable national and international regulations and standards on door safety and if applicable, the machinery

directive 2006/42/EC.

Only trained and qualiﬁed personnel may install and setup the sensor.

The warranty is void if unauthorized repairs are made or attempted by unauthorized personnel.

Avoid touching any electronic and optical components.
