BEA IRIS Manuel utilisateur

The Iris is a presence detector

utilizing focused active infrared

technology to provide increased

safety for all types of automatic doors.

The Iris will easily bring your

existing doors up to the safety

requirements of the new

2005 ANSI 156.10 standard

Why wait? Start upgrading now!

The 2005 ANSI 156.10 Standard requires existing automatic sliding doors with a

double set of beams to add an overhead sensor on the opposite side of the beams.

This provides a retrofit opportunity for existing doors with beams as primary safety.

What are you waiting for?

nProven infrared technology based on the wizard platform (2 rows of 24 beams of

focused infrared beams for extra safety).

> Efficient performance thus, less service calls.

nProvides optimal level of safety throughout door opening and door closing cycles.

> Increased safety thus, potentially reducing your liability.

nAbility to provide sidelite protection with the option to inhibit safety curtain

furthest from the door. Infinite learn time and high mounting capability make it

ideal for industrial safety applications.

> Versatile features provide additional opportunity for different applications

in multiple markets.

nFaster set-up time of 2, 6, and 16 seconds.

> Quick and convenient installation.

The IRIS

BEA’s Presence

Detector for

Safety

Compliance!

www.beasensors.com

Iris Accessories

Spotfinder

for precise positioning

of the infrared curtains

in front of the door

WMB

mounting bracket for

ceiling mounting WCA

for recessed and

concealed application

ISLL

3 lenses set (left, center and right)

for custom sidelite detection zones

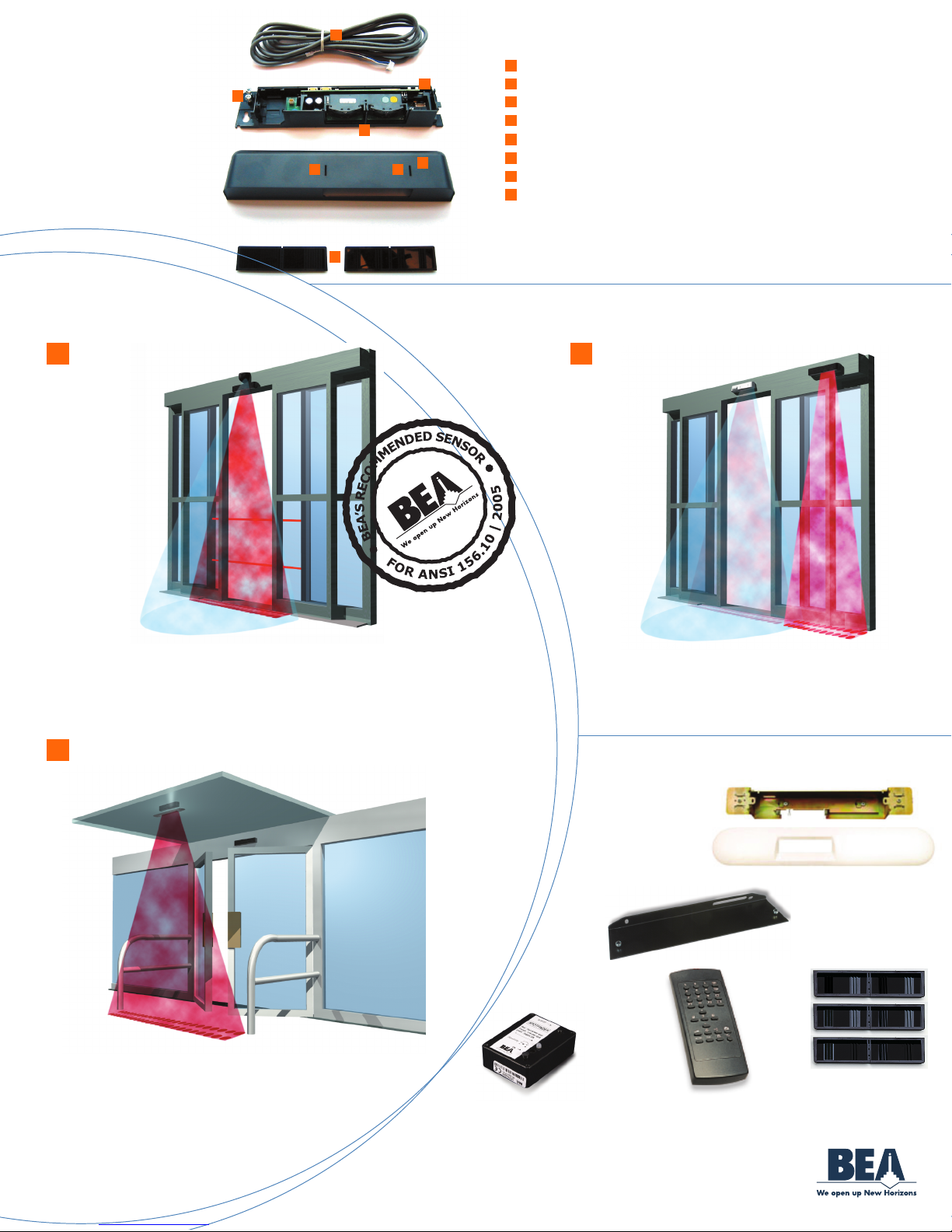

Iris Components

Cable

Mounting Screws

Manual Set-up Push Buttons

Presence Sensor

Cover

LED Indicator

I.R. Remote Receiver

Front Lenses

6 7

www.beasensors.com

nThe Iris provides optimal safety around the threshold of an

automatic sliding door with 2 rows of 24 focused infrared spots.

The application above shows the Iris installed as additional overhead

safety sensor (as required by the upcoming 2005 ANSI 156.10 standard)

on an automatic sliding door equipped with an existing double set of

beams and a set of motion detectors.

APPROACH SIDE

Iris Applications

Threshold Safety for Sliding Door Sidelite Safety for Sliding Door

Remote Control

for easy and accurate

setup of the Iris

nThe Iris has the ability to inhibit the safety curtain furthest

from the door for sidelite protection. Different lenses are

available for a customized detection zone. The application

above shows the Wizard installed as primary detection and

safety sensor and the Iris used as sidelite protection sensor.

The ISSL accessory is recommended for that specific installation.

Contact Information

BEA Inc.

RIDC Park West

100 Enterprise Drive

Pittsburgh PA, 15275

Phone +1.412.249.4100

Fax +1.412.249.4101

Toll Free 1.800.523.2462

BEA West

2401 Pine Street

Los Angeles, CA 91767

Phone +1.909.596.3011

Fax +1.909.596.5411

Toll Free 1.877.232.9378

Additional Safety for Swinging Door

nThe Iris can be mounted in the ceiling thus eliminating the

need for extra beams at the end of the guide rail.
