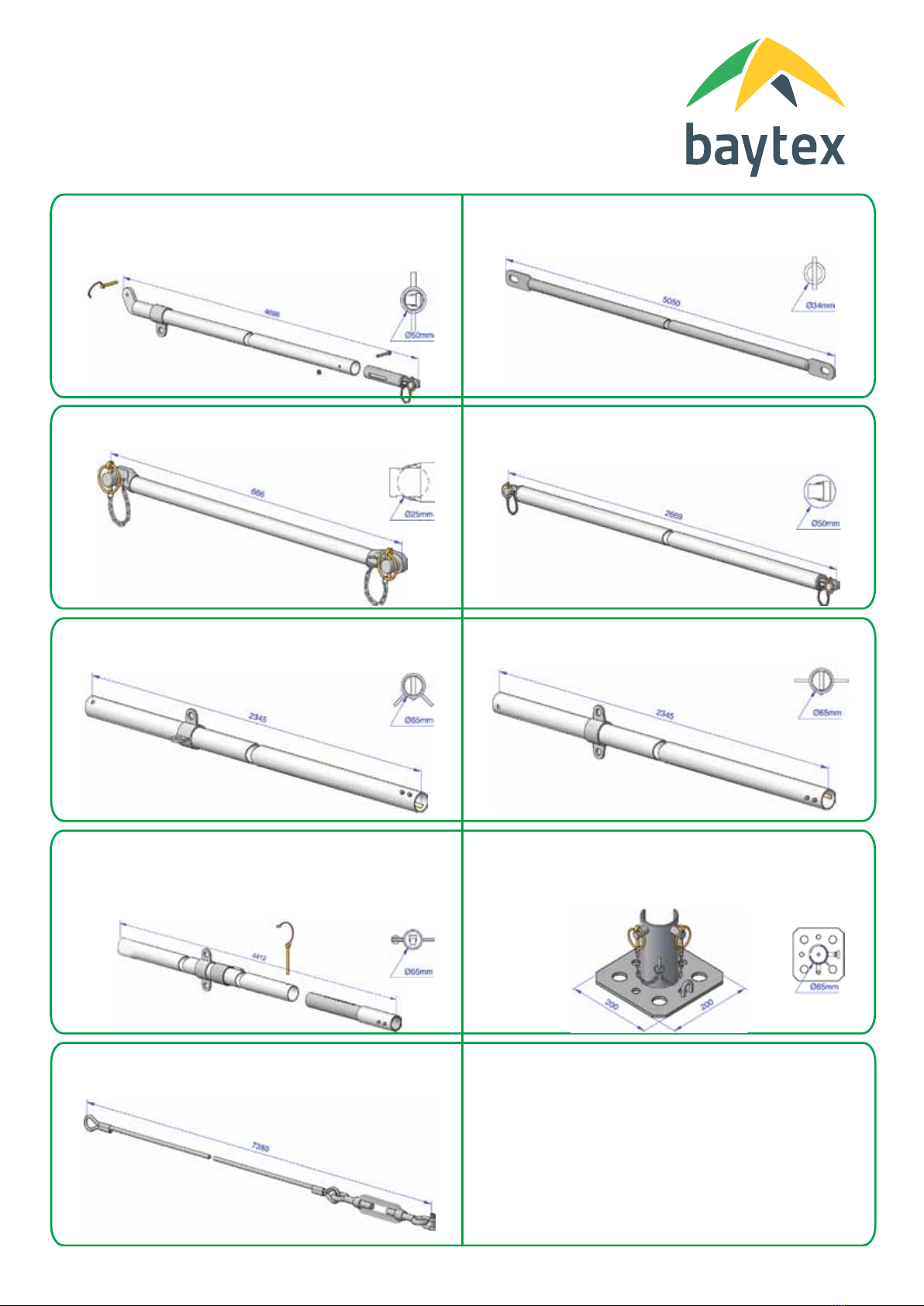

10m CLIPFRAME GABLEEND

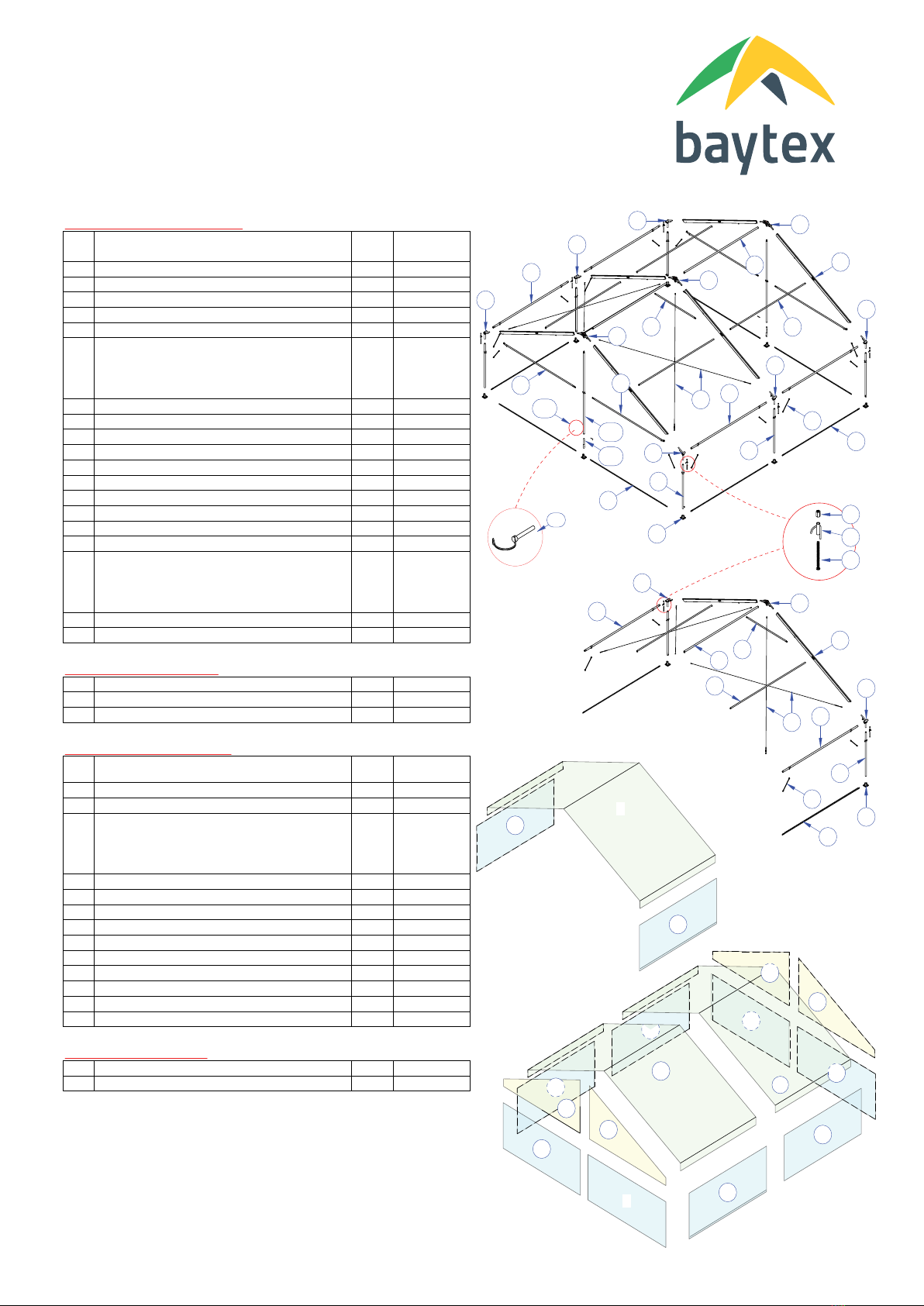

Parts List
4/15

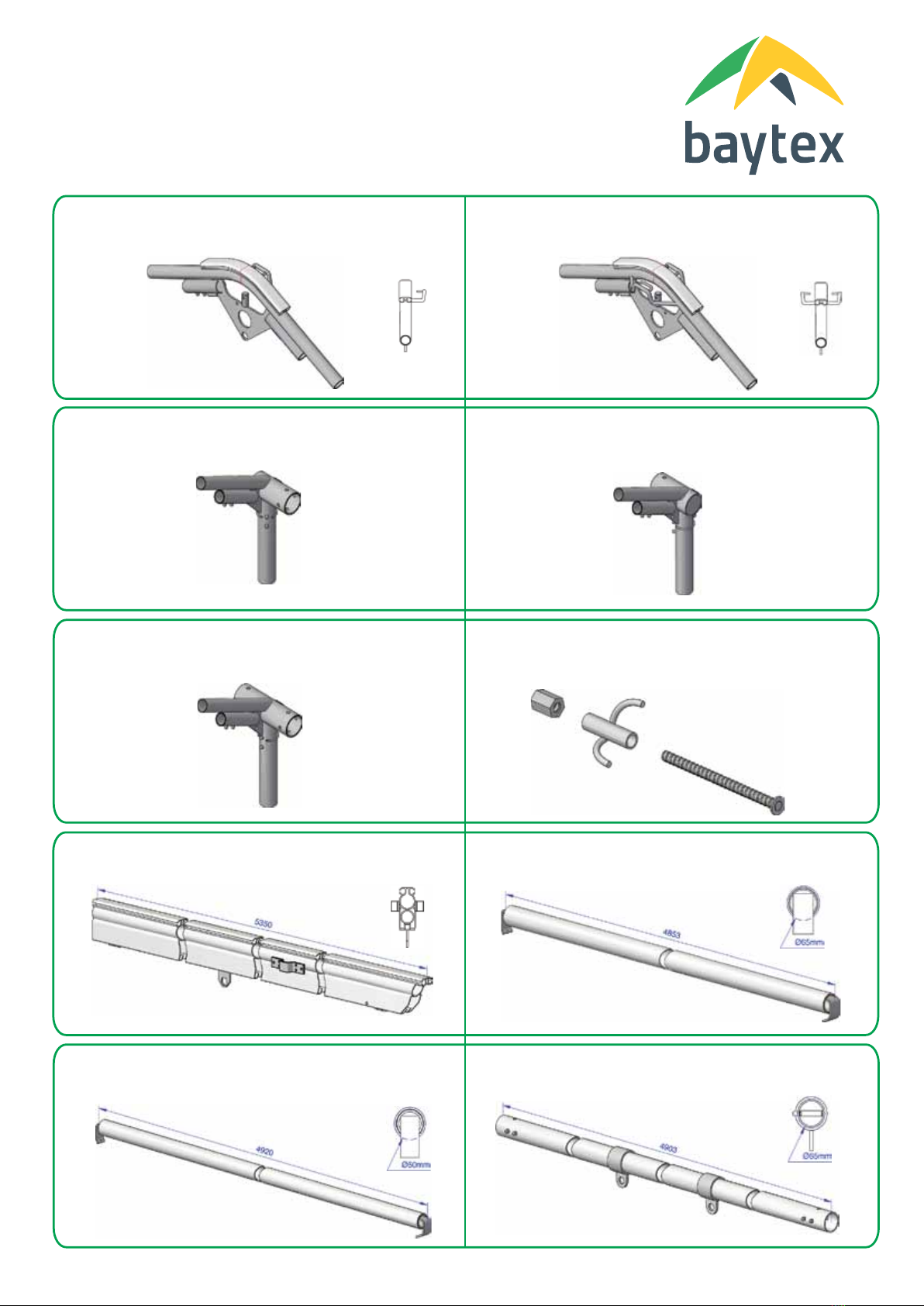

11. 10m Ø 50 Gable End Adjustable Eave
- Includes: (x1) Gable End Eave Bar, (x1) Adjustable
Eave Joint, (x1) M8 x 60 Hex Setscrew
(x1) M8 Nyloc Nut, (x1) Lynch Pin, (x1) Tractor Pin
(x1) Key Ring & Chain Set
13. Ø 25 Brace bar
- Includes: (x1) Brace Bar, (x2) Lynch Pin
(x2) Key Ring & Chain Set
15. Ø65 Leg - 2.4m, 90˚
- 90° Brace Collar
17. 10m Gable End Upright Set - 2.4m Leg
- Includes: (x1) Gable Upright Leg, (x1) Adjustable
Leg Base, (x1) Lynch Pin, (x1) Tractor Clip
(x1) Key Ring & Chain Set
- To use with Ø65mm Leg
12. Base Rail - 4.97m
14. 10m Apex Brace
- Includes: (x1) Apex Brace Bar, (x2) Lynch Pin
(x2) Key Ring & Chain Set
16. Ø65 Leg - 2.4m, 180˚
- 180° Brace Collar
18. Ø 65mm Base Foot
- Includes: (x1) Base Fitting, (x2) Lynch Pin, (x1) Key Ring &
Chain Set
- To use with Ø65mm Leg
19. Roof Brace Cable Set
- Includes: (x4) Ø5mm Cable, (x4) Turnbucle
(x4) Shackle
