ELECTRIC HEATER

Fitted with one of the following fascia.

Fantasy, Glamour,

Landscape, Manhattan,

Parkeror Visia

(GC No. EF-032-17)

Important: Please keep your guide in a safe place for future reference

INSTALLER AND OWNER GUIDE

This guide is intended to help you

install and care for your Baxi Fires

Division electric heater. Please read

carefully before installing and using

your heater. However, if further

information is required, our Baxi Fires

Division Technical Helpline

will be pleased to help.

Telephone 08706 061 065 (National

call rates apply in the United

Kingdom)

In the Republic of Ireland call

0044 8706 061 065

(including photocopying), stored in any medium by electronic means (including in any

retrieval system or database) or transmitted, in any form or by any means, whether

electronic, mechanical, recording or otherwise, without the prior written permission of

the copyright owner.

Applications for the copyright owner's permission to reproduce any part of this

publication should be made, giving details of the proposed use, to the following address:

The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle

Road, Derby, DE21 4XA.

Warning: Any person who does any unauthorised act in relation to a copyright work

may be liable to criminal prosecution and civil claims for damages.

CUSTOMER CARE

Thank you for choosing Baxi Fires Division

All Baxi Fires Division heaters are designed to meet the most stringent quality,

performance and safety requirements to provide our customers with many years of

trouble free service. This guide aims to improve your understanding and appreciation of

your new Baxi Fires Division heater, by providing simple and informative instructions

to enable you to install it and to ensure that you benefit from the excellent performance

and features it has to offer.

If you require further assistance, the Baxi Fires Division Technical Helpline

will be

pleased to help.

Please telephone 08706 061 065

(local rates apply in the United Kingdom). In the

Republic of Ireland please telephone 0044 8706 061 065.

FOR OTHER USEFUL TELEPHONE NUMBERS SEE PAGE 10 OF THIS GUIDE.

Baxi Fires Division, Erdington, Birmingham B24 9QP

www.firesandstoves.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from those

given in this publication

Page 2

INSTALLER AND OWNER GUIDE

Safety First.

Baxi Fires Division heaters are CE Approved and designed to meet the appropriate

British Standards and Safety Marks.

Quality and Excellence.

All Baxi Fires Division heaters are manufactured to the highest standards of quality and

excellence and are manufactured under a BS EN ISO 9001 quality system accepted by

the British Standards Institute.

HANDLING AND UNPACKING

Before continuing any further with the installation of this heater please read the

following:

Important instructions.

!The approximate lifting weight of the heater is as below:

Model Heater Body (kg) Fascia (kg) Total (kg)

Fantasy 9.6 10.85 20.45

Glamour 9.8 12.5 22.3

Landscape 9.6 10.85 20.45

Manhattan 9.6 10.85 20.45

Parker 9.6 3.1 12.7

Visia 9.6 7.4 17.0

Page 3

INSTALLER AND OWNER GUIDE

One person should be sufficient to lift the heater. If for any reason this weight is

considered too heavy then obtain assistance.

When lifting always keep your back straight. Bend your legs and not your back.

!Avoid twisting at the waist. It is better to reposition your feet.

Avoid upper body / top heavy bending. Always bend from the knees rather than

the waist. Do not lean forward or sideways whilst handling the heater.

Always grip with the palm of the hand. Do not use the tips of fingers for support.

Always keep the heater as close to the body as possible. This will minimise the

cantilever action.

!Use gloves to provide additional grip.

!Always use assistance if required.

SAFETY

Always

! Always install the heater in accordance with this guide. If in doubt obtain

expert advice.

! Always make sure the electrical socket is accessible and located adjacent to, but

not above or behind the heater.

! Always disconnect the heater from the electrical supply before carrying out

cleaning, maintenance or replacing the light bulbs.

! Always make sure the heater is firmly secured to the wall.

! Always

use a fireguard when young children, infirm persons and pet animals can

come into contact with the heater.

! Always use genuine Baxi Fires Division spares.

Never

! Never leave children unsupervised in a room where the heater is ON and

unguarded.

! Never obstruct or cover the fan outlet or force items into heater openings.

! Never install or use the heater anywhere where water is in use, i.e.

Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.

! Never use aerosols or steam cleaners on or around the heater.

! Never route the electric cable under carpet etc.

! Never install the heater close to curtains or combustible materials.

! Never use the heater to dry clothes etc.

! Never sit or stand on the heater.

! Never fit a shelf or position soft furnishings such as curtains above the heater.

Page 4

INSTALLER AND OWNER GUIDE

FITTING THE HEATER

The installation of this heater requires a reasonable level of DIY skills.

Please read this guide thoroughly before commencing installation and if in doubt,

seek help from a competent person

Do I need any tools?

You will need the following tools: -

! Pozidrive / Phillips / cross head screwdriver.

This should have a number 2 size

tip.

! Power drill

(Preferably with hammer action). This is only required if drilling into

brick work. An appropriate size drill bit will be required for the wall plugs supplied.

Where can I fit the heater?

This heater can be fitted onto a flat wall. Ideally fix the heater through to brick work,

block work or the internal wooden frame of a plaster board wall. If the wooden frame

behind the plasterboard is not accessible use a minimum of four heavy duty cavity

fixings.

We do not recommend that the heater be fitted to a wall covered in blown vinyl

wallpaper or polystyrene tiles etc.

It is important that the heater is never fitted under a shelf or soft furnishings such as

curtains.

If the heater is to be mounted on to a

plasterboard wall that has a wooden frame behind

it then the integrity and ability of the wall to carry the weight of the appliance must be

confirmed. It is important that any vapour control barrier is not damaged, and that the

structural members of the house are not damaged. We recommend a minimum 12mm

thick plasterboard.

Model Fantasy / Glamour Landscape/ Visia

Manhattan Parker

Width (mm) 930 935 930 930

Height (mm) 560 560 560 560

Depth (mm) 151 149 151 149

Important Electrical Safety

The heater must not

be located in front of or under an electrical socket, the socket must

always be accessible in order to disconnect the heater from the electrical supply for

maintenance and cleaning.

Page 5

INSTALLER AND OWNER GUIDE

Important! This heater must be earthed.

The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3 core

cable.

! The wires in the cable are coloured in accordance with the following code: -

Live =Brown

Neutral = Blue

Earth = Green /Yellow

! The electric supply must be safely routed from the heater to an electrical socket.

If the electric cable is damaged, to avoid a hazard it must be replaced by a Baxi Fires

Division authorised service agent, or similarly qualified person (See page 9). All

external wiring between the heater and the electrical supply shall comply with current

IEE regulations.

Heater Fixing.

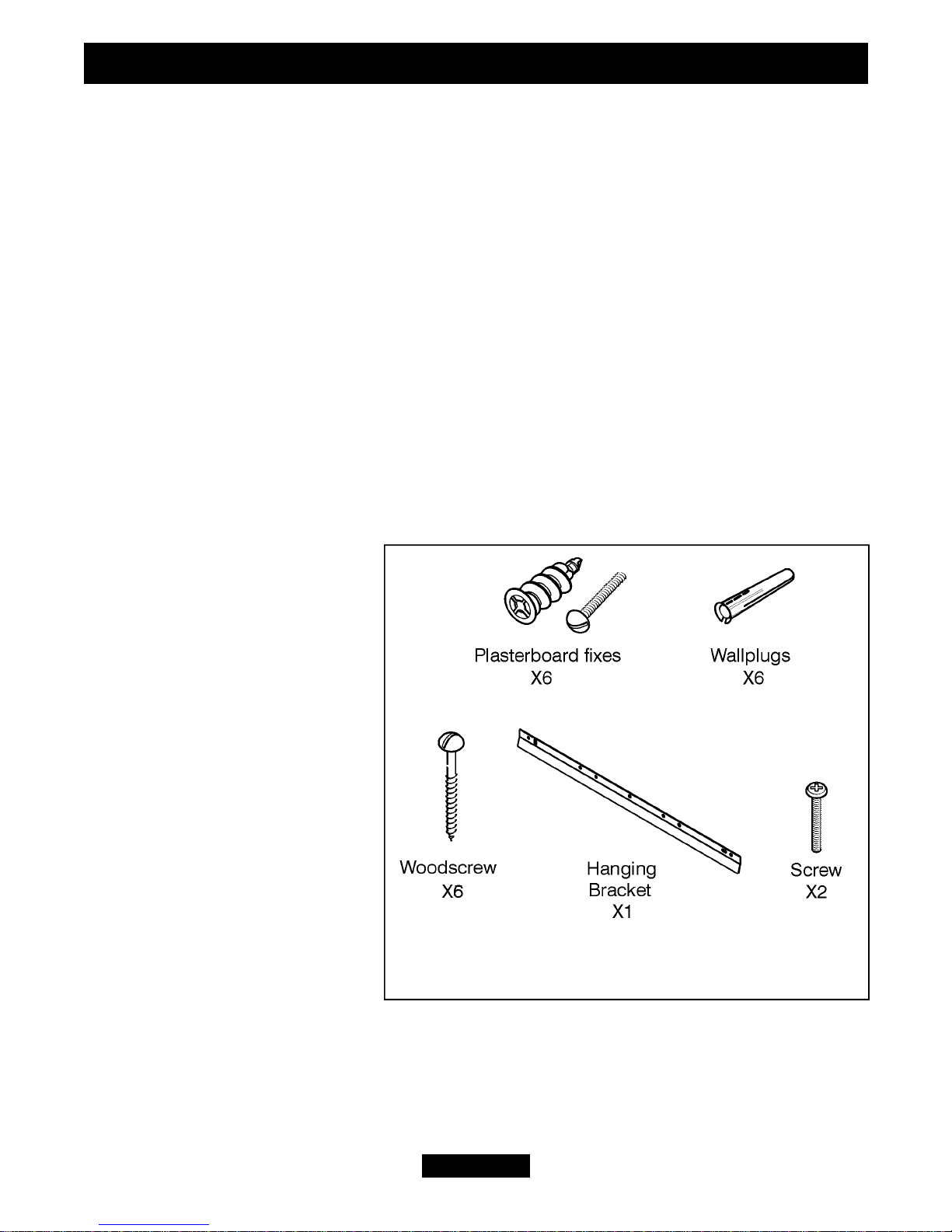

All of the fixings and loose parts supplied with the heater have been identified as in

figure 1.

Fitting the heater.

! Decide the location of the

heater. It is important that the

heater is never fitted under a

shelf or soft furnishings such as

curtains.

! If fitting to a conventional

brick wall then use the outer

slotted holes in the bracket. If

fitting to a plasterboard wall that

has a wooden frame behind it

then use all five fixing holes in

the bracket. This is required to

spread the load. Mark the

positions of the hanging bracket

holes on the wall (See figure 2).

There is a 150mm clearance required under the heater to open the light bulb access

covers.

! Drill the marked positions using a suitable sized drill bit for the chosen fixings.

! Insert the wall plugs / fixings and secure the bracket to the wall using suitable

screws.

Page 6

INSTALLER AND OWNER GUIDE

Figure 1. Loose parts identification (Items are not to

scale)

! Locate the heater onto the

wall bracket.

! Mark the position of the

lower support bracket hole

on the wall.

! Remove the heater from

the wall bracket.

! Drill the marked position

using a suitable sized drill bit

for the chosen fixings.

! Locate the heater onto the

wall bracket and secure the

lower support bracket using a

suitable screw.

The lower support bracket

must always be used. This

prevents the heater

lifting from the hanging

bracket.

Fitting the fascia.

! Place the loose pebbles

onto the fuel support. It is

not necessary to use all

the pebbles supplied.

! Locate the top of the

fascia behind the top

flange of the heater.

! The fascia is secured using

the two screws with bright

metal finish. These are located

as in figure 3.

! On Visia and Glamour

models the glass panel that

forms part of the fascia is

supplied seperately. Locate the

glass panel hanging hooks into

the slots in the heater body

(See figure 4)

Page 7

INSTALLER AND OWNER GUIDE

Figure 4.

Figure 3. Underside of heater (Shown with Glamour

facia)

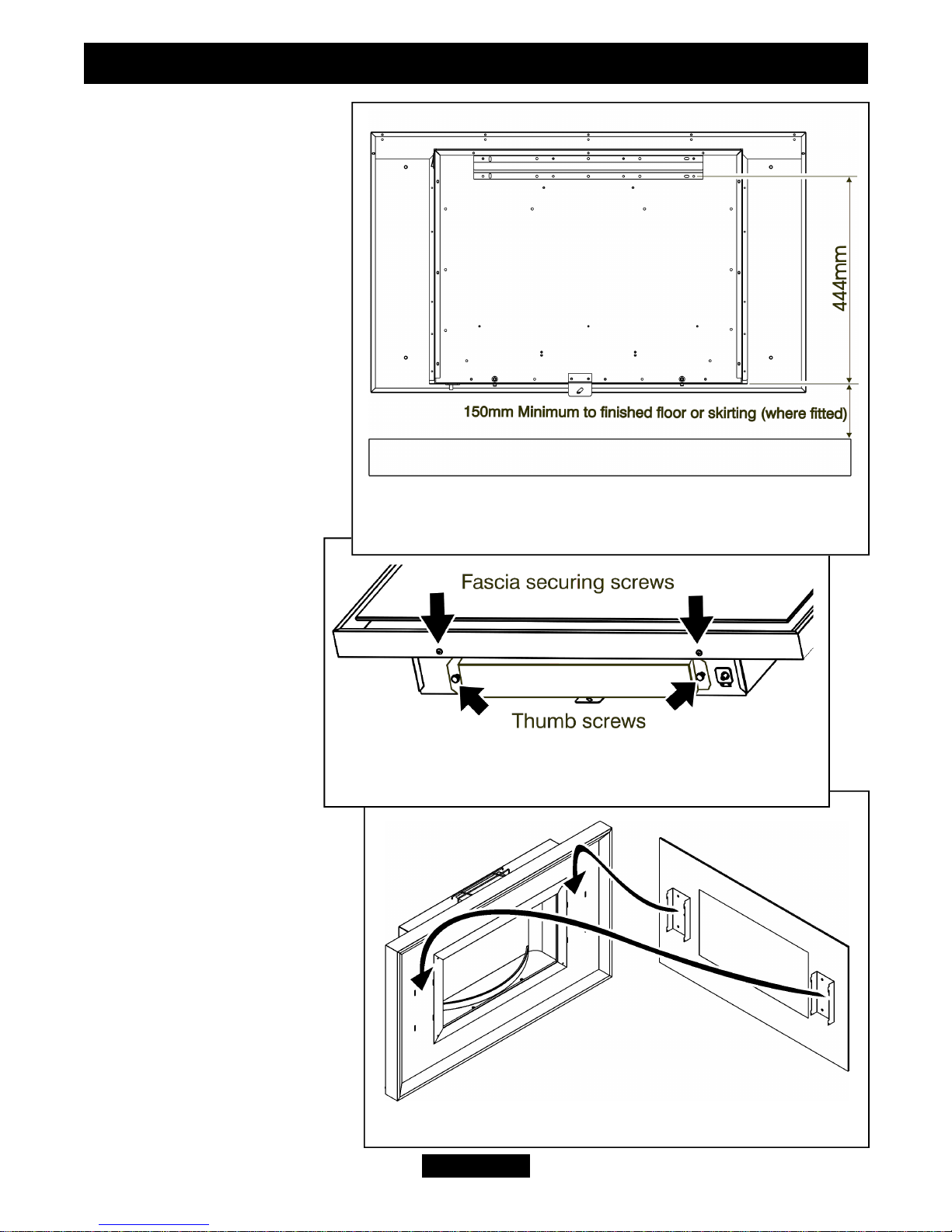

Figure 2. Hanging bracket heights from finished

floor / hearth

USING THE HEATER

Important Safety

Never cover the heater or obstruct any openings on the heater, this could cause

overheating and consequent risk of fire.

What are the three switches for?

The heater is operated by three switches located on the right hand side of the heater.

Switch 1 = OMain On - Off

In the On position only the fuel effect operates

Switch 2 = I1kW fan heat setting and fuel effect

Switch 3 = II 2kW fan heat setting and fuel effect

The switches are mechanically interlocked, so when switch 1 is turned off, all switches

turn off.

CLEANING AND MAINTAINING THE HEATER

How do I Clean my heater?

The heater fascia and glass parts need only to be wiped clean with a dry soft cloth, do

not use polishes or abrasive materials.

I have a problem with my heater!

Important Safety

Before undertaking maintenance or replacing the light bulb(s) always disconnect

the heater from the electricity supply by removing the 3 pin plug and allowing the

heater to cool.

1. My heater is on but there is no light / low light.

This is possibly a light bulb failure. Remove the light bulb as below and check it in a

table lamp that is known to work. If it does not work in the table lamp then replace it as

below.

The light bulbs fitted to this heater are 60Watt E27, 240Volt, triple life, Edison fitting

with a clear finish. Due to the indeterminate life span and ease of replacement, they are

specifically excluded from the guarantee.

Page 8

INSTALLER AND OWNER GUIDE

To replace the light bulb.

At the base of the heater are two thumb screws (See figure 3) that secure the light

baffle. To gain access to the bulbs unscrew the thumb screws and remove the light

baffle.

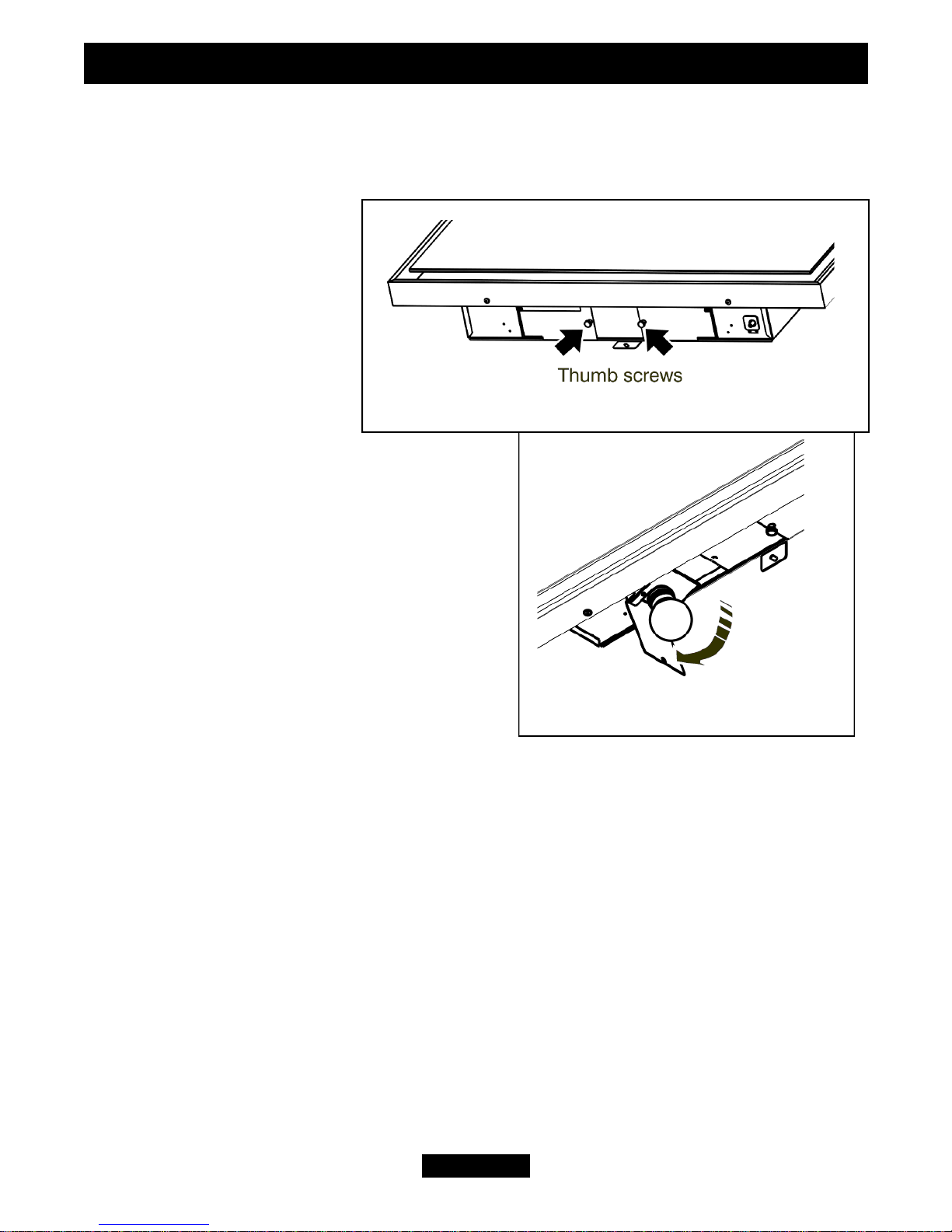

! There are two thumb

screws (See figure 5) that

secure the light bulb access

covers. To gain access to the

bulbs unscrew the thumb

screw and lower the access

panel (See figure 6).

! Unscrew the faulty bulb in

a counter clockwise direction

and replace with a maximum

60Watt E27, 240Volt, triple life, Edison fitting

with a clear finish.

! Close the access cover and secure with the

thumbscrew removed previously.

2. My heater is on but there is no light or

heat.

The first thing to do is check the wall socket. To

do this plug in a known working appliance. If

the appliance you have plugged in works then

there is a good chance that the problem lies with

the 13Amp fuse in the heater plug. If either fuse or socket is suspected, have them

checked by an electrician.

3. My heater is on but there is no heat.

A cut out device is fitted to the heater to prevent damage due to over heating. If it

operates due to an obstruction in the airflow, the heater must be turned off and allowed

to cool for 15 minutes and the obstruction removed before restarting.

Page 9

INSTALLER AND OWNER GUIDE

Figure 6. Light bulb access covers

Figure 5. Light bulb access cover thumbscrews

4. I Have a problem that is different to those in the previous examples 1- 3.

Below is a list of Useful Telephone numbers

For general advice about your heater:

BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.

To report faults or arrange for your heater to be serviced:

BAXI FIRES DIVISION SERVICE 08706 090 081.

For sales or product information:

BAXI FIRES DIVISION SALES 08706 061 067.

CALLERS IN THE REPUBLIC OF IRELAND

Call 0044 8706 061 065

For spares inquiries

Spare parts are available nationwide via the ‘interpart stockist network’. For your

local stockist consult Yellow pages under ‘Central Heating’.

When ordering spare parts please have the below information available. This will help

us to deal with your call quicker and avoid you having to make a second call.

! Your Post Code

! Type of Heater (Electric or gas)

! The fault, problem or request.

Model, Name and serial number (This information can be found on a small label on

the lower left of the heater next to the cover plate. To see this you may have to remove

the fascia).

What should I do when I’m ready to dispose of my heater?

The plug should be removed from the mains cable and the mains cable cut from the

heater. These should be disposed of with the heater.

Environmental Protection.

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or retailer

for recycling advice.

Page 10

INSTALLER AND OWNER GUIDE

Table des matières

Autres manuels Baxi Fires Division Chauffage électrique

Baxi Fires Division

Baxi Fires Division MIRAGE 804 Instructions d'utilisation

Baxi Fires Division

Baxi Fires Division MIRAGE 804 Instructions d'utilisation

Baxi Fires Division

Baxi Fires Division 828 Longlite Instructions d'utilisation

Baxi Fires Division

Baxi Fires Division 827 Instructions d'utilisation

Baxi Fires Division

Baxi Fires Division 826 dream longlite Instructions d'utilisation

Baxi Fires Division

Baxi Fires Division 834 Instructions d'utilisation

Manuels Chauffage électrique populaires d'autres marques

Heatscope

Heatscope PURE Guide rapide

Sunbeam

Sunbeam Calentador SFH457A Manuel utilisateur

Dura Heat

Dura Heat DH2000C Manuel utilisateur

Harvia

Harvia K10.5GS Manuel utilisateur

Harvia

Harvia GL70 Manuel utilisateur

Heylo

Heylo DE 2 XL Manuel utilisateur

Heylo

Heylo DE 20 SH Manuel utilisateur

Harvia

Harvia PP70SP Manuel utilisateur

Tylo

Tylo SENSE SPORT Manuel utilisateur

Dirna

Dirna ecodirna SUN Mode d’emploi

Creda

Creda Heating Solution Manuel utilisateur

THERMEx

THERMEx Frame E Wi-Fi Series Manuel utilisateur

SHUFT

SHUFT UniMAX-R 1400VE EC Manuel utilisateur

HUUM

HUUM CLIFF Series Manuel utilisateur

Harvia

Harvia HL70S Manuel utilisateur

Dimplex

Dimplex DHEBHT Manuel utilisateur

Radialight

Radialight SIRIO Manuel utilisateur

Polaris

Polaris PRE E 0715 H Manuel utilisateur
