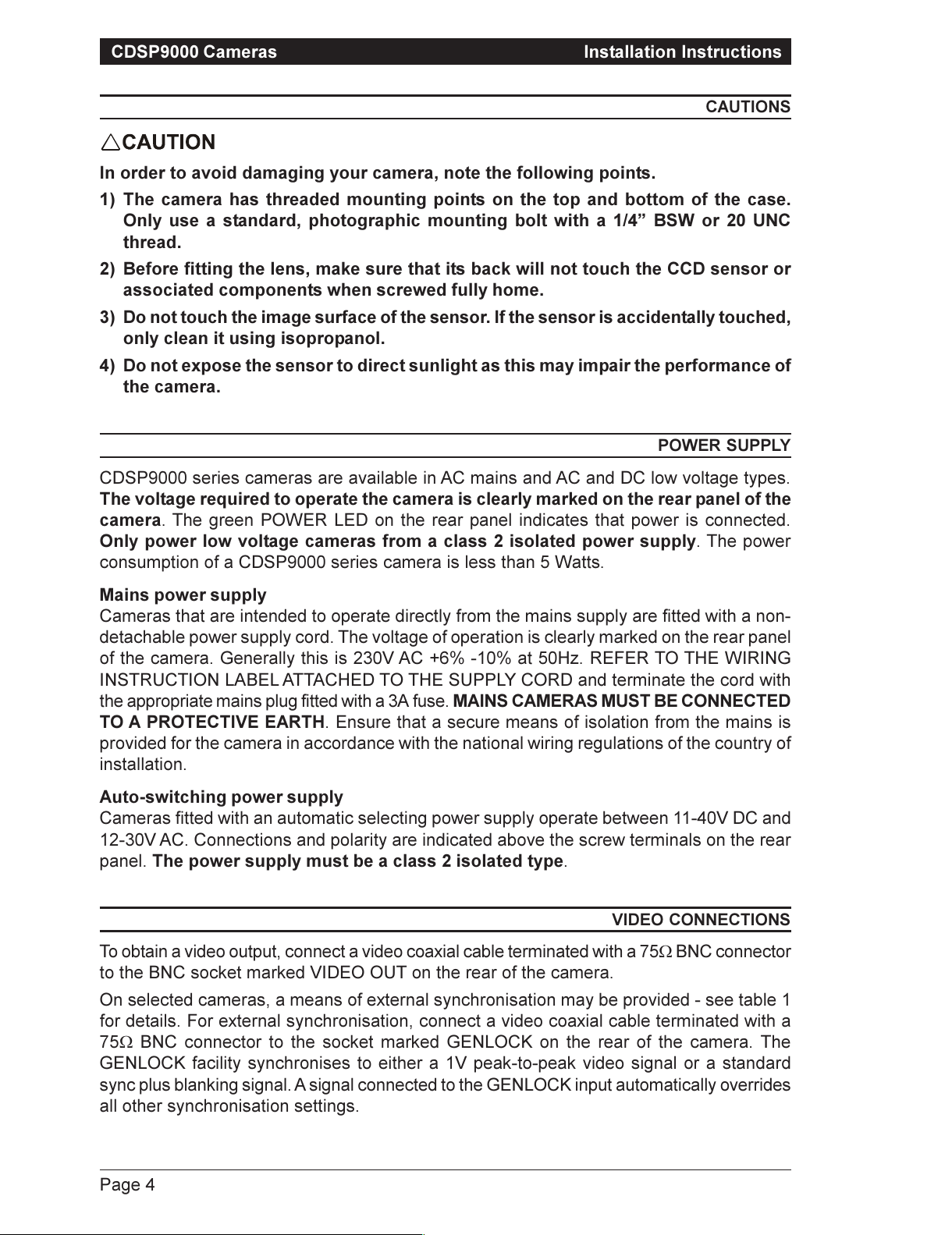

Page 4
CDSP9000 Cameras Installation Instructions
CAUTIONS
In order to avoid damaging your camera, note the following points.
1) The camera has threaded mounting points on the top and ottom of the case.
Only use a standard, photographic mounting olt with a 1/4 BSW or 20 UNC
thread.
2) Before fitting the lens, make sure that its ack will not touch the CCD sensor or
associated components when screwed fully home.
3) Do not touch the image surface of the sensor. If the sensor is accidentally touched,
only clean it using isopropanol.
4) Do not expose the sensor to direct sunlight as this may impair the performance of
the camera.
POWER SUPPLY
CDSP9000 series cameras are available in AC mains and AC and DC low voltage types.
The voltage required to operate the camera is clearly marked on the rear panel of the
camera. The green POWER LED on the rear panel indicates that power is connected.
Only power low voltage cameras from a class 2 isolated power supply. The power
consumption of a CDSP9000 series camera is less than 5 Watts.
Mains power supply
Cameras that are intended to operate directly from the mains supply are fitted with a non-
detachable power supply cord. The voltage of operation is clearly marked on the rear panel
of the camera. Generally this is 230V AC +6% -10% at 50Hz. REFER TO THE WIRING
INSTR CTION LABEL ATTACHED TO THE S PPLY CORD and terminate the cord with
the appropriate mains plug fitted with a 3A fuse. MAINS CAMERAS MUST BE CONNECTED
TO A PROTECTIVE EARTH. Ensure that a secure means of isolation from the mains is
provided for the camera in accordance with the national wiring regulations of the country of
installation.
Auto-switching power supply
Cameras fitted with an automatic selecting power supply operate between 11-40V DC and
12-30V AC. Connections and polarity are indicated above the screw terminals on the rear
panel. The power supply must e a class 2 isolated type.
VIDEO CONNECTIONS
To obtain a video output, connect a video coaxial cable terminated with a 75W BNC connector
to the BNC socket marked VIDEO O T on the rear of the camera.
On selected cameras, a means of external synchronisation may be provided - see table 1
for details. For external synchronisation, connect a video coaxial cable terminated with a
75W BNC connector to the socket marked GENLOCK on the rear of the camera. The
GENLOCK facility synchronises to either a 1V peak-to-peak video signal or a standard
sync plus blanking signal. A signal connected to the GENLOCK input automatically overrides
all other synchronisation settings.
