Baumatic BRCF1860-BGL Manuel utilisateur

BRCF1860-BGL/RGL/WGL

319 Litre 2 door combi

fridge-freezer

USER MANUAL FOR YOUR BAUMATIC

BRCF1860-BGL/RGL/WGL

319 Litre 2 door combi

fridge-freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

JW 17/10/12

Contents

Environmentalnote 4

Important safety information 5–6

Specifications of your combi fridge freezer 7-10

Product and aperture dimensions 7

Productspecifications 7

Descriptionofyourappliance 8

Description of the product features 9-10

Using your combi fridge freezer 11-14

Beforeswitchingon 11

Duringfirstuse 11

Turning on the appliance 12

Setting the fridge thermostat 12

Using the fast freeze drawer 13

Arranging and storing food in the fridge section 13-14

The freezer compartment 14-18

Freezing fresh food 15

Tipsonfreezing 15

Storingfrozenfood 16

Defrosting frozen food 16

In the event of a power cut 16

Makingicecubes 17

Normal operating noises 17-18

Saving energy when using your fridge-freezer 18-19

Cleaning and maintenance 19-22

Defrosting the refrigerator compartment 21

Defrosting the freezer compartment 22-23

Replacing the light bulb 23

Installation 24-30

Electricalconnection 24

Positioning and ventilation 25-26

Reversing the doors of your appliance 27-30

Troubleshooting 30-32

Baumatic consumables 33

Technicaldata 34

Contactdetails 35

Environmental note

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic. Please

make sure that you read this instruction booklet before

attempting to install or use the appliance. If you are unsure

of any of the information contained in this booklet, please

contact the Baumatic Customer Care department.

IMPORTANT: Any installation work must be carried

out by a qualified electrician or competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipe-

work does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing maintenance work,

ensure that the appliance has been disconnected from your

mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated, so

that there is proper air flow between the bottom of

the unit and the plinth/kick plate which it is sitting

on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

oDo not store aerosol cans with a flammable propellant in this

appliance.

Service

You should not attempt to repair the appliance yourself,

as this could cause injury or a more serious malfunction.

If you require a service call then please contact the

Baumatic Customer Care Department.

Specifications of your fridge freezer

Dimensions of your appliance

oHeight: 1850 mm

oWidth: 600 mm

oDepth: 640 mm

Energy efficiency class

oEnergy class: A+

Cubic capacities

oTotal gross/net capacity: 319/302 litres

oGross capacity (fridge/freezer): 215/104 litres

oNet capacity (fridge/freezer): 214/88 litres

Specifications of the appliance

oAutomatic fridge defrost

oAdjustable thermostat

oAntibacterial surface

oInterior ventilator (fridge section)

oAdjustable feet

oReversible door

o3 Adjustable safety glass shelves (fridge)

o1 Salad crisper shelf (Safety glass)

o2 Salad crispers

o1 Chrome wine rack

o3 General door racks

o1 Bottle rack

o1 Butter and cheese compartment

o1 Egg rack

oStar rating ****

oFreezing capacity 12kg/24 hrs

oWater drainage system (freezer)

o4 Transparent freezer drawers

o1 Ice cube tray

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located inside of the fridge

section, on the left side. You will need to open the door of the fridge

section and remove the salad crispers. The rating plate will indicate

the ambient temperature range that your appliance will function

correctly within.

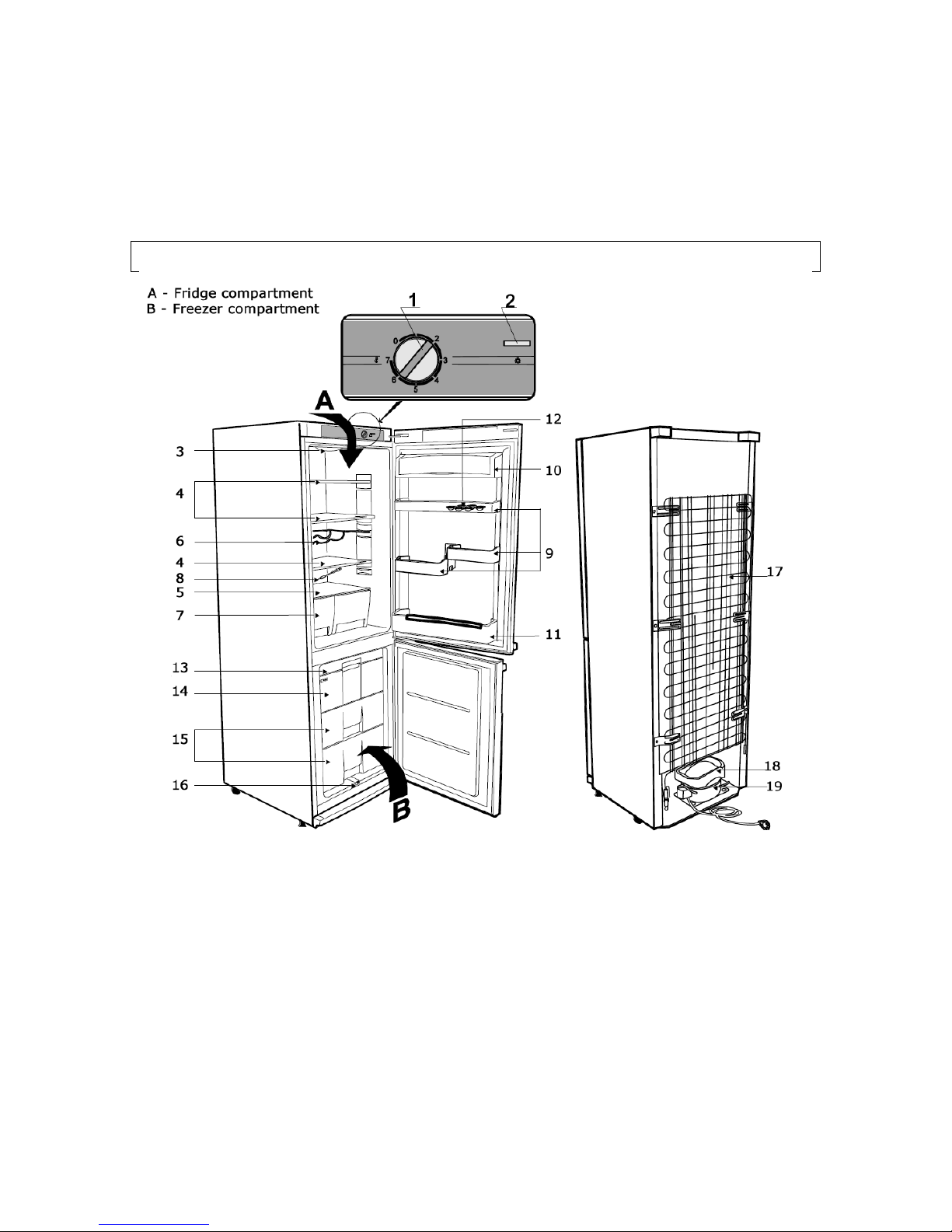

Description of the appliance

1) Thermostat control knob

2) Light switch (door close)

3) Interior light

4) Adjustable safety glass shelves

5) Salad crisper cover (safety glass)

6) Wine rack

7) Salad crispers

8) Defrost water outlet channel

9) General door racks

10) Butter & cheese compartment

11) Bottle rack

12) Egg rack

13) Freezer tray

14) Freezer drawer (Fast freeze)

15) General freezer drawers

16) Defrost water outlet channel

17) Condenser

18) Defrost water drip tray (fridge)

19) Compressor

Description of the product features (fridge)

Adjustable safety glass shelves

oThe shelves may be placed in any of

the guide slots within the interior of the

appliance. They are protected from

sliding out.

oTo remove a shelf: Take off all of the

items that are stored on the shelf that

you want to remove. Then lift the back

of the shelf and carefully pull it out of

the grooves.

Salad crisper drawers and cover

oThe crisper drawers are suitable for storing fruits, salad and

vegetables. They are designed to keep the contents fresh for as

long as possible.

oThe crisper cover helps to prevent fruit and vegetables from

drying out prematurely, and can also be used as a shelf.

oCare should be taken when storing tomatoes and tropical fruit

such as bananas and pineapples, etc, as these types of items can

easily deteriorate at a lower temperature.

oTo remove the safety glass crisper cover, remove the salad

crisper drawers, lift up the front of the shelf and then pull it

towards you.

The dairy compartment

oThe top rack on the fridge

door should be used to store

eggs, butter, cheese, yogurts

etc.

IMPORTANT: You should take

care not to trap your fingers

when opening and shutting the

cover of the dairy compartment.

General door racks

oThe door liners hold various racks, which are suitable for storing

eggs, cheese, butter, yogurt, smaller packages, tubes, cans etc.

Bottle rack

oThe lower door rack should be used for storing reasonably sized

bottles.

oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE

SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS

THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.

Door rack height adjustment

It is possible to adjust the height of the door racks

oRemove all items from the rack

that you want to adjust the height

of.

oHold both sides of the rack then lift

it upwards and pull it towards you.

oPlace the rack back into the door at

the height that you require and

then push it downwards until it

locates into position.

NOTE: By adjusting the position of the door racks you will

increase / decrease the storage height of adjacent racks.

Please adjust to your preference.

Description of the product features (freezer)

The freezer section consists of a tray drawer (top), a fast freeze

drawer (second from top) and two normal drawers (bottom).

oThe top of the freezer compartment contains a shallow storage

tray which can be used to store smaller items or items which are

more regularly used for ease of access.

oThe top freezer drawer is labelled as ‘Fast Freeze’. This drawer

can be used to quickly freeze fresh food. Please see the Fast

Freeze section for full details

oShould you be storing something for a longer period of time we

would recommend using the normal freezer drawers, located

below the Fast Freeze drawer.

IMPORTANT: DO NOT pull the drawers out with too much force, or

overload them as this may cause food to fall out when you are opening

the drawer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Baumatic Réfrigérateur

Baumatic

Baumatic BF373 Manuel utilisateur

Baumatic

Baumatic BL18A Manuel utilisateur

Baumatic

Baumatic BLE360 Manuel utilisateur

Baumatic

Baumatic BF230 Manuel utilisateur

Baumatic

Baumatic BR200A Manuel utilisateur

Baumatic

Baumatic TITAN5 Manuel utilisateur

Baumatic

Baumatic BRCIF7535 266 Manuel utilisateur

Baumatic

Baumatic BRCI2575 Manuel utilisateur

Baumatic

Baumatic REFLEX Manuel utilisateur

Baumatic

Baumatic BRT200 Manuel utilisateur

Baumatic

Baumatic BIR266BM Manuel utilisateur

Baumatic

Baumatic 34900410 BRCI 3180 E Manuel utilisateur

Baumatic

Baumatic BRLF1759SE Manuel utilisateur

Baumatic

Baumatic BF555SE Manuel utilisateur

Baumatic

Baumatic BR180SS Manuel utilisateur

Baumatic

Baumatic BRUL 135 Manuel utilisateur

Baumatic

Baumatic RETRO1 Manuel utilisateur

Baumatic

Baumatic BRCF1855SL Manuel utilisateur

Baumatic

Baumatic BF207BLM Manuel utilisateur

Baumatic

Baumatic SB6 Manuel utilisateur

Baumatic

Baumatic BRL600.5 Manuel utilisateur

Baumatic

Baumatic BRB2617 Manuel utilisateur

Baumatic

Baumatic BRCIF7030 Manuel utilisateur

Baumatic

Baumatic RETRO3 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
