Baumatic BF340 Manuel utilisateur

ing

BF340BL/SS

BF346BL/SS Frost free

fridge/freezer

USER MANUAL FOR YOUR BAUMATIC

BF340BL/BF340SS 316 Litre frost free

combi fridge freezer

BF346BL/SS 337 Litre frost free

combi fridge freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

DD 29/01/08

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of the BF340BL/BF340SS fridge freezer 7

Specifications of the BF346BL/SS fridge freezer 8

Descriptionoftheappliance 9

Description of the product features 10

Using your Baumatic fridge freezer 11

Beforeswitchingon 11

Duringfirstuse 11

Turning on the appliance and setting the thermostat 12

Arranging and storing food in the fridge section 13

The freezer compartment 14

Freezing fresh food 14-15

Tipsonfreezing 15

Makingicecubes 15

Important user information 16

Cleaning and maintenance 16-17

Defrosting the freezer compartment 17-18

Replacing the light bulb 19

Installation 20

Electricalconnection 20

Positioning 21

Attaching the door handles 22-23

Reversing the doors 23-26

Troubleshooting 27

Contactdetails 28

Environmental note

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance, as

this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Baumatic Service Department.

Specifications of the BF340BL/BF340SS fridge freezer

Congratulations on purchasing a Baumatic fridge freezer

Dimensions of your appliance

oHeight: 1765 mm

oWidth: 600 mm

oDepth: 636 mm

Energy efficiency class

Energy class: A

Cubic capacities

oGross capacity (fridge): 223 litres

oGross capacity (freezer): 93 litres

oNet capacity (fridge): 208 litres

oNet capacity (freezer): 81 litres

Specifications of the appliance

oFrost free fridge and freezer

oMark resistant coating

o3 Safety glass shelves

o2 Salad crispers

oButter compartment

oBottle rack

oEgg rack

o2 General racks

o3 Freezer drawers

oIce cube drawer

oReversible doors

oAdjustable feet

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge section. You will need to open the door of

your appliance and remove the salad drawers to be able to find it. The

rating plate will indicate the ambient temperature range that your

appliance will function correctly within.

Specifications of the BF346BL/BF346SS fridge freezer

Congratulations on purchasing a Baumatic fridge freezer

Dimensions of your appliance

oHeight: 1854 mm

oWidth: 600 mm

oDepth: 636 mm

Energy efficiency class

Energy class: A

Cubic capacities

oGross capacity (fridge): 223 litres

oGross capacity (freezer): 114 litres

oNet capacity (fridge): 208 litres

oNet capacity (freezer): 97 litres

Specifications of the appliance

oFrost free fridge and freezer

oMark resistant coating

o3 Safety glass shelves

o2 Salad crispers

oButter compartment

oBottle rack

oEgg rack

o2 general racks

o3 Freezer drawers

oIce cube drawer

oReversible doors

oAdjustable feet

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge section. You will need to open the door of

your appliance and remove the salad drawers to be able to find it. The

rating plate will indicate the ambient temperature range that your

appliance will function correctly within.

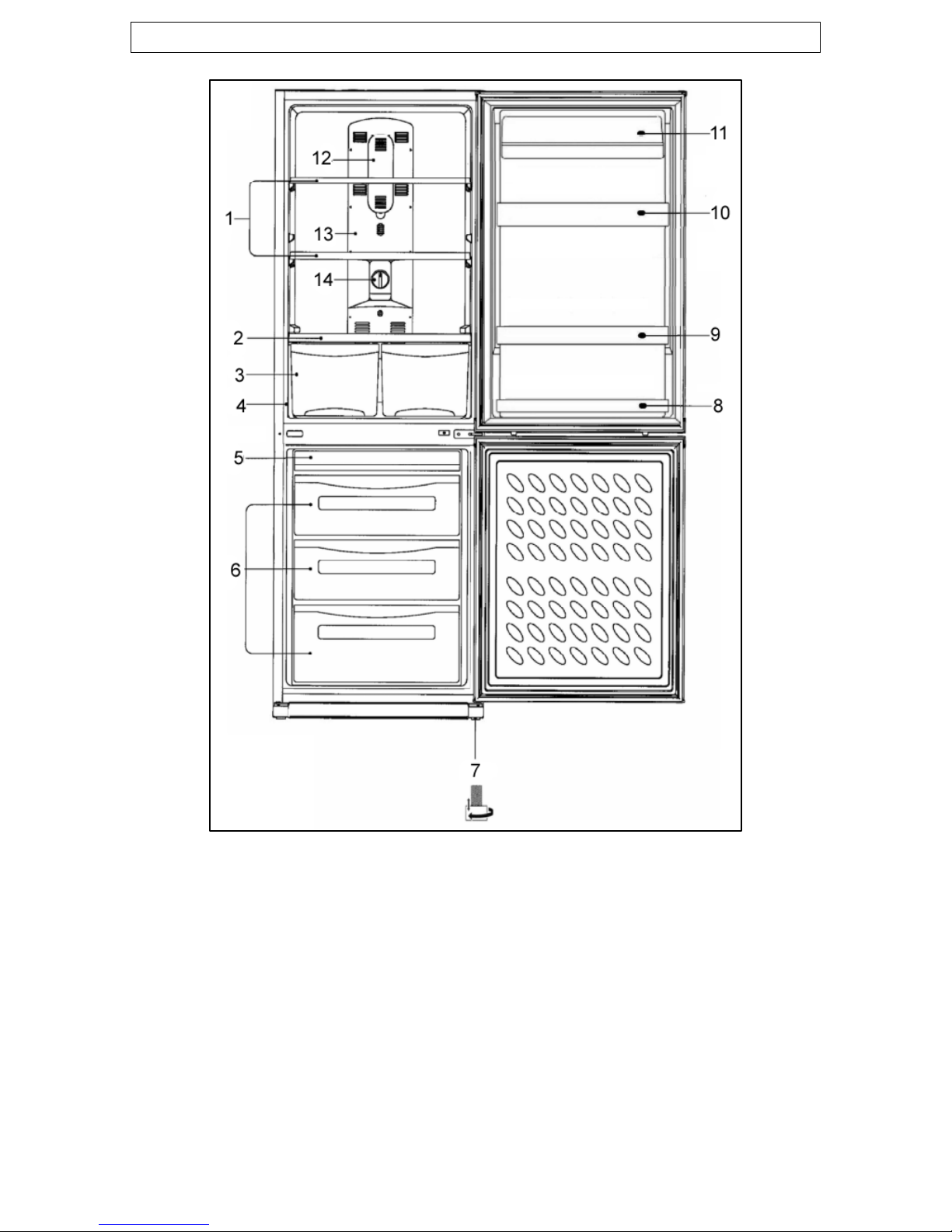

Description of the appliance

1) Shelves 13) Airflow duct vent

2) Salad crisper 14) Thermostat control knob

3) Salad drawers

4) Rating plate

5) Ice cube tray

6) Freezer drawers

7) Adjustable foot

8) Large bottle shelf

9) Small bottle shelf

10) Egg holder shelf

11) Dairy shelf

12) Refrigerator light

Description of the product features

1) Shelves

oThe shelves may be placed in any of the guide slots within the

interior of the appliance. They are protected from sliding out.

oTo remove a shelf: Take off all of the items that are stored on

the shelf that you want to remove. Then lift the front of the shelf

and carefully pull it out of the grooves.

2) Salad drawer and cover

oThe salad drawers can be found in the bottom of your

refrigerator and there is a cover that goes over them.

oThe cover helps to prevent fruit and vegetables from drying out

prematurely.

3) Upper door shelves

oThe door liner holds various shelves, which are suitable for

storing eggs, cheese, butter and yogurt. As well as smaller

packages, tubes, cans etc.

4) Bottle shelf

oThe lower shelf should be used for storing reasonably sized

bottles.

oIMPORTANT: NONE OF THE SHELVES THAT SIT IN THE

DOOR SHOULD BE OVERLOADED, AS THIS WILL

DRASTICALLY REDUCE THEIR WORKING LIFE.

5) Freezer compartment

oA freezer section, with a net capacity of 81 litres (BF340)

or 97 litres (BF346).
