Baumatic BHI609 Manuel utilisateur

BHI609

60cm Front

touch control

induction zone hob

User Manual for your Baumatic

BHI609

60 cm Touch control

induction zone hob

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 27/06/11

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 - 11

Electricaldetails 10

Ceramic hob surface layout 10

Control panel layout 11

Using the ceramic hob 11 - 17

Beforefirstuse 11

Touchcontrols 12

Switchingthehobon 12

Switching on a zone and setting a power level 12 - 13

Switching off a zone gradually 13

Switchingoffazoneinstantly 14

Switchingthehoboff 14

Residualheatindicator 15

Pansensor 15

Cookware that is suitable for an induction hob 16

The hob timer 16 - 17

Locking the hob top 17

Safetycut-off 18

Hob guidelines 18 - 19

Cleaning and maintenance 19 - 20

Cleaning the ceramic hob top 19

Aftereachuse 20

Cleaningtable 20

Using a ceramic hob scraper 20

Using a specialist ceramic hob cleaner 20

Installation 21 - 27

Positioning 21-22

Installing above a built under oven 22

Unpacking the appliance 23

Installing the appliance 23– 24

Electricalconnection 25

Connecting the mains supply cable 25- 26

Replacing the mains supply cable 27

My appliance isn’t working correctly 27 - 28

Errorcodes 28-29

Contactdetails 30

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, will be the liability of

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYou should not use this appliance to store items on or as a work

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be kept away

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will be hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oOlder children should only be allowed to utilise the appliance

when supervised.

General Safety

oThe appliance should only be installed and connected by a

suitably qualified person.

oCare should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

oIf you notice any scratches, splits or cracks in the ceramic glass,

you should immediately switch off the appliance and disconnect

it from your mains supply. Otherwise there is the risk of electric

shock occurring.

During use

oAny film or stickers that are present on the hob surface when it

is delivered should be removed before use.

oCare should be taken when utilising the appliance, otherwise

there is a risk of burns being caused.

oYou should not allow the electrical connection cables to come

into contact with the hob surface when it is hot or any hot

cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooking with fat and oil the appliance should

not be left unattended.

oMake sure that all of the cooking zones are switched off after

use.

oIMPORTANT: This ceramic induction hob fully complies

with current legislation regarding electro-magnetic

interference and is designed not to interfere with other

electronic appliances providing these comply with the

same legislation.

oAs the hob generates magnetic fields in its immediate

vicinity, pacemakers and active heart implants must be

designed to comply with relevant regulations. If in doubt,

you should consult the manufacturer of your device or

your doctor. In this respect, Baumatic can only guarantee

the conformity of our own product.

oIf an object made of metal, (e.g. saucepan lid, knife, fork

or spoon) is placed on a cooking zone that is switched on,

it can get hot.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and allowed to cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

Baumatic Ltd. declines any responsibility for injury or damage,

to person or property, as a result of improper use or incorrect

installation of this appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

oThe manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

To avoid damaging your appliance

oThe ceramic glass can be damaged by objects falling onto it.

oThe ceramic glass edge can be damaged by knocks from

cookware.

oCast iron and cast aluminium cookware with damaged bases

may scratch the ceramic surface if they are dragged across it.

oPans should be lifted on and off the hob surface and not

dragged.

oCooking zones should not be switched on without cookware

placed on it. Also the cookware should not be empty.

oFood or liquid that has high sugar content may damage the hob

top, if it comes into contact with the ceramic hob surface. Any

spillages should be wiped up immediately, however this may not

prevent the hob surface from becoming damaged.

Specifications

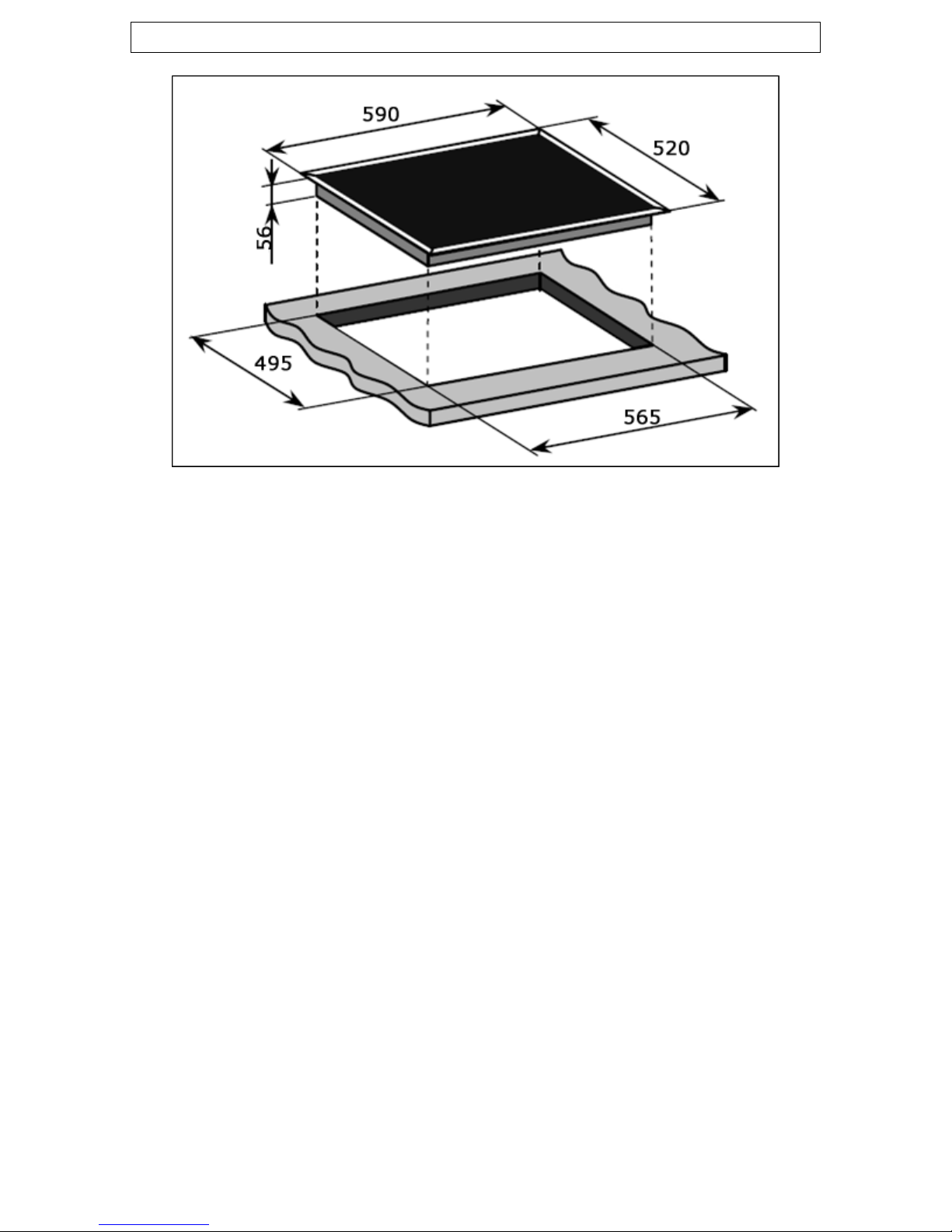

Product dimensions: Aperture dimensions:

Depth: 520 mm Depth: 495 mm

Width: 590 mm Width: 565 mm

Height: 56 mm

Product specifications:

o2 x 2.00 kW induction zone (Ø 180 mm)

o2 x 1.50 kW induction zone (Ø 180 mm)

oFront touch control operation

oTimer

oAuto pan detection

o4 independent induction generators

o4 individual residual heat indicators

oSafety lock

oFrameless

oSuitable for installation above built-under ovens. IMPORTANT:

Providing that the specific installation instructions in this

manual are followed.

Standard accessories

oCeramic hob scraper

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 30 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 7.0 kW

Mains Supply Lead: 3 core x 6 mm² (not supplied)

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

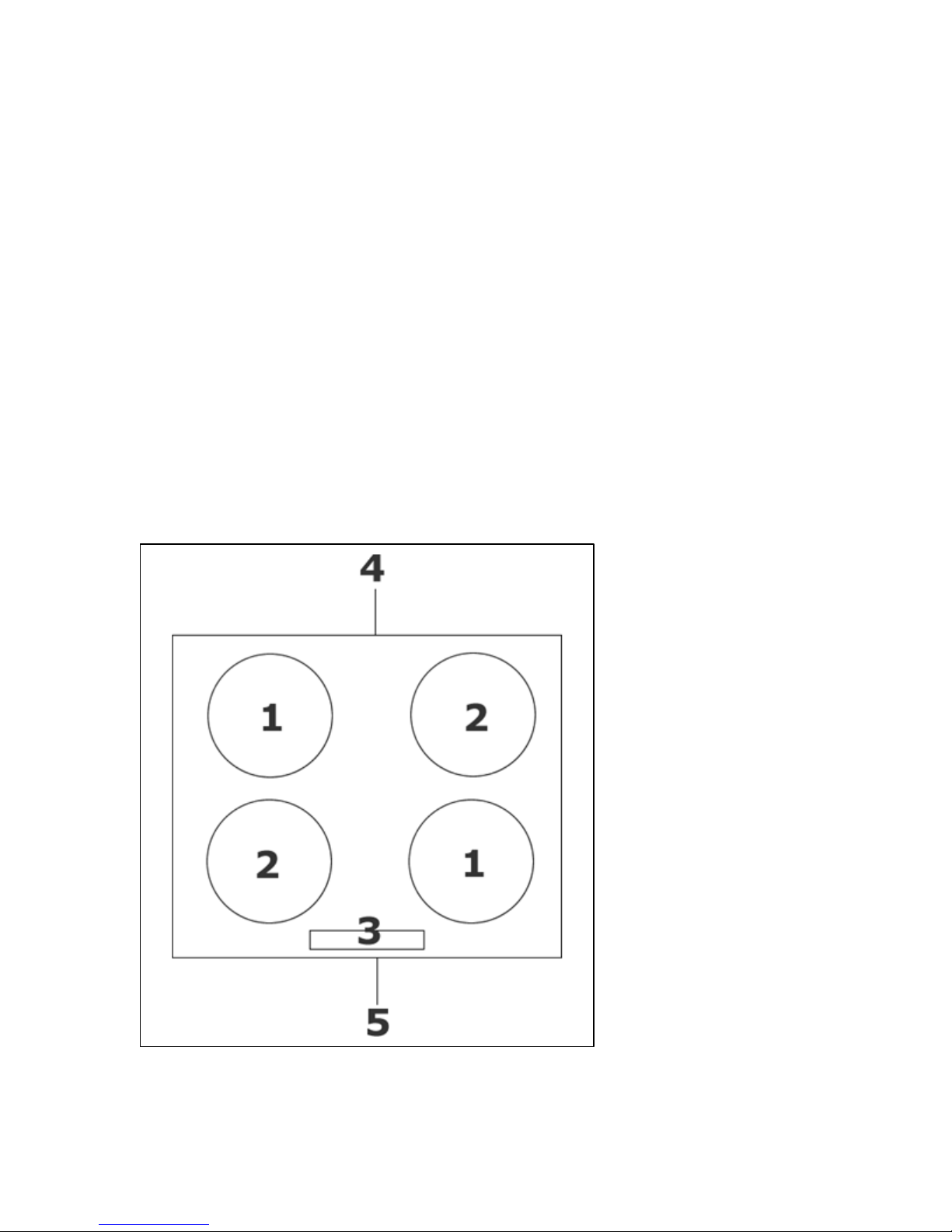

Ceramic hob surface layout

1) 2.00 kW induction

zones (Ø 180 mm)

2) 1.50 kW induction

zones (Ø 180 mm)

3) Control panel

4) Air entry point

5) Air vent
