Baumatic PCG7110SS Manuel utilisateur

That

PCG7110SS

70cm

Single cavity gas oven

cooker

User Manual for your Baumatic

PCG7110SS

70 cm Single cavity gas oven cooker

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 09/12/08

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 10

Controlpanel 11

Using your gas cooking theatre 12–18

Beforefirstuse 12

Switching the gas oven on 12–13

Switching the gas grill on 13–14

Using and assembling the rotisserie 14–15

Usingtheminuteminder 15

Theovenlight 15

Cookingguidelines 16

Warnings 16

Usingthehobtop 17

Automaticelectricignition 17

Energysavingtips 18

Cleaning and maintenance 19–21

Cleaning the hob burners 20

Replacing the oven bulb 20

Removing the oven doors for cleaning 21

Installation 22–35

Positioning 22–24

Gas connection 24–25

Ventilationrequirements 25

Gas Safety (Installation and Use) Regulations 26

Gas connection 26–27

Gas adjustment (Conversion to LPG for the hob top) 28-29

Minimum flow adjustment for hob gas taps 29

Gas adjustment (Conversion to LPG for the oven and grill) 30–31

Minimum flow adjustment for the oven and grill burners 31

Fitting a stability chain 32

Electricalconnection 33

Connecting the mains supply cable 34

Replacing the mains supply cable 34–35

My appliance isn’t working correctly 35–36

Contactdetails 37

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If yo

are unsure of any of the information contained in t u

his

ooklet, please contact the Baumatic Advice Line.

tic household use and for

ient temperature of the

n at

20 mm to the appliance, will be

rmation given in the installation instructions

hat this

f Baumatic Ltd.

uarantee. The foregoing does not

affect your statutory rights.

Service

Engineers or their authorised service agent.

General Information

oThis appliance is designed for domes

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used

the installation must be able to withstand a minimum

temperature of 85°C above the amb

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouratio

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than

the liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate info

for this appliance.

oIMPORTANT: Baumatic Ltd. DO NOT recommend t

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement o

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of G

oRepairs may only be carried out by Baumatic

arning and safety instructions

iance

become hot during use and retain heat after operation.

hild Safety

ny time. During and after use, all

surfaces will become hot.

se ensure that they are kept under close supervision

at all times.

eneral Safety

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compl

does not remove the fact that the appliance surfaces will

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowe

to touch the appliance at a

oIf it is necessary for younger family members to be in the

kitchen, plea

Make sure that you understand the controls before using the

appliance.

Check that all of the controls on the appliance are turned off

after use.

when opening the oven door, this will allow

eat to disperse.

Always stand back

Take care when removing items from the oven, as the contents

may be hot.

Always keep the oven doors closed when the oven is not in use.

Always follow the basic principles of food handling and hygiene;

this will prevent the possibility of bacterial growth.

Always keep ventilation slots clear of obstructions.

Keep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

Oven gloves should be used when placing food in the oven ca

and when removing it. Care should be tak vity

en to avoid direct

contact with the inside of the appliance.

T LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDO NO

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in cabinets immediately above or next to the

cooker.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using the grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between

the door glasses, and inside the inner frame as some of

the edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-90/396/EEC regarding “gas appliances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

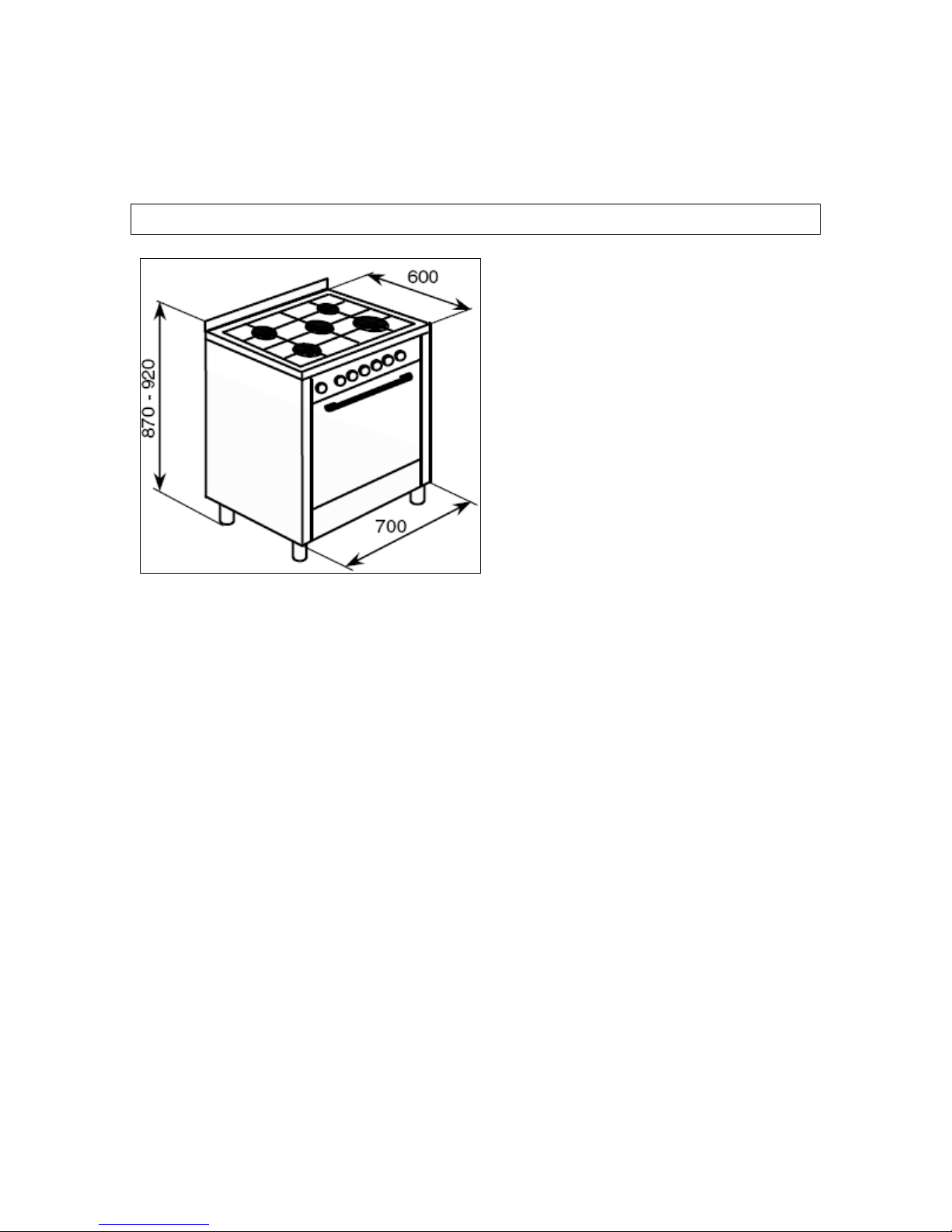

Product dimensions:

Height: 870 - 920 mm

Width: 700 mm

Depth: 600 mm

Product specifications:

o5 burner gas hob:

o1 x 3.60 kW wok burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oHeavy duty cast iron pan stands

oUnderknob auto-ignition

oMain oven: gas oven with grill

oMain oven capacity: 65 litres

oStorage compartment capacity: 15 litres

oMinute minder

oCooling fan

oFlame failure safety device in the oven and grill

oDouble glazed removable door

oAdjustable feet
