y 1

BCD1205SS

120 cm Twin cavity

Dual fuel range cooker

User Manual for your Baumatic

BCD1205SS 120 cm

Twin cavity dual fuel

Range cooker with gas hob

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 27/06/13

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 – 12

Dimensions 9

Specifications 9-10

Electricaldetails 10

Gasdetails 11

Control panel 11 – 12

Oven timer (Minute minder) 12

Usingthehobtop 13 – 16

Hobsurfacelayout 13

Before first use 13

Lightingaburner 14

Optimum use of the burners 14

Hobguidelines 15-16

Usingtheoven 16 - 20

Before first use 17

Usingthemainoven 17

Cookingfunctions 17-18

Using the secondary oven 18 - 19

Cooking guidelines 19

Warnings 20

Cookingtips 21 - 25

Cleaning and maintenance 25 – 30

Cleaning the gas hob top 26

Aftereachuse 26

Cleaning the burners 27

Cleaning the oven 27

Replacing the oven bulb 28

Removing the oven door for cleaning 29

Removing the inner door glass for cleaning 29 - 30

Installation 30 - 34

Positioning 30-31

Ventilation requirements 32 - 33

Securingtheback-guard 33

Fitting the safety chain and hook 34

Electrical connection 35

Connecting the main supply cable 35 - 36

Gasconnection 36

Gas safety (installation and use) regulations 36 – 37

Gas connection 37 – 38

Gas conversion to LPG 38 – 39

Minimum flow adjustment for hob gas taps 39 – 40

Gas tap replacement 40 - 41

My appliance isn’t working correctly 41 – 43

Baumaticconsumables 44

Contact details 47

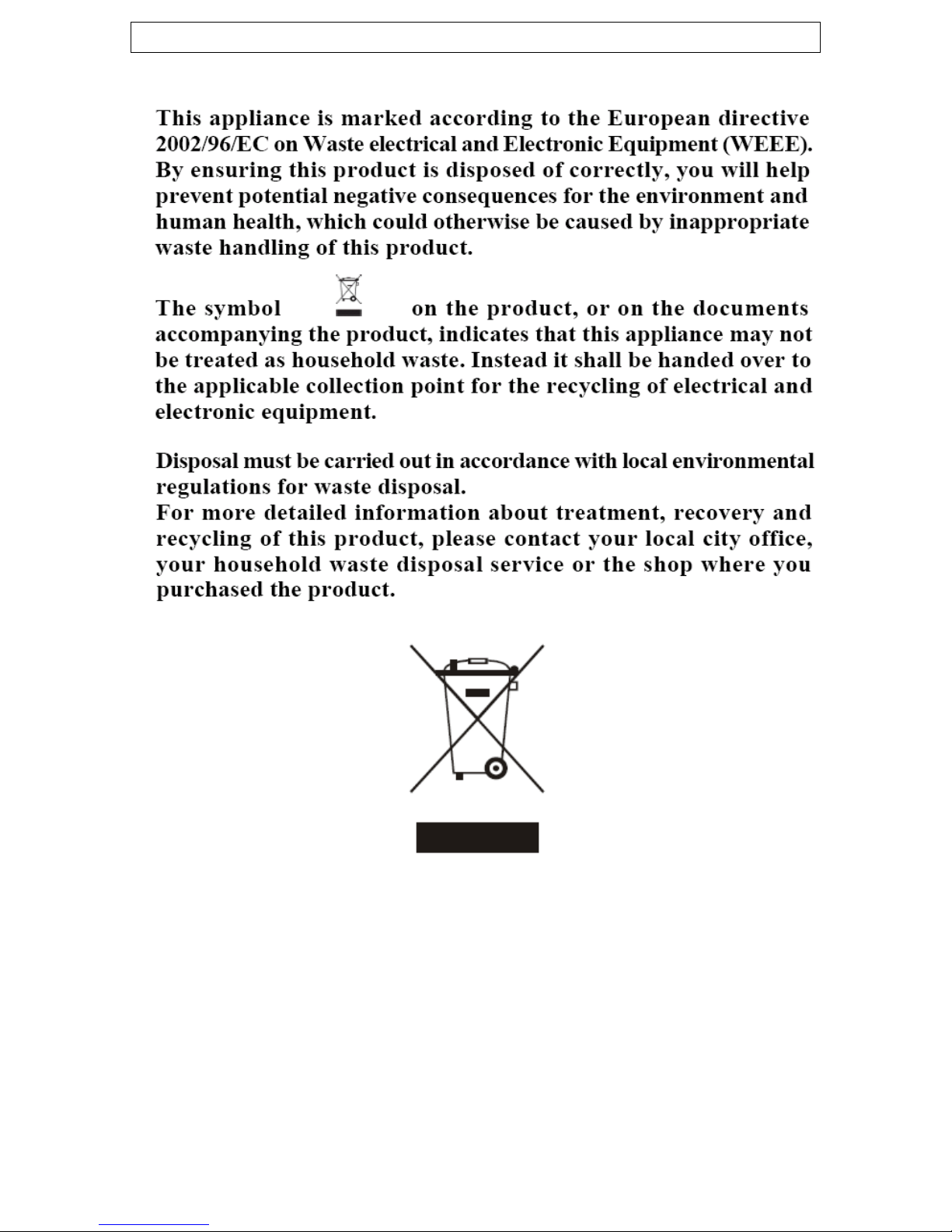

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic. Please

make sure that you read this instruction booklet before

attempting to install or use the appliance. If you are unsure

of any of the information contained in this booklet, please

aumatic Advice Line.

omestic household use and for the

e ambient temperature of the room it is located in,

r discolouration at temperatures below the

than 25 mm to the appliance, will be the

end that this

ent of Baumatic Ltd. will

uarantee. The foregoing does not affect your

statutory rights.

matic service

engineers or their authorised service agents.

arning and safety instructions

will become hot

during use and retain heat after operation.

contact the B

General Information

This appliance is designed for docooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in the

installation must be able to withstand a minimum temperature of

85°C above th

whilst in use.

oCertain types of vinyl or laminate kitchen furniture are particularly

prone to heat damage o

guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer

liability of the owner.

IMPORTANT: Baumatic Ltd. DO NOT recommoappliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreem

invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or mechanical

defects, subject to certain exclusions that are noted in Baumatic’s

Conditions Of G

Repairs may only be carried out by Bauo

oThis appliance complies with all current European safety legislation.

Baumatic do wish to emphasise that this compliance does not

remove the fact that the appliance surfaces

oThis appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Child Safety

oBaumatic strongly recommend that babies and young children are

prevented from being near to the appliance and not allowed to

touch the appliance at any time. During and after use, all surfaces

will become hot.

oIf it is necessary for younger family members to be in the kitchen,

please ensure that they are kept under close supervision at all

times.

General Safety

Make sure that you understand the controls before using the

appliance.

Check that all of the controls on the appliance are turned off after

use.

Always stand back when opening the oven door, this will allow

heat to disperse.

Take care when removing items from the oven, as the contents

may be hot.

Always keep the oven doors closed when the oven is not in use.

Always follow the basic principles of food handling and hygiene; this

will prevent the possibility of bacterial growth.

Always keep ventilation slots clear of obstructions.

Keep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

Oven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct contact

with any of the elements in the appliance.

oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDo not place heavy objects on the oven door or lean on the oven

door when it is open, as this can cause damage to the oven door

hinges. Nobody should be allowed to sit or stand on any part of the

cooker.

oDo not store chemicals, food stuffs, pressurised containers in or on

the cooker or in cabinets immediately above or next to the cooker.

oDo not heat up unopened food containers, as pressure can build up

which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in the

oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk. You

should not fill a deep fat frying pan more than one third full of fat or

oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the oven

cavity, or line it with aluminium foil.

oDo not grill food containing fat without using a grill trivet. The grill

trivet should never be covered with aluminium foil.

oDo not place hot parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato juice

or any liquid with high sugar content to remain in contact with the

enamel parts of the appliance. Spillages should be wiped up

immediately.

oDo not allow electrical fittings or cables to come into contact with

areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to dry

clothing. No clothing should be placed over or near to the hob

burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance or

result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the mains

before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between the

door glasses, and inside the inner frame as some of the

edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a suitably

qualified person, strictly in accordance with the

manufacturer’s instructions. Please see the specific

section of this booklet that refers to installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper use

or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

2006/95/EC regarding “low voltage”

2004/108/EC regarding “electromagnetic disturbances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in accordance

with the standards currently in force. This appliance must be used

by a trained person for domestic purposes only.

Specifications

Height = 910 - 920 mm

Width = 1200 mm

Depth = 600 mm

Product specifications:

o6 zone gas hob:

o1 x 3.25 kW triple crown wok burner

o1 x 3.00 kW rapid burner

o3 x 1.80 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

o1 x 1600 kW rectangular radiant zone

oFlame failure safety device on each burner

oAutomatic ignition

oHeavy duty cast iron pan stands

oTwin cavity oven

oEnergy efficiency class: A/A

oMinute minder

oCooling fan

oOven lights

oElectronically controlled thermostat

oThermostatically controlled grill (main oven)

oFixed grill (secondary oven)

oTriple-glazed removable doors

oRemovable inner glasses

oRemovable side racks

oWipe Clean enamelled cavities

oAdjustable feet

Left oven: Multifunction oven

o8 functions

oNet/Gross oven capacity: 85/112 litres

Right oven: Conventional oven with grill

o3 functions

oNet/Gross oven capacity: 35/43.5 litres

Standard accessories:

oTrivet

oWipeClean enamelled baking tray with handle

o3 x Safety shelves

oLPG conversion jets

oWok stand

oBase plinth

Optional extras:

oWok stand

Cooling fan

oA tangential cooling fan is fitted inside of this appliance, to make

the internal temperature of the oven stable and the external

surface temperature lower.

oAfter you have finished cooking and switched off the oven, the

cooling fan will continue to run for a period of time afterwards.

The length of time will depend on how long the oven has been

switched on for and at how high a temperature.

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 25A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 5.77 kW

Mains Supply Lead: 3 core x 4.0 mm² (not supplied)

Oven Light Bulb: E14 15 W/300°C screw type pygmy

Gas details

Gas Connection Type: 1/2” BSP

Gas Type (Natural Gas): 20 mbar

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the door of the storage compartment.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Table des matières

Autres manuels Baumatic Cuisinière

Baumatic

Baumatic BCG925SS Manuel utilisateur

Baumatic

Baumatic BCG900SS Manuel utilisateur

Baumatic

Baumatic PCG7110SS Manuel utilisateur

Baumatic

Baumatic PCC9220BL/SS Manuel utilisateur

Baumatic

Baumatic BCG625-SS Manuel utilisateur

Baumatic

Baumatic BCG600SS Manuel utilisateur

Baumatic

Baumatic BCG520SL Manuel utilisateur

Baumatic

Baumatic PCG9110SS Manuel utilisateur

Baumatic

Baumatic PROFESSIONAL Series Manuel utilisateur

Baumatic

Baumatic BCE512SS/W Manuel utilisateur

Baumatic

Baumatic BC391.2SS Manuel utilisateur

Baumatic

Baumatic PCC1220SS Manuel utilisateur

Baumatic

Baumatic BCE625-SS Manuel utilisateur

Baumatic

Baumatic BCE520SL Manuel utilisateur

Baumatic

Baumatic BRC4BDY Manuel utilisateur

Baumatic

Baumatic BCG605SS Manuel utilisateur

Baumatic

Baumatic BCE1020SS Manuel utilisateur

Baumatic

Baumatic BT2001SS Manuel utilisateur

Baumatic

Baumatic PCE9220SS Manuel utilisateur

Baumatic

Baumatic BAF90EG Manuel utilisateur

Baumatic

Baumatic PROFESSIONAL Series Manuel utilisateur

Baumatic

Baumatic PCC9220BL Manuel utilisateur

Baumatic

Baumatic BAU95EE Manuel utilisateur

Baumatic

Baumatic BCG920SS Manuel utilisateur

Manuels Cuisinière populaires d'autres marques

Modena

Modena FC 7645 SGM Manuel du propriétaire

Electrolux

Electrolux Insight EKG6049 Manuel utilisateur

Stanley

Stanley Donard 60 Manuel utilisateur

Bartscher

Bartscher 201TC Manuel utilisateur

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuel utilisateur

Siemens

Siemens HK9P00020U Manuel utilisateur

Creda

Creda S150E Mode d’emploi

Creda

Creda HB48309 Manuel utilisateur

Bosch

Bosch HCE743220F Manuel utilisateur

Tricity Bendix

Tricity Bendix SE545P Manuel utilisateur

NEFF

NEFF E1461A2/01 Manuel utilisateur

Zanussi

Zanussi ZCM 700 X Manuel utilisateur

Smeg

Smeg SNL61MA9 Manuel utilisateur

RiverGrille

RiverGrille TF2002501-RG Manuel utilisateur

Vollrath

Vollrath 69504F Manuel utilisateur

Tricity Bendix

Tricity Bendix CSIE500 Manuel utilisateur

AEG

AEG Competence 5731 V Manuel utilisateur

Euromaid

Euromaid ES60 Manuel utilisateur
