Baumatic BCE1025SS Manuel utilisateur

y 1

BCE1025SS

100 cm

BCE925SS 90 cm

Twin cavity

electric slot-in cooker

User Manual for your Baumatic

BCE1025SS 100 cm

BCE925SS 90 cm

Twin cavity electric slot-in

cooker with ceramic top

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 14/01/13

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 – 13

Dimensions 9

Specifications 9-10

Electricaldetails 10

Control panel 11 –12

Hobsurfacelayout 13

Oventimer 13

Usingthehobtop 13 -19

Before first use 13

Selecting a cooking function and temperature 14 -18

Usingthemainoven 14-15

Cookingfunctions 14-15

Usingthesecondaryoven 15-16

Cookingguidelines 16

Warnings 17

Using the hob top cooking zones 17 -18

Hob guidelines 18 –19

Cookingtips 20 -22

Cakesandbread 23

Meat 24

Cleaning and maintenance 24 -28

Cleaning the ceramic hob top 25

Aftereachuse 25

Cleaning table 26

Replacing the oven bulb 26 –27

Removing the oven door for cleaning 27

Removing the inner door glass for cleaning 28

Installation 29 -33

Positioning 29-30

Securingtheback-guard 31

Fitting the safety chain and hook 31 -32

Electricalconnection 32

Connecting the main supply cable 33

My appliance isn’t working correctly 34 -36

Baumaticconsumables 37

Contact details 38

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Customer Care

epartment.

estic household use and for

ambient temperature of the

scolouration at

25 mm to the appliance, will be

nd that this

t of Baumatic Ltd.

Guarantee. The foregoing does not

affect your statutory rights.

atic service

engineers or their authorised service agents.

General Information

oThis appliance is designed for dom

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than

the liability of the owner.

oIMPORTANT: Baumatic Ltd. DO NOT recomme

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreemen

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of

oRepairs may only be carried out by Baum

arning and safety instructions

will become hot

during use and retain heat after operation.

hild Safety

ce at any time. During and after use, all surfaces

will become hot.

ensure that they are kept under close supervision at all

times.

eneral Safety

oThis appliance complies with all current European safety legislation.

Baumatic do wish to emphasise that this compliance does not

remove the fact that the appliance surfaces

oBaumatic strongly recommend that babies and young children are

prevented from being near to the appliance and not allowed to

touch the applian

oIf it is necessary for younger family members to be in the kitchen,

please

Make sure that you understand the controls before using the

appliance.

Check that all of the controls on the appliance are turned off after

use.

when opening the oven door, this will allow

eat to disperse.

Always stand back

Take care when removing items from the oven, as the contents

may be hot.

Always keep the oven doors closed when the oven is not in use.

Always follow the basic principles of food handling and hygiene; this

will prevent the possibility of bacterial growth.

Always keep ventilation slots clear of obstructions.

Keep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

Oven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct contact

with any of the elements in the appliance.

OT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDO N

oDo not place heavy objects on the oven door or lean on the oven

door when it is open, as this can cause damage to the oven door

hinges. Nobody should be allowed to sit or stand on any part of the

cooker.

oDo not store chemicals, food stuffs, pressurised containers in or on

the cooker or in cabinets immediately above or next to the cooker.

oDo not heat up unopened food containers, as pressure can build up

which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in the

oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk. You

should not fill a deep fat frying pan more than one third full of fat or

oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the oven

cavity, or line it with aluminium foil.

oDo not grill food containing fat without using the grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato juice

or any liquid with high sugar content to remain in contact with the

enamel parts of the appliance. Spillages should be wiped up

immediately.

oDo not allow electrical fittings or cables to come into contact with

areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to dry

clothing. No clothing should be placed over or near to the hob

burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance or

result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the mains

before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between the

door glasses, and inside the inner frame as some of the

edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance with

the manufacturer’s instructions. Please see the

specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper use

or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

2006/95/EC regarding “low voltage”

2004/108/EC regarding “electromagnetic disturbances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in accordance

with the standards currently in force. This appliance must be used

by a trained person for domestic purposes only.

Specifications

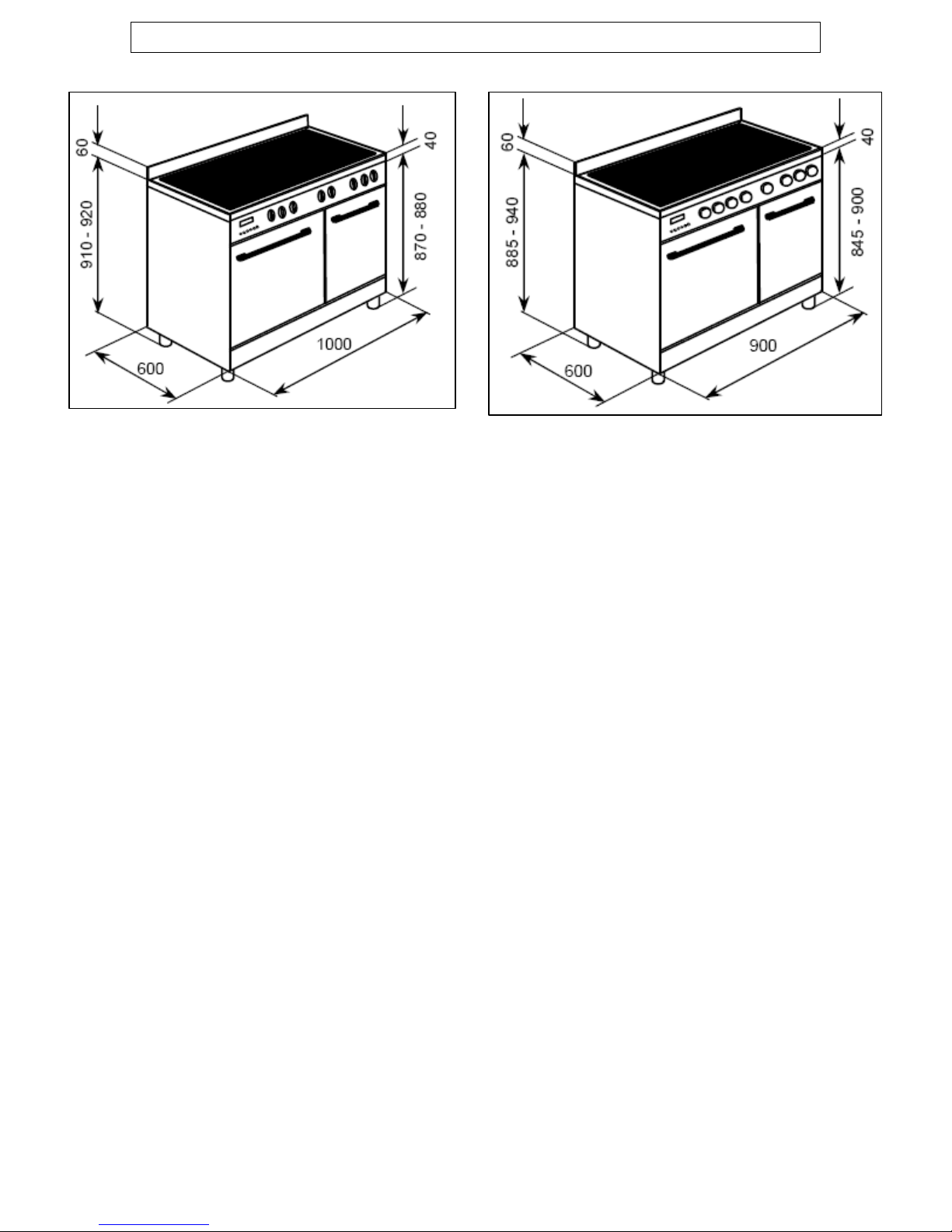

Product dimensions:

BCE1025SS BCE925SS

Height: 910 - 920 mm Height: 885-940 mm

Width: 1000 mm Width: 900 mm

Depth: 600 mm Depth: 600 mm

Product specifications:

5 zone ceramic hob:

o2 x 1.20 kW hyper-speed zone (Ø 140 mm)

o1 x 2.10 kW hyper-speed zone (Ø 210 mm)

o1 x 1.00/2.20 kW double hyper-speed zone (Ø 140 / 210 mm)

o1 x 0.80/2.20 kW oval hyper-speed (Ø 170 / 265 mm)

Left oven: Multifunction oven

o6 functions

oNet oven capacity: 50 litres

oGross oven capacity: 64 litres

Right oven: Static oven with grill

o3 functions

oNet oven capacity: 35 litres

oGross oven capacity: 43.5 litres

Specifications:

oEnergy efficiency class: A/A

oCooling fan

oOven lights

oThermostatically controlled grill (main oven)

oFixed grill (secondary oven)

oDouble-glazed removable doors

oRemovable full inner glasses

oWipe Clean enamelled cavities

oAdjustable feet

Standard accessories:

oWipeClean enamelled baking tray with handle

oWipeClean enamelled baking tray

o3 x Safety shelves

oRemovable side racks

oTrivet

oCeramic hob scraper

Optional extra:

oBPS2 Pizza Stone

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 55 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 12.15 kW

Mains Supply Lead: 3 core x 6 mm² (not supplied)

Oven Light Bulb: E14 15 W/300°C screw type pygmy

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The main rating plate for your oven can

be located at the back of the cooker. A smaller rating plate which

quotes the serial and model numbers can be found on the inner cavity

of the oven or grill door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Baumatic Cuisinière

Baumatic

Baumatic BC391.2SS Manuel utilisateur

Baumatic

Baumatic PCC1220SS Manuel utilisateur

Baumatic

Baumatic BCD1205SS 120cm Manuel utilisateur

Baumatic

Baumatic BC392.2SS Manuel utilisateur

Baumatic

Baumatic B187SS-B Manuel utilisateur

Baumatic

Baumatic PCC7100SS Manuel utilisateur

Baumatic

Baumatic BT2710SS Manuel utilisateur

Baumatic

Baumatic BCG520SL Manuel utilisateur

Baumatic

Baumatic BCG625-SS Manuel utilisateur

Baumatic

Baumatic BT2320 Mode d'emploi

Baumatic

Baumatic FNO 605 BK Manuel utilisateur

Baumatic

Baumatic BT2100SS Manuel utilisateur

Baumatic

Baumatic BCG605SS Manuel utilisateur

Baumatic

Baumatic BCE905SS Manuel utilisateur

Baumatic

Baumatic BCE625-SS Manuel utilisateur

Baumatic

Baumatic BCE512SS/W Manuel utilisateur

Baumatic

Baumatic BT2760SS Manuel utilisateur

Baumatic

Baumatic BAF54GG Manuel utilisateur

Baumatic

Baumatic BCE520SL Manuel utilisateur

Baumatic

Baumatic BAF90EG-2 Manuel utilisateur

Baumatic

Baumatic PCC9220BL Manuel utilisateur

Baumatic

Baumatic BCG905SS Manuel utilisateur

Baumatic

Baumatic BCG920SS Manuel utilisateur

Baumatic

Baumatic BAU95EE Manuel utilisateur

Manuels Cuisinière populaires d'autres marques

Modena

Modena FC 7645 SGM Manuel du propriétaire

Electrolux

Electrolux Insight EKG6049 Manuel utilisateur

Stanley

Stanley Donard 60 Manuel utilisateur

Bartscher

Bartscher 201TC Manuel utilisateur

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuel utilisateur

Siemens

Siemens HK9P00020U Manuel utilisateur

Creda

Creda S150E Mode d’emploi

Creda

Creda HB48309 Manuel utilisateur

Bosch

Bosch HCE743220F Manuel utilisateur

Tricity Bendix

Tricity Bendix SE545P Manuel utilisateur

NEFF

NEFF E1461A2/01 Manuel utilisateur

Zanussi

Zanussi ZCM 700 X Manuel utilisateur

Smeg

Smeg SNL61MA9 Manuel utilisateur

RiverGrille

RiverGrille TF2002501-RG Manuel utilisateur

Vollrath

Vollrath 69504F Manuel utilisateur

Tricity Bendix

Tricity Bendix CSIE500 Manuel utilisateur

AEG

AEG Competence 5731 V Manuel utilisateur

Euromaid

Euromaid ES60 Manuel utilisateur
