Batribike Diamond Manuel utilisateur
Owner
Manual
LCD Range
Diamond
Quartz
Granite
2
Diamond
Granite
Quartz
MODEL:-
SERIAL NUMBER:-
PURCHASE DATE:-
DAY MONTH YEAR
IMPORTANT PLEASE READ THIS MANUAL FULLY
PRIOR TO ASSEMBLY AND USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
DEALERSTAMP
B
B
/
/
3
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.
PACKAGE CONTENTS
1 ELECTRIC BICYCLE
1 BATTERY
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
Contents
Parts Identification ............................................ PAGE 4
Battery Charging ............................................... PAGE 6
Using the Power Assistance ............................. PAGE 8
Cycle Computer Functions ............................... PAGE 16
Standard Bicycle Functions .............................. PAGE 18
Maintenance Schedule ..................................... PAGE 23
Warranty ........................................................... PAGE 26
Specifications ................................................... PAGE 28
4
17
14
13
12
27
30
18
23
32
21
15
29
16
26
31
11
19
8
25
24
5
3
7
5
4
1
6
2
33
LCD
1
Twist Grip Throttle *
2
Rear Brake Lever
3
Front Brake Lever
4
Motor Cutout Switch
5
Gear Selector
6
Bell
7
Handlebar Adjustment
8
Handlebar Folding Lock
9
Frame Folding Clamp
10
Suspension Forks
11
Battery
12
Battery Power Plug
13
Charging Socket
14
Rear Hub Motor
15
Controller Box
16
Luggage Rack
17
7 Speed Shimano Gears
18
Front Tyre 26 x 1.75
19
Front Tyre 20 x 2.125
20
Rear Tyre 26 x 1.75
21
Rear Tyre 20 x 2.125
22
Chain Guard
23
Seat Height Adjuster
24
Suspension Seat Post
25
Front LED Light
26
Rear LED Light
27
Folding Pedals
28
Non-Folding Pedals
29
Rear Vee Brake
30
Front Vee Brake
31
Chainwheel
32
Thumb Throttle *
33
PARTS IDENTIFICATION
We continually strive to ensure that we provide you with the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*Only one type of throttle is fitted, either twist-grip or thumb.
5
17
14
13
12
27
30
18
29
23
21
15
32
16
8
25
24
17
14
13
12
27
30
18
23
32
22
15
28
16
9
25
24
26
31
11
20
26
31
11
19
10
Luggage Straps
NOT SUPPLIED
Detail view of
Battery Connections
13
14
6
WARNING
Ensure that charging socket
cover is CLOSED before
removing or inserting the battery.
Failure to do so will result in
breakage of the cover.
USE ONLY THE CHARGER SUPPLIED
Power
Charge
CHARGING THE BATTERY
The battery can be charged on or off the bike.
To remove the battery, unplug the battery from the
bike. (Blue Plug).
(To remove the Blue Plug slide the silver locking
tab backwards and rotate the plug anti-clockwise,
then pull out of the socket).
then unlock with one of the two keys provided. Hold down the plastic securing
tab and slide out the battery from the rear of the carrier. Insertion is the reverse
of the above procedure.
The charging lead is plugged into the charging socket located behind the slide
cover on the battery.
Unplug the
battery from
the bike
(Blue Plug)
before
charging,
then plug in
the charging lead
IMPORTANT
It is important to plug the charger into the
battery before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.
Securing Tab
7
If your BATRIBIKE is not in use for an extended period it is
imperative that you charge the battery before storage and then
charge the battery once a month to prevent deterioration.
When not in use, store the battery in a warm, dry place.
If Lithium batteries are left flat for an
extended period then they may no
longer be functional and a new
replacement will be required.
With correct User Care as outlined above your battery should have a lifetime of
around 1000 charges.
FAILURE TO FOLLOW
THIS PROCEDURE WILL
INVALIDATE YOUR
BATTERY WARRANTY
Plug the charger into the mains socket and switch on at the wall outlet.
The lights on the charger will illuminate after a few seconds.
The RED light indicates that mains power is applied. The
other light will show ORANGE/RED whilst charging is taking
place. This may take up to six hours for a flat battery.
When the battery is charged the ORANGE/RED light will
change to GREEN.
Once charged, switch off at the wall outlet and unplug. Unplug the charging lead
from the battery and slide the cover back over the charging socket.
NOTE: If the battery is charged and the charger left switched
on for an extended period the charger will enter a low power
state, indictaed by both the RED and ORANGE/GREEN LEDs
flashing slowly. Switch off and unplug as above.
Alternative Charger Type
An alternative type of charger may be supplied with one light instead of the two
described above. In this case the light is RED when Charging, and GREEN
when the charge cycle is complete.
The battery does not have to be completely discharged before it is recharged.
The Lithium battery has no "memory" and therefore can be charged at any time.
It is perfectly acceptable to recharge the battery after a short ride so that the
battery is fully charged before the next ride.
Power
Charge
Power
Charge
Power
Charge
CHARGE
CHARGING IN
PROGRESS
CHARGE
COMPLETE
Power
Charge
CHARGING
CHARGED
8
Your BATRIBIKE Electric
Bicycle can be used as a normal
pedal cycle by simply not
switching on the battery.
(or using in Assist
Level 0 - see below)
Usage
Buttons
Display Information Areas
UP
POWER
DOWN
ASSISTANCE
LEVEL
BATTERY STATUS
CYCLE
COMPUTER
SPEED
Display Information Areas
9
To use under electric power, plug in the
battery with the blue plug located on the
end of the battery beneath the rear of the
seat. Then press the POWER button on the
handlebar LCD display.
Control Buttons
By means of the three buttons, UP, POWER and
DOWN, on the handlebar mounted display unit,
the various functions of the power controller and
Cycle Computer can be utilised.
See the following sections for details.
To turn off the LCD and the power to the
bike, press and hold the POWER button for
2 seconds.
If the power is left on for an extended period
and the bike is not used, then the power will
automatically be turned off.
Switching Off
Switching On
ELECTRIC BICYCLE FUNCTIONS
10

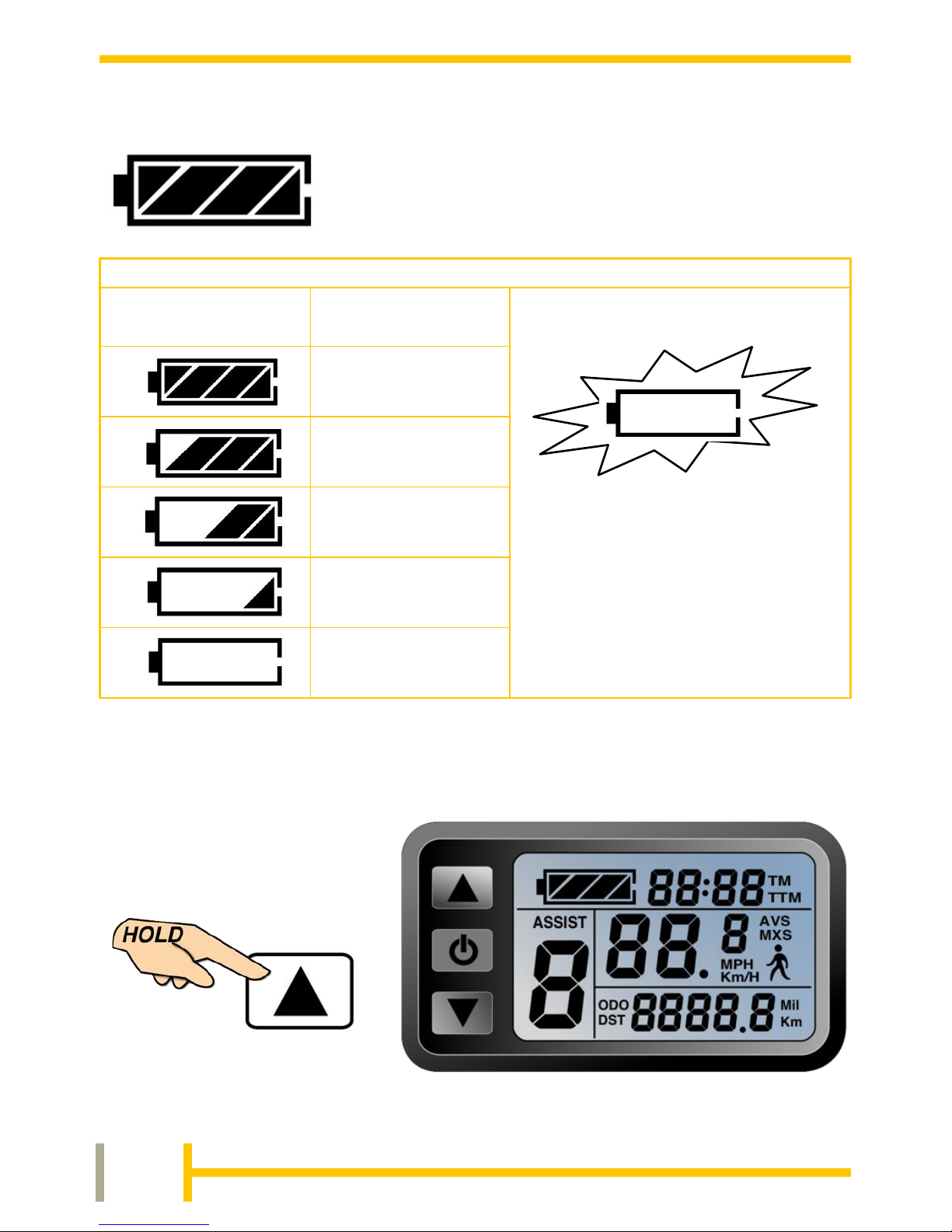

The LCD has a backlight
for night time use. This is
switched on by pressing
and holding the UP button.
To turn the backlight off,
again press and hold the
UP button.
The LCD shows the charge remaining in the
battery in the upper left of the display. The
indicators will gradually go out as the battery
power is used up. Refer to the table below
for details.
Battery Meter
Display Backlighting - Night Mode
70 - 100%
SYMBOL
DISPLAYED
CHARGE
REMAINING
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
BATTERY IS
EXHAUSTED AND
SHOULD BE
RECHARGED AS
SOON AS POSSIBLE
50 - 70%
30 - 50%
15 - 30%
0 - 15%
FLASHING
