Batribike Alpha Manuel utilisateur

Owner

Manual

DEALERSTAMP

DATATAG ETCH №:-

datatag.co.uk/cycle/validate.php

IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE

For your safety and to ensure a long and trouble free life of your Batribike

bicycle, check the operation of brakes, lights, bell and gears,

and check tyre pressures are correct.

Also check all fasteners, including quick release mechanisms,

before every ride.

batribike.com/warranty-registration

STANDARD

(10.4 Ah)

LIGHTWEIGHT

(8.8 Ah)

BATTERY:-

COLOUR:-

HUNTER

GREEN

EARTH

BROWN

WHITE

SHADOW

DISPLAY:-

LED

MINI LCD

CENTRE

LCD

LONG RANGE

(13.6 Ah)

PURCHASE DATE:-

DAY MONTH YEAR

DATATAG ID:-

BATTERY SERIAL №:-

BICYCLE SERIAL №:-

Thank you for purchasing a BATRIBIKE Electric Bicycle

With care and correct usage your bicycle

will give many years of service.

Important

PLEASE CHARGE THE BATTERY

BEFORE FIRST USING THE BICYCLE

Even though the battery indicator may show charge this cannot be

relied upon until the battery has had the initial full charge.

1 ELECTRIC BICYCLE

1 BATTERY with Keys

1 BATTERY CHARGER with UK Mains Lead

1 MANUAL

1 DATATAG Registration Certificate

Contents

Parts Identification ............................................ PAGE 4

Battery Care & Charging ...................................PAGE 6

Using the Power Assistance ............................. PAGE 8

Troubleshooting................................................. PAGE 14

Standard Bicycle Functions .............................. PAGE 16

Adjusting to Suit the Rider .............................. PAGE 18

Datatag ............................................................. PAGE 20

Maintenance Schedule ..................................... PAGE 22

Warranty ........................................................... PAGE 24

Specifications ................................................... PAGE 26

Certificate of Compliance ................................. PAGE 27

PACKAGE

CONTENTS

PARTS IDENTIFICATION

We continually strive to ensure that we provide you with the best possible products, therefore

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

Display (LED shown)

Handlebar Adjust (Bar Rotation)

Rear Brake Lever

Front Brake Lever

Motor Connector (On Right Chainstay)

Front Gear Selector (Twin Lever) x 3

Bell

Front Gear Indicator

Front Tyre 26 x 2.1 (Schwalbe)

Front Hydraulic Disk Brake

Battery

Rear Carrier

Battery Lock

Controller Box

Lights ON/OFF Button

Bicycle Serial Number Label

Power Assistance Level Indication

Side Stand

Rear Hub Motor

8 Speed Rear Derailleur Gears

Rear Tyre 26 x 2.1 (Schwalbe)

Seat Adjust (Height) - Quick Release

Rear Hydraulic Disk Brake

Power UP Button

Charging Socket

Battery Charge Level Indication

Walk Assist (6 Km/h) Button

Datatag Label

Seat Adjust (Position - Front/Back)

Suspension Lock Out

Front LED Light

Rear LED Light

Power ON/OFF & DOWN Button

Rear Gear Indicator

Rear Gear Selector (Twin Lever) x 8

Battery Power Switch

Battery Power Meter

USB Diagnostics Socket

Suspension Forks

3 Speed Chainwheel

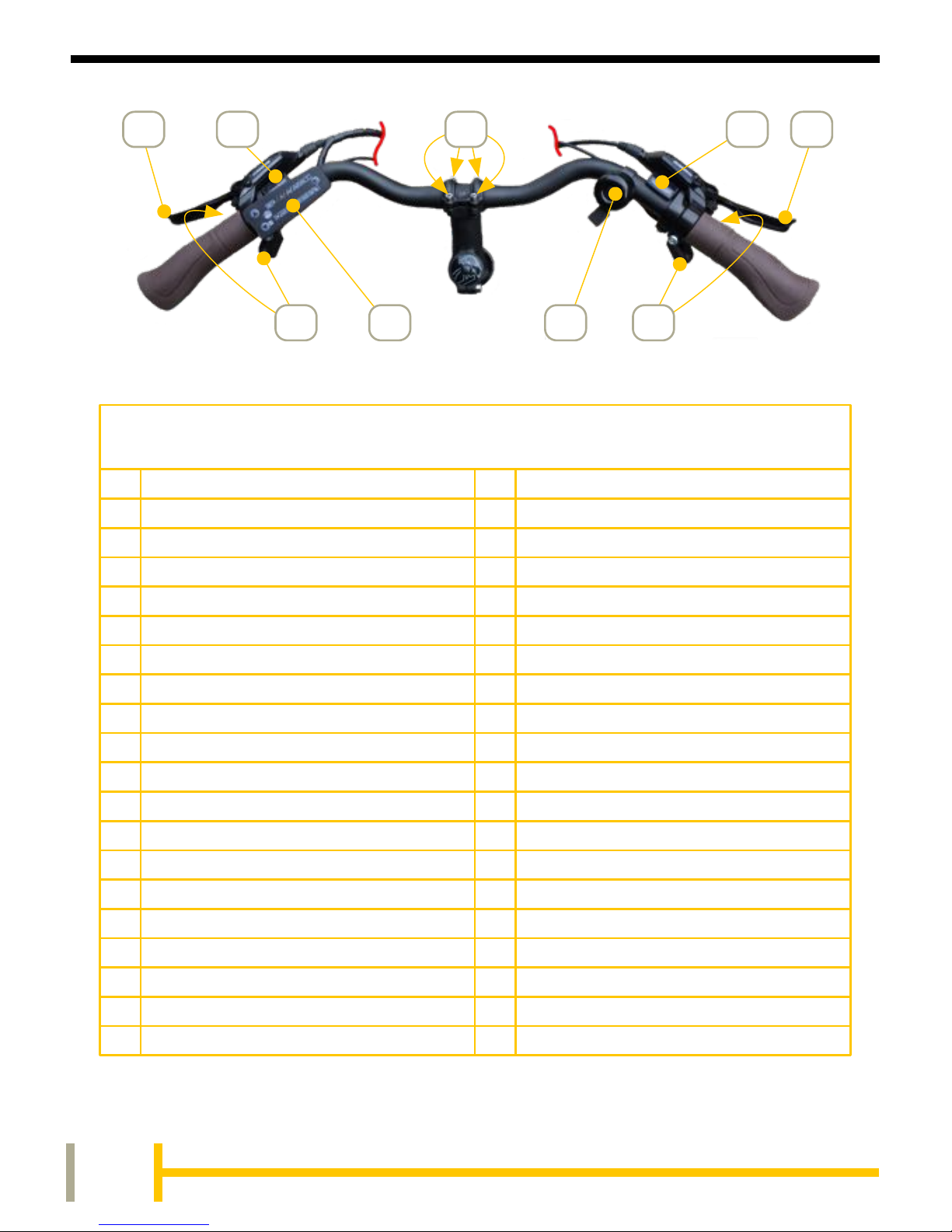

HANDLEBAR DISPLAY

OPTIONS

STANDARD FITMENT (LED)

SHOWN LEFT

Mini LCD and CENTRE LCD

(NOT SHOWN)

ALSO AVAILABLE AS

UPGRADES

OTHER

SIDE

ON INSIDE

OF FRAME

(Chainstay)

OTHER

SIDE

OTHER

SIDE

WITHIN

BATTERY

MOUNT

LEFT SIDE

OF BATTERY

RIGHT SIDE

OF BATTERY

SERVICE

USE ONLY

First time use

Your battery will be supplied in a state of sleep from the factory. The first time you

use the battery it requires activation by being fully charged.

Storage

Batteries do not like to be stored in very hot or

very cold conditions or to be subject to conditions

of high moisture. They also do not like to be left in

a fully discharged state. If Lithium batteries are

left flat for an extended period they may no longer

be functional.

• Store your battery between 15º C and 25º C

in a dry area. (The conditions found in a

normal domestic house).

• If your Batribike is not in use for an extended

period it is imperative that you charge the

battery before storage and then charge the

battery once a month to prevent deterioration.

Charging

Lithium batteries do not like to be left discharged.

It is good practice to recharge as soon as is

reasonably possible after the battery goes flat.

We recommend charging after every ride, that

way your electric bike is always ready for your

next outing.

• Do not charge at temperatures below 0º C

• Switch off the battery before charging, using

battery power switch on top of battery.

• Battery can be charged on or off the bike.

• Always make sure the battery and charger

are on a non-flammable, dry surface away

from sources of heat, humidity and

flammable materials.

• Do not cover the battery or charger whilst

charging.

• Only use the charger supplied.

• Even if not in use recharge your battery a

minimum of once a month.

For Your Safety

• Keep battery away

from children

• Do not dismantle

• Do not pierce or crush

• Do not immerse in liquid

• Do not expose to

temperatures over 60ºC

• Do not short circuit the

battery connections

• Do not leave unattended

whilst charging

• Do not sleep near a

battery that is charging

Failure to adhere to these

Battery Care instructions

can allow the battery to

deteriorate and may pose

a serious risk of Fire

BATTERY CARE & CHARGING

Your Batribike Electric Bicycle uses a Lithium battery for it's power and the

following points will directly affect battery life and performance.

Removing the Battery

To remove the battery, turn off

at the handlebar display and

the battery power button.

Unlock the battery by turning

the key anti-clockwise and slide

the unit upwards along the

frame until it disengages with

the mounting plate. Pull the

battery away from the frame.

Using the Charger

Two types of battery charger are

used by BATRIBIKE. (Only one will

be supplied). Both have a charge

light which will display RED when

charging and change to GREEN

when the battery is charged.

The alternative type charger also has a second light

which shows RED when mains power is applied.

• Ensure the battery is switched off.

• Plug the charging lead into the battery.

The charging lead plugs into the charging socket

located beneath the cover on the side of the battery

casing. It can only be inserted one way.

• Plug the charger into the mains socket and

switch on at the wall outlet.

• The lights on the charger will illuminate after a

few seconds.

When charging is complete the RED charge light will

change to GREEN. May take up to 6 hrs for flat battery.

• Once charged, switch off at the wall outlet and unplug.

• Disconnect the charging lead from the battery and

replace the cover over the charging socket.

The battery does not have to be completely discharged before it is recharged. The

Lithium battery has no "memory" and therefore can be charged at any time. It is

perfectly acceptable to recharge the battery after a short ride so that the battery is

fully charged before the next ride.

NOTE: If the battery is charged

and the charger left switched

on for an extended period the

alternative type charger will enter

a low power state, indicated by

both the RED and ORANGE/

GREEN LEDs flashing slowly.

Switch off and unplug as above.

IMPORTANT

Plug the charger into the battery

before switching on at the mains.

Similarly, switch off at the mains before

unplugging the charger from the battery.

DO NOT LEAVE PERMANENTLY

CONNECTED

Usage

Your BATRIBIKE electric bicycle has a choice of display options

available. For the ALPHA the LED type is fitted as standard to the

bike.

LED Display

See page 10 for operation

The operation of the LED system provides adjustable SPEED in five

selectable steps. Level 1 powers up to 6 mph, whilst level 5 powers

up to 15 mph. Each level operates at up to full power, and power

cuts out at the selected speed level.

Mini LCD

See separate manual for this upgrade.

The operation of the Mini LCD system has four selectable POWER

levels. Level 1 gives 25% of the power, level 2 - 50% up to level 4,

100% power. Speed range is from 0 to 15 mph in all levels. This is

available as an easy to fit upgrade.

Centre LCD

See separate manual for this upgrade.

The Centre LCD system provides more power levels than the Mini

LCD and a larger display makes it easier to read. This is available

as an easy to fit upgrade.

Display Upgrades

LED Operation

To use under electric power, switch on at

the battery power switch on the top of the

battery, then press and hold the DOWN

button on the handlebar LED display until

the blue lights are seen.

Switching On

To turn off the LED and the power to the bike, press and hold the

DOWN button for 2 seconds.

If the power is left on for an extended

period and the bike is not used, then

the power will automatically be turned off.

To fully turn off the power, switch off at the key switch on the side

of the battery and remove the key for security.

Switching Off

Control Buttons

By means of the three buttons, UP, DOWN and

6 Km/h, on the handlebar mounted display unit,

the various functions of the power controller can

be utilised.

See the following sections for details.
