Bath Royale MB0419 Manuel utilisateur
MB0419 SHOWER KIT
No. Part name Qty.
1
1
1
1
2
2
2
2
1
1
1
1
1
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
7
5
8
9
10
11
12
14
13
6
MB0419 07.03.22
Page 1
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
Teon Tape
15
15
Recomended tools and materials
Level DrillTape Measure Screwdriver
COMPLIES WITH:
• IPC / IRC / UPC
• EPA WaterSense®
• ASME A112.18.1 / CSA B125.1
Slide Bar
Wall Fixation Bracket (Fixed)
Wall Fixation Bracket (Floating)
Handspray Holder
Wall Bracket Fixation Screws
Wall Inserts (if need)
End Cap For Slide Bar
End Cap For Wall Fixation Bracket
Hand Shower
Combined Flow Regulator /
Check Valve 1.75 GPM
Shower Hose 1.5M
Shower Arm
Wall Flange
Vacuum Breaker
Sealing Washer
Thank you for selecting Bath Royale,
the benchmark of quality and function.
To ensure that your installation proceeds smoothly,
please read these instructions carefully before you begin.
IMPORTANT: Make sure your water supply line is fully ushed
before installation of this product.
MB0419 07.03.22
Page 2
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
Roughing - In Dimensions
CP ( Chrome Plated ) MB ( Matt Black ) BN ( Brushed Nickel ) BG ( Brushed Gold )
FINISHES
Water inlet ½”NPT
connection
29½” Variable
Drill hole
for screw
or
wall insert
Drill hole
for screw
or
wall insert
Water inlet
½”
Step 1
Drill hole
Drill hole
For Slide Bar :
Fasten wall bracket (3) to wall with screw (5).
3
3
5
6
6
29½”
MB0419 07.03.22
Page 3
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
Use wall insert (6) for
hollow wall applications.
If the screw is installed in a stud,
the wall insert (6) is not required.
Step 2
2
4
1
MB0419 07.03.22
Page 4
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
For Slide Bar :
Insert hand-spray holder (4) and wall xation bracket (xed) (2) to slide bar (1).
Remove the old shower head, shower arm and ange from the wall.
Step 3
12
3
13
MB0419 07.03.22
Page 5
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
For Slide Bar :
Insert the assembled slide bar
into the wall bracket (3).
For Water Supply :
• Insert wall ange (13) onto the shower arm (12).
• Apply sealant or teon tape to threads of shower arm (12).
• Thread shower arm (12) into the ½” NPT wall supply outlet.
Tighten for water tight connection.
• Orientate the shower arm (12) looking down.
• Slide the wall ange (13) back to the nished wall surface.
Step 4
7
7
8
8
5
1
2
3
14
12
1
2
MB0419 07.03.22
Page 6
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
Vacuum Breaker Installation :
• Apply sealant or teon tape to
the shower arm threads (12).
• Thread the vacuum breaker (14)
onto the shower arm (12).
For Slide Bar :
Fasten the slide bar and wall xation bracket (xed) (2) with screw (5).
Fit the end caps (7) into the slide bar (1) and end caps (8) to
the wall brackets (2 & 3).
Use wall insert for
hollow wall applications and
drill ¼" diameter hole.
If the screw is installed in a stud,
the wall insert is not needed.
Step 5
9
11
MB0419 07.03.22
Page 7
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com

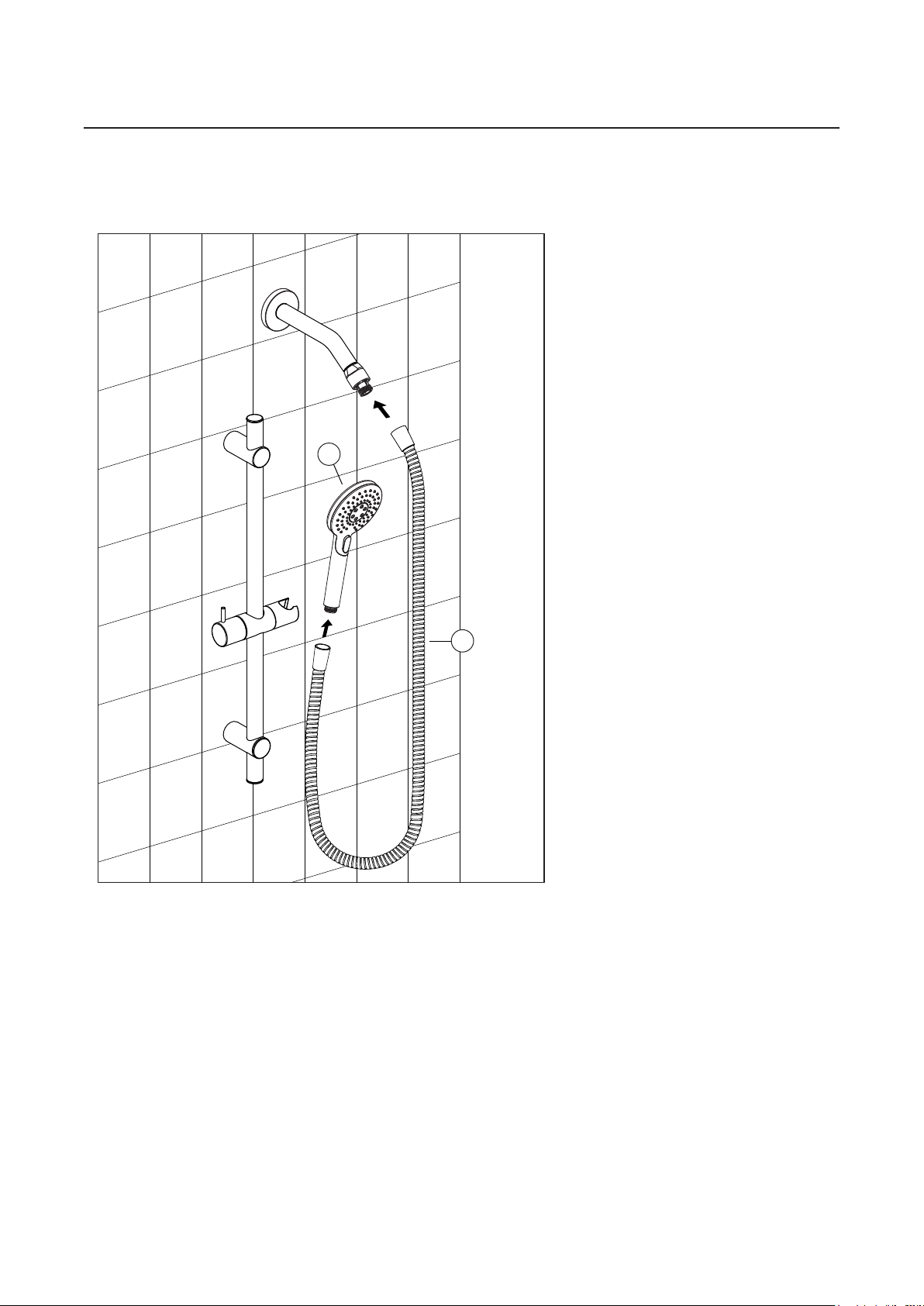

Assemble shower hose (11) and hand shower (9) to complete installation.
NOTE: NO NEED TO APPLY SEALANT OR TEFLON TAPE TO THREADS.
Step 6
MB0419 07.03.22
Page 8
© 2022 Marcobelle Company. All Rights Reserved
Questions? Visit BathRoyale.com
Turn water on to test shower system for functionality and check for any leaks.
