Owner’s Manual
Inner/ Outer Thigh
Batca Fitness Systems 2 C-10 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3
Hardware Comparison 4-7
Main Assembly 8-16
Upholstery 16
Cable Routing 11
Congratulations on the purchase of your new Batca C-10. This gym will provide you with a lifetime of enjoyment to meet your
strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to
avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is recommended that you
read through each step thoroughly before you begin. Begin by opening your boxes and separating all of your parts. Verify that all
parts are accounted for and have no damage. When all parts are accounted for, you may begin your assembly. Some items may
have been pre-assembled for your convenience. Please note that hardware quantities shown reflect total quantities for your gym and
may not reflect actual quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perform-
ance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so will void your warranty
and may result in personal injury. After assembly, you should check each station to ensure correct operation. If a problem arises,
recheck your assembly with these instructions to verify correct assembly. If you are unable to correct a problem or have questions
with your assembly please contact your authorized Batca dealer.
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable workout. However,
there is a risk assumed by individuals who use this type of equipment. It is very important that all warnings and
instructions are read and followed before beginning any exercise program.
It is also very important to read and follow the preventative maintenance schedule described in this
manual. If any of the warning labels or stickers are worn, faded, torn, scratched or missing they should be replaced
immediately.
WARNING:There is a risk assumed by individuals who use this type of equipment. To minimize risk
always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts and bolts). Replace
parts at first signs of wear (use only genuine BATCA replacement parts). Use of equipment that is damaged,
worn, frayed or not completely assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be alert to the
possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not hesitate to call your local BATCA
FITNESS SYSTEMS distributor or BATCA FITNESS SYSTEMS at (919) 255-1233. www.batcafitness.com
__________ Page
Final Assembly and Troubleshooting 17-18
Cable Tension and Adjustments 19
Maintenance 20
Warranty 21
Floor Plan Layout 22
Table of Contents
Instructions
Warning
www.batcafitness.com 3 C-10 Owner’s Manual
Accessories
Upholstery
Hardware
Cables
Tools Required
• 9/16” Wrench
• 3/4” Wrench
• 9/16” Ratchet
• Allen Wrench Set
• Tape Measure
ITEM
NO. PART
NUMBER DESCRIPTION QTY.
5 BFM-10115 Left Handle 1
4 BFM-10116 Right Handle 1
6 BFM-10392 Short Cage 1
20 BFM-10412 Pulley Holder 1
1 BFM-10514 C-10 Base 1
2 BFM-10515 Right Side Arm 1
3 BFM-10516 Left Side Arm 1
13 BFM-10517 Bi-Directional Cam 1
42 BFM-10527 Sprocket Cam 1
35 BFM-10528 Thigh Pivot 2
19 BFM-50126 Anti-Deflection Plate 1
12 BFM-50524 Pulley Cover Plate 1
15 BFM-50527 Guide Rod 2
17 BFM-50529 Rubber Donut 2
26 BFM-50531 Shroud 1
18 BFM-50615 Guide Rod Top Plate 1
30 BFM-50914 Arm Link 1
57 BFM-10619 Base Plate 1
58 BFM-10413 3/4” 10lb Top Plate 1
59 BFM-50632 10lb Weight Plate 19
60 BFM-51178 Back Bar 1
63 BFM-50995 Belt Anchor 2
64 BFM-50993 Belt Washer 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
7 BFH-50255 Rubber Foot 6
8 BFH-50174 4 1/2" Pulley 4
9 BFH-50201 1/2" Pulley Spacer 4
10 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 2
11 BFH-50157 3/8"-16 Nylock (Black) 31
14 BFH-50171 Flange Bearing 6
21 BFH-50146 3/8" Flat Washer (Black) 56
22 BFH-50530 5" Pulley 1
23 BFH-50122 HCS 3/8"-16 X 2 1/4" P5 1
24 BFH-50127 HCS 3/8"-16 X 3 1/2" P5 2
25 BFH-50130 HCS 3/8"-16 X 4 1/4" P5 2
27 BFH-50147 3/8" Lock Washer (Black) 12
28 BFH-50254 HCS 3/8-16 X 3/4 P5 4
29 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 4
31 BFH-50251 1/2" Flat Washer Black 4
32 BFH-50135 HCS 1/2-13 X 2 3/4 P5 2
33 BFH-50155 1/2"-13 Nylock (Black) 2
34 BFH-50325 Thrust Washer 1
40 BFH-50129 HCS 3/8"-16 X 4" P5 4
41 BFH-50219 Collar 2
46 BFH-50531 HCS 3/8"-16 X 1 3/4" P5 8
47 BFH-50267 5/16"-18 Nylock (Black) 5
48 BFH-50250 1 1/4" Shoulder Bolt 1
55 BFH-50145 FHSCS 3/8"-16 X 2 1/4" 2
66 BFH-50143 FHSCS 5/16” x 3/4” 2
69 BFH-50116 5/16” Flat Washer (Black) 8
70 BFH-50534 FHSCS 3/8”-16 x 1 1/4” 4
BFH-50262 Silicone Gel Pack 2
65 BFH-50617 Belt 1
68 BFH-50142 FHSCS 3/8”-16 x 1 3/4” 4
67 BFH-50115 HCS 5/16”-16 x 2” P5 4
56 BFH-50616 Sprocket 1
61 BFH-50253 Beveled Leveler 2
62 BFH-50149 3/8”-16 Jam Nut (Zinc) 2
71 BFH-50120 HCS 3/8"-16 X 1 1/2" P5 4
72 BFH-50633 1-1/4” Grip Cap 2
73 BFM-51279 1-1/4” Grip Sleeve 2
74 BFH-50632 1-1/4” Grip Collar 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
38 BFU-10118 Bottom Pad 1
39 BFU-10120 Back Pad With Lumbar 1
36 BFU-10143 Thigh Pad 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
56 CAB-13016 CAB-13016 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
43 BFM-51173 Magnetic Weight Stack Pin 1
Frame Components
Batca Fitness Systems 4 C-10 Owner's Manual

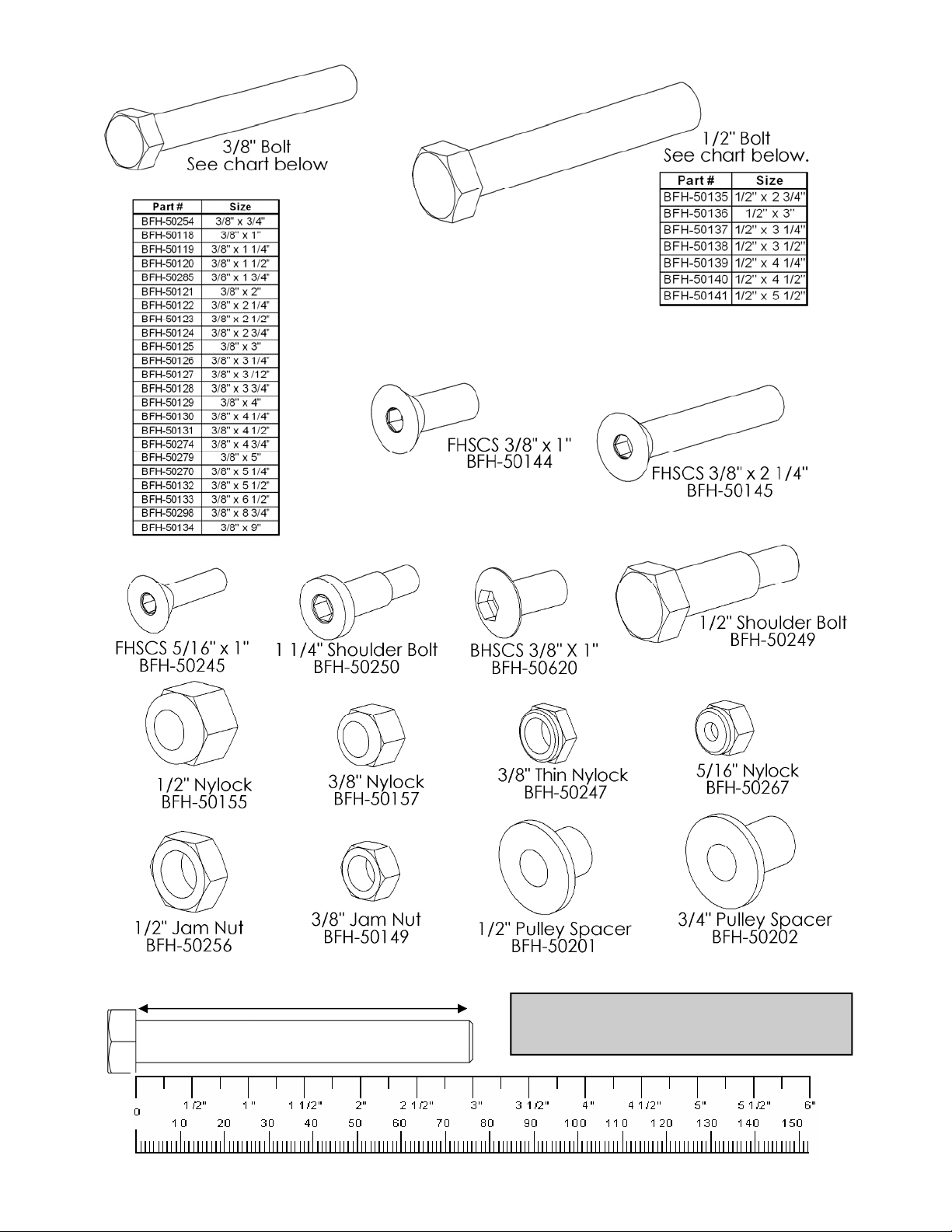

Bolt Length Note: Bolt length is measured from
the underside of the head of the bolt.

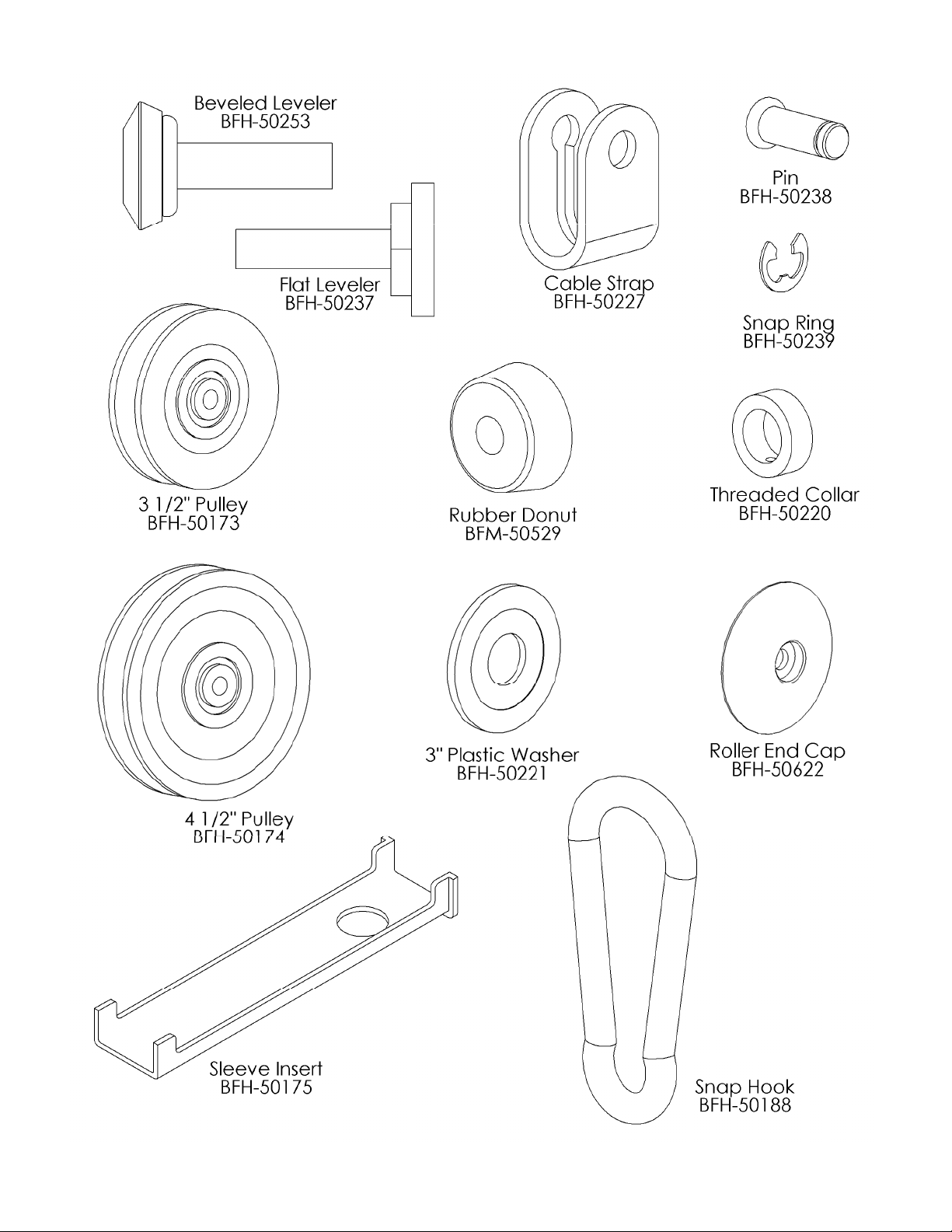

www.batcafitness.com 5 C-10 Owner’s Manual

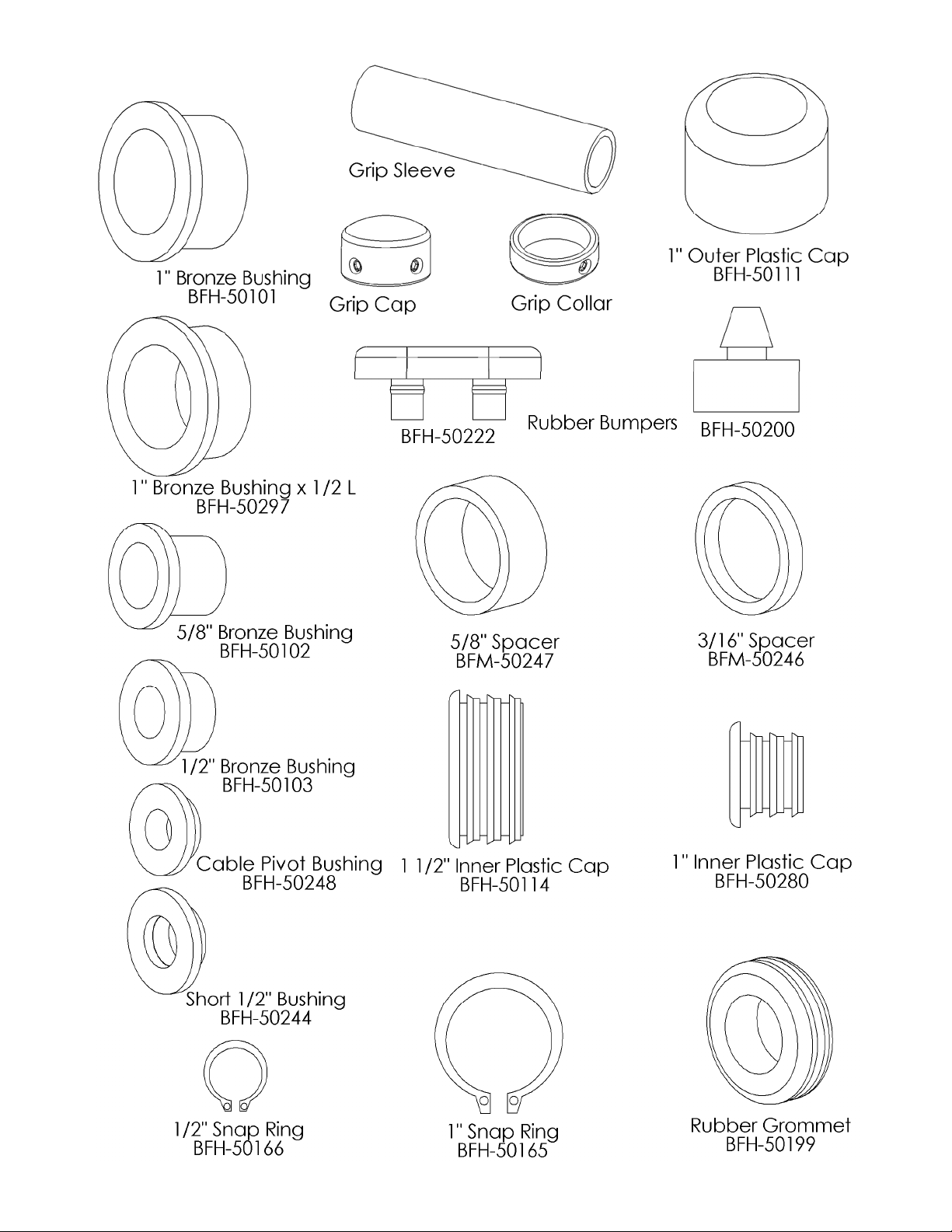

Batca Fitness Systems 6 C-10 Owner's Manual

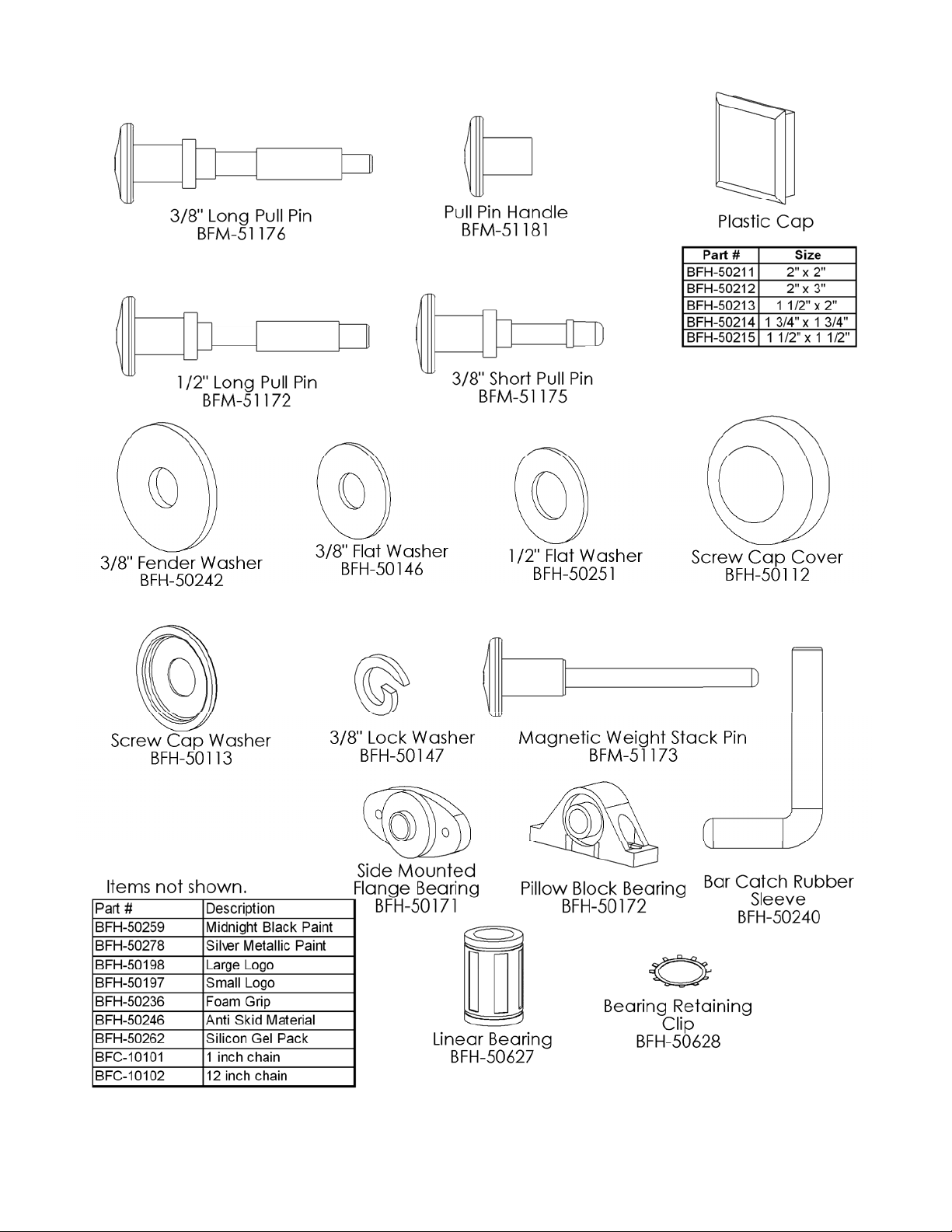

www.batcafitness.com 7 C-10 Owner’s Manual
Batca Fitness Systems 8 C-10 Owner's Manual

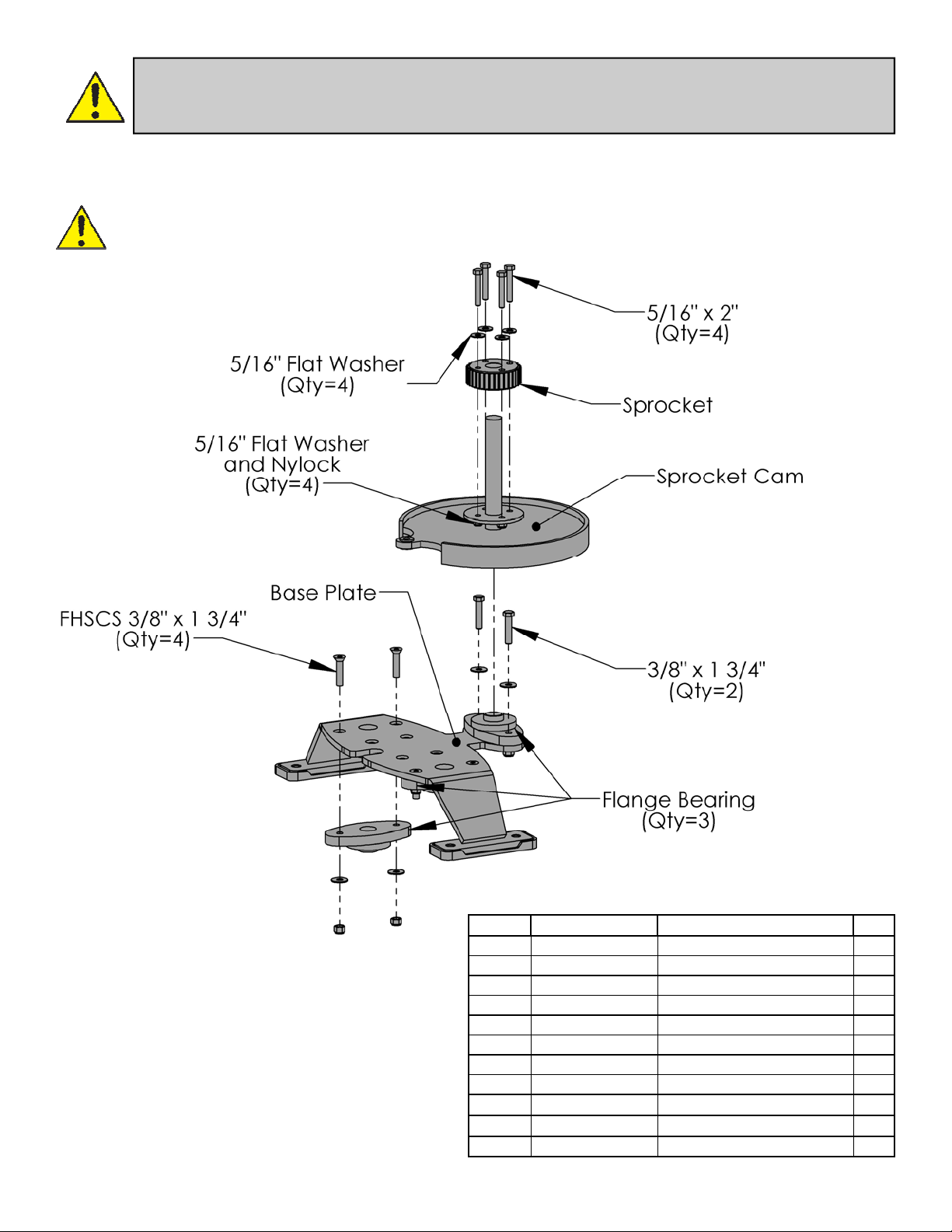

Step 1:
Note: For a more consistent appearance, position all
bolts in the direction shown in each figure.
• All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Figure 1
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.
Item # Part # Description Qty
11 BFH-50157 3/8"-16 Nylock (Black) 6
14 BFH-50171 Flange Bearing 3
21 BFH-50146 3/8" Flat Washer (Black) 8
42 BFM-10527A Sprocket Cam 1
68 BFH-50142 FHSCS 3/8"-16 X 1 3/4" 4
57 BFM-10619 Base Plate 1
56 BFH-50616 Sprocket 1
69 BFH-50116 5/16" Flat Washer Black 8
47 BFH-50117 5/16-18 Nylock (Black) 4
46 BFH-50531 HCS 3/8"-16 X 1 3/4" P5 2
67 BFH-50115 HCS 5/16"-16 X 2" P5 4
www.batcafitness.com 9 C-10 Owner’s Manual

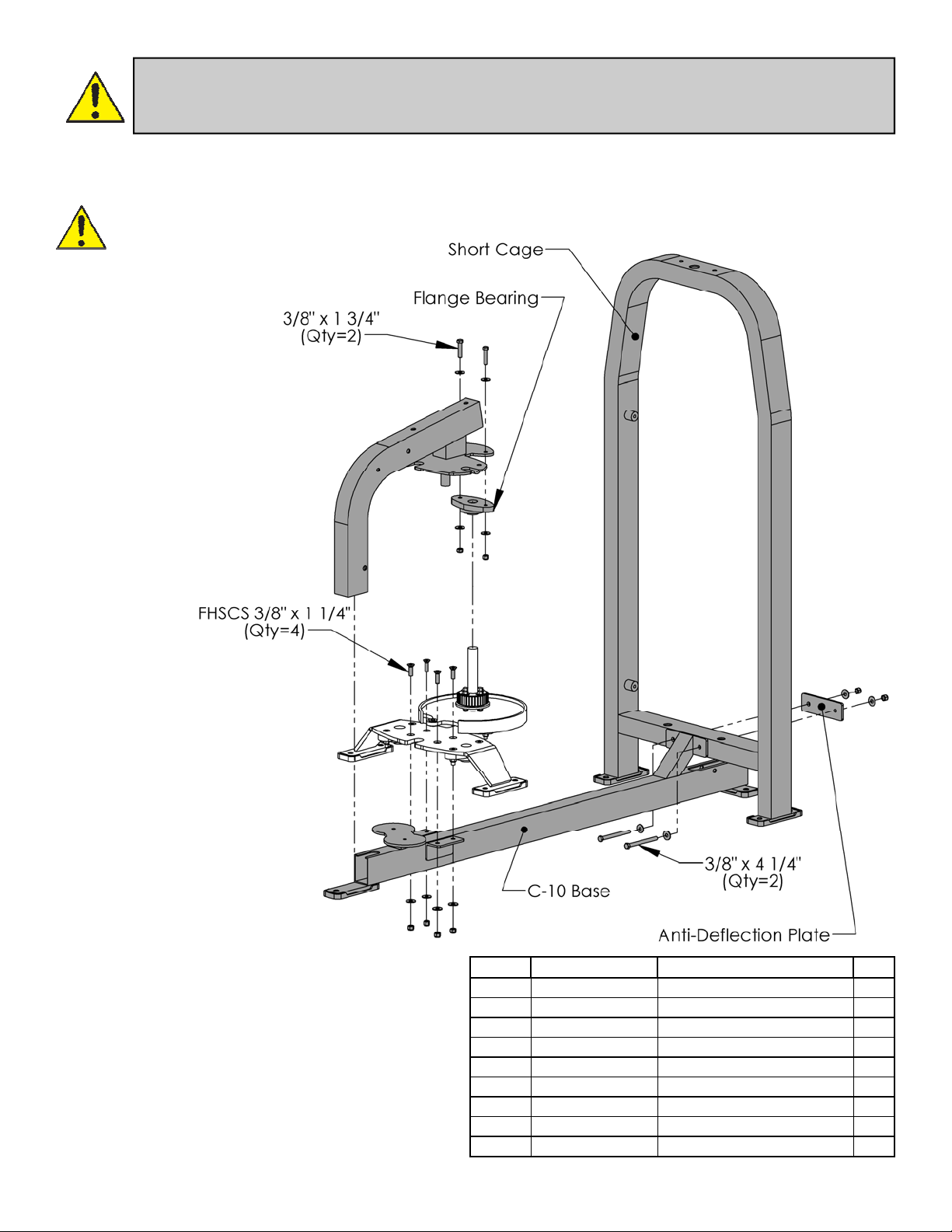

Step 2:
Note: For a more consistent appearance, position all
bolts in the direction shown in each figure.
• All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Figure 2
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.
Item # Part # Description Qty
1 BFM-10514A C-10 Base 1
6 BFM-10392 Short Cage 1
14 BFH-50171 Flange Bearing 1
19 BFM-50126 Anti-Deflection Plate 1
21 BFH-50146 3/8" Flat Washer (Black) 12
11 BFH-50157 3/8"-16 Nylock (Black) 8
25 BFH-50130 HCS 3/8"-16 X 4 1/4" P5 2
46 BFH-50285 HCS 3/8"-16 1 3/4" P5 2
70 BFH-50534 FHSCS 3/8"-16 X 1 1/4" 4
Batca Fitness Systems 10 C-10 Owner's Manual
Figure 3

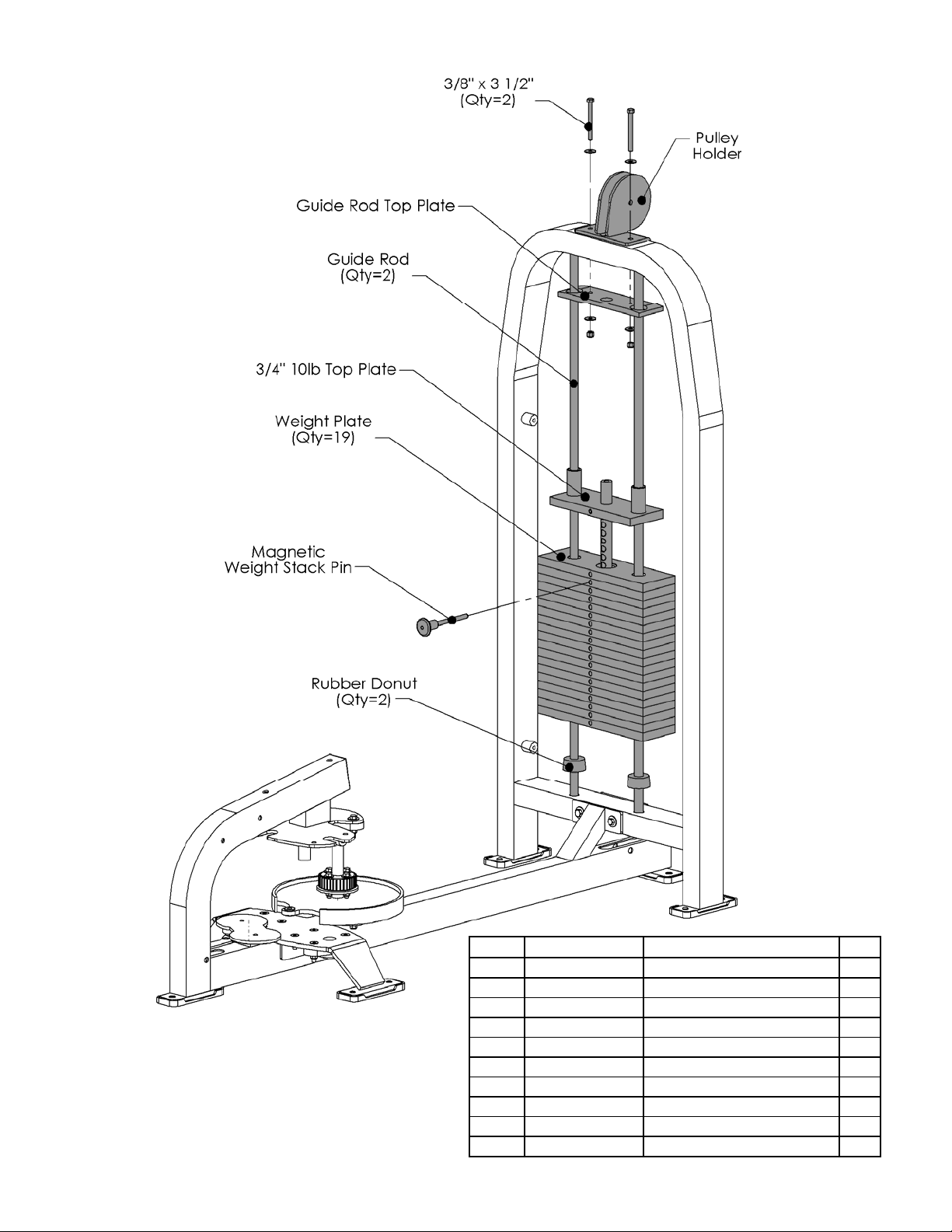

Step 3:
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
15 BFM-50527 Guide Rod 2
58 BFM-10413 3/4" 10lb Top Plate 1
17 BFM-50529 Rubber Donut 2
18 BFM-50615 Guide Rod Top Plate 1
20 BFM-10412 Pulley Holder 1
21 BFH-50146 3/8" Flat Washer (Black) 4
11 BFH-50157 3/8"-16 Nylock (Black) 2
24 BFH-50127 HCS 3/8"-16 X 3 1/2" P5 2
43 BFM-51173 Magnetic Weight Stack Pin 1
59 BFM-50632 10lb Weight Plate 19
