Barco XLM H25 Manuel

www.barco.com

XLM H25

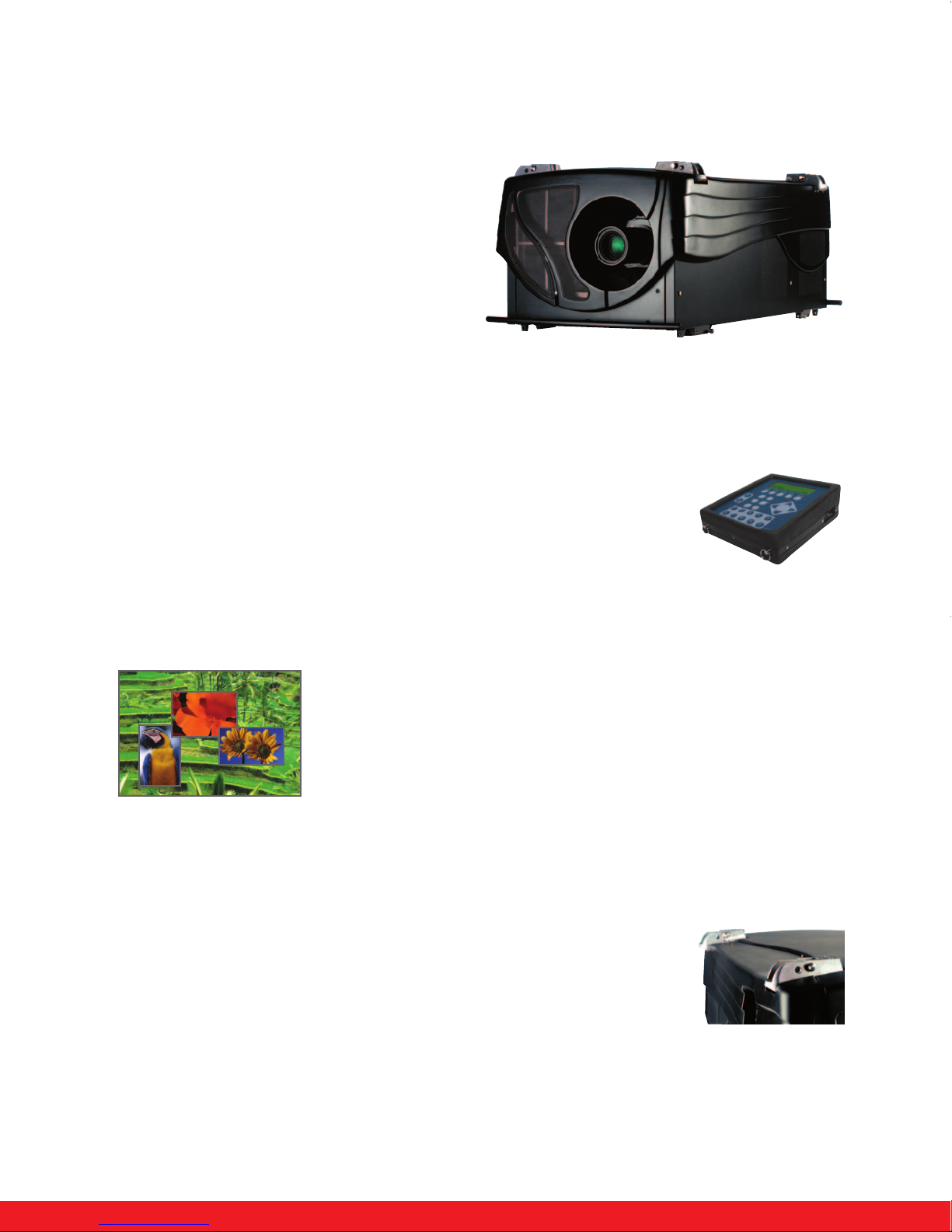

Barco’s XLM H25 projector is the ultimate high-brightness projector available

on the market today. As the first DLPTM projector with a native wide-screen

aspect ratio, native 2048 x 1080 resolution and light output of 28 000 center

lumen, the XLM H25 projector is ideally suited to ultra wide-screen projec-

tions.

With its functional design, fully sealed DMD engine and adjustable conver-

gence system, the XLM H25 projector is purpose built to work around the

clock, making it ideal for use in the demanding rental & staging and large

events markets.

The ultimate high-brightness projector

BR XLM H25 dec05 22-12-2005 11:08 Pagina 2

• Rugged Remote Control

Each XLM H25 is delivered

inclusive of a Rugged Remote

Control.

• User-configurable lay-out

The XLM H25 projector also allows users to configure custom

on-screen window lay-outs. Each individual lay-out can be

stored and recalled throughout the presentation as required.

• Flightcase

A specially designed flightcase is available optionally.

• Adjustable convergence system

Its adjustable convergence system allows for manual adjust-

ments in the field.

• Liquid cooling

An effective Liquid Cooling System enables the sealed

engine to reliably handle the extremely high light output.

• Integrated rigging points

The projector’s integrated rig-

ging points allow easy double-

stack installations, which can

be truss mounted. When

placed on the ground, the XLM

H25 projector can even be

triple-stacked without requiring

additional support structures.

Reliable and built to work around the clock, Barco’s XLM H25

projector is a sturdy single box/cabinet projector.

• Multi image windowing

The XLM H25 is able to show all 4 signal inputs simultane-

ously on screen. Leading the way in wide-screen projection,

the XLM H25 can be used for multiple window wide-screen

presentations without the need for an external image

processor.

• Fully sealed DMD engine

Barco’s XLM H25 features a fully sealed DMD engine that is

protected against smoke and dust often found in entertain-

ment and large event environments.

• Minimum image latency

Benefitial for live events the XLM H25 uses latest technology

to offer minimum image latency.

• Easy to operate

Purpose built for use in the rental & staging industry, the XLM

features an intuitive on-screen menu which ensures that the

projector is easy and simple to operate.

Rugged remote

Integrated rigging points

Ultra bright wide-screen projection

Barco’s XLM H25 projector is the first ever native wide-screen

3-chip-DLP projector. With its brand-new DMD chip-set, the

XLM provides a native resolution of 2048 x 1080 pixels, which

make it ideally suited to wide-screen projections that must

deliver crisp, clear video and data content in the most

demanding environments.

Using a 6kW Xenon lamp which produces 28 000 Center

Lumen, the XLM H25 projector guarantees the perfect high-

impact projection in even the most critical application.

Purpose built for demanding rental & staging applications

Multi-image windowing

XLM H25

BR XLM H25 dec05 22-12-2005 11:08 Pagina 3

• Modular inputs

The XLM H25 is equipped with four standard input slots

which accommodate both analogue and digital inputs. As

standard, each XLM H25 projector comes equipped with

RGB, DVI-D, SDI and HD-SDI input modules, which are all

modular and can be exchanged with other input modules

as required. The XLM H25 is compatible with all sources

ranging from RGB-analogue, RGB/YUV (15kHz), DVI-D, SDI,

Composite Video/S-video and HD-SDI.

• Modular design

• Compact lamp house module

The XLM’s compact lamp house module allows for quick,

easy exchange of the projector’s lamp.

• Click & Play lens holder

A wide range of lenses can be used with the XLM to cover

even the most critical applications. The stable click & play

lens holder of the XLM H25 makes lens exchanges quick,

simple and easy.

• Removable lamp house

• Removable power supply

• Removable electronics

Modular inputs

Flexibility through modularity

BR XLM H25 dec05 22-12-2005 11:09 Pagina 4

Barco Events

Noordlaan 5, 8520 Kuurne - Belgium

Tel. +32 56 36 80 47 - Fax + 32 56 36 88 24

email: sales.events@barco.com

www.barco.com/events

Ref.no. R599718 - December 2005

DLP™ technology by Texas Instruments offers crystal clear images with superior quality.

DLP is a trademark of Texas Instruments.

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice

The latest version of this product sheet can be found on www.barco.com.

XLM H25 specifications

81mm (3.2”) 1,049mm (41.3”)

1,563mm (61.5”)

669mm (26.3”)

810mm (31.9”)

593mm (23.4”)

631mm (24.8”)

Light output (1) 28,000 c lm DIMENSIONS

Resolution 2,048 x 1,080 (native)

Contrast ratio 1,600:1 (full field)

High contrast mode available with special lenses

Lamp 6.0kW Xenon

Lamp warranty 750 Hrs

Max. ambient temperature 35°C (95°F)

Power consumption 8,000 W

Mains voltage 3 x 400 V + N or 3 x 220 V

Weight projector 180 kg (400 lbs)

Dimensions (W x L x H) 810 x 1,563 x 631 mm (31.9 x 61.5 x 24.8 inch)

FEATURES

Sealed DLP core standard

Scenergix standard horizontal & vertical electronic edge blending

Network connectivity standard (10/100 base-T; 2 ports, internal hub)

Advanced picture in picture up to 4 sources simultaneous (with alfa blending; z-order)

INPUTS

Input source compatibility (2) 1,600 x 1,200 (max. input)

Modular inputs - standard 1x DVI • 1x SDI • 1x HD-SDI (all + loop through) • 1x RGB analogue (up to UXGA)

Modular inputs - optional 1x composite video/S-video • 1x RGB/YUV (both + loop through)

ORDER INFORMATION

Projector (incl. 4 inputs) R9010100

Projector (incl. 1 DVI) R9010101

Spare lamp R9852410

LENSES

Fixed focal lenses XLD 1.0 R9852950

Zoom lenses XLD 1.45 - 1.8 R9852090

XLD 1.8 - 2.4 R9852092

XLD 2.2 - 3.0 R9852094

XLD 2.8 - 5.5 R9852100

XLD 5.5 - 8.5 R9852920

(1) measured with XLD 1.45 - 1.8 on axis

(2) all current video sources in composite, S-VHS, RGB or component or Serial digital format

all current proposed HDTV, extended and improved television standards (1080i, 720p, ...)

computer and workstations with a resolution up to 1,600 x 1,200

most Macintosh computers

direct digital interfacing with current and future digital standards

BR XLM H25 dec05 22-12-2005 11:08 Pagina 1
