Unequalled Versatility

• Proprietary dual parallel WARP™ NLIM (Non-linear Image

Mapping) boards result in smooth and detailed pre-distorted

imagery for curved-screen applications

• Active stereo capabilities at SXGA up to 120 Hz, thanks to high-

performance Pixel Map Processor and dedicated DLP™ chipsets

• Impressive 205 MHz A/D conversion bandwidth ensures

compatibility with high resolution and high refresh-rate

sources

• Optional Passive Stereo optimization with DMD™ optimized

polarizers enables large-venue passive 3D projection

Multi-channel Optimization

• Proprietary OPTICAL SOFT EDGE MATCHING (OSEM): custom-made

optical filters to achieve truly seamless blending for multichannel

systems, maintaining full contrast ratio

• Proprietary ELECTRONIC SOFT EDGE MATCHING (ESEM): highly-flexible

and reconfigurable blending with easy set-up

• Integrated CONSTANT LIGHT OUTPUT (CLO), which can be linked with

other BARCO GALAXY projectors for cross-channel brightness tracking

• Optimized engine ensures matched primary colors and maximizes

addressable multi-channel color gamut

Superior Optics

• High contrast ratio: engine developed to achieve a contrast ratio

of 800:1 which results in extremely vivid and dynamic images

• Dedicated lens range: optimized for unequalled resolution and

accurate geometry; wide throw ratio range, motorized shift range

and built-in Scheimpflug correction result in high flexibility of

installations

Active Stereo DLP™ Projector with Built-In Geometry Distortion

BARCO GALAXY WARPTM

Following the success of the

BARCO GALAXY active-stereo DLP™

projector, Barco introduces a

version that can perform real-time

geometry distortion at double

refresh rates (stereo): the BARCO

GALAXY WARP™. Its high processing

power and ease-of-use, combined

with the high brightness and

proven picture quality of the GALAXY,

make the GALAXY WARPTM ideally

suited for the most demanding

active-stereo applications.

innovators in image processing

Barco Galaxy Warp 17-07-2002 15:29 Pagina 1

Ref. n

: R599655 - July 2002 - Printed in Belgium

Barco Simulation Products

a business unit of Barco Projection Systems

in US

600 Bellbrook Ave.

Xenia, OH 45385

Phone +1 (937) 372 7579 • Fax +1 (937) 372 8645

E-mail: [email protected]

in Europe

Noordlaan 5, 8520 Kuurne, Belgium

Phone +32 56 36 82 11 • Fax +32 56 36 84 86

E-mail: [email protected]

www.vr.barco.com

The information and data given are typical for the

equipment described. However any individual item

is subject to change without any notice.

BARCO Projection

Systems is an ISO 9001

registered company.

Light Output

5,000 ANSI lumens

Brightness Uniformity

> 90% for the total screen area

Digital Micromirror DeviceTM

Three high resolution SXGA active

stereo DMDTM's

Lamp

1.2 kW Xenon illumination system

Typical lifetime: 1000 hours

Max. lifetime: 1500 hours

Linked CLO

Contrast Ratio

800:1 (full white/full black)

Native Resolution

1280 x 1024 (SXGA)

Shift

Motorized V shift: up to 118%

Motorized H shift: up to 71%

Lens Type Throw Ratio

Fixed Lens (Manual Focus)

TLD (0.8:1) 0.8

TLD (1.2:1) 1.2

Motorized Zoom and Focus

TLD (1.6-2.0:1) 1.6 to 2.0

TLD (2.0-2.8:1) 2.0 to 2.8

TLD (2.8-5.0:1) 2.8 to 5.0

TLD (5.0-8.0:1) 5.0 to 8.0

Noise Level

< 50 dBA

Compatibility

• Active Stereo capabilities up to

SXGA at 120 Hz (110 Hz

synchronously)

• WARP 6™ based pixel map

processor using bi-cubic

interpolation algorithms for

advanced geometry correction

up to a pixelclock of 205 MHz

• All current data sources in RGB

or DVI

Fixed Analog Inputs

1 multifunctional 5-Cables input

(high band width) for the

connection of

• RGB analog signals with

standard sync (BNC connectors),

sync on green or separate sync

• 1 Stereo sync input (mini din)

• 2 Stereo sync outputs (coax)

• 1 DVI input

Communication

• RS232 or RS422 loop-through

input (D9-connector) for PC

based projector control

• Communication input (D9

connector) for peripherals

Power Consumption

1700 Watts

AC Power

230V (tolerance 180V - 255V)

Weight

Net weight 99lbs / 45kg

Ambient Temperature

Max. 45°C

Order Information

BARCO GALAXY WARP R9040320

Lenses:

Manual focus

• TLD (0.8) man. R9840900

• TLD (1.2) man. R9840770

Motorized Zoom and Focus

• TLD (1.6-2.0) mot. R9840670

• TLD (2.0-2.8) mot. R9840680

• TLD (2.8-5.0) mot. R9840690

• TLD (5.0-8.0) mot. R9840910

Stackable Frame R9898215

New Spare Lamp R9840740

Refurb Lamp R9840820

Lamp power supply R763370K

Remote R9840170

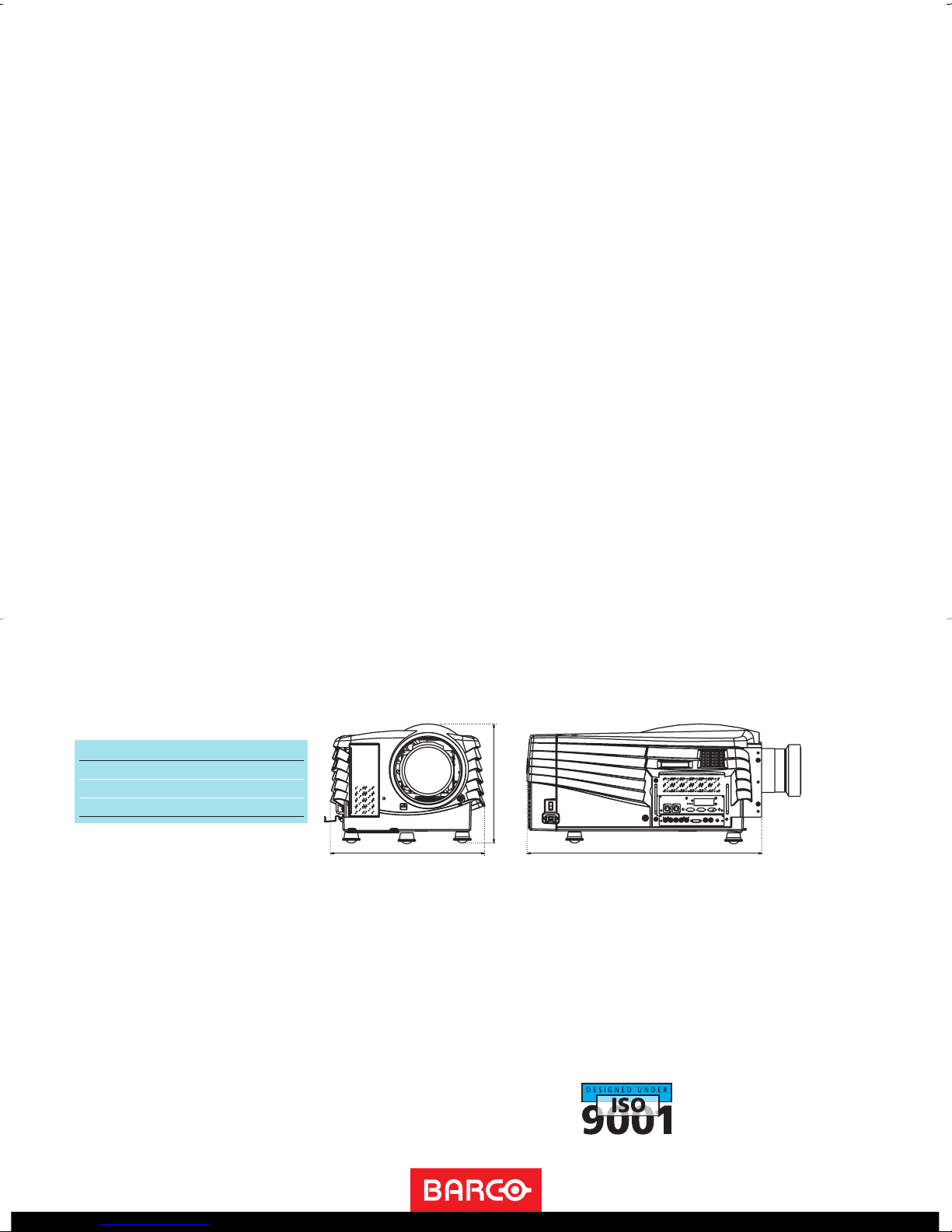

Features and Specifications

Dimensions mm inch

W 529 20.84

L 795 31.29

H 408 16.05

Digital Light Processing, DLP, Digital Micromirror

Device, DMD are trademarks of Texas Instruments.

Barco Galaxy Warp 17-07-2002 15:29 Pagina 2
