Barco F90 series Mode d’emploi

F90 Dust Filter

Installation and Maintenance

601–0456/00

14/08/2017

Barco Fredrikstad AS

Habornveien 53, N-1630 Gamle Fredrikstad, Norway

Phone: +47 6930 4550

Fax: +47 6930 4580

Support: [email protected]

Visit us at the web: www.barco.com

Printed in

1. Filter Assembly

1. FILTER ASSEMBLY

About

This chapter describes how to assemble and install the ﬁlter

The ﬁlter kit is delivered as a complete kit, but not pre-assembled. The assembly of the kit is performed in parallel with the installation.

Due to a change in airﬂow when the ﬁlter is installed, the fan speed may increase and impact the perceived fan noise.

1.1 Kit Content

Kit Content

Article Number Description Pcs

400–0946 S/A Dust ﬁlter 1

505–0276 S/D ﬁlter screw 6

1.2 Environmental conditions

Due to changed airﬂow resistance when ﬁlter is installed, there are changes in the ambient operating conditions for the projector.

See table below.

Environment Ambient operating temperature Relative humidity

0 – 500m +10 – 40°C 10 – 80% RH

500 – 3000m +10 – 35°C 10 – 80% RH

1.3 Assembly and installation

1. Put the screws (505–0276) in to the holes as indicated in the illustration below. Press the screw until it is snaps into position

2. Apply the ﬁlter frame over the projector’s side cover. Ensure that the captive screws in the ﬁlter frame align with the holes in the

projector side cover, as shown in the illustration.

Image 1-1

Entering the captive screws

Image 1-2

Applying the ﬁlter frame

3. Ensure that the micro switch at the top of the side cover is engaged by the stud on the ﬁlter frame.

601–0456 F90 DUST FILTER 14/08/2017 1

1. Filter Assembly

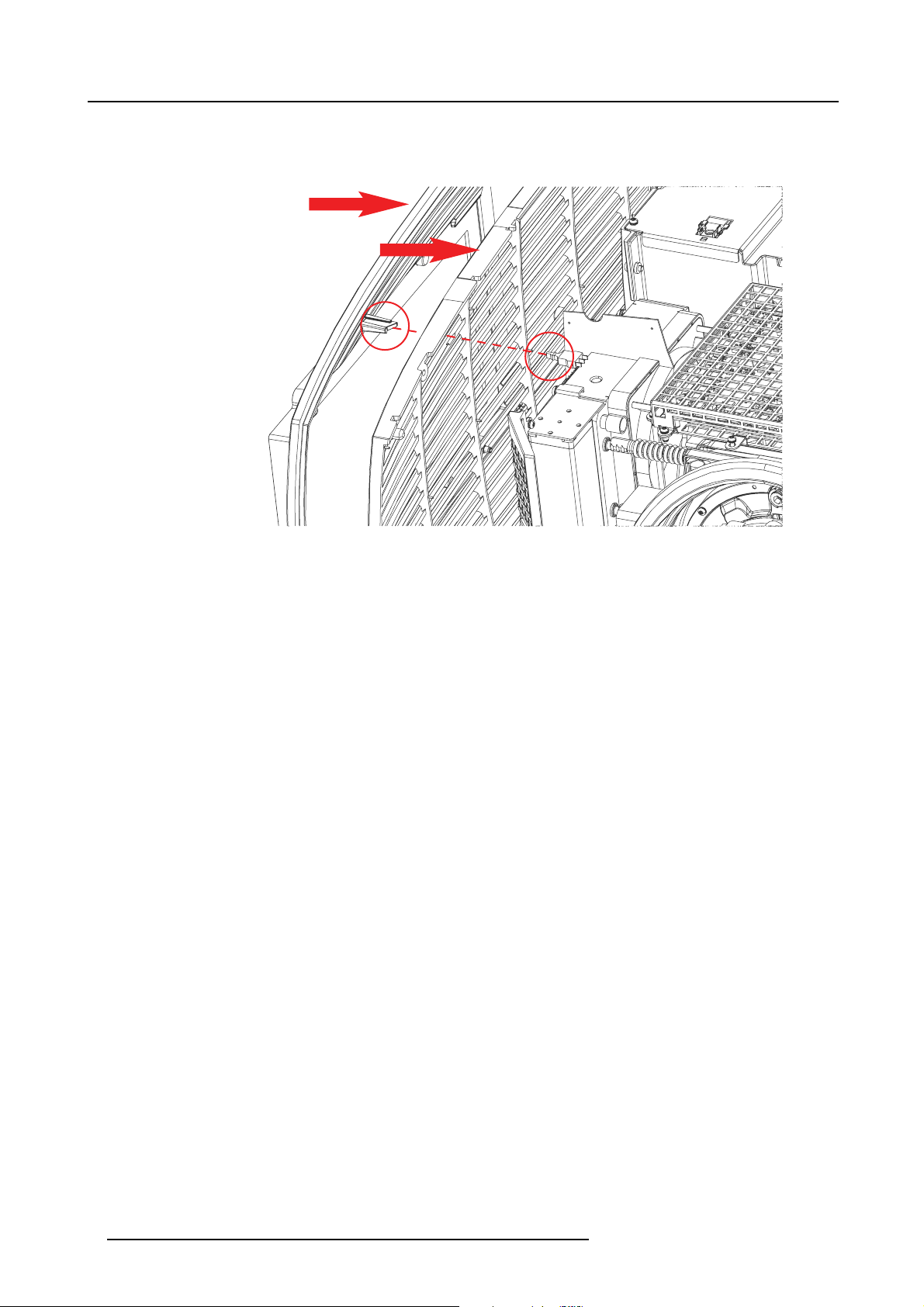

Filter frame

Projector side cover

Image 1-3

Microswitch engagement

4. Hold the ﬁlter frame in position, and enter the screws in each corner in the corresponding threads in the side cover. Tighten the

screws in a cross pattern. Enter and tighten the two last screws

2601–0456 F90 DUST FILTER 14/08/2017

2. Maintenance

2. MAINTENANCE

2.1 Cleaning the ﬁlter

The ﬁlter can be vacuum cleaned.

The frequency of the cleaning depends on the projectors operating environment. It is advised to inspect the ﬁlter regularly.

If the ﬁlter becomes clogged, the reduced airﬂow may result in a thermal warning and the projector is at risk of shutting down. If this

occurs, please clean the ﬁlter before attempting to turn the projector back on.

601–0456 F90 DUST FILTER 14/08/2017 3
