B&B Electronics EIR203 Manuel utilisateur

EIR203 1308qsg-1/2

International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA

815-433-5100 Fax 433-5104 www.bb-elec.com [email protected] supp[email protected]

European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland

+353 91 792444 Fax +353 91 792445 www.bb-europe.com [email protected] support@bb-europe.com

B&B ELECTRONICS QUICK START GUIDE

Package Contents

•EIR203 Series Industrial, Unmanaged, Ethernet Switch

•Quick Start Guide (One per shipment)

•Power Terminal Block (installed)

•Fiber Optic Dust Covers (installed on fiber optic models)

If any item is missing or damaged, contact B&B Electronics

for a replacement

Front Panel

EIR203 (3 Fiber) EIR203 (1 Fiber, 2 RJ-45)

1 Power Terminal Block 2 Position, Removable

2 PWR LED ON When Power Applied

3 Fiber Optic SPD LED Normally OFF (100BaseFx)

3 Fiber Optic LINK LED ON When Fiber Port Linked

4 Fiber Ports Number and type depends on Model

5 RJ45 Ports Number depends on model

6 RJ45 LINK LED On when RJ45 Port Linked

Flashes When Data Transmitted

6 RJ45 SPD LED On if 100 mbps

DIN Rail Mounting

1. Slide and hold the DIN clip toward the bottom of the

switch. Angle the top portion of the DIN mount over the

top of DIN Rail.

2. Move the switch so that it is parallel with the DIN Rail.

3. Let go of the DIN Clip. The spring should return it to its

original position.

Attach Power Leads

External Supply Required

Warning: Work Safe – Equipment

damage or electrical shock hazard

exists. DO NOT ATTACH OR REMOVE

LEADS WITH THE POWER SUPPLY

ENERGIZED!

1. Loosen the screw to open the terminal block lead clamp.

2. Insert the power lead. TB will accept 12-28 AWG wire.

3. Tighten the screw to close the terminal block lead clamp.

Ensure the clamp holds the lead securely. However, do not

over tighten.

NOTE: For replacement Terminal Block order Part # 7444.

EIR203 Series Quick Start

Guide

Attach RJ45 Cable

(

If e

)

MDI Cable Pinout

Pin Signal

1 Tx+

2 Tx-

3 Rx+

6 Rx-

MDI-X Cable Pinout

Pin Signal

1 Rx+

2 Rx-

3 Tx+

6 Tx-

Female RJ45

1. Auto MDI/MDI-x is

supported. A straight

through or cross-over

cable may be used.

2. 10/100BaseT auto

negotiation and full/half-

duplex are supported.

EIR203 1308qsg-2/2

International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA

815-433-5100 Fax 433-5104 www.bb-elec.com [email protected] supp[email protected]

European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland

+353 91 792444 Fax +353 91 792445 www.bb-europe.com [email protected] support@bb-europe.com

B&B ELECTRONICS QUICK START GUIDE

Attach Fiber Optic Cable

(

if e

)

Warning: Work Safe – Fiber Optic

equipped models are Class I

Laser/LED devices. To avoid causing

serious damage to your eyes, DO NOT

STARE DIRECTLY INTO THE LIGHT.

1. Slider Guide

2. Slider Ridges

3. Slide

Installation Com

let

1. When the network cables are attached and power

is applied, installation is complete.

2. The switch will automatically discover network

devices, populate its MAC address table, and

pass traffic to the appropriate ports.

Mechanical Diagra

Fiber Optic Cable Information

Mode and Distance Type Wavelength

Multi-mode (2 km) 62.5/125 µm 1310 nm

Single-mode (15 km) 9/125 µm 1310 nm

Single-mode (40 km) 9/125 µm 1310 nm

Single-mode (80 km) 9/125 µm 1550 nm

Output Power RCVR Sensitivity

Multi-mode (2 km) -19 to -14 dBm ≤-32 dBm

Single-mode (15 km) -15 to -8 dBm ≤-32 dBm

Single-mode (40 km) -5 to 0 dBm ≤-34 dBm

Single-mode (80 km) -5 to 0 dBm ≤-34 dBm

1. Ensure your fiber optic cable is terminated with

the correct connector type. EIR203 switches use

SC or ST connectors.

2. Fiber optic type for each port is located on the

product’s side label. When connecting the cable

to the switch, be sure to line up the slider guide

on the cable and switch connectors.

3. Connect the fiber optic transmitter to the

downstream device’s receiver and vice-versa.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels B&B Electronics Routeur réseau

B&B Electronics

B&B Electronics SPECTRE Feuille d'instructions

B&B Electronics

B&B Electronics Conel UR5i v2 Libratum Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIR610 Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx ESW626Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIR510 Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIR508 Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIR505 Series Manuel utilisateur

B&B Electronics

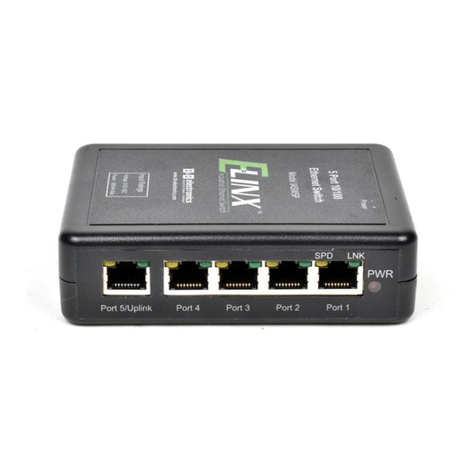

B&B Electronics IASW5P Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIR608 Series Manuel utilisateur

B&B Electronics

B&B Electronics SPECTRE Manuel utilisateur

B&B Electronics

B&B Electronics Conel XR5i v2 Manuel utilisateur

B&B Electronics

B&B Electronics EIR508-2-T Series Manuel utilisateur

B&B Electronics

B&B Electronics Conel ER75i Mode d’emploi

B&B Electronics

B&B Electronics Elinx ESW500 Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx ESW200 Series Manuel utilisateur

B&B Electronics

B&B Electronics SPECTRE Manuel utilisateur

B&B Electronics

B&B Electronics ESW105 Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIRP305-T Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIRP410-2SFP-T Manuel utilisateur

B&B Electronics

B&B Electronics EIR41x-2SFP Series Manuel utilisateur

B&B Electronics

B&B Electronics EIR205 Series Manuel utilisateur

B&B Electronics

B&B Electronics EIR208 Series Manuel utilisateur

B&B Electronics

B&B Electronics Elinx EIR418-2SFP-T Manuel utilisateur

B&B Electronics

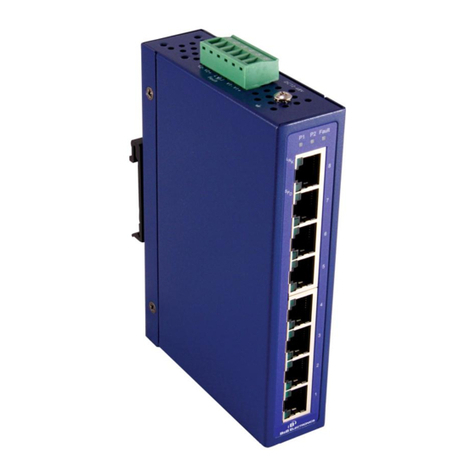

B&B Electronics Elinx EIR408-T Manuel utilisateur
