ABOUT THE MCPC MEDIALINX

Part Numbers: 855-12733-RX, 855-12733-TX

855-15733-RX, 855-15733-TX

The above part numbers must be installed in pairs. As a pair,

the units provide secure data to be passed in one direction

only.

The McPC MediaLinX provides a single conversion between

10/100 Base-T twisted pair and 100 Base-SX/FX fiber. This

device Auto Negotiates speed and duplex on the copper port

and the fiber 100Mbps, FDX. The media converter supports

jumbo frames up to 1916 MTU.

The McPC MediaLinX is a fixed fiber transceiver model, includes

one 10/100Mbps RJ-45 connector and one 100Mbps SC fiber

connector which can support Multi Mode fiber. One model offers

a PCI bracket, the other model offers low profile PCI bracket,

and both must be installed in a PCI slot in a PC. No drivers are

required for this product line; it converts from fiber to copper

and uses a 4-pin peripheral power supply connector.

INSTALLING THE MCPC

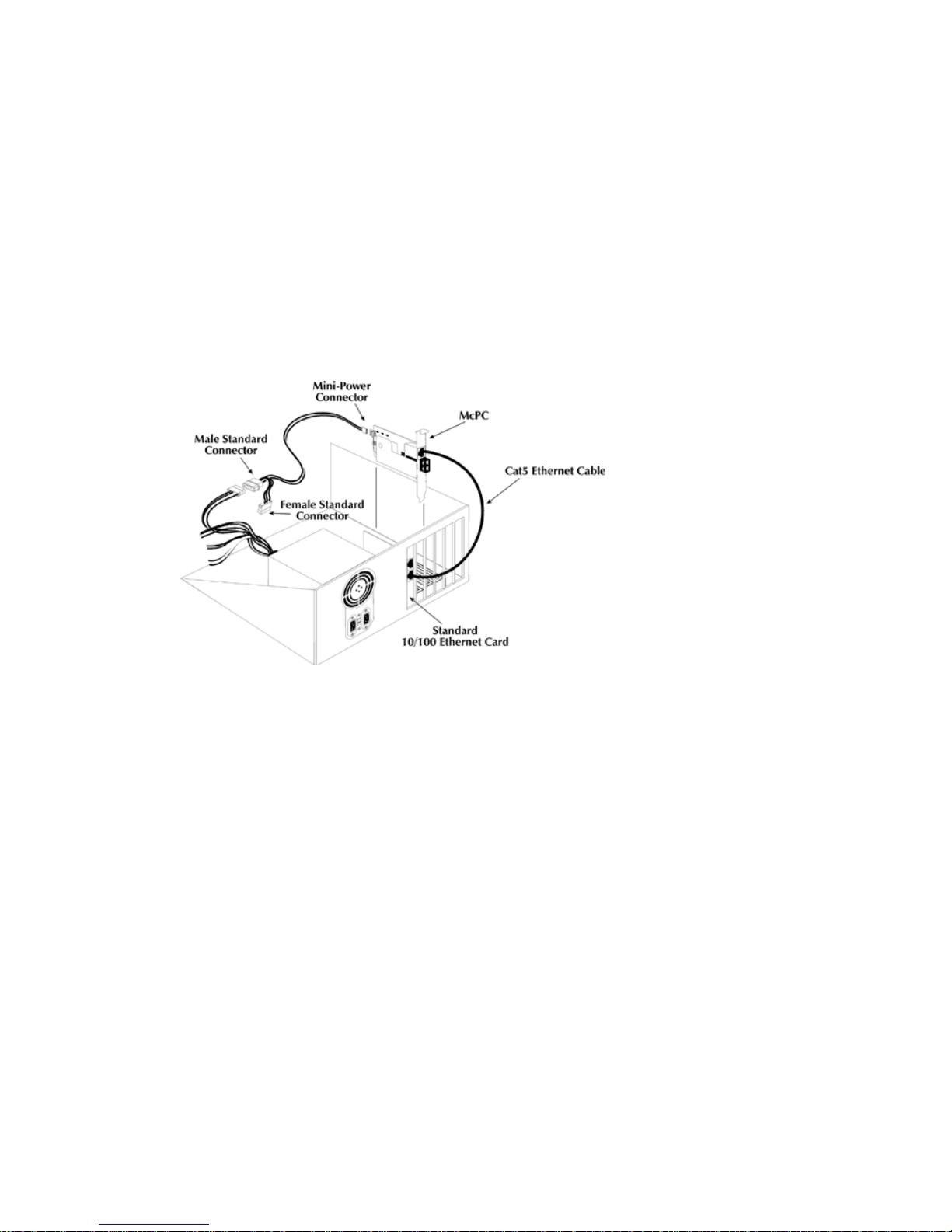

Offering plug-and-play operation, the McPC MediaLinX comes ready to

install, utilizing power from the PC’s motherboard. To install the McPC

MediaLinX

Turn off the PC

Remove its cover

Find an empty PCI slot

Align the McPC MediaLinX in the slot

Screw the the McPC MediaLinX into the computer

casing’s bracket

Make sure the McPC MediaLinX does not extend past the edge of

the case

Attach the keyed mini-power connector to the McPC MediaLinX

Attach the male end of the “Y” connector to one of the computer’s

standard size power connectors

Replace the cover

10.

Attach the cables between the McPC MediaLinX) and the devices

that will be connected

AUTOCROSS

Whether using a crossover or straight-through CAT 5 twisted pair cabling, the

McPC MediaLinX will support both types of connections with AutoCross, a

feature that automatically selects between a crossover workstation or pass-

through connection depending on the connected device.

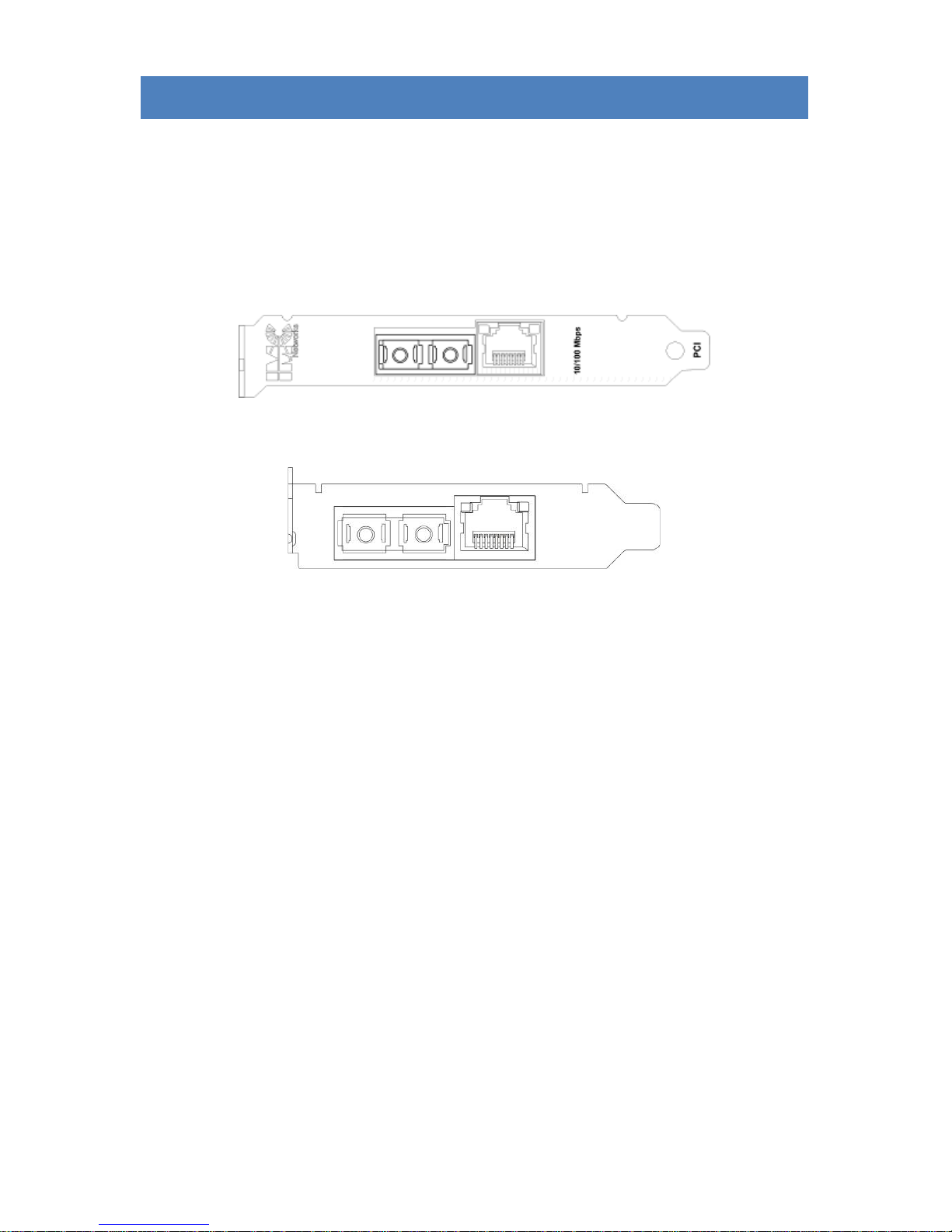

PCI Bracket

Low Profile Bracket

LED OPERATION

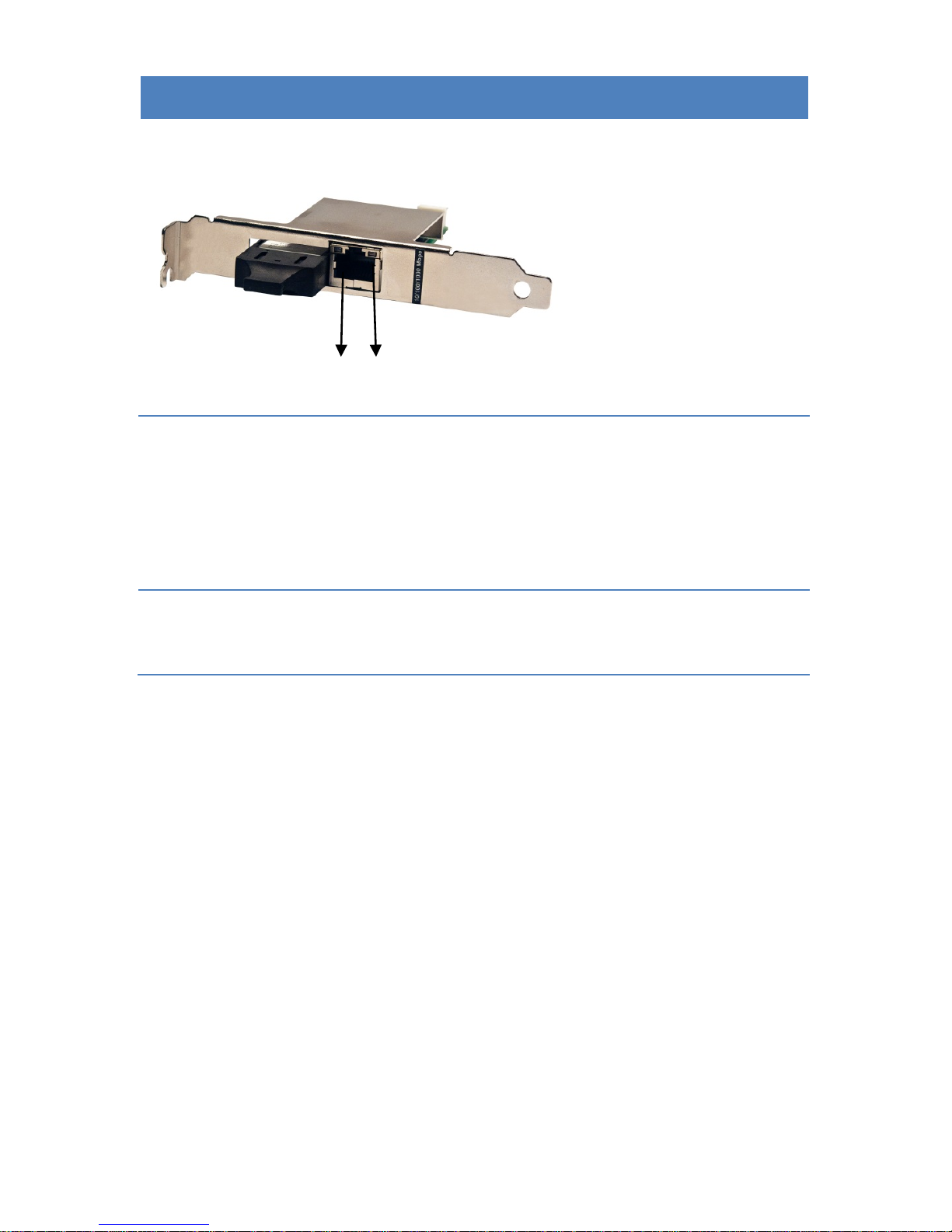

Each McPC MediaLinX includes two LEDs, located on the RJ-45

connector. LED functions are as follows for the TX Unit:

FX TX

FX LNK/ACT Glows green when a link is established on the FX (fiber)

port; blinks green when activity is detected on the fiber

port.

Although the copper and fiber ports may not be

physically connected, the FX (fiber) port will always

show a green LED, as the link is forced ON, to ensure

the connection.

TX LNK/ACT Glows green when a link is established on the TX

(copper) port; blinks green when activity is detected on

the copper port.

Each McPC MediaLinX includes two LEDs, located on the RJ-45

connector. LED functions are as follows for the RX Unit:

FX TX

FX LNK/ACT Glows green when a link is established on the FX (fiber)

port; blinks green when activity is detected on the fiber

port.

TX LNK/ACT Glows green when a link is established on the

TX(copper) port; blinks green when activity is detected

on the copper port.
