Bajaj Auto RE 4-stroke Manuel utilisateur

User’s Guide

Petrol, CNG, LPG

WORLD’S NO.1

Three Wheeler

789

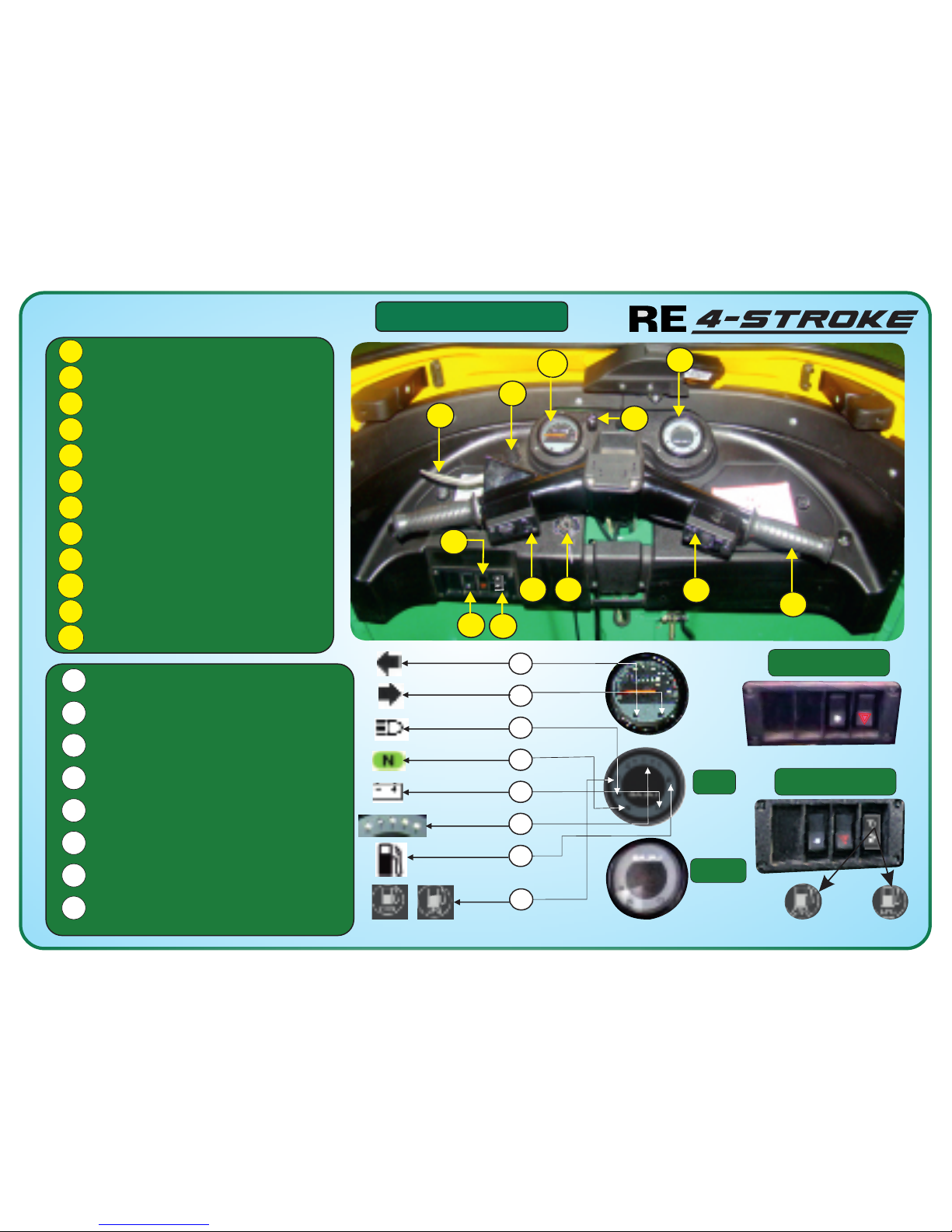

1 Clutch lever

4 Stereo switch

10 Tell Tale Indicators

11 Choke lever

12 Speedometer and odometer

H Gas mode indicator

F Gas level indicator

G Petrol mode indicator

E Battery charging indicator

D Neutral Indicator

C Hi beam indicator

B RH turn pilot indicator

A LH turn pilot indicator

7 On - off parking switch

3 Hazard switch

6 Switch LH

5 Selector Switch

8 Switch RH

2 Mobile Charger socket

9 Accelerator Grip

Identification

Petrol Vehicle

Gas Vehicle

Gas

Petrol

Dear Customer,

We Thank you for choosing the “RE 4-STROKE”, which would give you ‘Value for Money, For Years’.

We are sure that you will be happy with its performance.

The salient features of this vehicle are DTSI Engine (Twin Spark Plug), bigger oil filter, magnetic

strainer, stronger chassis & body.

Before driving, please read this User's Guide carefully to familiarize yourself with the mechanism and

the controls of the vehicle.

To maintain your autorickshaw in perfect running condition and to deliver consistent performance, we

earnestly advise you to avail periodic services, at Bajaj distributor / dealers.

You can entrust Bajaj distributor / dealers, who are well equipped with all necessary facilities, skill sets

and trained manpower for servicing and repairs of your “RE 4-STROKE”. In the event of going to a

local garage, always insist on Genuine Bajaj Spares to ensure safety, performance and longer life of

your vehicle.

Should you require any additional information, please approach Bajaj distributor / dealer. If necessary,

you may also write to selling distributor / dealer, with relevant details like Registration no. Chassis no.,

Engine no., Date of purchase, Kms. run, name of selling distributor / dealer and your contact numbers.

Finally, may we request you to give your vehicle proper care and regular maintenance, as described in

this manual. We are sure this will offer you a long trouble-free ownership experience.

Wishing you happy driving for many years.

International Business

BAJAJ AUTO LIMITED

Akurdi Pune - 411 035 India

IMPORTANT

WARNING / CAUTION / NOTE

Please read this manual and follow its

instruction carefully. To emphasize special

information, the symbol and the words

WARNING, CAUTION and NOTE have special

meaning. These special meaning apply except

when laws or regulations require that the single

words be used with a different meaning. Pay

special attention to the messages highlighted

by these signal words.

Indicates a potential hazard that could result

in death or injury.

WARNING

CAUTION

Indicates a potential hazard that could result

in vehicle damage.

NOTE

Indicates special information to make

maintenance easier or instruction clear.

Do not modify your vehicle. Modification

could adversely affect safety, handling,

performance or durability & may violate

Governmental regulations. In addition to

damage or performance problems resulting

from modifications may not be covered under

warranty.

WARNING

Severe damage may be caused by the use

of either poor quality fuel or lubricants, which

are not recommended by BAL.

WARNING

MODIFICATION WARNING

Index

1. Before Driving.............................................................. 1

2. Operating your vehicle.............................................. 41

3. Preventive maintenance............................................ 53

4. Pre Delivery Inspection check points...................... 72

5. Notice ....................................................................... 74

6. Delivery Certificate ................................................... 76

1. Before Driving

1.1 Locks

1.2 Mirrors

1.3 Handle bar and Dashboard

1.4 Other controls

1.5 Other Important parts location

1.6 Identification data

1.7 Technical Specifications

1.1 Locks

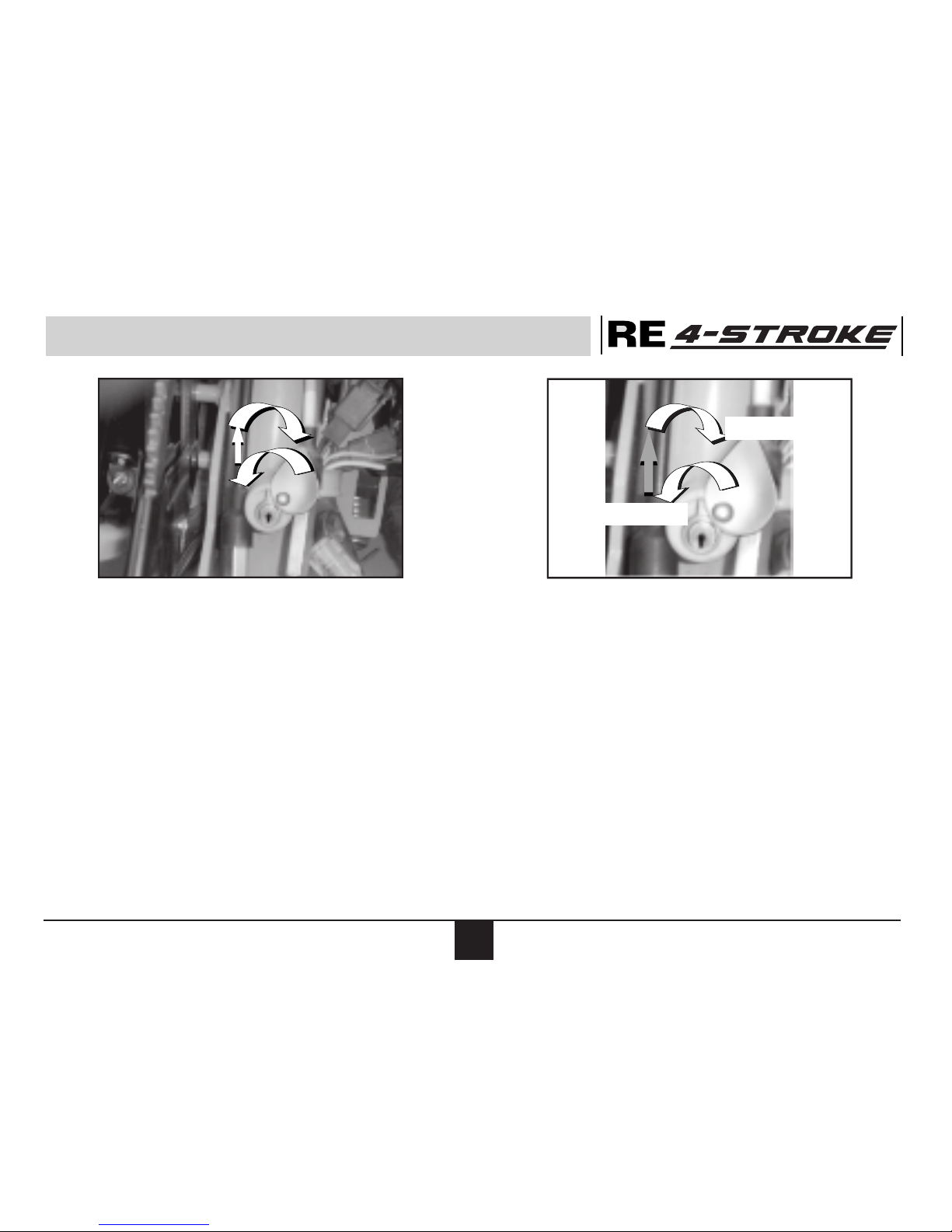

Steering Lock

• Steering lock is below dashboard.

Steering lock operation :

•Locking : Turn the Handle bar to LH side, rotate the key in anti-clockwise direction to align the

lock position, push in and rotate clockwise. After confirming the locking of handle bar, take out

the key from barrel.

•Un-locking : Turn the key anti-clockwise, move the handle bar a bit, the lock will pop backwards

unlocking the steering lock

Steering Lock Steering Lock

Un-Locking

Locking

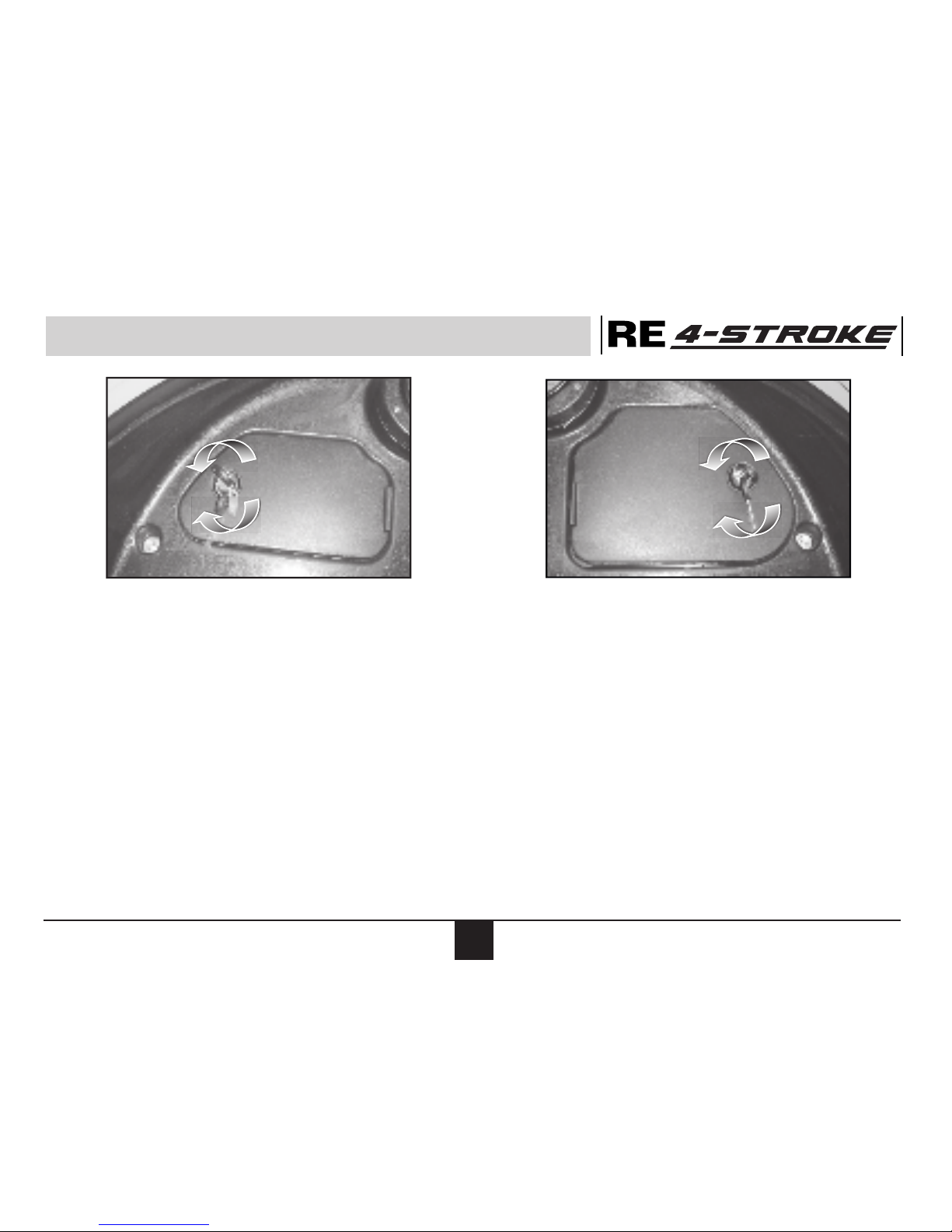

Glove box lock:

• To Unlock or lock glove box lock insert the key and rotate it clockwise or anticlockwise

respectively.

Tool Box Lock:

• To Unlock or lock Tool box lock insert the key and rotate it clockwise or anticlockwise

respectively.

Glove Box Lock

Lock

Unlock

Tool Box Lock

Unlock

Lock

Side

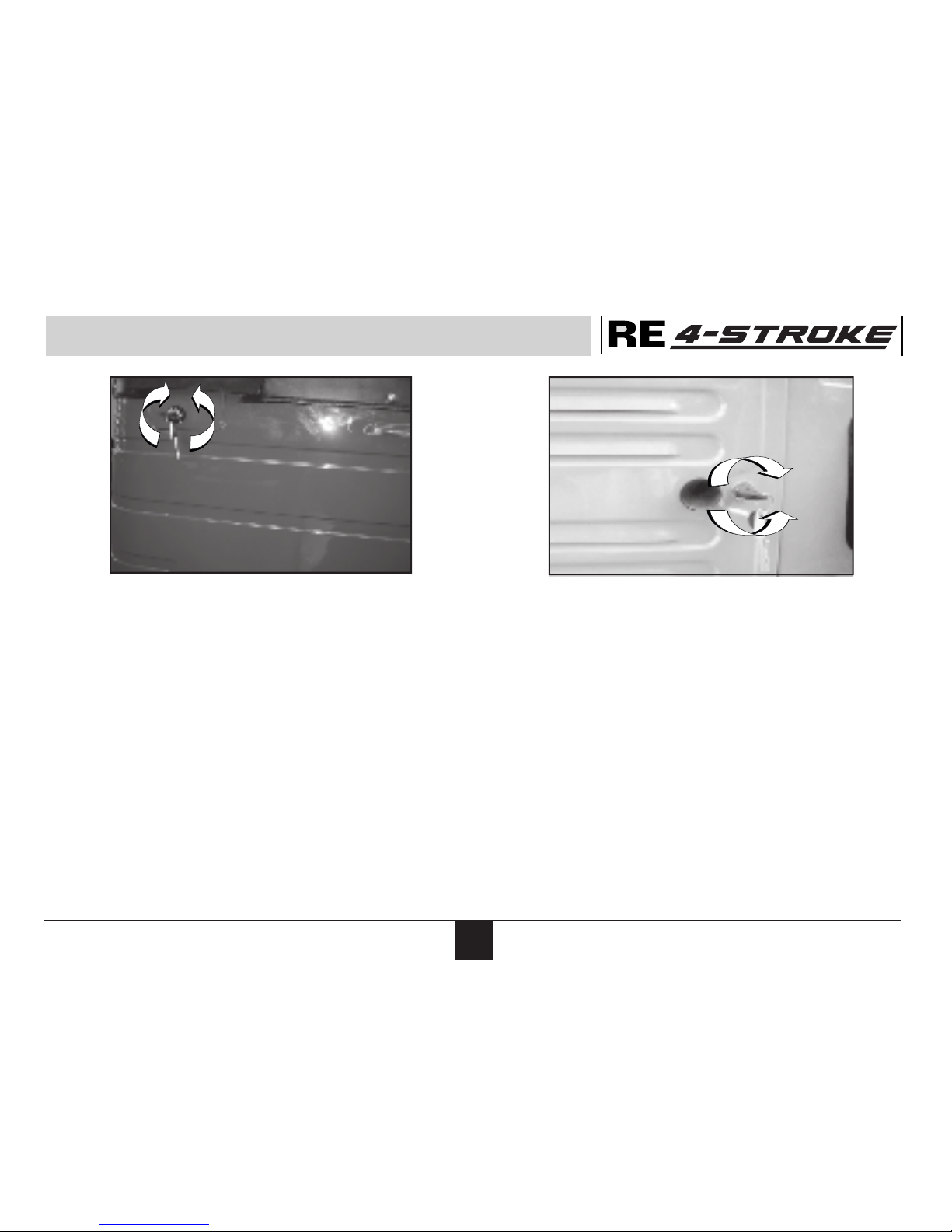

A lock is given for locking rear door. To unlock the lock insert the key and rotate it

anticlockwise. To lock the door, first match the door properly with body and rotate key

clockwise.

Filling Door Locks: (Petrol vehicle)

For filling petrol in tank, open the lockable cover. To open the lock insert the key & rotate it

anticlockwise To lock the door insert the key & rotate it clockwise.

Rear door lock:

Rear Door Lock

Side Filling Door Lock(Petrol veh.)

Lock

Unlock

Lock

Unlock

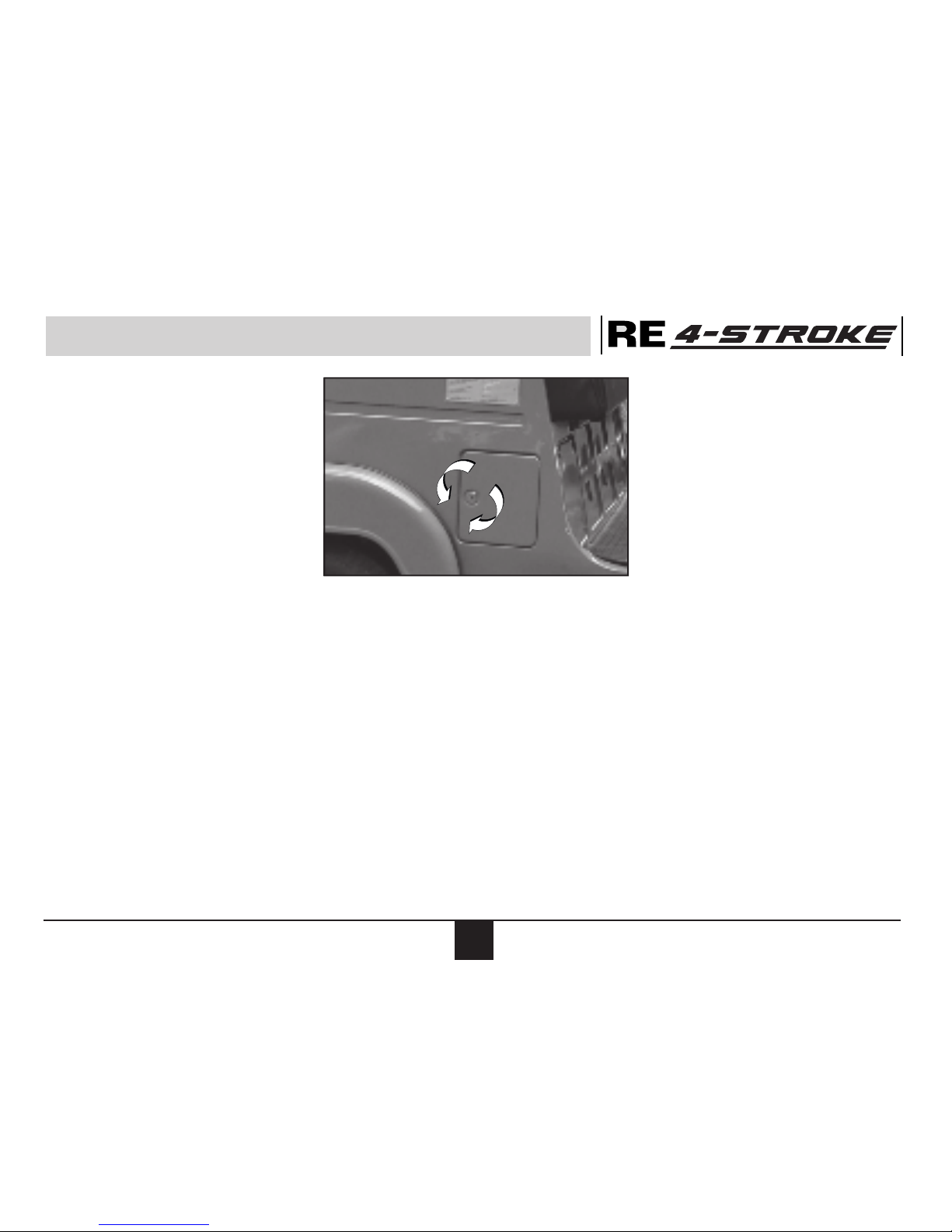

A.Gas filling door lock :

• For filling gas in tank, open the lockable cover.

• To open the lock insert the key & rotate it Anticlockwise.

• To lock the door insert the key & rotate it clockwise.

A. Gas Filling Door Lock

Unlock

Lock
