Backyard Pro 554C3H830 LP Manuel utilisateur
1
LP GAS 30” COMMERCIAL
OUTDOOR GRILL
ASSEMBLY INSTRUCTIONS
03/2016
#554C3H830 LP - Base Grill
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF YOU ARE
ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR
HER TO SAVE FOR FUTURE REFERENCE.
ASSEMBLY OF THIS UNIT REQUIRES 2 ADULTS.
Intertek
Intertek
09/2017
09/2017

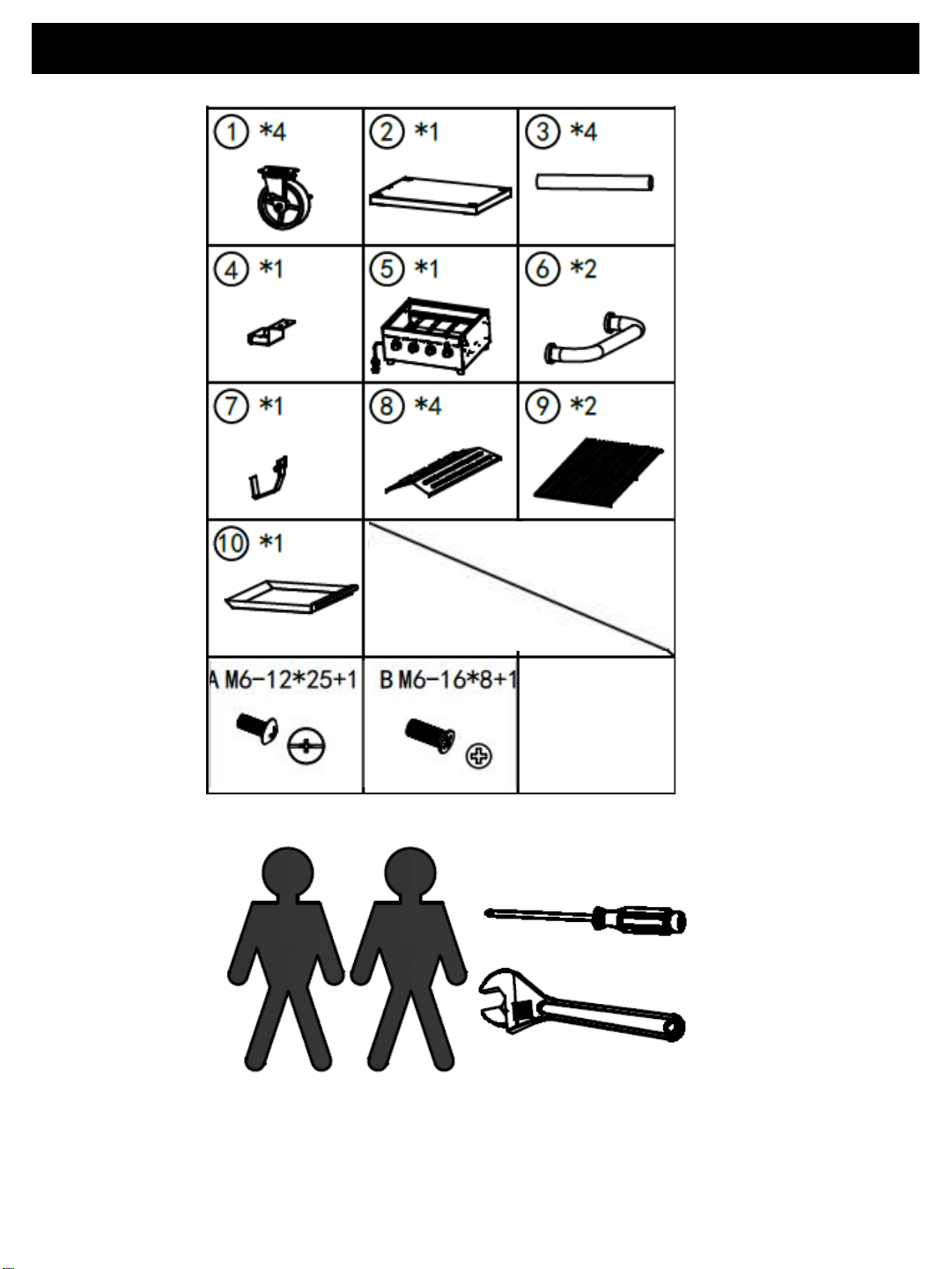

Parts List & Hardware
Exploded View
1
2
4
3
5
6
7
8
9
10
Assembly Instructions
Step 1:
Install casters(1) to the under
shelf(2) and using BOLT A--
16PCS.
Set brakes on for safe
assembly.
Step 2:
Insert the legs(3) into the
sockets using BOLT B—4 pcs,
and tighten the legs.
Assembly Instructions
Step 3:
Attach propane holder(4) to the
under shelf using BOLT A-3 pcs
Step 4:
Set the grill section(5) on to
the legs and under shelf.
A
4
under shelf using BOLT A-2 pcs
Assembly Instructions
Step 5:
Tighten the legs using BOLTB--
--4 pcs. So the grill and legs are
secure.
Step 6:
Attach handles(6) to each side,
using BOLT A–4pcs
Assembly Instructions

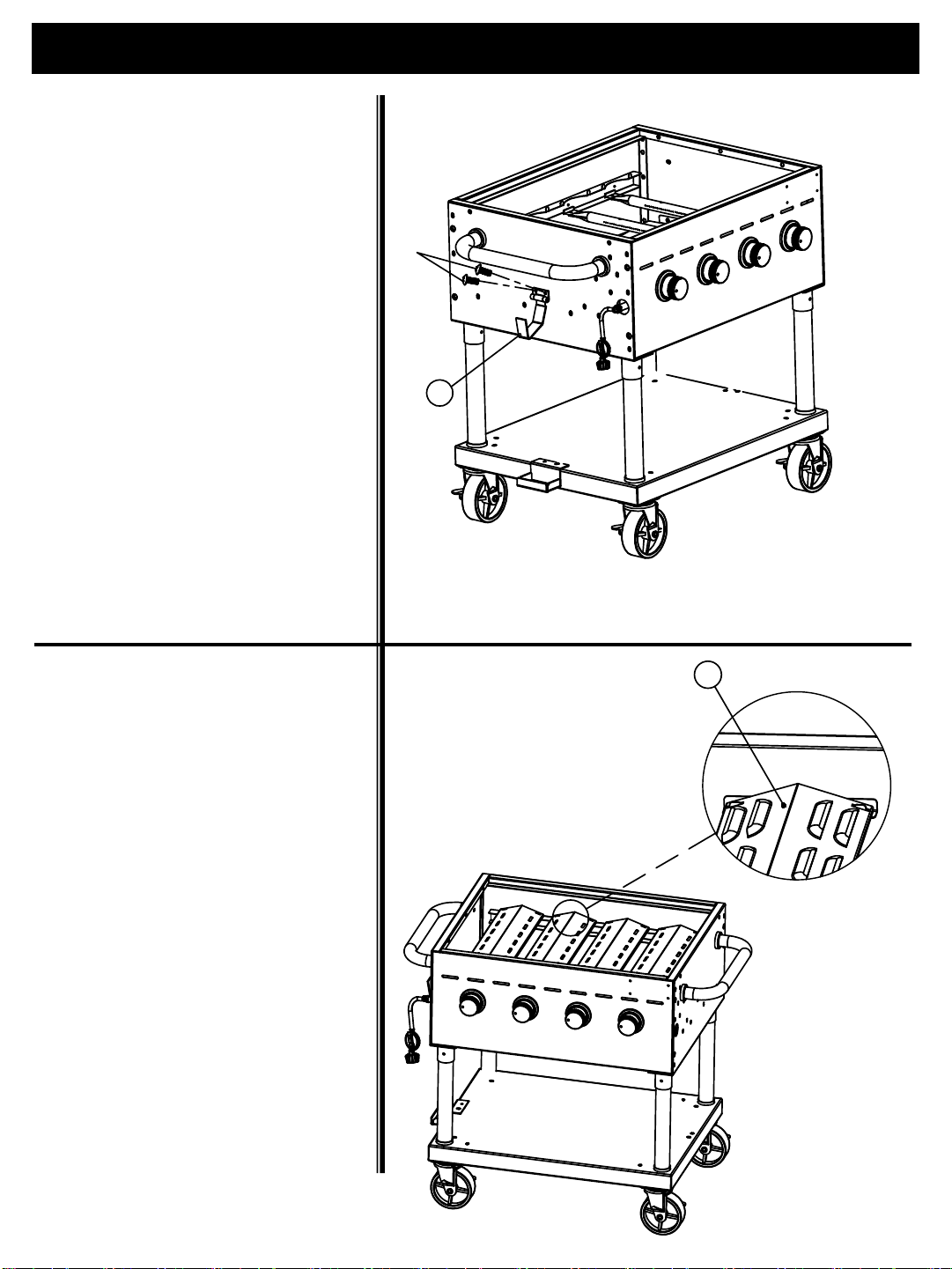

Step 7:
Attach top propane tank holder(7)
to the grill using BOLT A--- 2 pcs.
Step 8:
Place the burner covers(8) into
their position.
A
7
8
Assembly Instructions
Step 9:
Add grates(9) to the top of the grill.
Step 10:
Insert grease tray(10) in the
back of the grill.
Then the grill is fully assembled.
9
10
Assembly Instructions
Step 11:
Put the gas tank above the shelf
and hang the tank on bottle hook.
