Baby Trend SERENGETTI 1956CT Manuel utilisateur
Serengetti ™ Travel System
MODEL # 1956CT
Instruction Manual
04.07
Convenience through Innovation and thoughtful design
Please read all instructions BEFORE assembly and USE of product.
KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
For infant car seatʼs instructions,
please refer to the manual located
under the car seat
WARNING: Please follow all of these instructions to
ensure the safety of your child. Keep these instructions for
future reference.
WARNING: Failure to follow these instructions could
result in serious injury or death. Avoid serious injury from
falling or sliding out. Always use the seat belt and insure
that the child is properly positioned according to these
instructions.
WARNING: Never leave child unattended.
* Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and
cause a hazardous, unstable condition.
* The maximum weight that can be carried in the storage basket is 5 lbs. The maximum weight that can be carried
in the Parent Tray is 3 lbs. Excessive weight may cause a hazardous unstable condition to exist.
* Be certain the stroller is completly opened and locked in place before allowing a child near the
stroller.
* The maximum weight capacity of this stroller is up to 45 pounds additional weight will cause excessive wear
and stress on the stroller and may cause a hazardous unstable condition to exist.
* DO NOT use the stroller on stairways or escalators.
* Never allow your stroller to be used as a toy.
* To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.
* Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or
repair parts as needed.
* Discontinue use of stroller should it malfunction or become damaged. Please contact our customer service
department to arrange for repair or obtain replacement parts.
Please: If you experience any difficulty with the use of our product or have a question regarding these
instructions, please contact our Customer Service Department at (800) 328-7363 between the hours of 8:00 am
and 4:30 pm Pacific Standard Time or visit us online at www.babytrend.com. Please do not return to the store
as once it is returned it cannot be resold and the materials and energy used to make it are wasted.
To Contact Us:
Baby Trend, Inc. Customer Service Hot Line
1567 S. Campus Ave. (800) 328-7363
Ontario, CA 91761 8:00 a.m. to 4:30 p.m. Pacific Standard Time
WARNINGS
2
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.

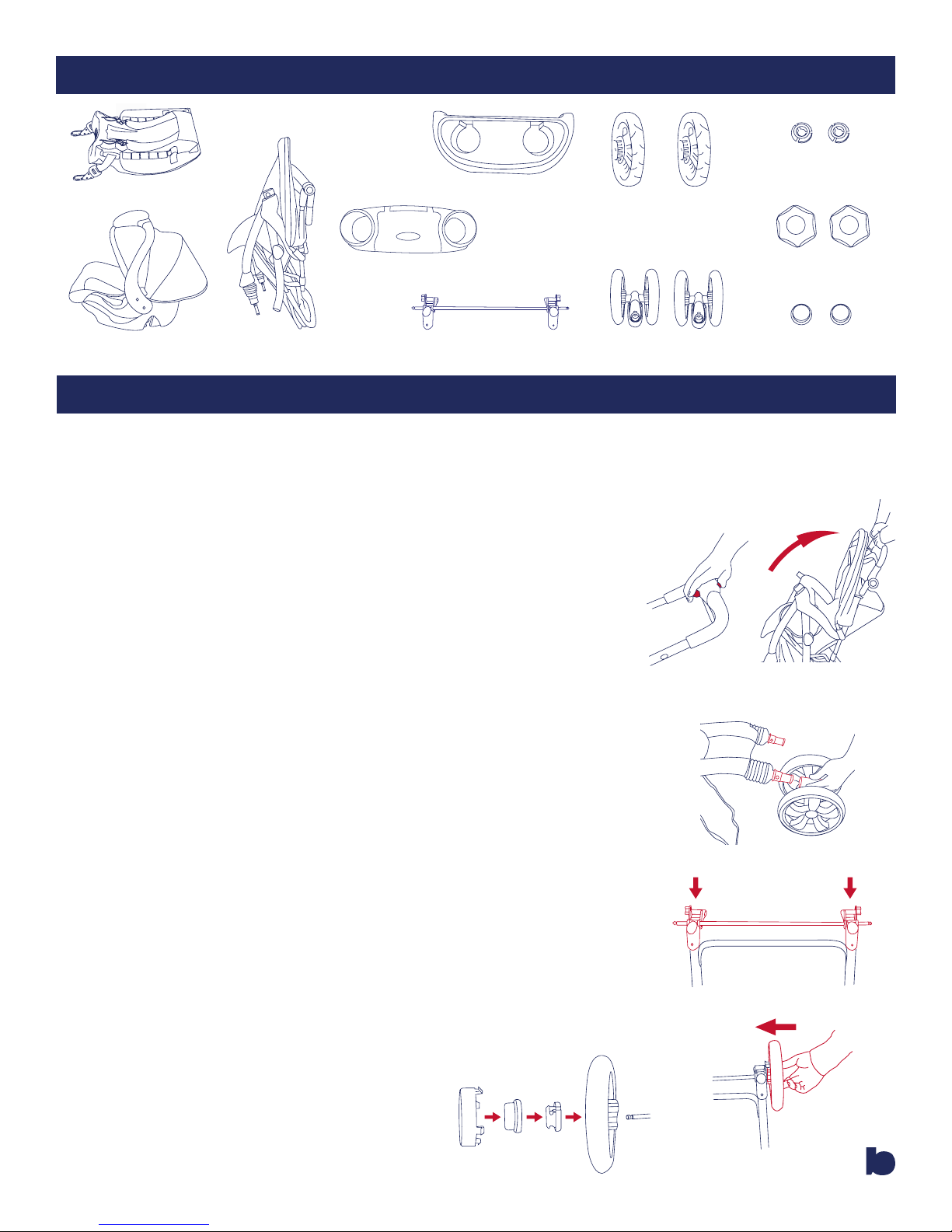

1. Carefully remove stroller from the carton. Note: Front wheels, rear
wheels, child tray and parent tray MUST be installed before using.
2. Unfold stroller frame by sliding the RED thumb trigger to the left and
squeezing the RED pull trigger while pulling backward on the stroller
handle. (Fig. 1-2)
3. To attach the front wheels, lean the stroller back so that it rests on the
handle with the front and rear legs pointing upward. Position the front
wheels over the front leg tubes so that the hole in the housing lines
up and will slide onto the legs. (Fig. 3) Firmly push down until the
wheels lock securely into place. Tug on each wheel to ensure they are
both securely attached.
4. Attach the rear axle assembly and wheels as follows:
a. Position axle assembly over the rear leg tubes, brake pedals
facing the back. At the same time, push down applying equal
pressure to both sides until they lock into place. (Fig. 4)
b. Slide a wheel onto each side of the axle. (Fig. 5)
c. Secure both wheels using with a locking washer. Push locking
washer firmly in place. (Fig. 6a)
d. Cap axle end using the solid metal caps. (Fig. 6b)
e. Cover and finish using hubcaps. (Fig. 6c)
Pull on both wheels to ensure they are secure and can spin freely.
Note: DO NOT use stroller if wheels do not lock into place. If you
need assistance, please contact our customer service department at
(800) 328-7363, M-F, between 8am and 4:30pm, PST.
TO ENSURE SAFE OPERATION OF YOUR STROLLER, PLEASE
FOLLOW THESE INSTRUCTIONS CAREFULLY. RETAIN THESE
INSTRUCTIONS FOR FUTURE REFERENCE.
Fig. 3
PARTS
TO ASSEMBLE STROLLER
Child Tray
Solid Cap (2)
Locking Washer (2)
Rear Wheel (2)
Stroller
Fig. 1
Flex-Loc Base
Car Seat
Fig. 2
Rear Axle Assembly
Hub Cap (2)
Front Wheel (2)
3
Fig. 4
Parent Tray
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
Fig. 5
c b a
Fig. 7
Front frame
tube
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.

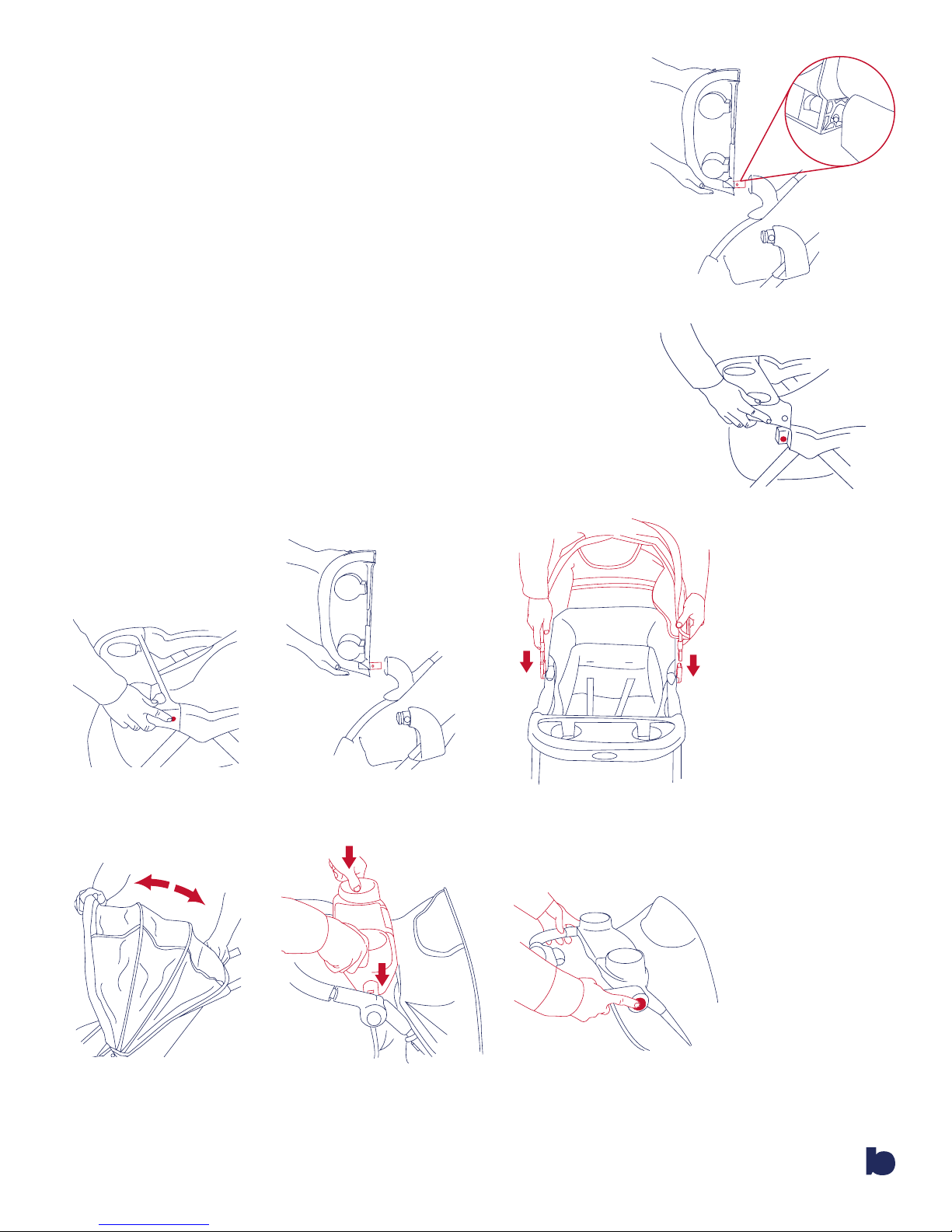

5. To attach the child tray; push the angled side of the tray onto the
post at the end of the right armrest while pressing downward on
the snap button, until locking in place. (Fig. 7) Rotate the tray
downward until it latches onto the left armrest into place. (Fig.8)
Note: Check that the snap button comes through and securely in
place. (Fig. 9) You can remove the tray completely by pressing
the snap button on the right side and pulling forward on the tray
until released. (Fig.10)
6. To install the canopy, slide the male ends of the canopy into
the female slots on the stroller frame. (Fig.11) Open canopy, by
pushing forward on the front frame of the canopy. Close canopy by
pulling backwards. (Fig.12)
7. To attach parent tray, line up the parent tray slots with
corresponding slots on the stroller frame and slide down until
locking into place. (Fig. 13) Check to make sure the parent tray is
secure before using.
Fig. 8
Fig. 9 Fig. 10 Fig. 11
Fig. 12 Fig. 13 Fig. 14
4
• The shoulder straps of the 5-point harness have 3 attachment positions.
Select the position that places the shoulder straps level with, or below the
top of the child's shoulders. To access the harness spread slots in seat pad.
(Fig. 15)
• Carefully place the child in the stroller seat and bring the safety harness
around the child's waist and over the shoulders. Place the crotch strap
between the child's legs. Insert the male end of each shoulder/waist belt
into the buckle on the crotch strap. Tighten the harness to be snug around
the child's waist and over the child's shoulders. (Fig. 16)

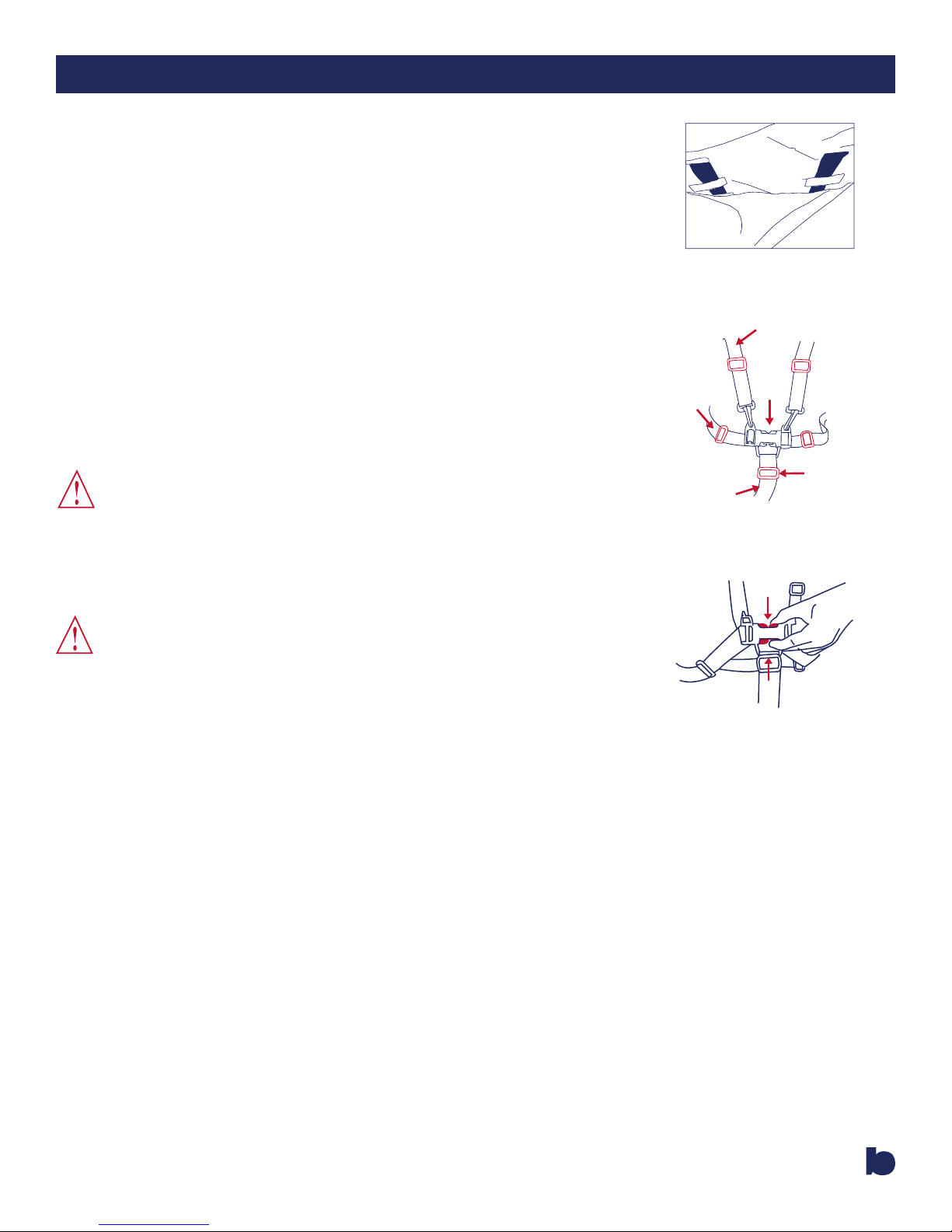

TO SECURE THE CHILD
Shoulder Strap
Squeeze
Crotch Strap
Waist
Strap
Adjust for a
snug fit
• To release, apply pressure to both sides of each male clip until the clip
is released. This process requires a moderate amount of effort so as to
prevent an accidental release by your child. (Fig. 17)
WARNING: Always use the safety
harness to avoid serious injury from
falling or sliding out.
STRANGULATION HAZARD:
Child can strangle in loose straps.
Never leave child in seat when straps
are loose or undone.
Fig. 16
Fig. 17
Fig. 15
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
5

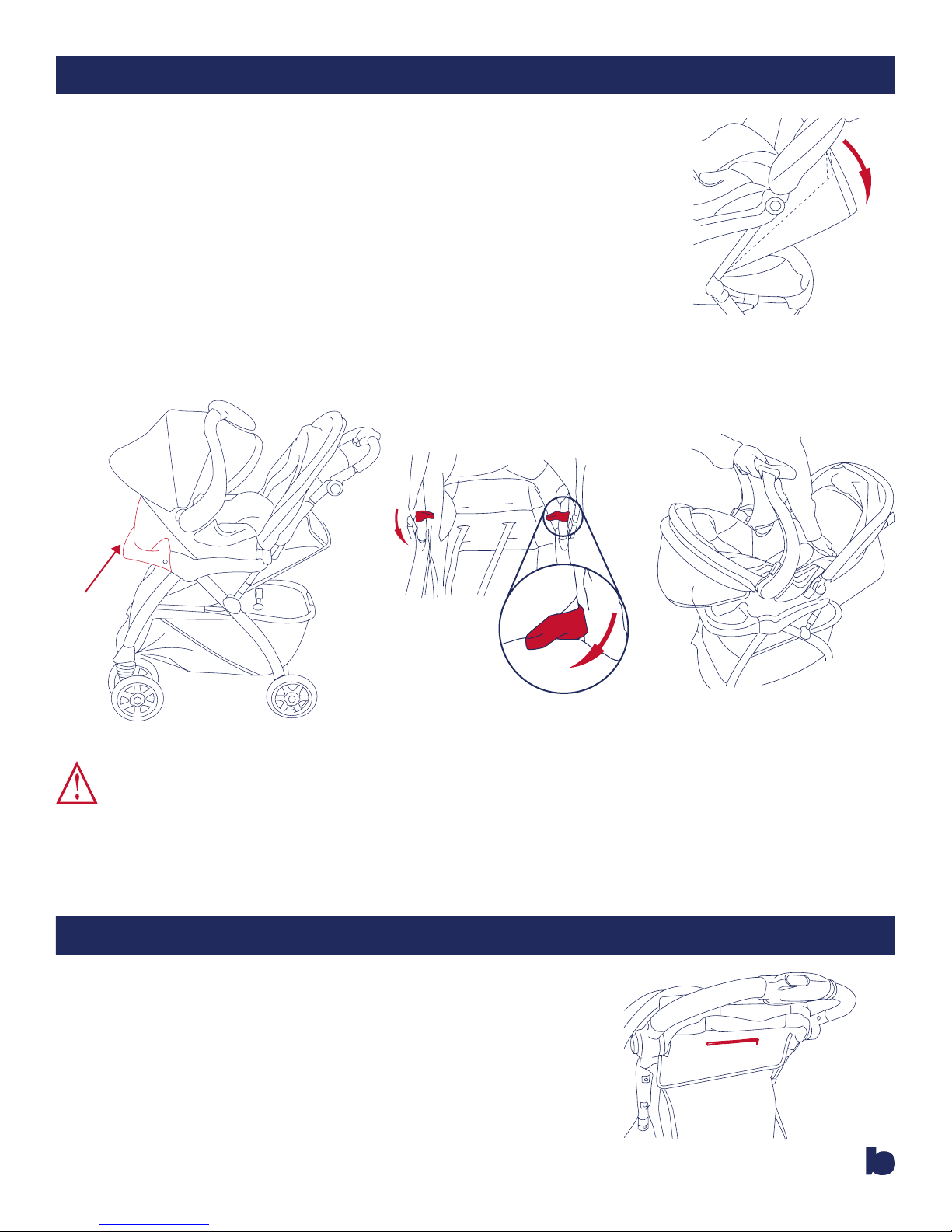

ATTACHMENT OF THE BABY TREND INFANT CAR SEAT
* To attach the Baby Trend Infant Car Seat, recline the seat all the way
back. (Fig. 18)
* Position the Infant Car Seat, facing toward the rear of the stroller,
so that the seat shell goes into the front tray and latches into place.
(Fig. 19) Check that the Infant Car Seat is firmly locked onto the
front tray before using.
* Check that the front child tray is firmly attached to the stroller
armrests. Make sure that the car seat locks into the front child tray. Then
turn tabs on stroller frame to lock the front of the car seat into the stroller.
(Fig. 20)
* To remove the Infant Car Seat, squeeze the release handle located at the
foot-end of the seat and carefully lift upward on the seat. (Fig. 21)
Fig. 21
Locks
into tray
Fig. 19
WARNING: Failure to follow these car
seat attachment instructions could result in
serious injury or death.
Fig. 18
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
Fig. 20
6
SPEAKER IN CANOPY FOR MP3 DEVICE
* Use the input jack inside the pocket to plug in your MP3 device.
(Fig. 22)
Fig. 22
SEAT BACK POSITIONING
WARNING: The upright
position should be used only for a
child that is at least 6 months old.
* The seat has a multiple position recline that is controlled by a cord
and spring loaded adjuster behind the seat. To recline the seat, pull
back on the loop of the adjuster. (Fig. 23) To place the seat back
in a more upright position, grab the adjuster with one hand and
pull the cord to the desired position with the other hand. (Fig. 24)
The cord will lock automatically.

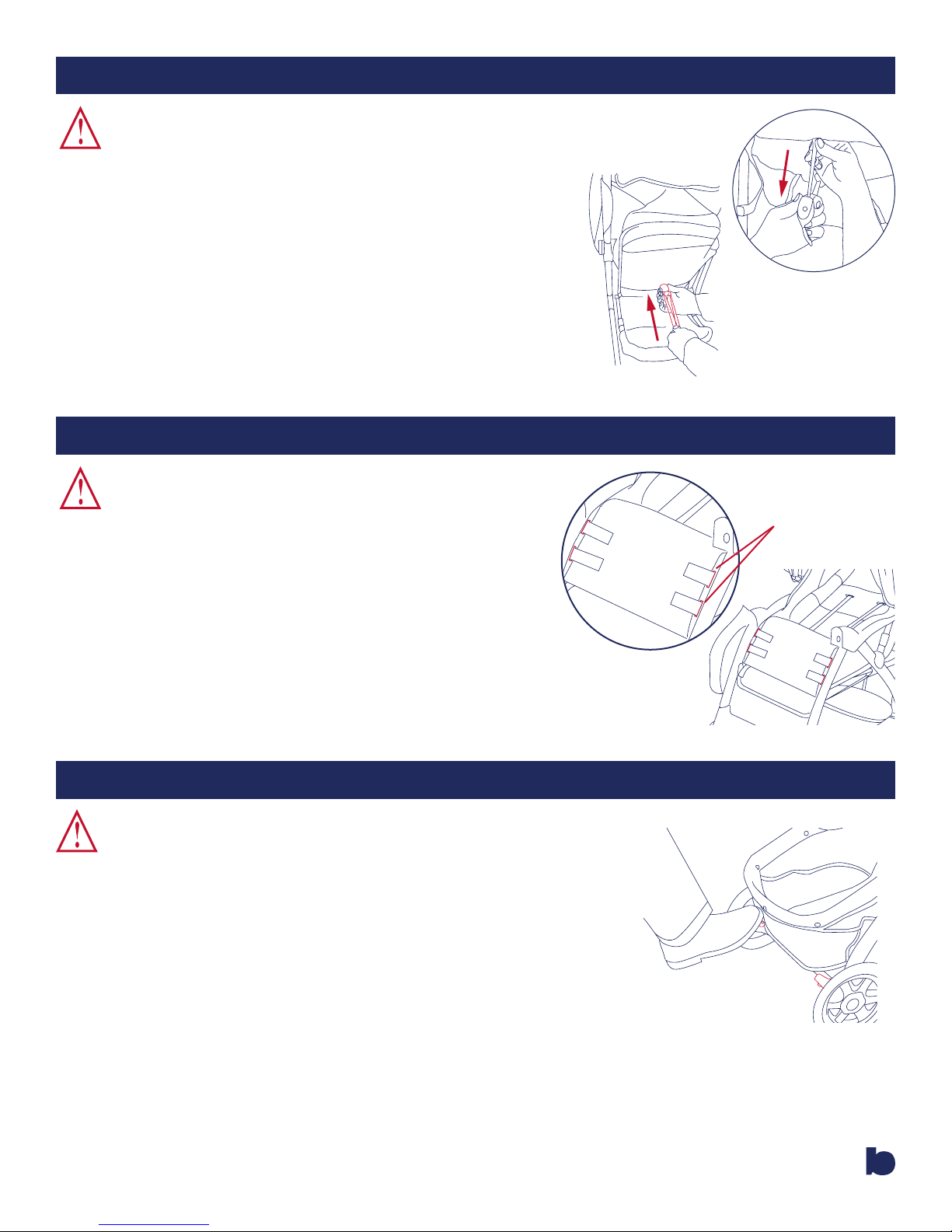

BRAKES
WARNING: Always set brakes
when the stroller is not being
pushed so that the stroller will not
roll away. Never leave stroller
unattended on a hill or incline as
the stroller may roll away.
* To engage brakes, apply light downward pressure to the brake
lever located on each rear wheel. The stroller may require slight
forward or rearward movement in order to line up the teeth on the
brake with each wheel brake cluster. (Fig. 26) Check that the
stroller will not move and that the brakes are properly applied. To
release, gently lift up on the brake lever.
Fig. 23
Fig. 24
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
7
FULL RECLINE/CARRIAGE POSITON
WARNING: Never use seat
in a reclined carriage position
unless enclosure is raised to cover
the front opening. Child may slip
into leg openings and strangle.
* To recline the seat, pull back on the loop of the adjuster. (Fig. 23)
Fold up foot rest and secure with velcro straps through slots on
sides. (Fig. 25)
Fig. 25
Fig. 26
Velcro slots
Fig. 27
* To open the canopy, push forward on the front frame of the canopy.
To close canopy, pull the front edge toward the rear of the stroller
until folded. Always close the canopy prior to folding the stroller
frame. (Fig. 27)

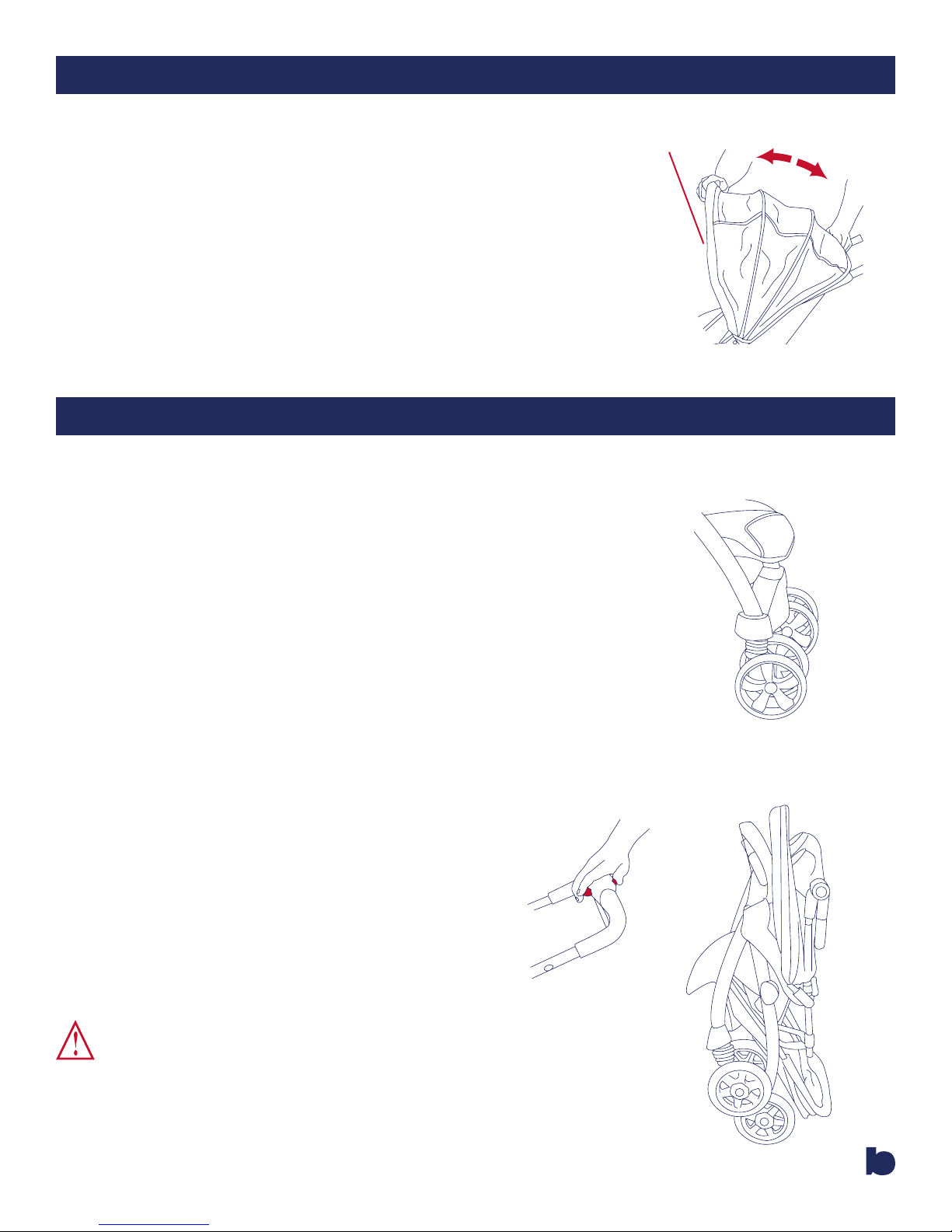

CANOPY
Front frame
tube
TO FOLD STROLLER
1. Close the canopy as described in the canopy section.
2. Place the seat in the furthest recline position.
3. Flip the carseat support tabs to the outside of the stroller frame
before folding.
4. Pull stroller backward several inches to rotate the front wheels to
the front. (Fig. 28)
5. To fold the stroller slide the red fold lock with your thumb while
squeezing the large red fold button in the center of the handle and
push forward on the handle. (Fig. 29)
Once the stroller begins to fold, release the red handle
and push forward on the handle until the stroller is folded.
(Fig. 30) To stroller will automatically lock when folded correctly,
and will stand freely in the folded position.
CAUTION: Read the following section completely before folding your stroller!
WARNING: Failure to follow
these folding instructions could result in
serious injury or death.
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
Fig. 29
Fig. 30 8
Fig. 28

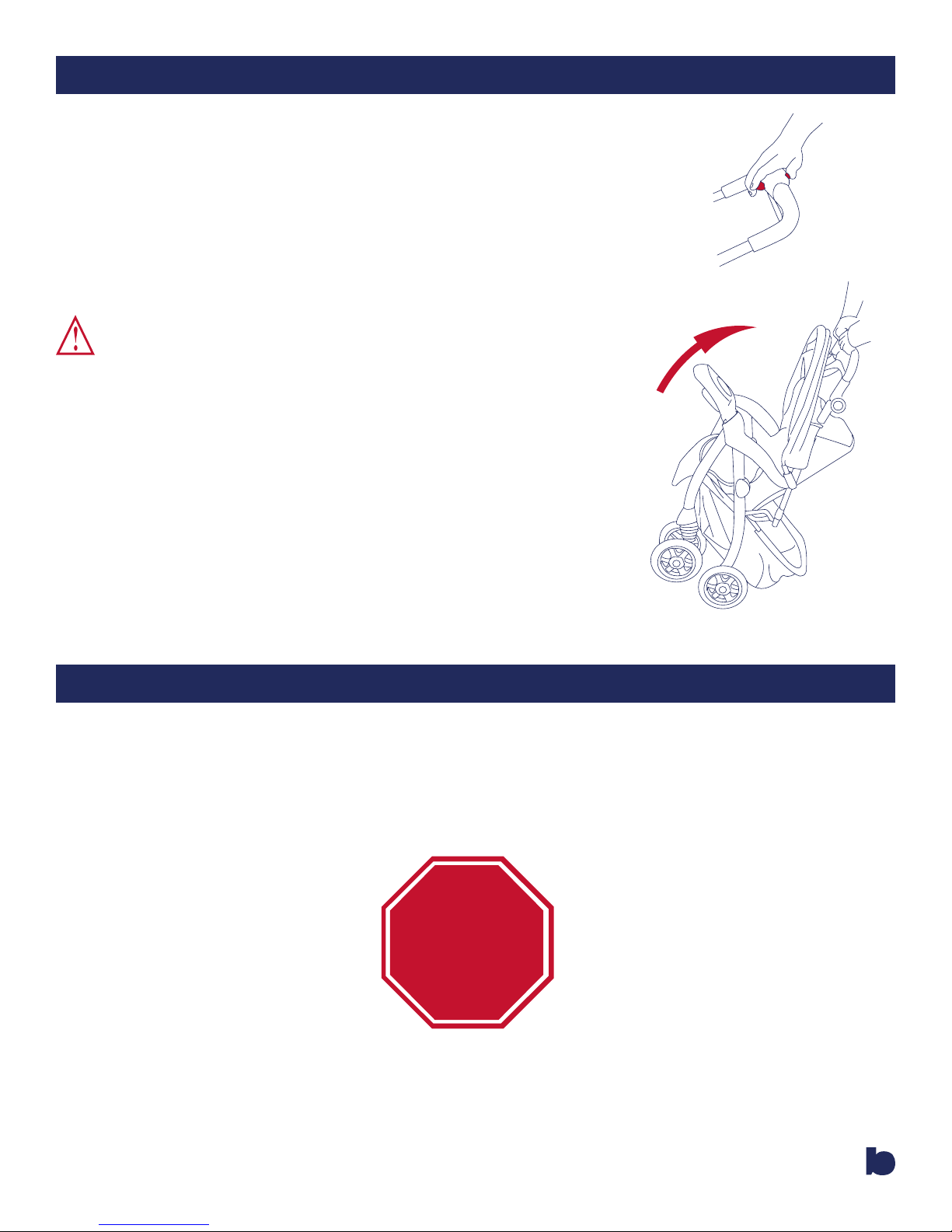

TO UNFOLD STROLLER
* To unfold the stroller slide the red fold lock with your thumb while
squeezing the large red fold button in the center of the handle and
push down on the handle.
WARNING: Failure to follow
these folding instructions could result
in serious injury or death.
CLEANING SEAT PAD
* To clean the seat pad. use warm water, soap and a sponge, and let
air dry.
IF YOU EXPERIENCE ANY DIFFICULTY IN USING THIS PRODUCT,
PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT (800) 328-7363
BETWEEN THE HOURS OF 8:00AM AND 4:30PM PACIFIC STANDARD TIME OR VISIT US ONLINE
AT WWW.BABYTREND.COM FOR ASSISTANCE.
STOP
Copyright © 2006 - 2007, Baby Trend Inc., All Rights Reserved.
Fig. 31
Fig. 32
9
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Baby Trend Poussette
Baby Trend
Baby Trend Expedition 9199 Manuel utilisateur
Baby Trend
Baby Trend Sit N Stand Plus Manuel utilisateur
Baby Trend
Baby Trend Expedition ELX Manuel utilisateur
Baby Trend
Baby Trend Rocket PLUS Manuel utilisateur
Baby Trend
Baby Trend Expedition Manuel utilisateur
Baby Trend
Baby Trend Umbrella Stroller with Canopy Manuel utilisateur
Baby Trend
Baby Trend EZ Ride Plus Travel System Manuel utilisateur
Baby Trend
Baby Trend Expedition EX Double Jogger Manuel utilisateur
Baby Trend
Baby Trend SS67 Manuel utilisateur
Baby Trend
Baby Trend Navigator DJ86B Manuel utilisateur
Baby Trend
Baby Trend BT03 A Series Manuel utilisateur
Baby Trend
Baby Trend TS12 D Series Manuel utilisateur
Baby Trend
Baby Trend CW01D92 Manuel utilisateur
Baby Trend
Baby Trend TJ93B Manuel utilisateur
Baby Trend
Baby Trend Tango 3 All-Terrain Travel System Manuel utilisateur
Baby Trend
Baby Trend Expedition ELX Manuel utilisateur
Baby Trend
Baby Trend JG94 Expedition Manuel utilisateur
Baby Trend
Baby Trend TJ84A Manuel utilisateur
Baby Trend
Baby Trend TS88 Manuel utilisateur
Baby Trend
Baby Trend Tour WG01D22B Manuel utilisateur
