Providence Ridge Travel System

MODEL # 1638CT

Instruction Manual

11.06

Convenience through Innovation and thoughtful design

Read all instructions BEFORE assembly and USE of product.

KEEP INSTRUCTIONS FOR FUTURE USE.

WARNING: Please follow all of these instructions to ensure the

safety of your child. Keep these instructions for future reference.

WARNING: Failure to follow these instructions could result in

serious injury or death. Avoid serious injury from falling or sliding out.

Always use the seat belt and insure that the child is properly positioned

according to these instructions.

WARNING: Never leave child unattended.

* Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and

cause hazardous unstable conditions.

* The maximum weight that can be carried in the basket is 5 lbs. The maximum weight that can be carried

in the Parent Tray is 3 lbs. Excessive weight may cause a hazardous unstable condition to exist.

* Be certain the stroller is fully erect and latched in the open position before allowing the child near the

stroller.

* The maximum weight capacity of this stroller is up to 45 pounds additional weight will cause excessive wear

and stress on the stroller and may cause a hazardous unstable condition to exist.

* DO NOT use the stroller on stairways or escalators.

* Never allow your stroller to be used as a toy

* To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.

* Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or

repair parts as needed

* Discontinue use of stroller should it malfunction or become damaged. Please contact our customer service

Parts Hotline to arrange for repair or obtain replacement parts.

Please: If you experience any difﬁculty with the use of our product or have a question regarding these instruc-

tions, please contact our Customer Service Department at (800) 328-7363 between the hours of 8:00 am and

4:30 pm Paciﬁc Coast Time. Please do not return to the store as once it is returned it cannot be resold and the

materials and energy used to make it are wasted.

To Contact Us:

Baby Trend, Inc. Customer Service Hot Line

1567 S. Campus Ave. (800) 328-7363

Ontario, CA 91761 8:00 a.m. to 4:30 p.m. Paciﬁc Standard Time

WARNINGS

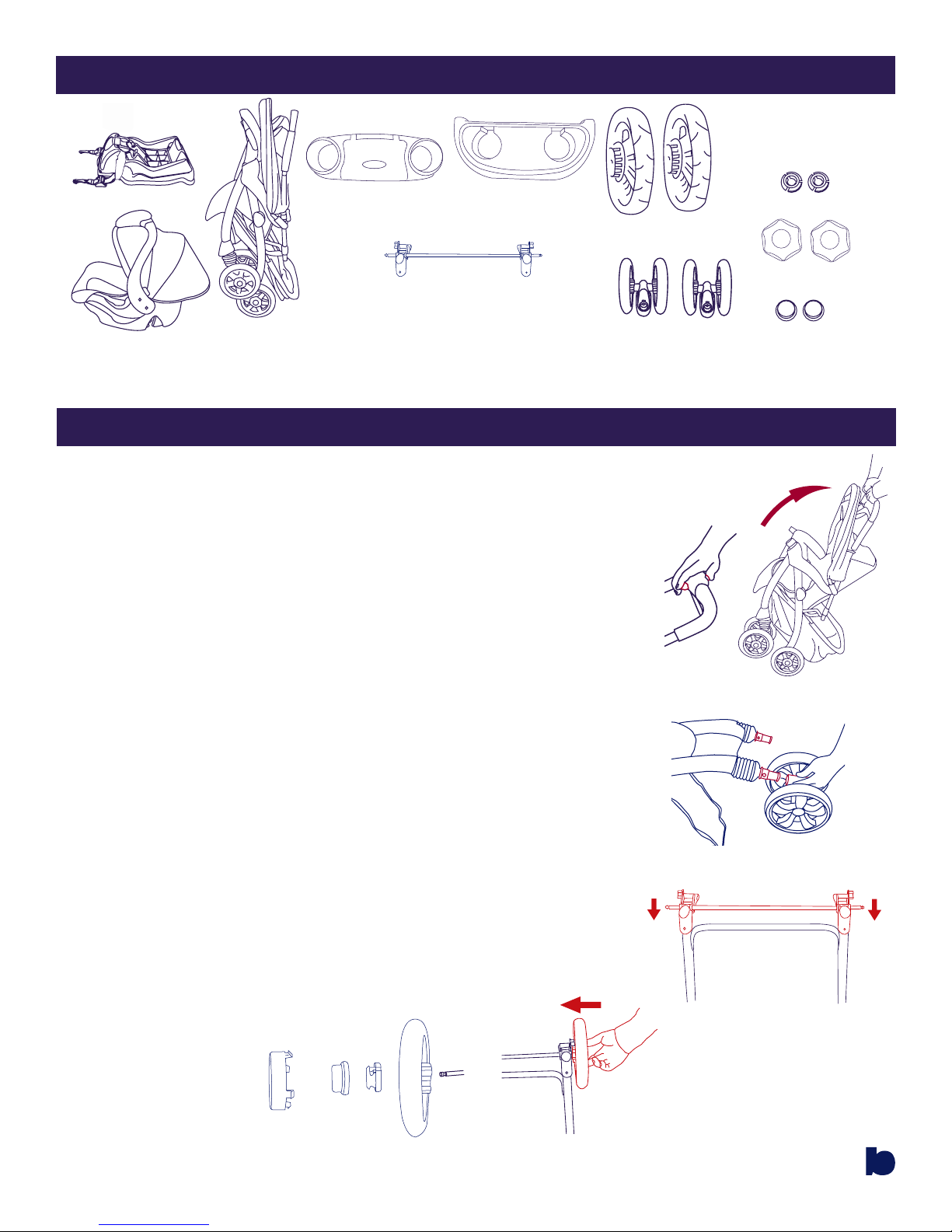

* Remove stroller from box. The front wheels, rear wheels, and child tray,

and parent tray need to be installed prior to use.

* To attach the front wheels, slide the red unlock mechanism and squeeze

the stroller handle while pulling backward on the stroller to unfold. See

ﬁgures 1 and 2.

* Lean the stroller backwards so that it rests on the handle and rear frame

tubes and the front wheel tubes are pointing upward. Position the front

wheel assembly at the front tube such that the hole in the swivel assembly

will slide onto the front tube. Please see ﬁgure 3. Push each front wheel

assembly onto the front tube being careful that wheel assembly locks onto

the front leg. Pull on the wheel assembly to ensure that it is securely

attached to the stroller. Please see ﬁgure 3.

* Lean the stroller forward to rest on the front wheels. Assemble the rear

wheels as follows:

1. Slide the rear axle assembly onto the rear stroller legs until they lock

into place. Please see ﬁgure 4.

2. Slide each wheel onto the rear axle and secure in place with the

Locking Cap. Snap the solid cap over the Locking Cap. Snap the

Hub Cap onto the wheel. Please see ﬁgure 5. Please see ﬁgure 6 for

order assembly.

Pull on each wheel to ensure that each is ﬁrmly attached to the axle.

* Ensure that the wheels are ﬁrmly locked into place. Do Not use the stroller

if the wheels are not locked into place, but rather contact our customer

service department immediately at (800) 328-7363, between the hours of

8:00am and 4:30pm PCT, for assistance.

TO ENSURE SAFE OPERATION OF YOUR STROLLER, PLEASE FOLLOW THESE

INSTRUCTIONS CAREFULLY. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Car Seat

Front Wheels

Figure 3.

PARTS

TO ASSEMBLE STROLLER

Figure 6.

Child Tray

Figure 5.

Solid Cap

Locking Cap

Rear Wheels

Stroller

Figure 1.

Base

Car Seat

Figure 2.

Rear Axle Assembly

Hub Cap

Front Wheels

Figure 4.

Parent Tray

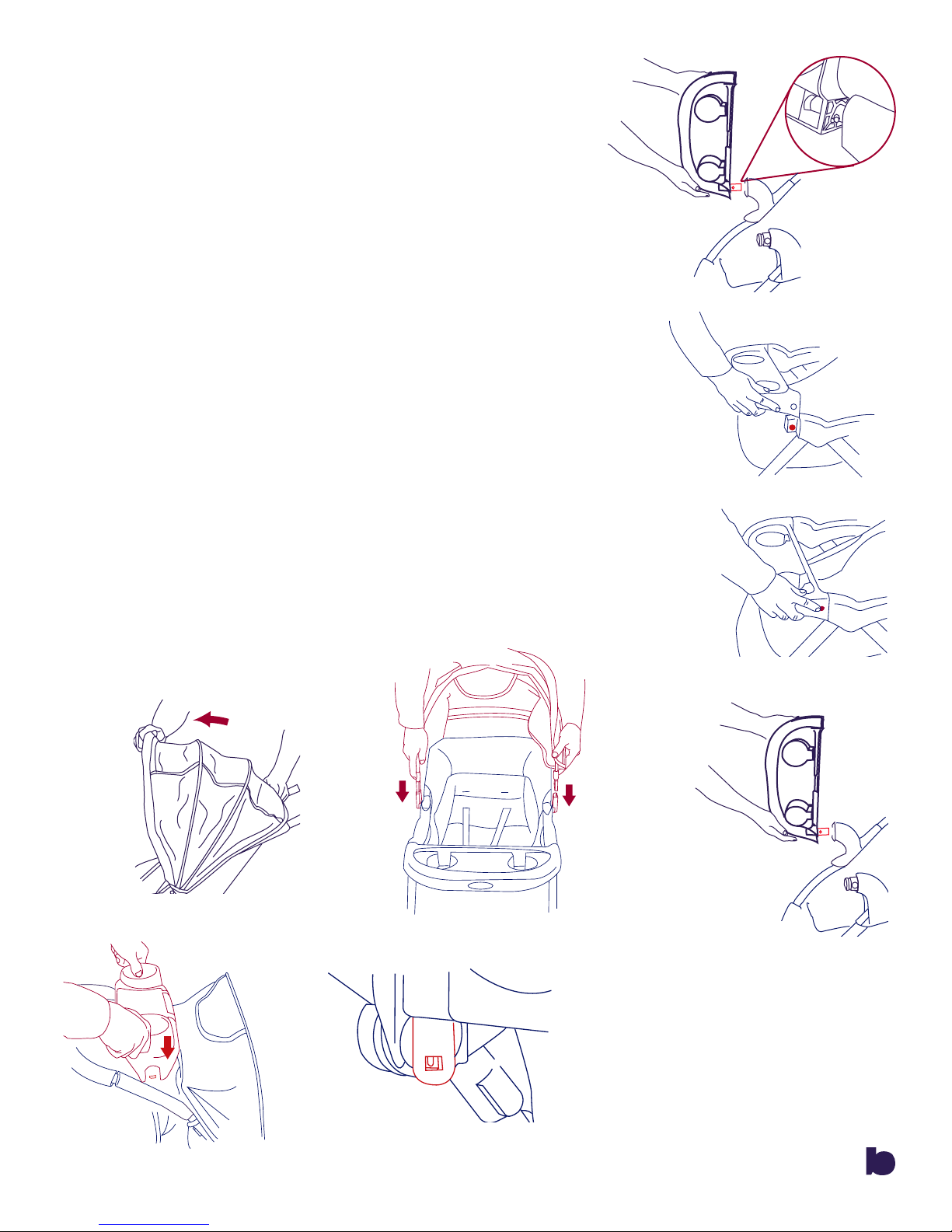

* To attach the front child tray, push the angled tray onto the post at the

end of the right armrest, while pressing downward on the snap button,

until locked into place. Please see ﬁgure 7. Rotate the tray downward

until latched onto the left armrest. Please check that the snap button

comes through and securely latches the tray in place. Please see ﬁgure

* To remove front child tray, press inward on the left side tray release

button and rotate upward on the tray. Please see ﬁgure 9. Please note

that you may remove the tray completely by depressing the snap button

on the right side as shown in ﬁgure 10 while pulling forward on the tray.

Please see ﬁgure 7.

* To install the canopy slide the male ends of the canopy into the female

slots on the stroller frame. Please see ﬁgure 11. To open the canopy

push forward on the front frame tube of the canopy. Please see ﬁgure

12.

* To attach the parent tray line up the parent tray slots with the

corresponding slots on the stroller frame, slide down until it locks into

place. Check to make sure the parent tray is secure before using. Please

see ﬁgure 14

* To remove the parent tray, locate the locking tabs under the tray, pull

outward on the locking tabs and lift up to remove. Please see ﬁgure 15

Figure 9.

Figure 7.

Figure 8.

Figure 12.

Front frame

tube

Figure 10.

Figure 11.

Figure 14. Figure 15.

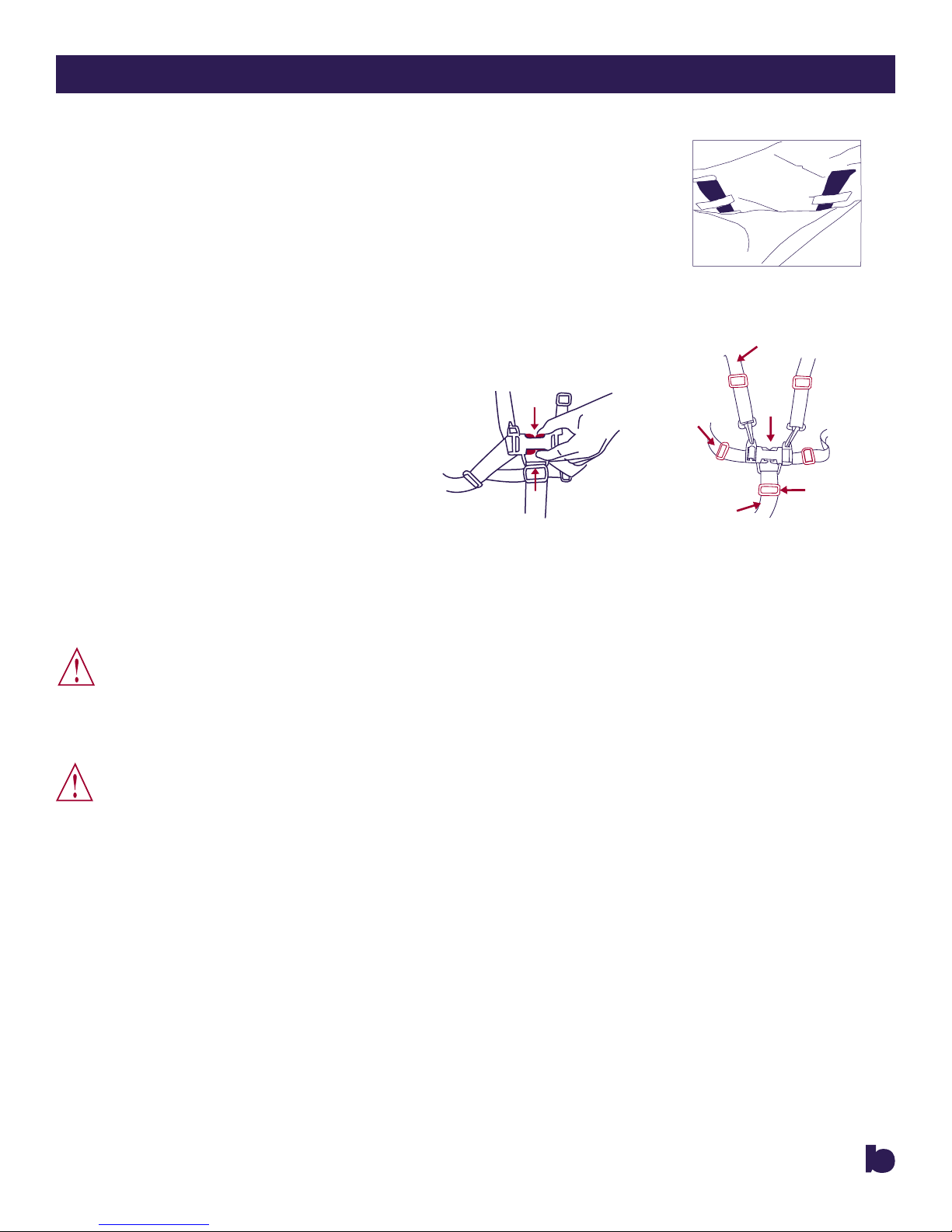

• The shoulder straps of the 5-point harness have 3 attachment positions.

Select the position that places the shoulder strap level with, or below

the top of the child's shoulder. To access the harness pull apart seat pad.

Please see ﬁgure 16.

• Carefully place the child in the stroller seat and bring the safety harness

around the child's waist and over the shoulders. Place the crotch strap

between the child's legs. Insert the male end of each shoulder/waist belt

into the buckle on the crotch strap. Tighten the harness to be snug around

the child's waist and over the child's shoulders Please see ﬁgure 17.

TO SECURE THE CHILD

Shoulder Strap

Squeeze

Crotch Strap

Waist

Strap

Adjust for a

snug fit

• To release, apply pressure to both sides of each male clip until the clip is released. See ﬁgure

18. This process requires a moderate amount of effort so as to prevent an accidental release by

your child.

WARNING: Avoid serious injury from

falling or sliding out. Always use the safety

harness.

STRANGULATION HAZARD:

Child can strangle in loose straps. Never leave

child in seat when straps are loose or undone.

Figure 17.

Figure 18.

Figure 16.

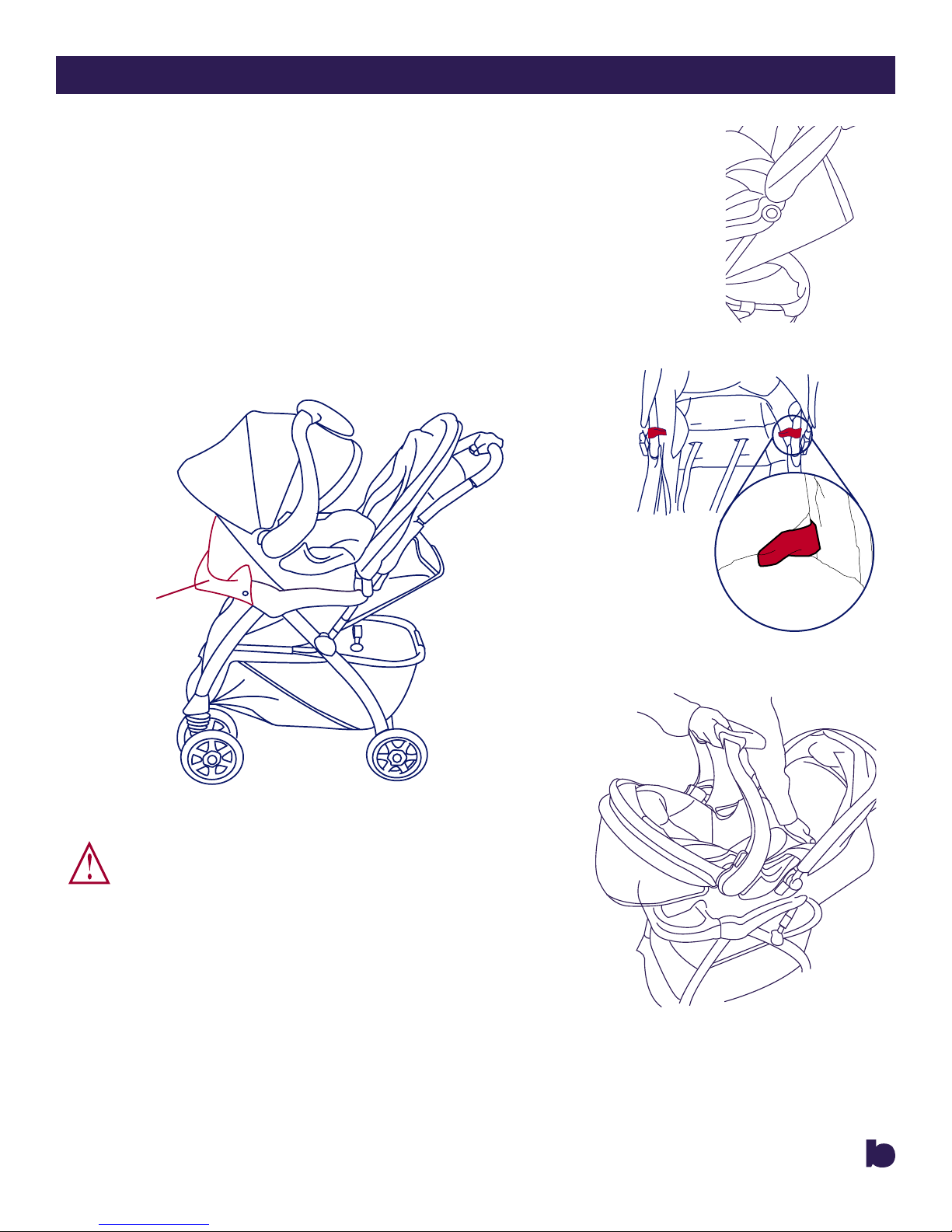

ATTACHMENT OF THE BABY TREND INFANT CAR SEAT

* To attach the Baby Trend Infant Car Seat, recline the seat all the way

back. Please see ﬁgure 19

* Check that the front child tray is ﬁrmly attached to the stroller

armrests. Make sure that the car seat locks into the front child tray. Then

turn tabs on stroller frame to lock the front of the car seat into the stroller.

See ﬁgure 20.

* Position the Infant Car Seat, facing toward the rear of the stroller, so

that the seat shell goes into the front tray and latches into place. Please

see ﬁgure 21. Check that the Infant Car Seat is ﬁrmly locked onto

the front tray before using.

* To remove the Infant Car Seat, squeeze the release handle located at the

foot-end of the seat and carefully lift upward on the seat. Please see

ﬁgure 23.

Figure 20.

Figure 22.

Locks

into tray

Figure 21.

WARNING: Failure to follow these

car seat attachment instructions could re-

sult in serious injury or death.

Figure 19.

SEAT BACK POSITIONING

WARNING: The upright position should

be used only for a child that is at least 6 months

old.

* The seat has a multiple position recline that is controlled by a cord and

spring loaded adjuster behind the seat. To recline the seat, pull back on

the loop of the adjuster. Please see ﬁgure 23. To place the seat back in

a more upright position, grab the adjuster with one hand and pull the

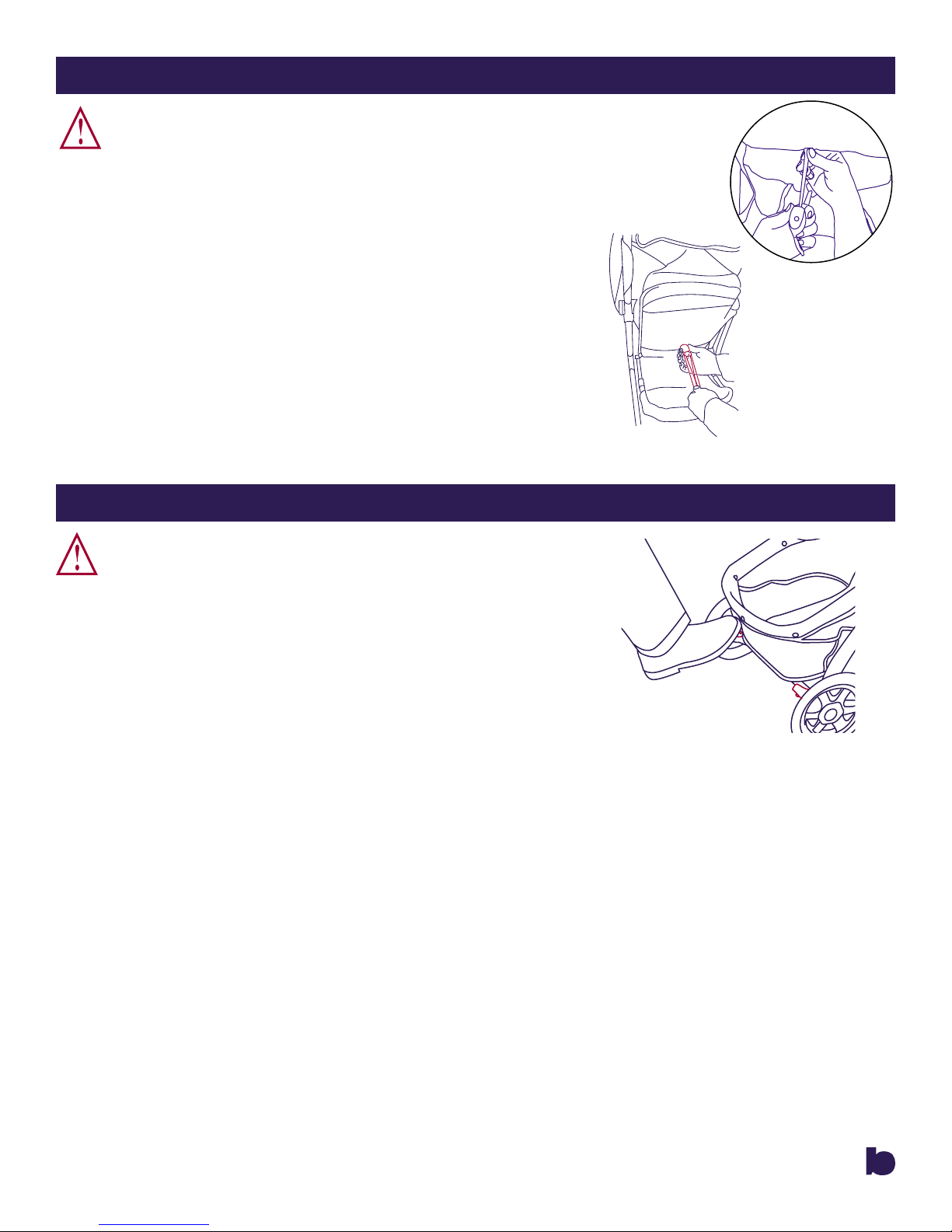

BRAKES

WARNING: Always set brakes when the

stroller is not being pushed so that the stroller will not

roll away. Never leave stroller unattended on a hill or

incline as the stroller may slide down the hill.

* To engage brakes, apply light downward pressure to the brake lever

located on each rear wheel. The stroller may require slight forward or

rearward movement in order to line up the teeth on the brake with each

wheel brake cluster. See ﬁgure 25. Check that the stroller will not move

and that the brakes are properly applied. To release, gently lift up on the

brake lever.

Figure 23.

Figure 24.

Figure 25.

cord to the desired position with the other hand. See ﬁgure 24.

The cord will lock automatically.

Figure 26.

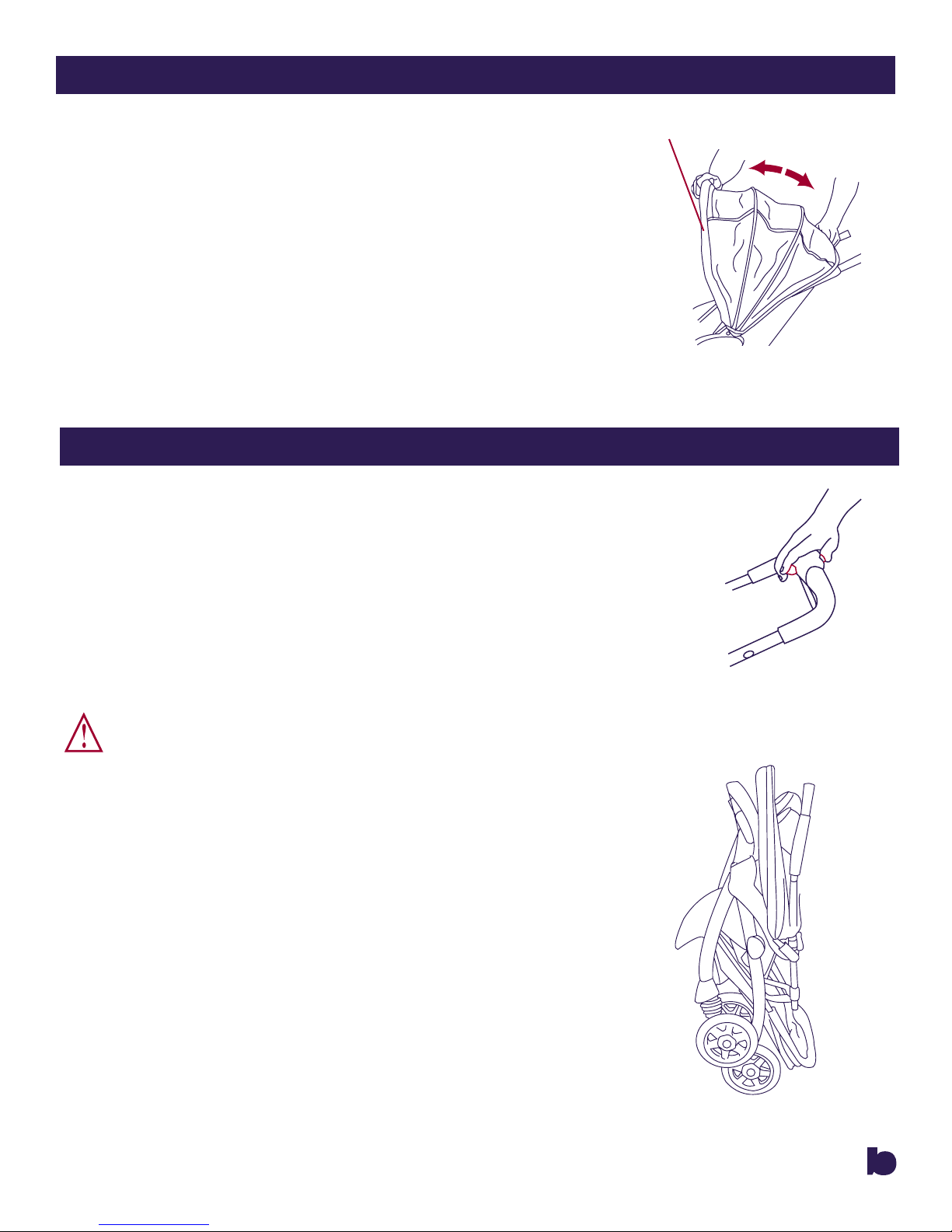

* To open the canopy, push forward on the front frame of the canopy. To

close canopy, pull the front edge toward the rear of the stroller until

folded. Always fold the canopy prior to folding the stroller frame. Please

see ﬁgure 26.

CANOPY

Front frame

tube

Figure 27.

TO FOLD STROLLER

* Close the canopy as described in the canopy section. NOTE: For an

easier fold place the seat in the furthest recline position. Also you

must ﬂip the carseat support tabs to the outside of the stroller frame

before folding. To fold the stroller slide the red fold lock with your

thumb while squeezing the large red fold button in the center of the

handle and push forward on the handle. Please see ﬁgure 27. Once the

stroller begins to fold, release the red handle and push forward on the

handle until the stroller is folded. Please see ﬁgure 28. To stroller will

automatically lock when folded correctly, and will stand freely in the

folded position.

Figure 28.

CAUTION: Read the following section completely before folding your stroller!

WARNING: Failure to

follow these folding instructions

could result in serious injury or

death.

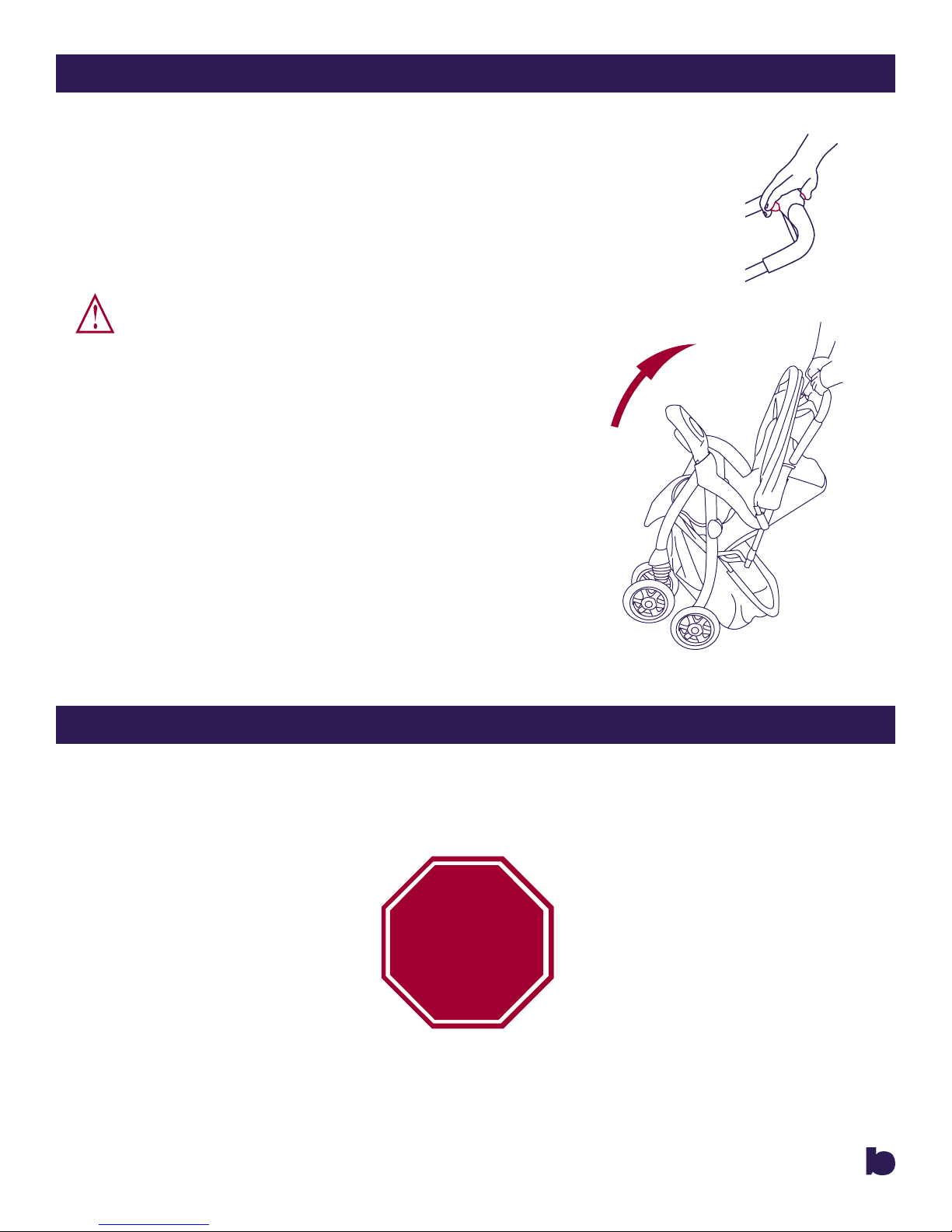

TO UNFOLD STROLLER

* To unfold the stroller slide the red fold lock with your thumb while

squeezing the large red fold button in the center of the handle and push

down on the handle.

Figure 29.

Figure 30.

WARNING: Failure to

follow these folding instructions

could result in serious injury or

death.

CLEANING SEAT PAD

* To clean the seat pad. use warm water, soap and a sponge, and let air

dry.

IF YOU EXPERIENCE ANY DIFFICULTY IN USING THIS PRODUCT,

PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT (800) 328-7363

BETWEEN THE HOURS OF 8:00AM AND 4:30PM PACIFIC COAST TIME FOR ASSISTANCE.

STOP

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Baby Trend Poussette

Baby Trend

Baby Trend JG64 Manuel utilisateur

Baby Trend

Baby Trend TJ93B Manuel utilisateur

Baby Trend

Baby Trend TS88 E Series Manuel utilisateur

Baby Trend

Baby Trend TS88 Manuel utilisateur

Baby Trend

Baby Trend Go Lite Propel 35 TJ16 Manuel utilisateur

Baby Trend

Baby Trend JG35A Manuel utilisateur

Baby Trend

Baby Trend NexGen TS23 N Series Manuel utilisateur

Baby Trend

Baby Trend TS44 C Series Manuel utilisateur

Baby Trend

Baby Trend Sit-N-Stand ss80 Manuel utilisateur

Baby Trend

Baby Trend TJ83 Manuel utilisateur

Baby Trend

Baby Trend Expedition Double Manuel utilisateur

Baby Trend

Baby Trend Navigator DJ86 B Series Manuel utilisateur

Baby Trend

Baby Trend 7311 LX Manuel utilisateur

Baby Trend

Baby Trend Expedition 2-in-1 Stroller Wagon PLUS WG01 A... Manuel utilisateur

Baby Trend

Baby Trend Snap-N-GoDouble Manuel utilisateur

Baby Trend

Baby Trend Trendlite 1204 Manuel utilisateur

Baby Trend

Baby Trend MUV Tango Pro Travel TS04 M Series Manuel utilisateur

Baby Trend

Baby Trend Sit N' Stand Shopper Manuel utilisateur

Baby Trend

Baby Trend Xcel EC77 A Series Manuel utilisateur

Baby Trend

Baby Trend BT03 A Series Manuel utilisateur

Baby Trend

Baby Trend Tour WG01D22B Manuel utilisateur

Baby Trend

Baby Trend ST43 Manuel utilisateur

Baby Trend

Baby Trend JG95 C Series Manuel utilisateur

Baby Trend

Baby Trend EZ Ride TS40 A Series Manuel utilisateur

Manuels Poussette populaires d'autres marques

Hauck

Hauck Priya Trioset Manuel utilisateur

CHILDHOME

CHILDHOME CWQDN Manuel utilisateur

Dreamer Design

Dreamer Design Rebound GST Manuel utilisateur

Britax

Britax STEELCRAFT AGILE Manuel utilisateur

Graco

Graco 7427 Manuel utilisateur

Comfort

Comfort COMPASS Manuel utilisateur

OBaby

OBaby Aura Manuel utilisateur

Tutek

Tutek Tirso Manuel utilisateur

Babify

Babify Dual Plus Manuel utilisateur

Graco

Graco Stroller Manuel utilisateur

Special Tomato

Special Tomato Jogger Manuel utilisateur

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuel utilisateur

Otto Bock

Otto Bock Kimba neo Manuel utilisateur

Milly Mally

Milly Mally ROYAL Guide de démarrage rapide

Hauck

Hauck DUETT 3 PRAM Manuel utilisateur

BOB

BOB DUALLIE Manuel utilisateur

Nuna

Nuna Pepp Manuel utilisateur

Britax

Britax B2 Manuel utilisateur
