B-Tech System 2 BT7551 Mode d’emploi

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

CONTENTS

INSTALLATION TOOLS REQUIRED

FEATURES

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions........................................................................................................................5

Product Dimensions................... ........................................................................................................7

B-Tech Contact Details.......................................................................................................................8

• Fits 75 x 75mm and 100 x 100mm VESA mounting patterns

• Maximum load: 23kg (51lbs)

• Tilt: +/-10°

• Swivel: 360°

• Screen levelling: 360° Rotation

• Cable management

• Keyholes mounting for easy hook-on installation

• Must be used with B-Tech 50mm (2") extension poles

(extension poles sold separately).

• All mounting hardware and fixings included

DrillPencil

BT7551

SINGLE FLAT SCREEN MOUNT

FOR 50mm (2”) POLES

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE

Drill bit

Flathead & crosshead

screwdriver

10º

SCREEN

VESA

100

23kg

(51lbs)

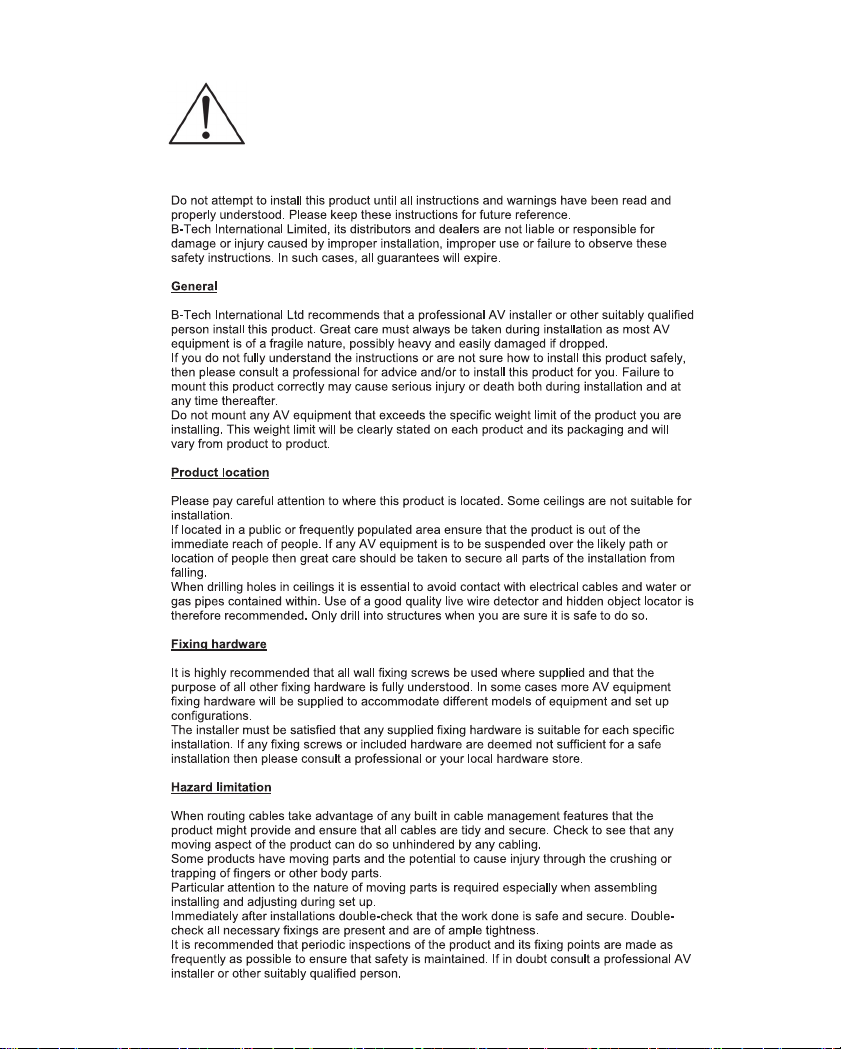

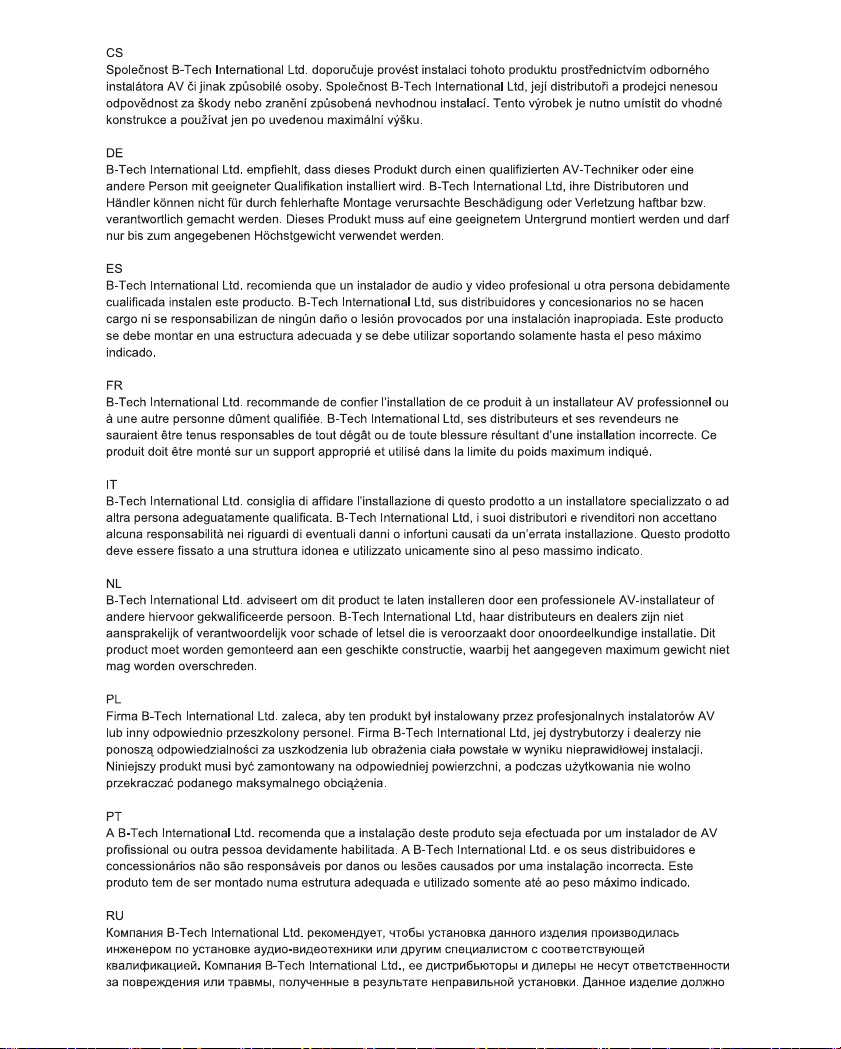

INSTALLATION SAFETY INSTRUCTIONS

CAUTION:Thismount is intended for

use only with the maximum weights indicated.

Use with flat screen heavier than the maximum

indicated may result in instability causing possible injury.

BT7551

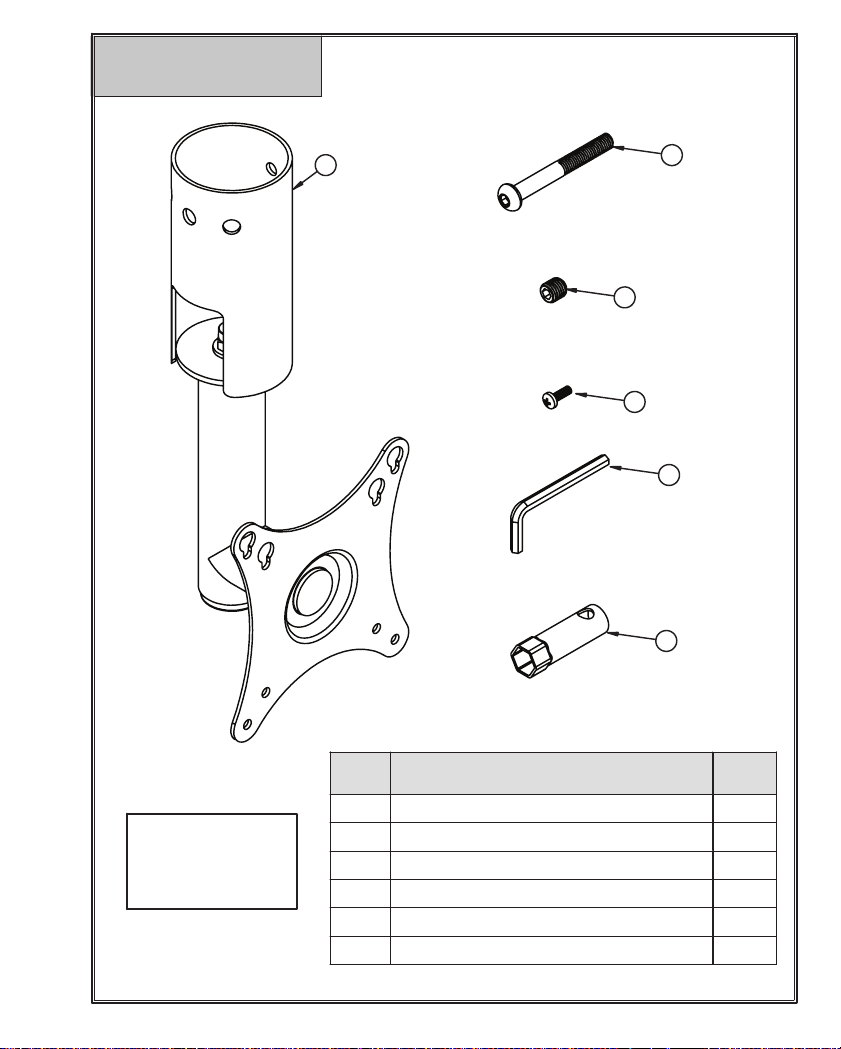

PARTS LIST

Suitable for loads

up to

23kg (51lbs)

PLEASE KEEP THIS FOR FUTURE REFERENCE

REF PART NAME QTY

1 FLAT SCREEN MOUNT 1

M8 x 60mm SCREW

3 M10 x 10mm GRUB SCREW

M4 x 12mm SCREW

5mm ALLEN KEY (FOR PARTS 2 & 3)

S13mm SOCKET WRENCH

INSTALLATION INSTRUCTIONS

Attach the flat screen mount (Part 1) onto a BT7850 - ø50mm extension pole (not supplied).

Fit the M8 x 60mm screw (Part 2) and M10 x 10mm grub screws (Part 3) using the provided

5mm Allen key (Part 5).

BT7850

Extension

Pole

(not supplied)

EXAMPLE INSTALLATIONS

BT7822 Ceiling Bracket

(not supplied)

BT7850 Extension Pole

(not supplied)

BT7551 Flat Screen Mount

(supplied)

CEILING

DESKTOP

BT7822 Bracket

(not supplied)

BT7551 Flat Screen Mount

(supplied)

BT7850 Extension Pole

(not supplied)

Rotation

360º

Rotation

360º

Tilt

+10 / -10º

Tension

Adjustment

Mount the screen using the keyole fixings (Suitable for screens with VESA 75 x 75mm or

100 x 100mm fixings).

Insert halfway 2pcs M4 x 12mm screws (Part 4) into the upper

VESA fixings on rear of screen with 6mm overhanging.

Mount screen onto VESA plate (Part 1). This procedure may require 2 persons.

Attach the remaining 2pcs M4 x 12mm screws

into the lower VESA fixings holes of the screen

and then tighten all screws, securing screen to

mount.

If required, position the angle of the

screen

by adjusting the mount

tension

using the supplied S13mm

socket wrench (Part 6) to adjust

resistance.

Clockwise to increase tension

Counter-clockwise to decrease

tension.

VESA PLATE

TIGHTEN

6mm

3 4

BT7551

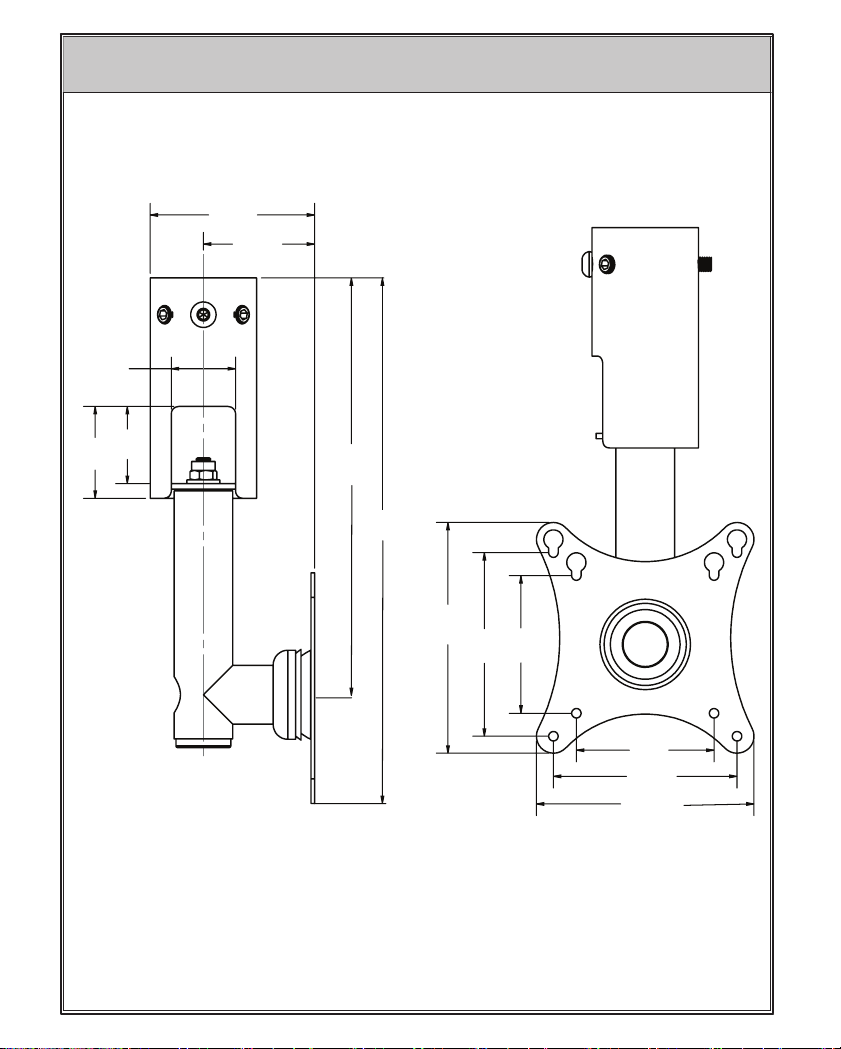

PRODUCT DIMENSIONS

100mm

(3.94”)

118.5mm

(4.67”)

75mm

(2.95”)

100mm

(3.94”)

75mm

(2.95”)

125.7mm

(4.95”)

227mm

(8.94”)

35mm

(1.38”)

50mm

(1.97”)

42mm

(1.65”)

89.6mm

(3.53”)

60.6mm

(2.39”)

These instructions are intended as a guide only and B-Tech accepts no

liability for the accuracy of the information

286.3mm

(11.27”)

IP-BT7551-V1-PROBX-260713-44 MADE IN CHINA
