B.M.P. ThermicRoll Manuel utilisateur

AFTER INSTALLING PLEASE FORWARD INSTRUCTIONS TO

THE MAINTENANCE DEPARTMENT OR OWNER

JAMISON DOOR COMPANY

H4494002 REV B

JAMISON-B.M.P.

INDUSTRIAL RAPID DOORS

ThermicRoll® Installation

JAMISON DOOR COMPANY

P.O. BOX 70

HAGERSTOWN, MARYLAND 21741

1-800-532-3667 301-733-3100

INTERNET: http://www.jamisondoor.com

E-MAIL: contact@jamisondoor.com

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

Installation Instructions

JAMISON DOOR COMPANY


H4494002 REV B

INSTALLATION INSTRUCTIONS INDEX

INSTALLATION OVERVIEW ......................................................................................4
EQUIPMENT NEEDED...............................................................................................5
COLUMNS PREPARATION........................................................................................6
TRANSMISSION SHAFT ASSEMBLY........................................................................8
LIFTING BAR AND SPACER BAR ASSEMBLY .......................................................10
MECHANICAL ASSEMBLY ......................................................................................11
PANEL ASSEMBLY..................................................................................................13
COUNTERWEIGHT BELT ASSEMBLY....................................................................16
CABLE CONNECTIONS...........................................................................................18
MOTOR ROTATION .................................................................................................19
SET DOOR LIMITS, BRUSHES, AND COVERS......................................................20
CONTROL PANEL OVERVIEW................................................................................21
CONTROL CARD TERMINAL FUNCTIONS.............................................................22
LED FUNCTION........................................................................................................23
SETTING THE OPEN AND CLOSE POSITION........................................................24
PEDESTRIAN OPEN POSITION SETUP.................................................................26
RADIO CONTROL RECEIVER.................................................................................27
PROGRAMMING RADIO CONTROL RECEIVER ....................................................28
PRE-WIRING CONNECTIONS.................................................................................29
DIP SWITCH SETTINGS..........................................................................................30
MANUAL OPERATION.............................................................................................31
MISCELLANEOUS OPERATING INSTRUCTIONS..................................................32
A. Battery Backup................................................................................................32
B. Power Failure with no Battery Backup.............................................................32
C. Motor Brake Air Gap Adjustment.....................................................................33
PERIODIC CHECKS AND MAINTENANCE .............................................................34
A. Ordinary cleaning and inspection ....................................................................34
B. Planned inspections and maintenance............................................................34
TROUBLE SHOOTING.............................................................................................35
ERROR CODES........................................................................................................36
A. LED Display Code Key....................................................................................37



Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

1. INSTALLATION OVERVIEW

•NOTES:

oPlease use this booklet as a step by step installation guide.

oThis book contains instructions for many different door configurations. Some sections may not

be needed.

•CONTENTS OF CRATES AND CARTONS

oUnit could be shipped in one or two crates

oControl panel key and attaching hardware are in the control panel

oThere is one box of miscellaneous hardware which will included hardware and electrical options

•INSPECT FOR DAMAGES AND/OR SHORTAGES IMMEDIATELY

oOpen all shipping containers and inspect for concealed damage and/or shortages. Carefully

repack to prevent further damage or pilferage.

oNote on all copies of the delivery receipt any damages and/or shortages.

oIf shipping damage occurred, report it in writing to the transportation company. Refer to

Jamison's Terms & Conditions Form 166.

•HANDLE ALL PARTS CAREFULLY

oCertain parts such as gaskets, wiring, etc. are vulnerable to damage.

•READ ALL INSTRUCTIONS BEFORE PROCEEDING WITH THE INSTALLATION

oInstructions include basic drawings and schematics. These instructions and any other

documents are included with this shipment.

oRefer to job drawings for special features.

•PLAN AHEAD

oChoose installers who are Millwrights or have equal qualifications.

oHave all tools and materials necessary for installation readily available.

•Before any service, personnel must be properly trained and be qualified to

work on the equipment.

•Working on the electrical equipment requires special training and no one

should work on the electrical equipment without proper certification.

•

Before doing any electrical work be sure the power to the door is turned off,

locked and tagged out.

•Be sure installing personnel fully read and understand the manual prior to

installation.

•Block off the area from traffic and place signs indicating the door is out of

operation and personnel are in the area working

•Unauthorized people must not repair or maintain the door and should not

be in the area during maintenance.

•Do not use any heat sources that could start fires near the door and do not

solder during maintenance.

•Do not use compressed air or any solvents on the door.

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

2. EQUIPMENT NEEDED

Tape Measure

Level

Suitable equipment to lift and access

the parts of the door (ladder, forklift,

man lift, etc.)

Wrenches, SAE and metric

Screwdrivers –small precision

screwdrivers and Phillips #2

Voltmeter

Cordless Drill

Hammer

Tools to install the wall fasteners. Each

install is unique so be sure you have

what you need for your wall.

Grinder

Drill bits

Caulk Gun

Scissors

Pliers

Wire Stripper

Allen Keys (3mm, 5mm)

Clamps

3/8 Concrete Drill Bit + Hammer Drill

Man Lift

Fork Lift

The manufacturer may change this manual at any time without notice.

The pictures in this manual may not fully represent the actual product

and are meant for illustrative purposes to assist installation.

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

3. COLUMNS PREPARATION

•Uncrate the two Column Assemblies.

•Place the two side Column Assemblies parallel to each other. The black track of each column

should be facing each other and place the spiral plates near the doorway opening.

•Spacing between the columns (track to track) is approximately WIC + 100 mm.

•Remove the Front Cover from each column.

**Check the floor for flatness and level**

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

•Locate the Drive Link Connectors in both side columns.

•Remove the three (3) nuts and the Front Connector Plate from each connector (save all items for

Panel Assembly).

•Verify the Drive Link Connectors are 235 mm or 9.25” from the top of the baseplate to bottom of

the connectors. Adjust if needed by moving the chain.

Verify:

235 mm (9.25”) from

top of baseplate to

bottom of connector.

Same dimension on

the Motor side and

the Counterweight

side.

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

4. TRANSMISSION SHAFT ASSEMBLY

•Locate the transmission shaft (long round tube with sprocket welded at each end).

•Locate the two short double link chains and the two master chain links.

•Elevate the transmission shaft to the same level as the sprockets near the top of the columns

and spiral plates.

•Assemble the double link chains onto the sprockets on each end of the transmission shaft and

the corresponding sprockets at each end of the column assemblies.

•Assemble the master chain links into the double link chains.

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

Master Link

Pins

Master Link

Pins

Clip

Intermediate

Plates

End Plate

Intermediate

Plates

Clip

Installation Instructions

JAMISON DOOR COMPANY

H4494002 REV B

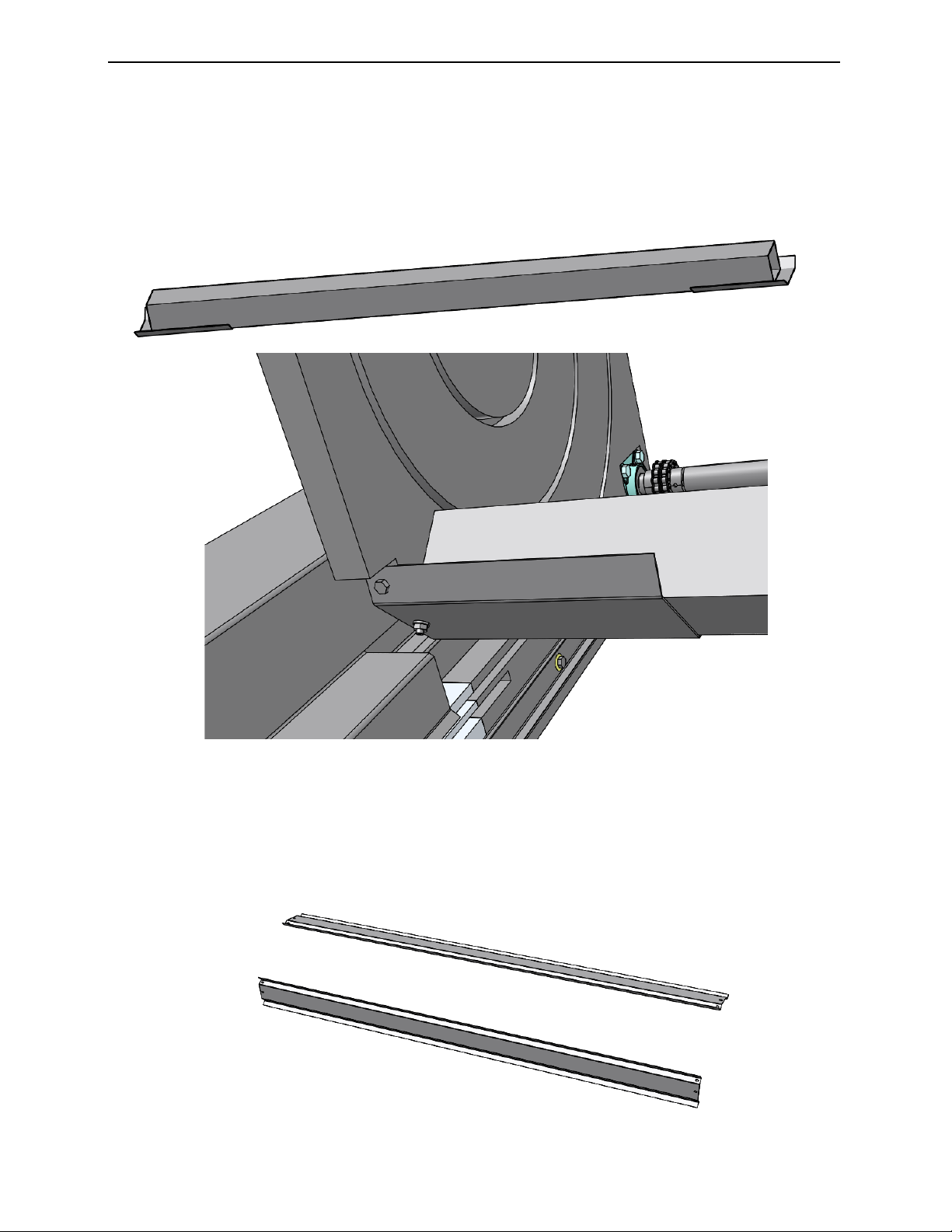

5. LIFTING BAR AND SPACER BAR ASSEMBLY

•Locate the lifting spacer bar (long square tube with welded flange at each ends).

•Remove the preassembled hex nuts from the studs at the bottom on the spiral plates.

•Match and place the color dot on the lifting spacer bar end to the color dot on the spiral plate.

•Assemble lifting spacer bar to the studs at the bottom end of the spiral plates.

•Tighten the hex nuts of the lifting spacer bar and install one lag screw at each flange plate (into

the pre-drilled hole within the spiral plate).

•Locate the two long front spacer bars and assemble them to the spiral plates with lag screws.

Again, match and place the color dot on the spacer bars to the matching dot on the spiral plate.

(The bottom back spacer bar has one less flange compared to the other spacer bars. This

spacer bar will replace the lifting bar after the unit is anchored to the wall and floor.)
