AzureWave AW-NU137 Manuel utilisateur

AW-NU137

IEEE 802.11n/g/b Wireless USB Module

User’s Manual

I. Introduction

i. Overview

. Overview. Overview

. Overview

zurewave

AW-NU137

USB 2.0 Wireless Module is a highly integrated wireless local area

network (WLAN) solution to let users enjoy the digital content through the latest wireless

technology without using extra cables and cords. It provides easy-to-use, high performance, cost

effective and low power solution. Moreover, AW-NU137 enables compatible high-speed wireless

connectivity within home, business and public access wireless networks.

Compliant with the IEEE 802.11n/g/b standard, AW-NU137 uses Direct Sequence Spread Spectrum

(DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM

baseband modulation technologies. When you are usingAW-NU137, a high level of integration and

full implementation of the power management functions specified in the IEEE 802.11 standard can

minimize system power requirements.

The AW-NU137 802.11n/g/b Wireless USB Module provides up to 128-bit level of WEP security to

your wireless data transfers. It is able to run in the operating systems of Windows XP/Vista in either

Infrastructure mode or Ad-Hoc mode. Comparing to previous wireless technology, AW-NU137 got

great improvements on speed and range. AW-NU137 is able to double the data rate up to 150Mbps.

ii. Features

◎ USB 2.0 Wireless Module

◎ Compliant with IEEE 802.11n/g/b standard

◎1 antenna to support 1 (Transmit) x 1 (Receive) technology

◎ High speed wireless connection up to 150Mbps

(For download only, it must connect to the other two Spatial Streams Modulation Access Point)

◎ High performance and low power consumption

◎Enhanced wireless security with 128-bit WEP encryption an WPA

iii. Product Review

When the USB wireless module is transmitting data through connection, LED indicator will blink.

1. Connection Mode

◎Infrastructure Mode

Infrastructure mode needs an access point to establish the network, which can provide wireless accesses

within valid range for users to communicate with others or transmit data with a wired network. There are

several benefits of Infrastructure networking:

√Roaming: a wireless LAN enabled computer can physically move from the operating range of one

access point to the other without losing connection. There is a quick association made between new

access point and wireless device as the computer traverses from the coverage of one access point to

another.

√Range Extension: each wireless LAN enabled computer within the range of access point can

communicate with other wireless LAN enabled computers within the effective range from the access

point.

√Wired to wireless LAN connection: the access point will establish a bridge between wireless LAN

and other wired counterparts.

Infrastructure Mode

◎Ad-hoc Mode

The difference between Ad-hoc mode and Infrastructure mode is that Ad-hoc mode does not need the

access point or router. When you use this mode, your computer will act as a server within the valid range

and connect directly to others in the same LAN workgroup.

Ad-hoc Mode

It is recommended to choose this mode when there is no access point showed on your wireless

network.

II. Installation

i. System Requirements

Before you install AW-NU137, please make sure your system meets the following requirements.

*Desktop or Laptop with USB 1.1/2.0 port

*Minimum of 64MB system memory

*Operating system: XP/Vista

*An optical drive/CD-ROM for utilities and driver installation

ii. Hardware Installation

1. Find an available USB 1.1/2.0 port on your desktop or laptop.

2. Plug AW-NU137Wireless USB Module into USB port of desktop or laptop.

iii. Operation Range

The operating range of AW-NU137 varies from the working environment. However, this device

made improvement on speed and range, which also reduced dead spots in coverage area.

AW-NU137 is two times wider than previous wireless products.

By default, this USB wireless adapter will automatically adjust the data rate. The transmission

speed may vary according to the environment. The closer the wireless stations are the better the

signal and transmission speed they will receive.

iv. Setup: Windows XPOS

If your computer is running a Windows operating system, it will automatically detect the

AW-NU137 after the system boots up and displays a “Found New Hardware Wizard” window.

Please click [Cancel] and proceed with the following steps.

1. Find out the Driver, and launch the Setup Wizard

2. Please wait few seconds for wizard to prepare installation

3. Please select click [Install] to proceed

4. The Wizard is running installation

5. Please wait few seconds for Wizard to setup

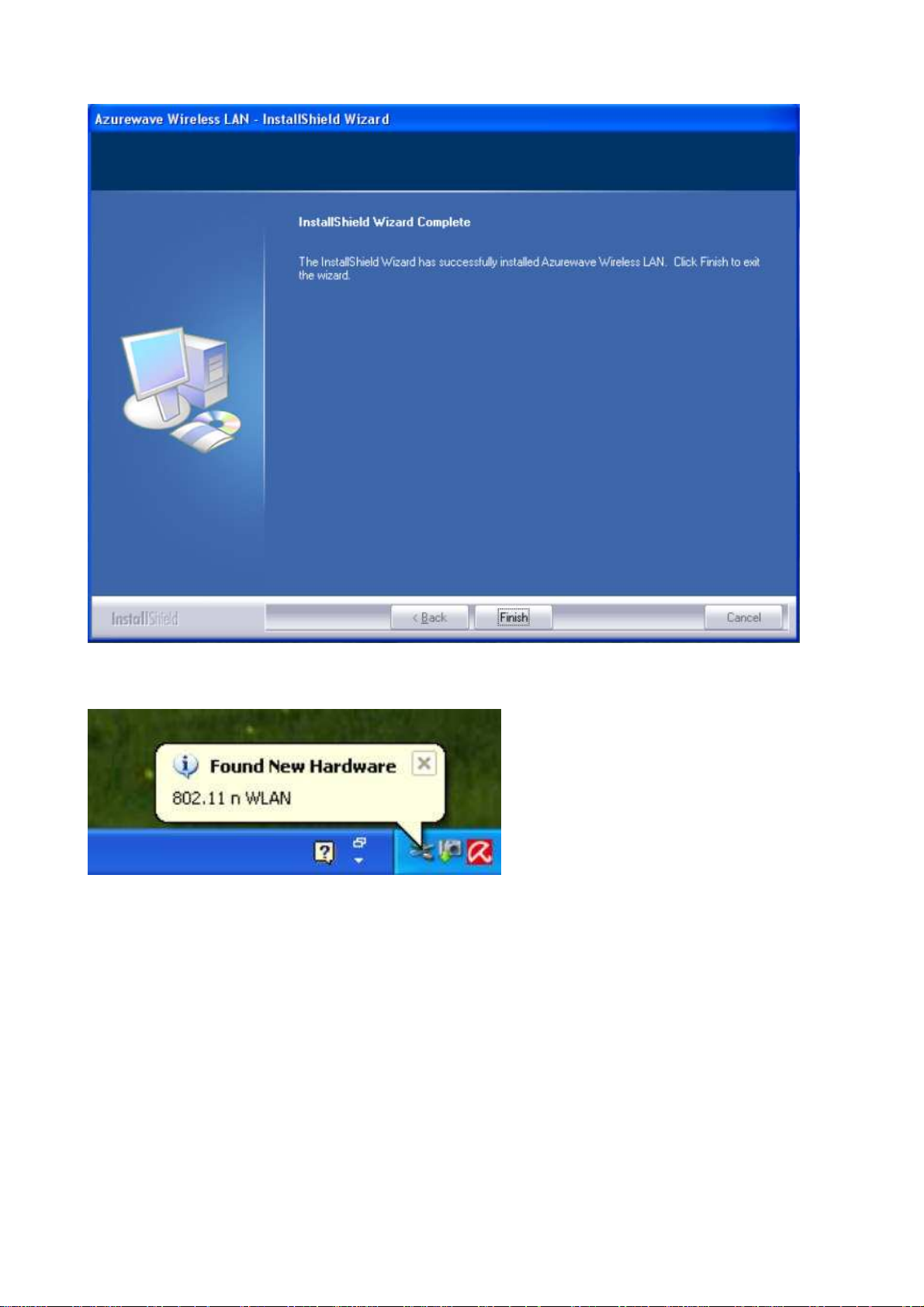

6. When it is completed, please click [Finish]

9. When the process is finished, the system will show a message of “Found New Hardware”

v. Setup: Windows Vista OS

Please follow the steps to complete installation.

1. Launch the setup driver

2. When you see the permission dialogue box, please click [Continue]
