Aztech MWR647 Instructions d'utilisation
Aztech MWR647
4G Mi-Fi with Built-in PowerBank
Easy Start Guide
PLEASE RETAIN THIS USER MANUAL FOR FUTURE USE.
CONTENTS
Device Overview
SIM Card Installation
Usage Scenarios
3G/4G Wireless Internet
Wired Internet Connection
Internet Using 4G SIM
Connecting your Wireless Devices to your
MWR647’s Wi-Fi
Accessing the Web User Interface
Configuring the the Wireless Settings
Internet Using Wire Mode
1.
2.
3.
»
»
4.
5.
6.
7.
8.
Charging Essentials
Charging your Mobile Phones Using the
MWR647
Charging your MWR647
Frequently Asked Questions (FAQs)
9.
»
»
9.
3
1 Device Overview
Name Status Description
Sim Card Slot A Slot for Standard Sized SIM Card
Power Switch ON Use this mode when using 3G/4G broadband wireless.
C When charging a smartphone, use the C mode to begin Charging.
OFF Turns OFF the Mi-Fi Router.
Wi-Fi Indicator Blinking The Mi-Fi router is actively transmitting and receiving data.
System Indicator Blue 3G / Wired Connection
Red 4G Connection
SIM Card Slot
Power Switch
Wi-Fi Indicator
System Indicator
Name Status Description
Battery Indicator
(Note: Long Press the T Key
and the power indicator will
light up)
One Light up 20% Battery level
Two Lights up 40% Battery level
Three Lights up 80% Battery level
Four Lights up Full Power

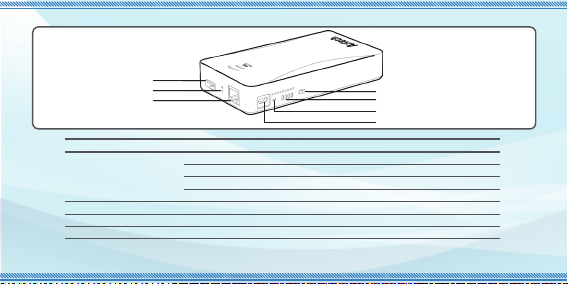

External Charging Port Used for charging your mobile phones or tablets.
Reset Hole Press for 8 seconds to restore the device to its factory defaults
WAN/LAN Can be connected with a computer through an Ethernet cable for network access.
Micro-USB Charging Port Used for charging the Mi-Fi router (5V 1A Input)
Battery Indicator
Power Indicator
Charging Indicator
Micro-USB Charging Port
External Charging Port
Reset Hole
WAN/LAN
5
2 SIM Card Installation
Prepare a STANDARD SIZED SIM Card.
NOTE: The MWR647 only accepts
Standard sized SIM Cards. You may use
a SIM Card adapter if your SIM card is
Micro or Nano in size.
1.
A. To install the SIM Card Position the SIM card to the SIM Card
slot, then gently insert it to the SIM card
slot until you here a locking sound.
2.
Gently push the SIM card. The SIM card
will slightly eject itself, allowing you to
pull it out completely.
B. To remove the SIM card
3 Usage Scenarios
The MWR647 supports 3G/4G wireless
internet.
After inserting a SIM card, it will
automatically convert the 3G/4G signal to
Wi-Fi signals, giving your wireless devices
internet access, anytime and anywhere.
Connecting an Ethernet device (e.g.
computer, laptop) to your MWR647’s
Ethernet port also enables your device to
have internet connection.
A. 3G/4G Wireless Internet
Desktop/PC Tablets
Smartphones
Laptops
3G/4G Base
Station
MWR647
7
A. 3G/4G Wireless Internet
The MWR647 can also act as a router by
simply connecting it to your ADSL modem
through an Ethernet cable.
NOTE: To use this mode, you first have to
change the 3G/4G Connection mode to
Wire Mode. You may see this under Section
8 “Internet Using Wire Mode” of this User
Manual.
B. Wired Internet Connection
Modem
Smartphones
Tablets
Laptops
MWR647
4G Internet access steps:
Insert the SIM card into the SIM card slot correctly.
Turn on the MWR647, and it will connect to 4G automatically.
The System Indicator will flash, indicating that it is currently connecting to a 4G network.
The MWR647 has connected succesfully when the System Indicator stops flashing and
turns to red. You may now connect your wireless devices to the wireless network.
1.
2.
3.
The Main Reasons for 4G Dialing failure:
Improper SIM Card installation.
A wrong SIM card has been inserted. SIM card must match the current version. If a
wrong SIM card has been inserted (e.g. EVDO SIM for HSPA version ) a dialing failure
will occur.
The SIM Card has Zero (0) balance.
Weak 4G signal. Relocate the MWR647 for better network reception.
1.
2.
3.
4.
4 Internet Using a 4G SIM
9
5 Connecting your Wireless Devices to
your MWR647’s Wi-Fi
If you wish to connect wirelessly, ensure that your
wireless device (e.g. laptop, desktop) is wirelessly
enabled or has a wireless adapter.
A. Windows XP Setup Procedures
Click at the located at the bottom
right corner of your screen to open the
Available Wireless Networks list.
Scan for AztechMWR647_xxxx, double
click and correctly enter the wireless
password found at the back panel of your
MWR647.
1.
2.
The Wireless Network Status would
display Connected after a successful
connection.
3.
B. Windows 7 Setup Procedures
Click at the icon located at the
bottom right corner of your screen
to open the Available Wireless
Networks list.
Scan for AztechMWR647_xxxx,
double click and correctly enter the
wireless password found at the back
panel of your MWR647.
The Wireless Network status would
display Connected after a successful
connection.
1.
2.
3.
