APPENDIX-3 LANDING OPERATION PANEL INSTALLATION
EVOS SERIES
SERIAL COMMUNICATION LOP
INSTALLATION MANUAL
Document Version: v1.03
1
ADDITIONAL SECTIONS:
EK04-1-Display CLC/CLT/CLP
EK04-2-Display SYC/SYT/SYP
EK04-3-Display DMCx/DMTx/DMPx
EVOS LOP Content
•EVOS Serial Communication LOP
•Mounting Dowels and Screws
•Installation and Usage Manuals

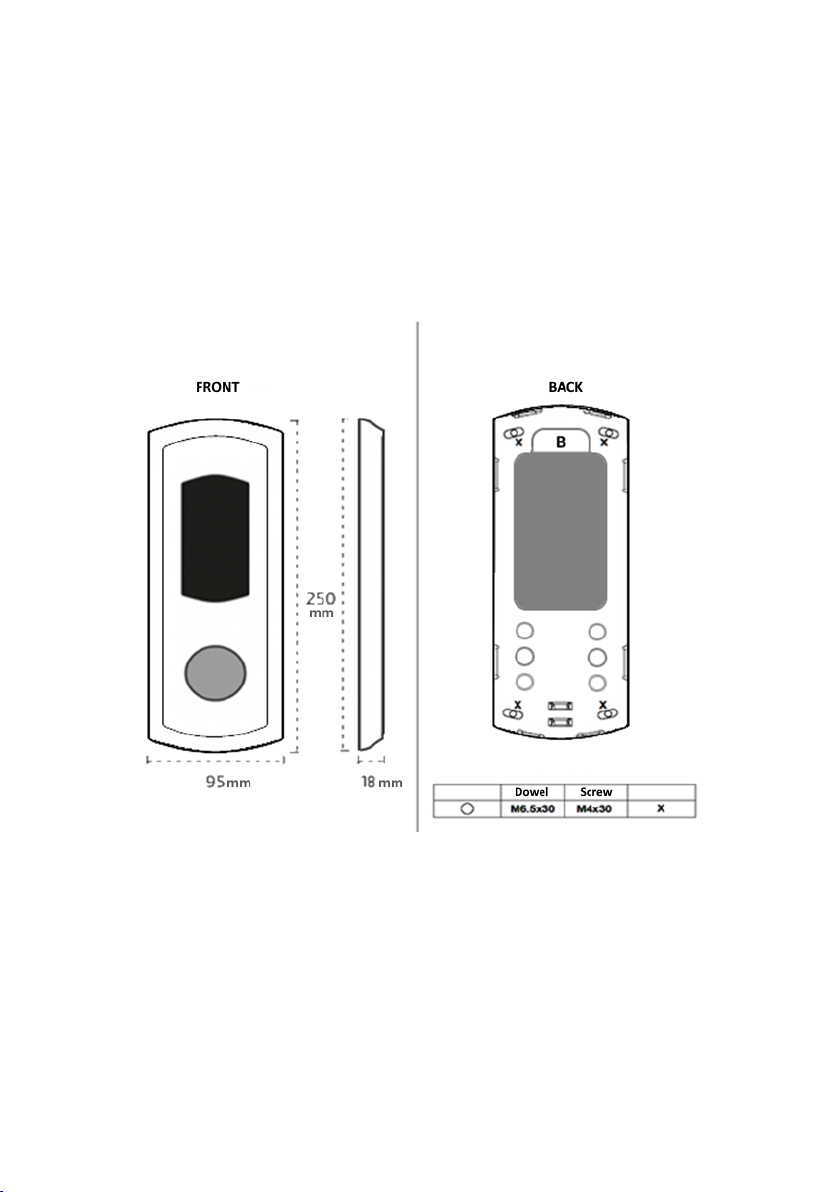

Figure 1
Figure 2
Figure 3
2
1- Mechanical Installation

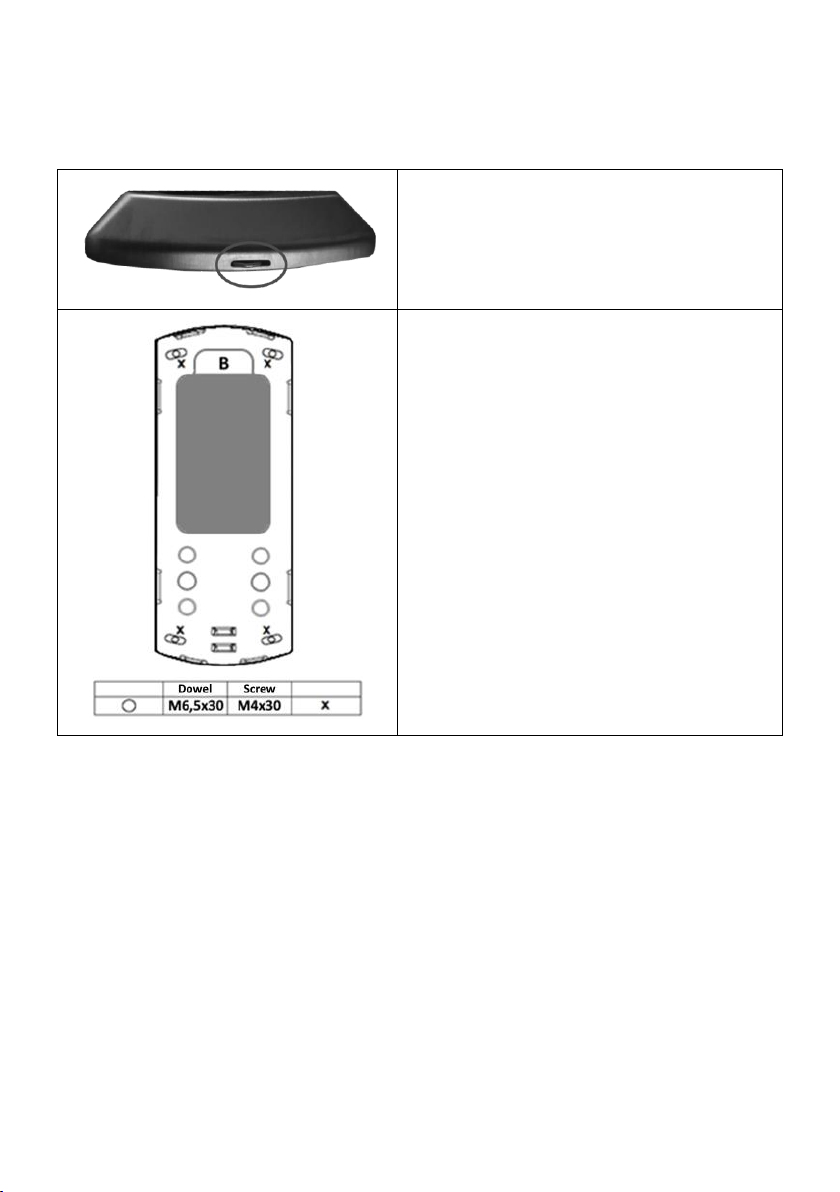

Press the spring mechanism at the bottom
of EVOS LOP with a screwdriver and open
the front cover.
Mark the cable screw holes by placing the
backplate where you want to install.
•Drill holes for M6.5 dowels. (as shown
by “X” in figure).
•Drill a hole in the wall which the
40*28mm rectangular socket coming
from the controller can pass trough
(B).
•Insert 4 dowels into the drilled holes.
(X)
Fix the backplate to the wall using 4 M4*30
screws to complete the mechanical
installation.
3
2- Electrical Connections
2.1 Connect the CANBUS cable terminals of the LOPs to the corresponding socket on the
control panel. (100-1000-CL1-CH1).

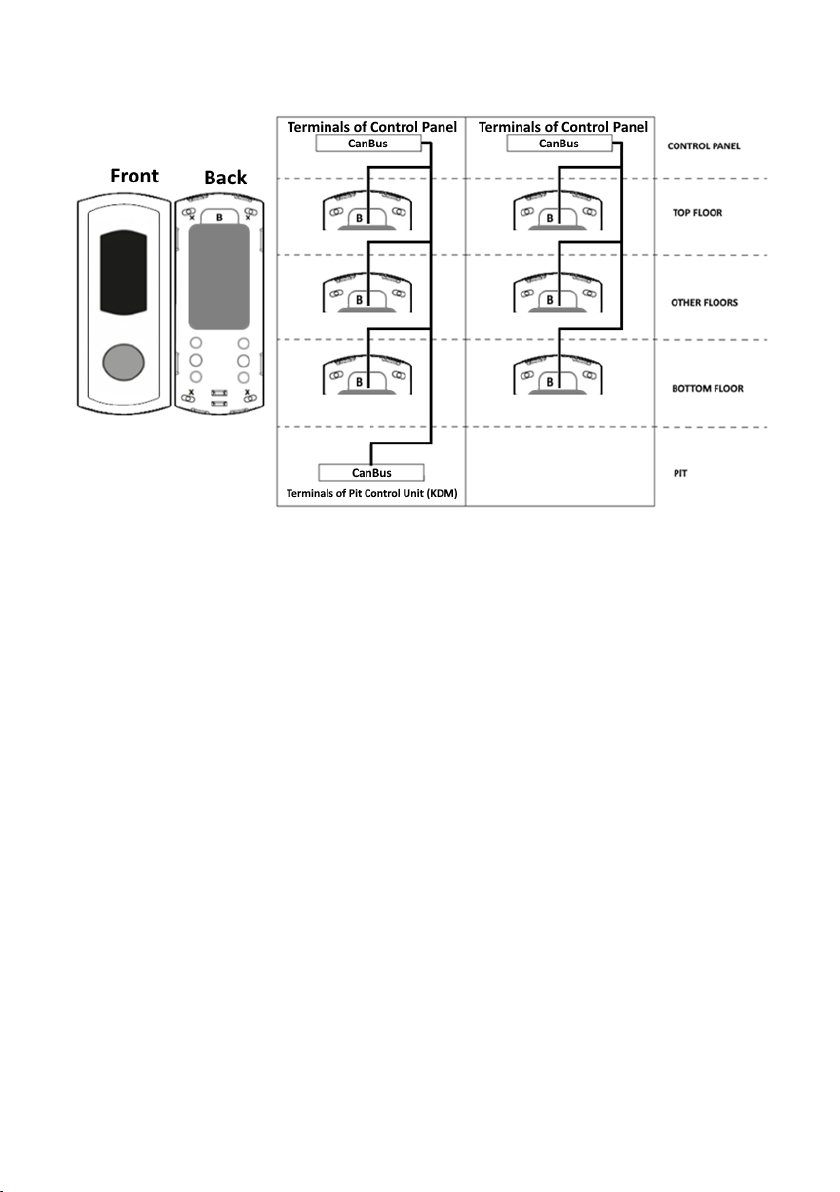

2.2 If your system has a pit control unit with CAN interface as shown in Figure 4, connect
all LOPs to this unit wth CAN-BUS cables with dual white rectangular sockets.
2.3 If there is no electronic pit control card with serial communication, connect the LOP
on the lowest floor as shown in Figure 5 and complete the process.
3- Operation and Setting Procedures
Select the display you have used for display settings from EK04 and follow the
instructions.
After completing the settings, close the top cover of the LOP.
Figure 4
Figure 5
4
4-Caution
4.1 Use only special stainless steel cleaners to clean the panels.
4.2 Do not use any detergent or acids to clean panels.
4.3 Avoid to contact any liquid to the LOP.
4.4 In case of an electrical failure, switched off the LOP and contact with Aybey
Elektronik Technical Service.
