2N Analog Force
®
Additional Switch
Configuration Manual
Version: 1.1
The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
®
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.
2N TELEKOMUNIKACE a.s., www.2n.cz 4/12
1. Product Overview
The purpose of this module is to extend the door 2N Analog Force/Safety
®
communicator with another switch, e.g., for electric door lock. It gives you features
like unlimited time switching or permanent switch during the time of the call or time
limited switching (selectable approx. from 1 to 6 sec.) via external button.
Additional switch contains 3 contacts:
C – Common contact
NC – Normally closed
NO – Normally opened
2N TELEKOMUNIKACE a.s., www.2n.cz 5/12
1.
2.
2. Installation
Caution
Before installing the module, make sure that the current and voltage
limits of the module will not be exceeded in your application (refer to
the Technical Parameters chapter). Never use this module for mains
All wiring has to be done only after proper installation voltage switching!
of the additional switch.
Remove 4 screws from the top side of intercom, then remove the top metal
plate.
Remove keypad.
2N TELEKOMUNIKACE a.s., www.2n.cz 6/12
3.
4.
5.
6.

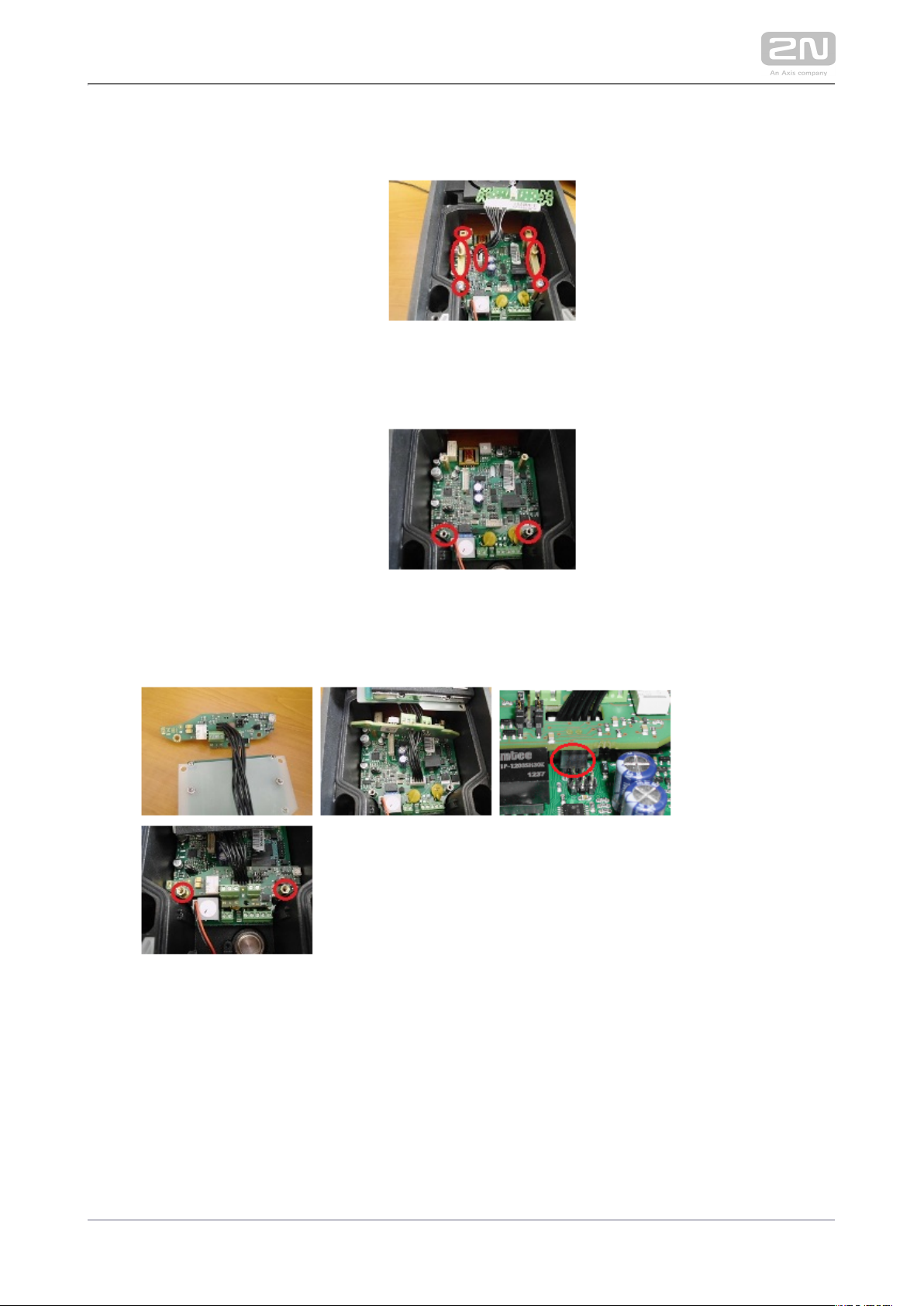

Remove 4 screws holding 2 horizontal pillars, then remove the pillars and button
board.
Replace 2 distance pillars from the lower side of intercom by the 2 longer
distances delivered with departure switch.
Insert departure switch and fix it with the two shorter distance pillars delivered
with the switch.
Make a wire connection to the switch.
2N TELEKOMUNIKACE a.s., www.2n.cz 7/12
7.
8.
Put the horizontal pillars and button board back and fix them with 4 screws.
Put the keypad back. Close the intercom with top metal plate and fix it with 4
screws.
2N TELEKOMUNIKACE a.s., www.2n.cz 8/12
3. Configuration
By using jumpers it is possible to set on what kind of event should departure switch
react by closing or opening its contacts. The departure switch can react to three
different events: dep. switch on/off from the SWITCH 1, dep. switch on/off from the
SWITCH 2 and pick up/hang up the telephone line (means beginning and end of the
call).
The dep. switch contacts are available both normally open (between clips NO and C)
as well as normally closed (between clips C and NC). NC and NO in this case refers to
the contact state. see pic. above.
Example 1 – dep. switch operation by using password for SWITCH 2
Switching on and off is set to SWITCH 2. Dep. switch will close after receiving
password for SWITCH 2 (parameter ) and open after the switching time for 821
SWITCH 2 (parameter ) will elapse. If you set parameter to non-zero value, will 823 824
be also synchronized with SWITCH 1 (explained in the communicator manual).
2N TELEKOMUNIKACE a.s., www.2n.cz 9/12
Example 2 – dep. switch operation for unlimited time
Dep. switch closure is set to SWITCH 1, dep. switch opening to SWITCH 2. The dep.
switch will close when it has received the password for SWITCH 1 and will remain
closed until the communicator has received the password for SWITCH 2 and until the
switching time of SWITCH 2 elapses (parameter , it is recommended to set this 823
parameter as low as possible, which is 1s).
Example 3 – dep. switch closure for the duration of the call
Closure and opening is set to SPEAK. The dep. switch will close when the line is picked
up and open when the line is hung up. For the duration of the call the dep. switch will
be closed.
2N TELEKOMUNIKACE a.s., www.2n.cz 10/12
4. External button switch
External switch functional description
After an external button ( on the pic. above) is pushed (switch OFF/ON), The switch
"departure switch" occurs regardless of . After an external configuration settings
button is released (switch ON/OFF) "departure switch" ends automaticaly after preset
delay time by adjustable rotary trimmer from approx. 1 sec. up to 6 sec. regardless of
. configuration settings NC and NO on the pic. below in this case refers to the door
.state if switch is in OFF state
Both connectors (for external button and door lock) are galvanically isolated from
each other and main electrical circuitry of the main communicator board.
How to connect
Examples on how to connect lock in case of one power supply:
