Axis Q36 Series Manuel utilisateur

AXISQ36DomeCameraSeries

AXISQ3626-VEDomeCamera

AXISQ3628-VEDomeCamera

Repaintinginstructions

AXISQ36DomeCameraSeries

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

axis.com/warranty-implication-when-repainting.

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ36DomeCameraSeries

Repainttheproduct

Preparations

•Ifapplicable,disassemblethedeviceaccordingtotheinstructionsinthisdocument.

•Cleanallpartsthatwillberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskanyopenings(forexampleforscrews,LEDindicators,

ormicrophones)beforeyoupaint.

•Toavoidunwantedreections,masktheinsideoftheweathershieldbeforeyoupaint.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne

sandpaper,andcleanthepartsbeforepainting.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

Thedomecasingismadeofpowdercoatedaluminum.

TheweathershieldismadeofPA+GFRilsanplastic.

AXISQ36DomeCameraSeries

Repainttheproduct

Disassemly

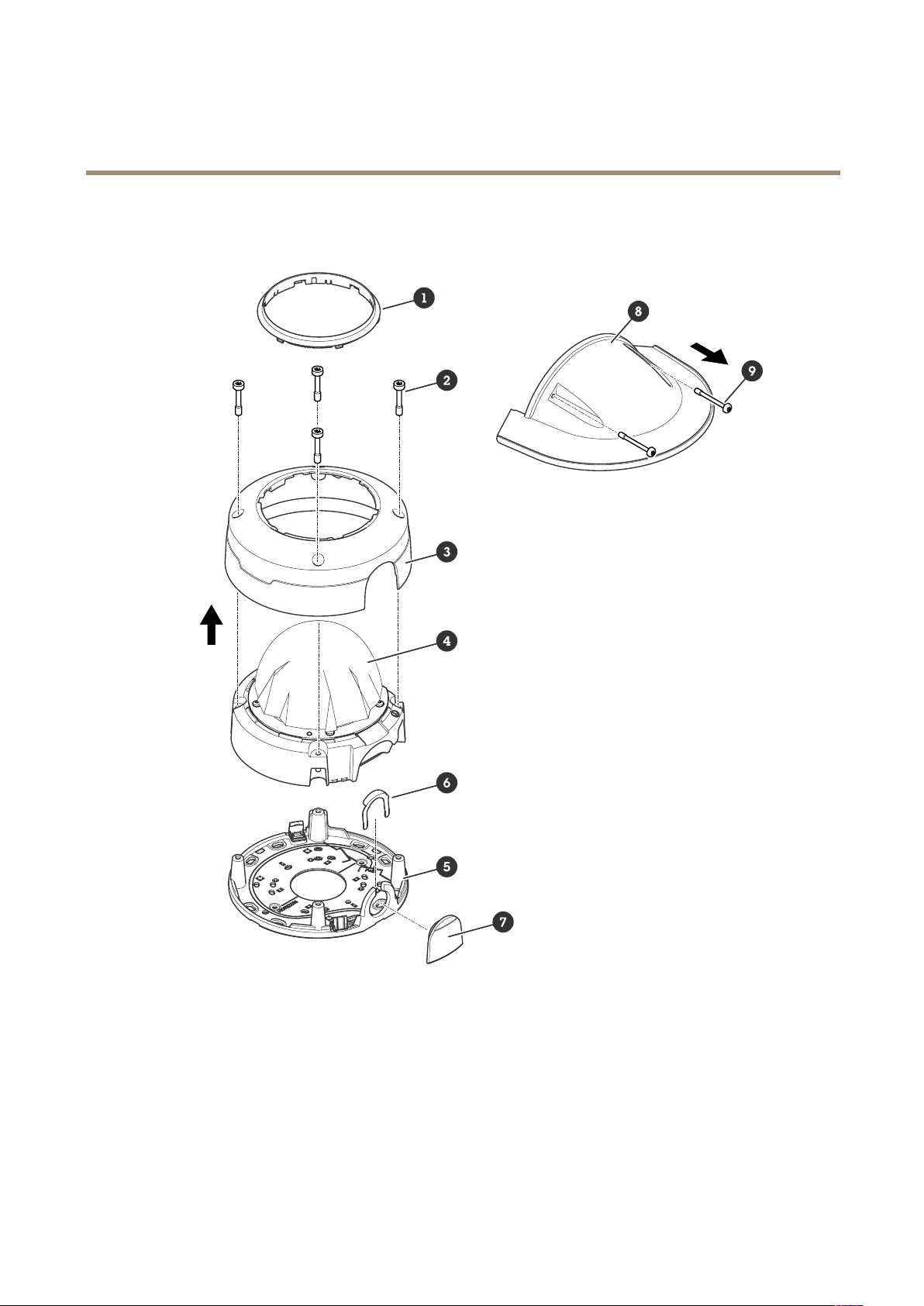

1Anti-reectionring

2Screws(4x,TR20

3Domecasing

4Cameraunit

5Mountingbracket

6Lockingclip

7Sidelid

8Weathershield

9Screws(2x,TR20

1.Removetheweathershield,ifit’salreadyattachedtothedomecasing.

AXISQ36DomeCameraSeries

Repainttheproduct

2.Removethedomecasing.

3.Removethesidelidfromthemountingbracket.

4.Removetheanti-reectionring.Don’tpaintit.

Repainting

1.Makesureallnecessarypreparationsoftheweathershieldanddomecasinghavebeenmade,seePreparationsonpage3.

Important

Avoidpaintbuild-upintheareasmarkedwithredcolor.

2.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.

3.Letthepaintdry.

4.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

5.Whenthepaintisdry,removethemaskingandreassembletheproduct.

Reassemly

1.Reattachthesidelidtothemountingbracket.

AXISQ36DomeCameraSeries

Repainttheproduct

2.Reattachtheanti-reectionring.

3.Reassembletheweathershield,domecasing,andcameraunit,andtightenthescrews(torue1.0Nm,0.7lbft).

RepaintinginstructionsVer.M1.2

AXISQ36DomeCameraSeriesDate:May2023

©AxisCommunicationsAB,2023Partno.T10192843
