AXISQ6000–EPTZNetworkCameraSeries

RepaintingInstructions

AXISQ6000–EPTZNetworkCameraSeries

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

www.axis.com/warranty-implication-when-repainting

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ6000–EPTZNetworkCameraSeries

owtorepainttheproduct

Preparations

•Ifapplicable,disassembletheeuipmentaccordingtotheinstructionsinthisdocument.

•Removegaskets,screws,electricalcomponents,connectorsandplugs,windows,anddomesfromthepartstoberepainted.

•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskopeningsforscrews,LEDindicators,ormicrophonesbefore

painting.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com

Powdercoatedparts-Usingnesandpaper,removetheoriginalpowdercoatingdowntothebasematerialandcleantheparts

beforepainting,oruseaprimer.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

AXISQ6000–EPTZNetworkCameraSeries

owtorepainttheproduct

Disassembly

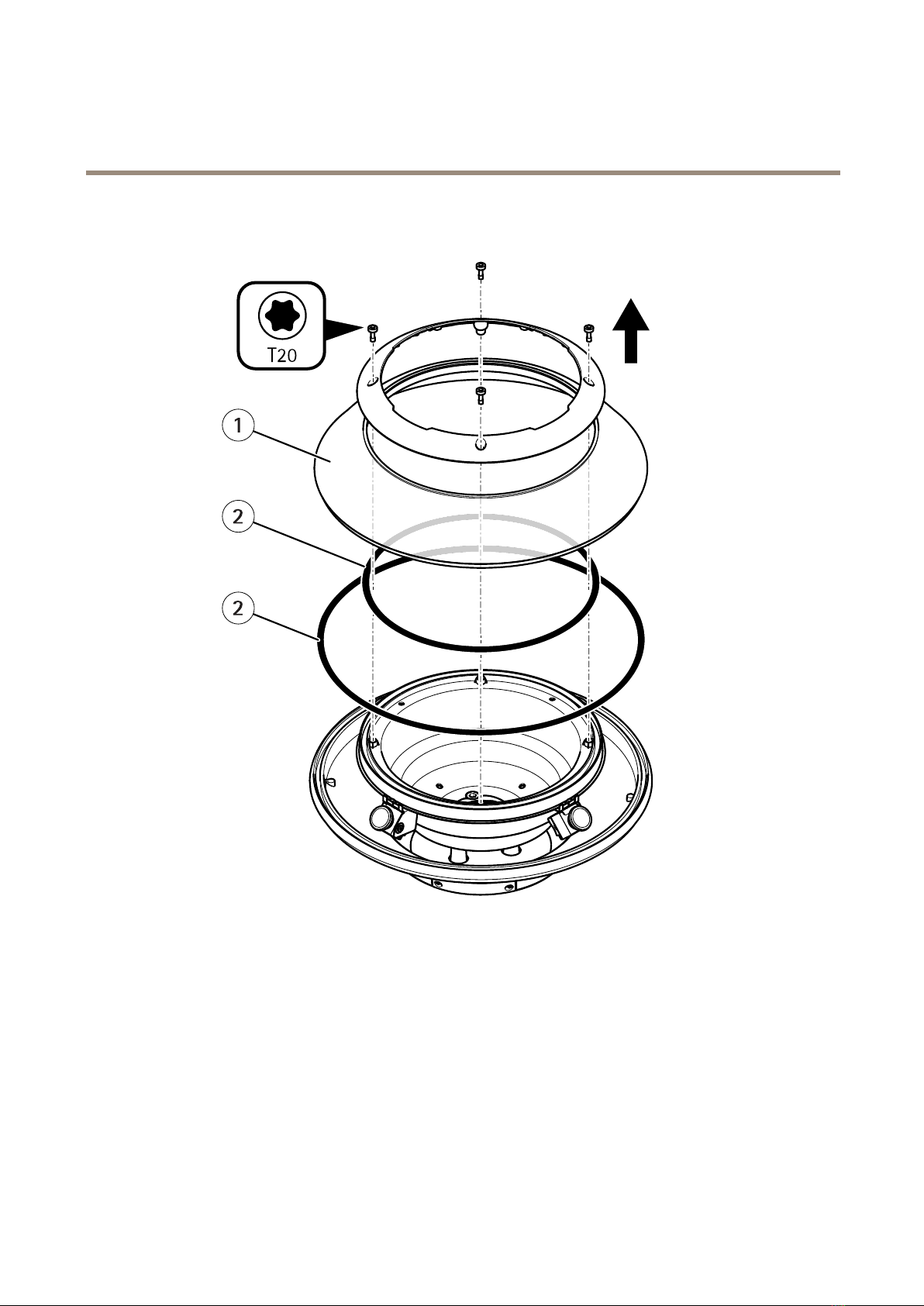

1Domering

2Gasket

1.Loosenthefourscrewsandremovethecoverring.

2.Removethefourscrewsfromthecoverring.

3.Slowlylifttheinneredgeofthedomering.Becarefulnottoscratchordentthedomering.

4.Carefullylifttheinneredgeallwayroundtoreleasethedomering.

5.Removethetwogasketsfromthedomering.

AXISQ6000–EPTZNetworkCameraSeries

owtorepainttheproduct

Repainting

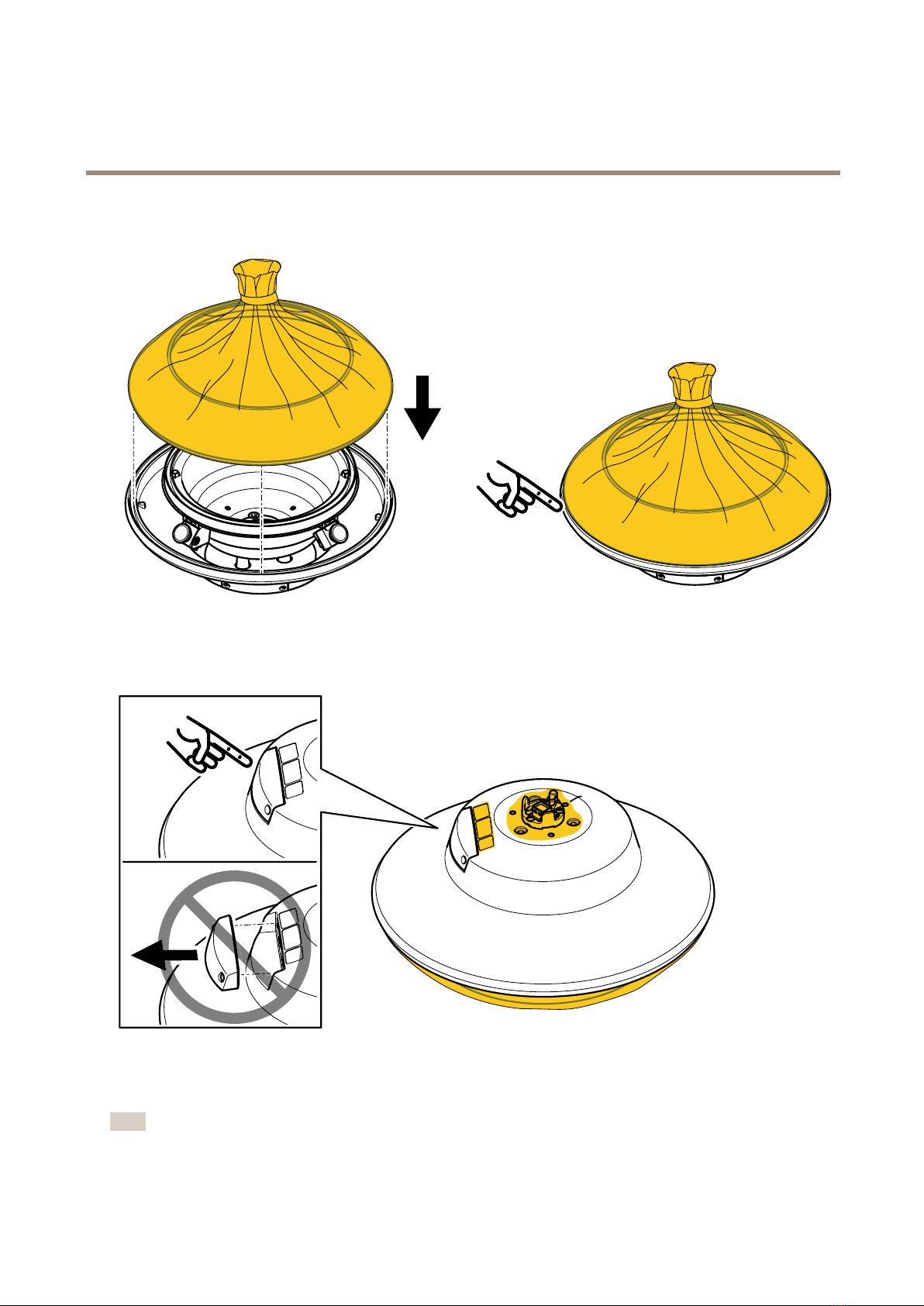

1.Maskthedomeringincludingtheedge.

2.Placethedomeringonthecameraunit.Makesuretheedgeofthetopcovercanbepainted.

3.Maskthethreelabels,theholderhookandallholes.

4.Makesureallnecessarypreparationsofthecameraunitandthecoverringhavebeenmade.SeePreparationsonpage3.

Note

TheSDlidshouldnotberemovedduringrepainting,orelsetheSDlidgasketwillbedamaged.

AXISQ6000–EPTZNetworkCameraSeries

owtorepainttheproduct

5.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.

6.Letthepaintdry.

7.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

8.Whenthepaintisdry,removethemasking.

Reassembly

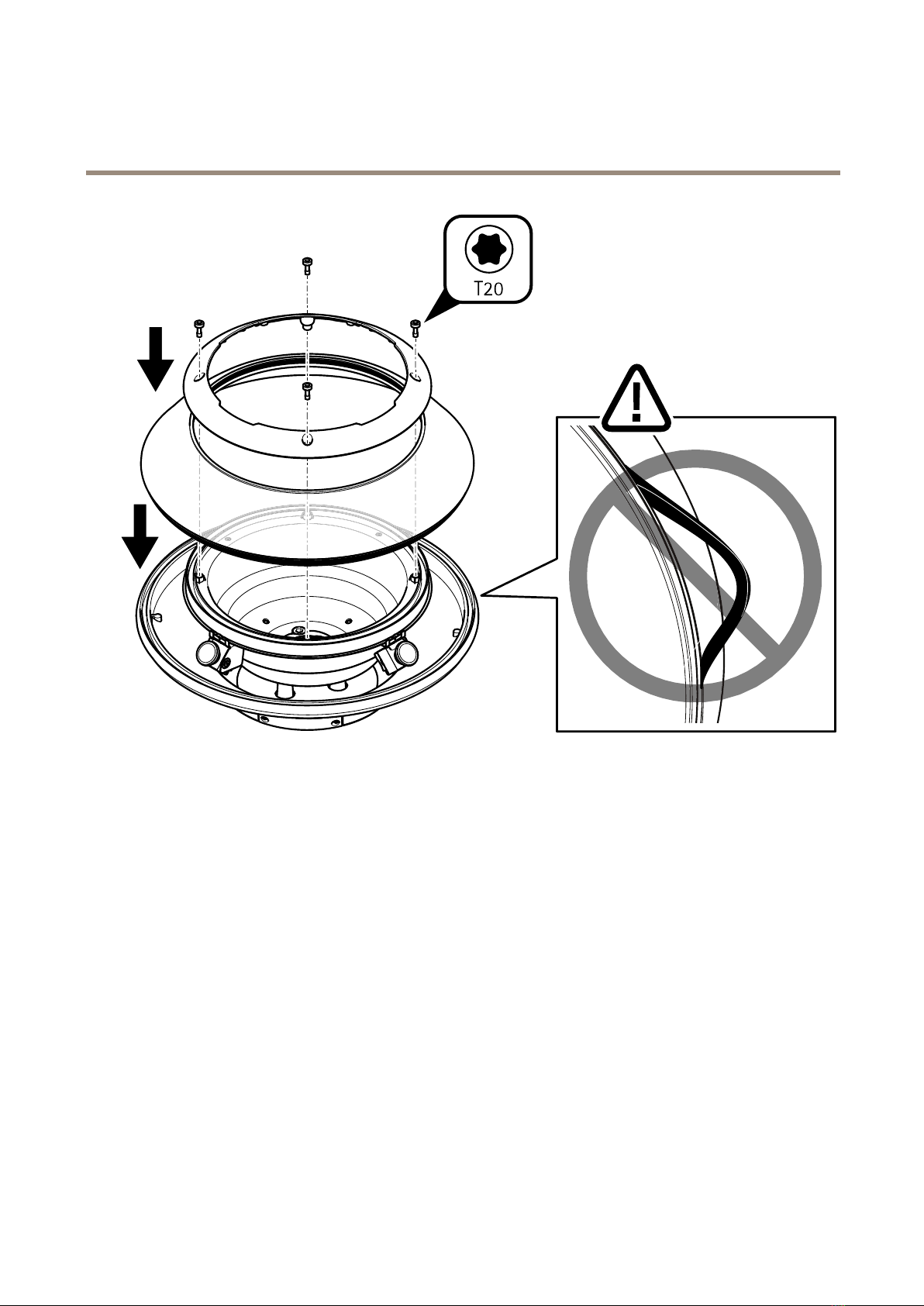

1.Reassemblethetwodomeringgaskets.

AXISQ6000–EPTZNetworkCameraSeries

owtorepainttheproduct

2.Reassemblethedomering.

3.Reassemblethecoverring(4screws,1Nm).

RepaintingInstructionsVer.M1.2

AXISQ6000–EPTZNetworkCameraSeriesDate:October2018

©AxisCommunicationsAB,2018PartNo.T10131806
