HOW TO.

Configure AXIS P3807-PVE with

AXIS Camera Station

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

Contents

Introduction 3

About dewarped and client dewarp capture modes 4

Using the 7.5MP (16:9) forensic WDR (dewarped) @ 12.5/15 fps capture mode 4

How to configure AXIS P3807-PVE 4

How to add AXIS P3807-PVE to AXIS Camera Station 5

How to configure streaming profiles in AXIS Camera Station 7

Recommended setup 8

Using the 8.3MP (9:4) forensic WDR (client dewarp) @ 25/30 fps capture mode 9

How to configure AXIS P3807-PVE 9

How to add AXIS P3807-PVE and configure in AXIS Camera Station 9

Recommended setup 9

Considerations and limitations 10

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

Introduction

This document will focus on what to consider when using th e AXIS P3807-PVE

Network Camera with the AXIS Camera Station, as well as, how to configure the

camera and the VMS to obtain the best optimal performance for the two supported

capture modes:

•7.5MP (16:9) forensic WDR (dewarped) @ 12.5/15 fps

•8.3MP (9:4) forensic WDR (client dewarp) @ 25/30 fps

Please note that Axis doesn’t take any responsibility for how this configuration may affect your

system. If the modification fails or if you get other unexpected results, you may have to restore the

settings to default.

Prerequisites

AXIS P3807-PVE

AXIS Camera Station 5.20 or later

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

About dewarped and client dewarp capture modes

To get one panoramic image from the AXIS P3807-PVE multi-sensor camera, the images from

the four individual sensors are stitched.

To get the final image, the image needs to be dewarped. The dewarping is done either directly in

the camera or on the client.

AXIS P3807-PVE support two different capture modes:

•7.5MP (16:9) forensic WDR (dewarped) @ 12.5/15 fps

•8.3MP (9:4) forensic WDR (client dewarp) @ 25/30 fps

With the 7.5MP capture mode, the image is dewarped directly in the camera.

With the 8.3MP capture mode, the image is dewarped in the client.

Using the 7.5MP (16:9) forensic WDR (dewarped) @ 12.5/15 fps

capture mode

How to configure AXIS P3807-PVE

1. In the camera web interface, go to Settings -> Image -> Capture mode

2. Select 7.5MP (16:9) forensic WDR (dewarped) @ 12.5/15 fps capture mode and click

Done

NOTE

The camera is by default set to 7.5MP (16:9)

forensic WDR (dewarped) @ 12.5/15 fps capture

mode. If the camera is configured for the first time

or if a factory default has been made, follow the

startup wizard and skip the steps below.

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

How to add AXIS P3807-PVE to AXIS Camera Station

1. Log in to AXIS Camera Station client.

2. Go to Configuration -> Add devices

3. Enter the name of the camera in the Type to search field or click Find by IP and enter

the IP address of the camera.

4. Click OK

5. Select the camera from the list and click Add

6. Select Quick configuration and click Next

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

7. Select the Retention time of the recordings, define the Recording storage and the

Recording method.

8. Click Install.

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

How to configure streaming profiles in AXIS Camera Station

To get the best performance from a camera, it is recommended to reuse the same streaming

profiles. Since AXIS P3807-PVE doesn´t use standard resolutions, it’s especially important to

follow this recommendation.

AXIS Camera Station uses three predefined streaming profiles: High, Medium and Low, which

are automatically set for a device depending on the split view and the screen resolution used.

To control the profiles used by AXIS Camera Station and the streams pulled from the camera,

do these steps:

1. Go to and define the split view in which the AXIS P3807-PVE should be

used for in the live viewing.

2. Right-click on the AXIS P3807-PVE live view and select the desired streaming profile.

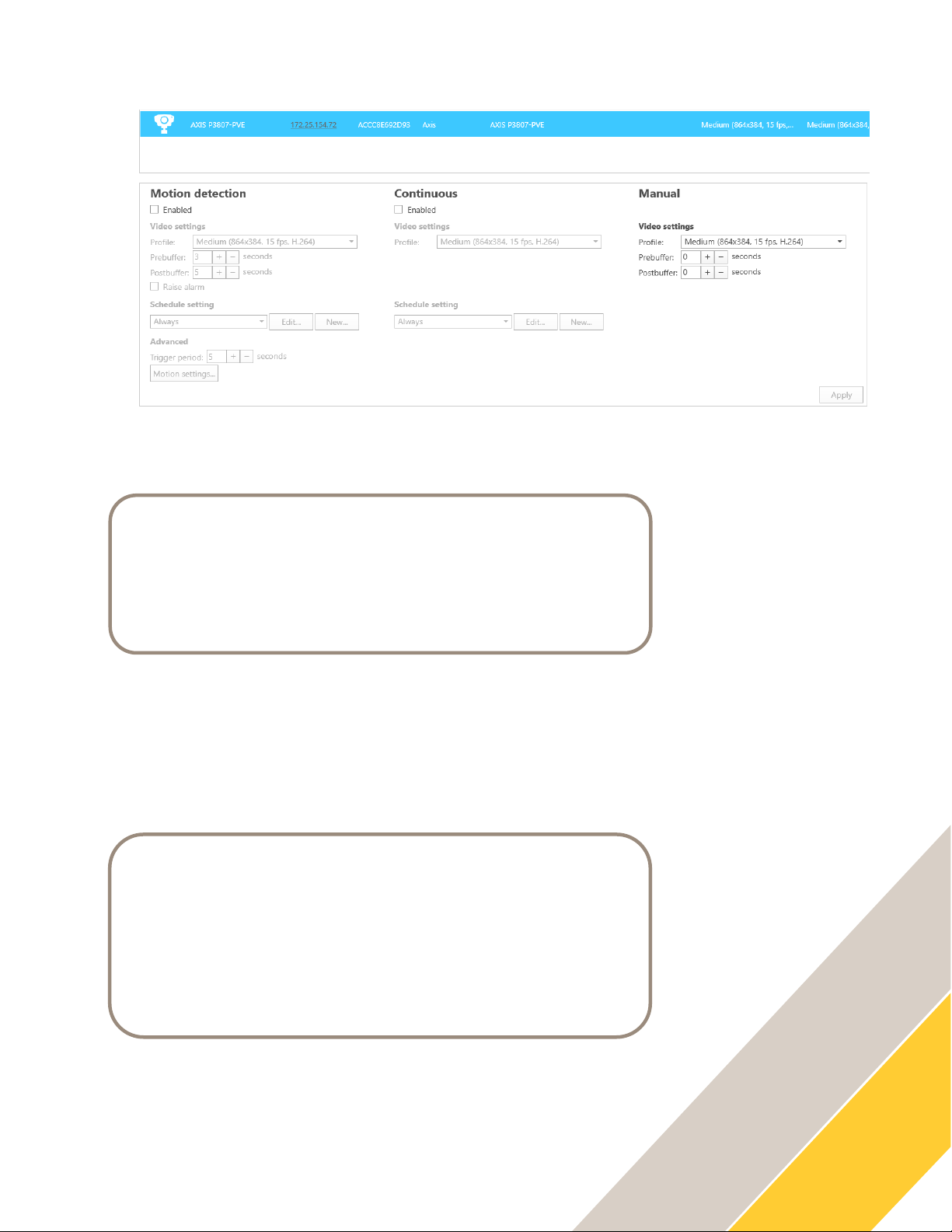

3. Go to Configuration -> Recording and event -> Recording method

4. Select the AXIS P3807-PVE from the list and define the same streaming profile

for the recording option as is used in the live view.

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

When the steps above are performed, make sure that all the clients accessing the camera uses

the same streaming profile in the live view.

Recommended setup

A common and recommended setup when using the 7.5MP capture mode is to pull one unique

stream of the highest resolution (3648x2052) used for continuous recording and one unique

stream of 1080p or 720p used for live view.

NOTE

The configuration of the streaming profile assure

that the AXIS Camera Station reuses the same

streams for the different clients, recording methods

and live views. With this setup the camera will keep

its performance.

NOTE

•Any extra unique streams or ACAP might have an

impact on the camera performance.

•To ensure that only the desired streams are used,

configure the streaming profile from Axis Camera

Station accordingly.

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

Using the 8.3MP (9:4) forensic WDR (client dewarp) @ 25/30 fps

capture mode

How to configure AXIS P3807-PVE

1. In the camera web interface, go to Settings -> Image -> Capture mode

2. Select the 8.3MP (9:4) forensic WDR (client dewarp) @ 25/30 fps capture mode and

click Done

How to add AXIS P3807-PVE and configure in AXIS Camera Station

To add and configure the camera to AXIS Camera Station, follow the same steps and

recommendation as for 7.5MP (16:9) forensic WDR (dewarped) @ 12.5/15 fps capture mode.

Recommended setup

A recommended setup when using the 8.3MP capture mode is to pull one unique stream of the

highest resolution (4320x1920) used for continuous recording and one stream of 2016x896 or

864x348 used for live view.

How To.

Configure AXIS P3807-PVE with AXIS Camera Station

Considerations and limitations

•To get 25/30 fps, turn off the WDR option in the camera web interface and pull one

unique stream only from the camera.

•When using the 8.3MP capture mode the dewarped image is not supported in the AXIS

Camera Station mobile app.

•The streaming profile in AXIS Camera Station is by default set to Automatic. To minimize

the risk of using unnecessary unique streams, set the same parameters for the low and

the medium streaming profiles.

NOTE

•For the 8.3MP capture mode, WDR option has a major

influence on the camera performance. If a high frame

rate is required, turn off the WDR option.

•When the WDR option is turned off, the camera

continues to provide a more limited WDR solution, based

on the dual sensitivity pixels method. For more

information on WDR methods, check out the white paper

Wide dynamic range on axis.com.

•To ensure that only the desired streams are used,

configure the streaming profile from Axis Camera Station

accordingly.
