Axis 233D Manuel utilisateur
ENGLISH FRANCAIS DEUTSCH ESPAÑOL
ITALIANO
AXIS 233D
Network Dome Camera
Installation Guide
AXIS 233D Installation Guide Page 3
ENGLISH
ENGLISH
AXIS 233D
Installation Guide
This installation guide provides instructions for installing the AXIS 233D Network Dome
Camera on your network. For all other aspects of using the product, please see the User’s
Manual, available on the CD included in this package, or from www.axis.com/techsup
Installation steps
1. Check the package contents against the list
below.
2. Install the hardware. See page 4.
3. Assign an IP address. See page 11.
4. Set the password. See page 14.
Package contents
Before you begin:
If the AXIS 233D is to be mounted in a position where it is difficult to
access, it is recommended that you set the IP address and get the camera up
and running before completing the hardware installation.
Item Models/variants/notes
Network dome camera AXIS 233D
Indoor Power Supply with
power cable
Europe
UK
Australia
USA/Japan
Korea
Terminal block connectors 3 (8-pin) connector blocks for connecting external devices to the I/O terminal
connectors
Mounting kit Hard Ceiling Mount for Indoor Use
Drop Ceiling Mount for Indoor Use
CD AXIS Network Video Product CD, including product documentation, installa-
tion tools and other software
Printed Materials AXIS 233D Installation Guide (this document)
Axis Warranty Document
Important!
This product must be used in
compliance with local laws
and regulations.
Page 4 AXIS 233D Installation Guide
Install the Hardware

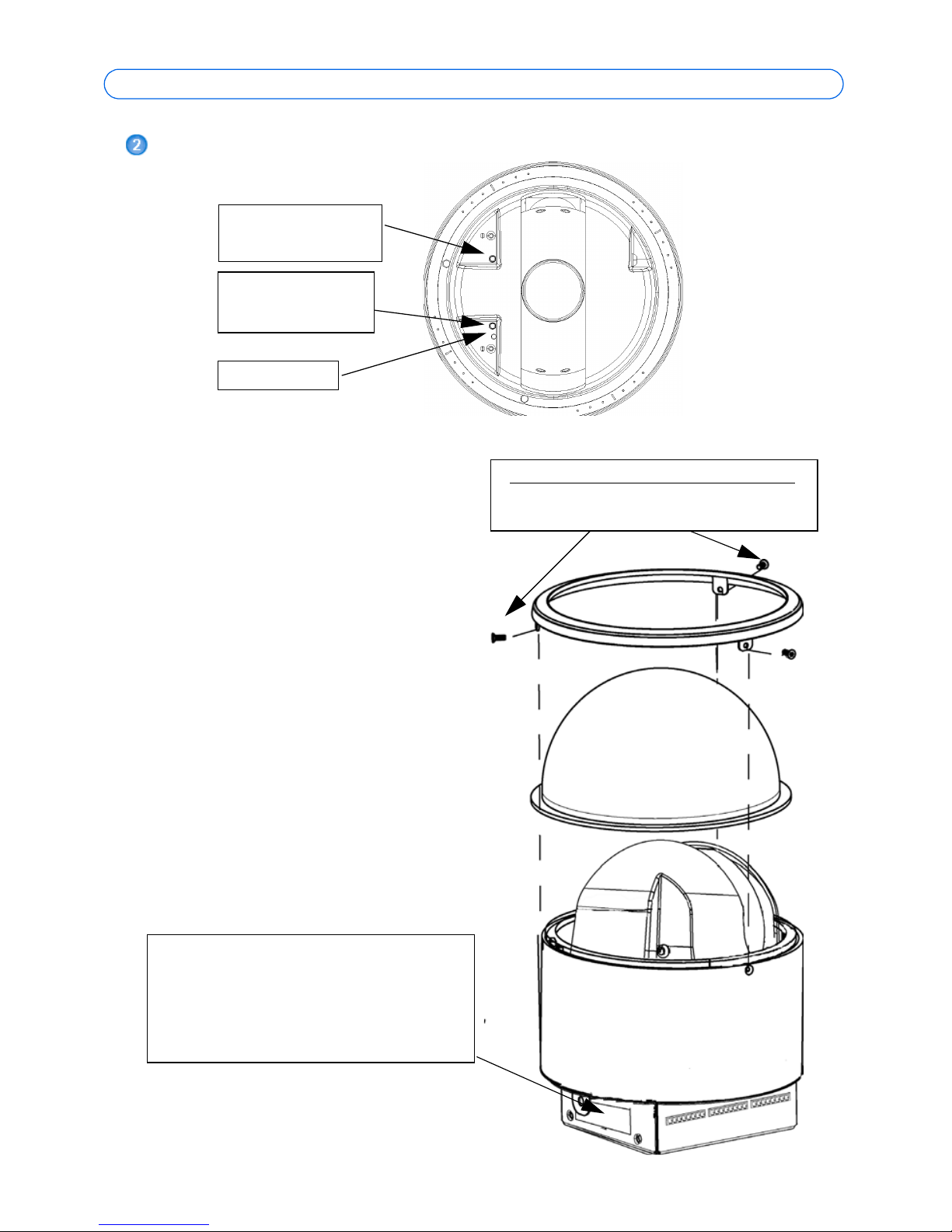

Place dome bubble on camera
1. Place dome bubble on the camera
base.
2. Place black ring with coordinates
over dome. Turn ring till it comes
into the slots.
3. Different screws are used for
fastening the black ring depending
on which ceiling mount is being
installed.(See figure to right)
4. Tighten screws to hold ring and
dome securely. Follow instructions
for your chosen camera mounting.
Dimensions
HxWxD = 209 x 170 x 170 mm (8.23” x
6.69” x 6.69”)
Weight = 2.5Kg (5.5 lbs) excluding power
supply
Status LED
Black
Red
Control button
Restart button
Top
v
i
ew
Drop Ceiling Mount use 3 M3x10 screws.
Hard Ceiling Mount use 3 Recessed screws
(do not tighten screws completely)
Note:
The camera’s serial number (S/N) is on
this label. You will need this number to
with this product. Put it in a safe place
for future reference.
set the camera’s IP address.
There is an additional label included
AXIS 233D Installation Guide Page 5
ENGLISH
ENGLISH

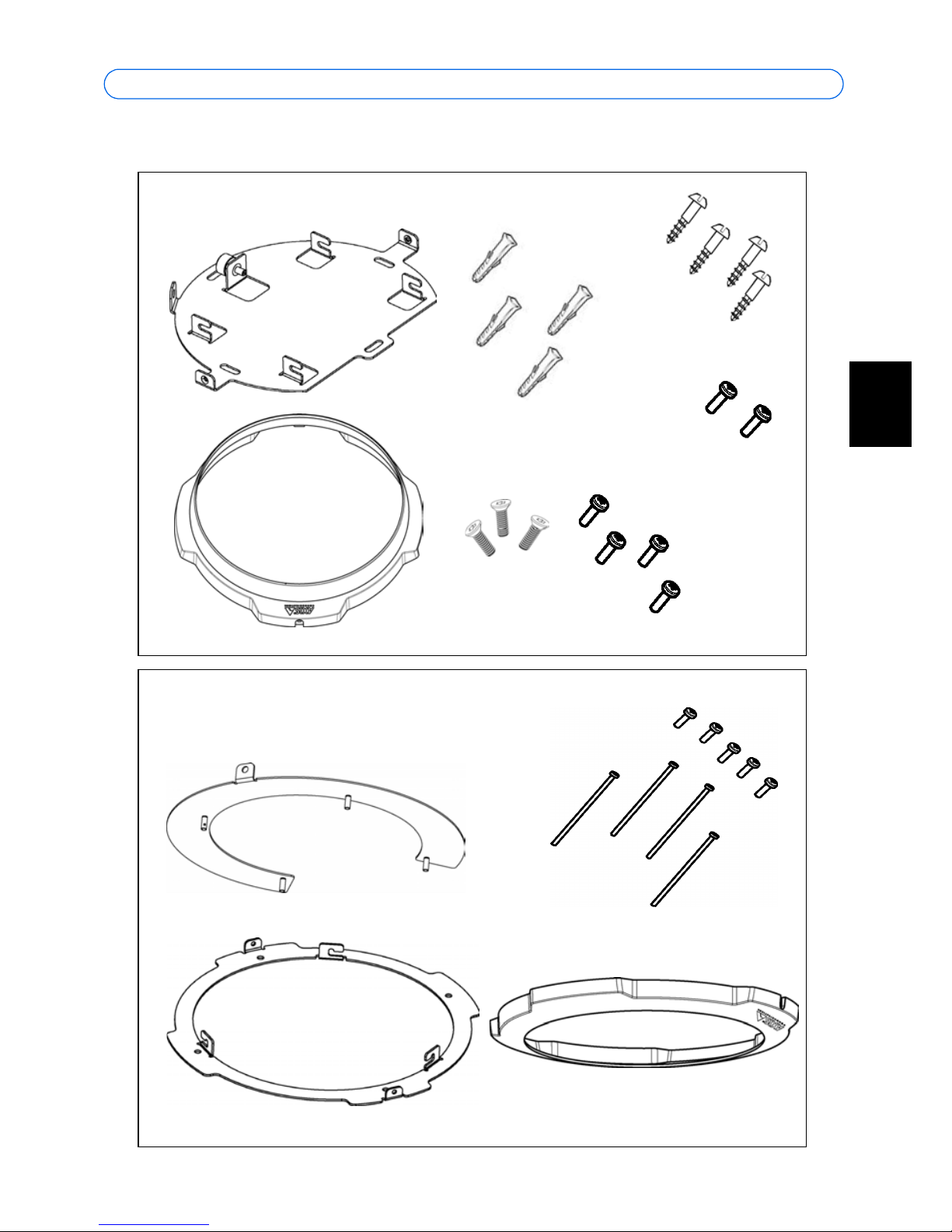

Ceiling Mounts Package Contents
Hard Ceiling Mount
Drop Ceiling Mount
1 Inner bracket
1 Outer bracket 1 Decoration ring
5 M3x10 screws
4 M3x60 screws
1 Hard ceiling bracket
1 Decoration ring
4 plugs
4 ST4.2 screws
2 M3x10 screws
4 M4x10 screws
3 Recessed screws
Page 6 AXIS 233D Installation Guide
Hard Ceiling Mount
Attach bracket to ceiling using
4 ST4.2 screws and plugs.
Attach safety wire to bracket
and base of dome using an
Slot for cables
Insert 2 M4 screws in
each side of base
Insert network camera
into ceiling bracket
Slide on decoration ring
A
B
C
D
E
F
Captive screw
M4 screw & nut.
AXIS 233D Installation Guide Page 7
ENGLISH
ENGLISH
Referring to the image for Hard Ceiling Mount, follow these instructions to mount the dome
camera:
1. Secure the bracket to the ceiling with four ST4.2 screws and plugs. (Figure A)
2. Attach one end of the safety wire to the bracket and the other end to the AXIS 233D
using an M4 screw and nut. (Figure B)
3. Insert four M4 screws (2 screws on each side) partially into the camera base.(Figure
C)
4. Insert the AXIS 233D into the bracket and tighten the captive screw allowing you to
free your hands to tighten the four screws in the screw slots (two on each side) on the
AXIS 233D.(Figure D)
5. Connect the network cable.
6. Connect the power cable to the connection block (see Power connections, on page
10)
7. Slide the decoration ring on to the AXIS 233D and lock into place by tightening two
M3 screws into the bracket. Take care to place the side with the open slot over the
connection blocks for cables.(Figure E)
8. The hardware installation is now complete, proceed to Assign an IP address, on page
11 to install the AXIS 233D on your network.
Page 8 AXIS 233D Installation Guide

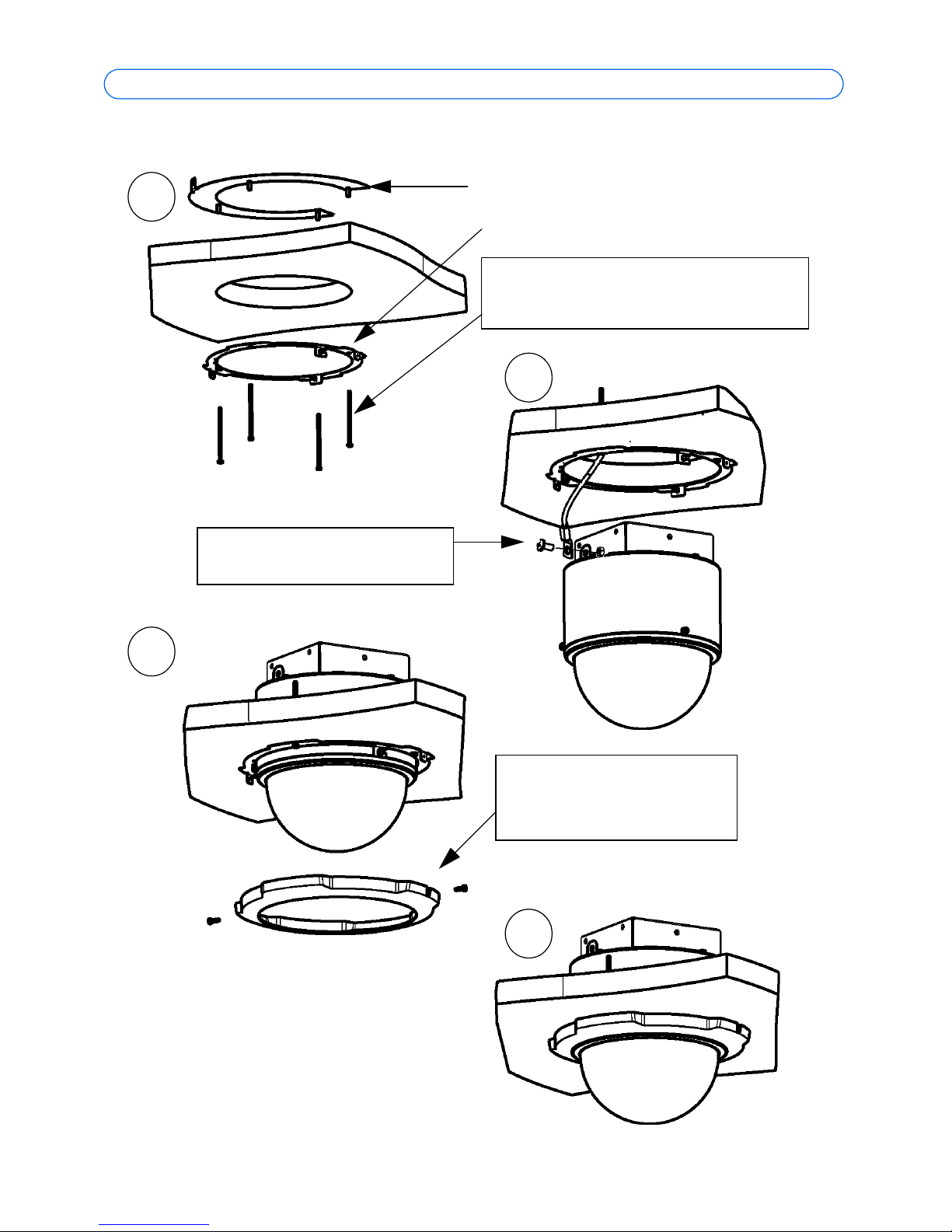

Drop Ceiling Mounting
Attach ceiling mount brackets
with 4 long M3 screws.
Attach safety wire
Attach decorative ring
with 2 M3 screws
Inner mounting ring
Outer mounting ring
A
B
C
D
with an M4 screw & nut
AXIS 233D Installation Guide Page 9
ENGLISH
ENGLISH
Referring to the image for Drop Ceiling Mount, follow these instructions to mount the dome
camera:
1. Locate the position in the ceiling for a 190mm hole to be cut. A template is included
to aid in marking the mounting hole.
2. Cut the hole in the ceiling according to the markings.
3. Insert the inner mounting ring in the ceiling with the screw guides pointing
down.(Figure A)
4. With four long M3 screws, attach inner mounting ring to the outer mounting ring.
5. Attach the safety wire to something structurally strong in the ceiling and to the base
of the camera using an M4 screw and nut.(Figure B)
6. Through the hole in the ceiling connect the Ethernet cable and the power cable to
the connection block (see Power connections, on page 10).
7. Push the dome body up into the installed bracket taking care to align the screw holes
in body (see step 3, on page 4) with the mounting bracket’s screw slots. Tighten
screws to lock camera into the bracket.
8. Slip the decoration ring over the dome aligning screw holes with screw slots in
bracket. Use 2 M3 screws to fasten the decoration ring.(Figure C)
9. The hardware installation is now complete, proceed to Assign an IP address, on page
11 to install the AXIS 233D on your network.
Page 10 AXIS 233D Installation Guide
Power connections
Power can be supplied to the camera by the following methods:
• Connect the supplied indoor power adapter to the power connector block and
attach it to the camera casing. Note that this indoor power adapter provides
power for the camera only.
• Connect an outdoor power supply to the power connector block and attach it to
the camera casing. For information on available outdoor power supplies, please
visit the Support pages at http://www.axis.com/techsup/
The power connector block supports both AC and DC input power.
Power connector block pin assignment table
Pin Function
1AC AXIS PS-R (or 22-40 VDC)
max 20W power consumption.
-or-
AXIS PS-24 (or 18-30 VAC)
max 25VA power consump-
tion
2ACorDC+
3 GND/DC-
4Ext.Vout=12V/
200mA
Note:
For information about
connecting auxiliary
power and audio see
Unit connectors, on
page 17.
5-8 Audio
AC
GND/DC-
Power/Audio
12 3
1
2
3
AC/DC+
