Axis Q35 Series Manuel utilisateur
AXISQ35Series
RepaintingInstructions
AXISQ35Series
Impactonwarranty
Impactonwarranty
ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat
www.axis.com/warranty-implication-when-repainting
Riskswithrepainting
ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training
ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:
ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD
damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.
Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.
Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.
Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems
withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe
parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.
2
AXISQ35Series
Howtorepainttheproduct
Howtorepainttheproduct
Preparations
•Ifapplicable,disassembletheeuipmentaccordingtotheinstructionsinthisdocument.
•Removegaskets,screws,electricalcomponents,connectorsandplugs,windows,anddomesfromthepartstoberepainted.
•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.
•Toensurereassemblyandfunctionalityoftheproduct,maskopeningsforscrews,LEDindicators,ormicrophonesbefore
painting.
Pretreatmentofparts
Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto
adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.
Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com
Powdercoatedparts-Usingnesandpaper,removetheoriginalpowdercoatingdowntothebasematerialandcleantheparts
beforepainting,oruseaprimer.
Anodisedandchromatedparts-Useaprimer.
Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.
Plastic-Useaprimer.
3
AXISQ35Series
Howtorepainttheproduct
Disassembly
Chassis
1Domeassembly
2Unitcasing
3Mountingbracket
4Weathershiel
1.Removethedomeassembly.
2.Removetheunitcasing.
3.Outdoorcamera:Removethescrewsfromtheweathershield.
4
AXISQ35Series
Howtorepainttheproduct
1Sieentryli
2Springclip
3Mountingbracket
4.Removethespringclipandthesideentrylidfromthemountingbracket.
5
AXISQ35Series
Howtorepainttheproduct

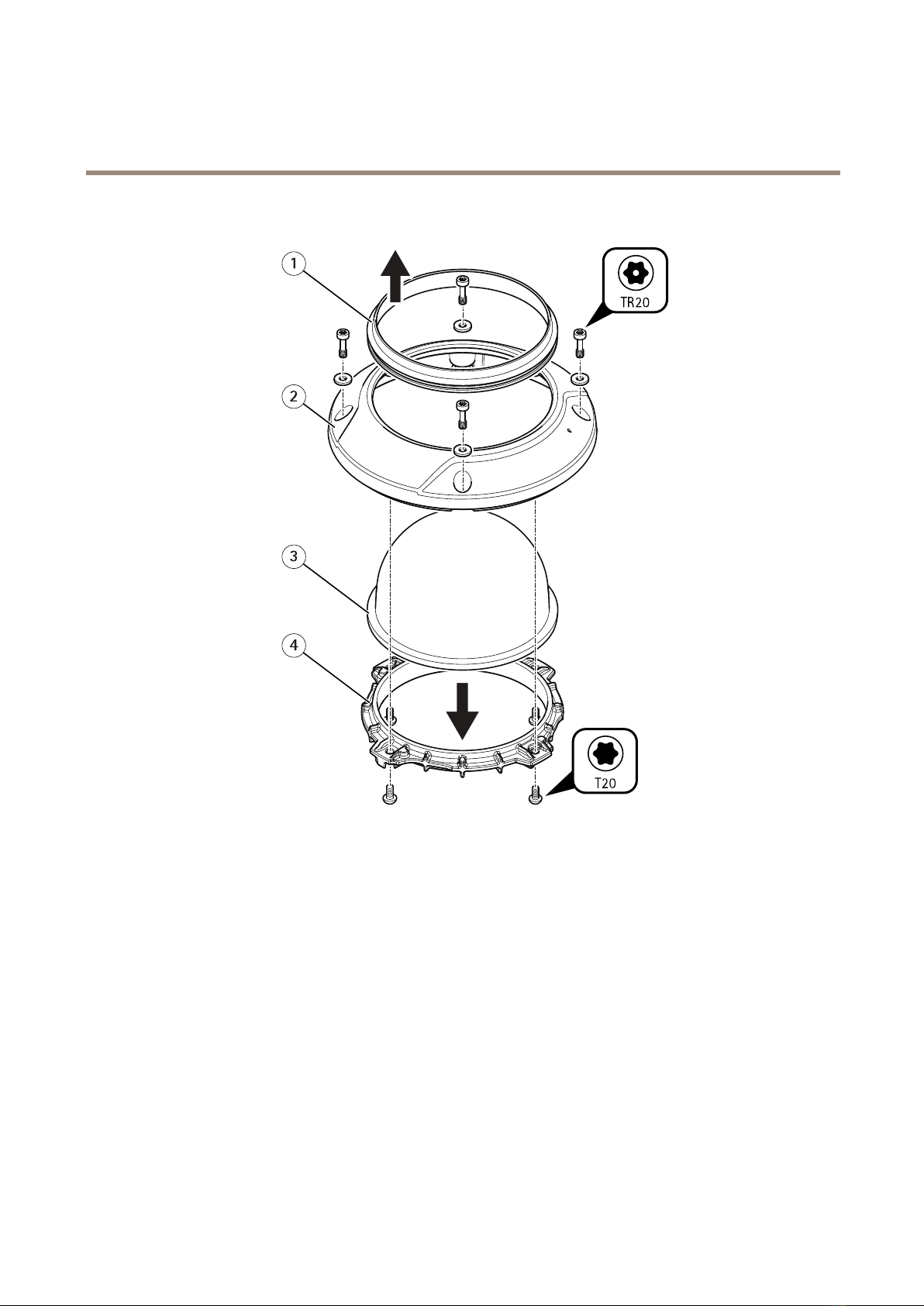

Dome
1Gasket
2Topcover
3Dome
4Domeholer
1.Removethedomeholder,thedome,andthegasketfromthetopcover.
2.Removethescrewsfromthetopcover.
asking
Topcover
1.Maskallscrewholes.
2.Indoorcamera:Maskthemicrophonehole.
3.Maskthebottomandinsideofthetopcover.
Unitcasing
4.Masktheinsideoftheunitcasing.
6
AXISQ35Series
Howtorepainttheproduct
5.Maskthebottomoftheunitcasing.
Weathershield
6.Maskallscrewholes.
7.Masktheundersideoftheweathershield.
NO NO
NOTICE TICE
TICE
Donotrepainttheundersideoftheweathershield.TheundersideiscoatedtoabsorbIRlight.
Sideentrylid
8.Maskthebackofthesideentrylid.
Repainting
1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.
2.Letthepaintdry.
3.Togetabettercoverageandstrongercolor,applyasecondlayerofspraypaint.
4.Whenthepaintisdry,removethemasking.
Reassembly
1.Assemblethescrewsandwasherswiththetopcover.
2.Insertthegasketinthetopcover.
7
AXISQ35Series
Howtorepainttheproduct

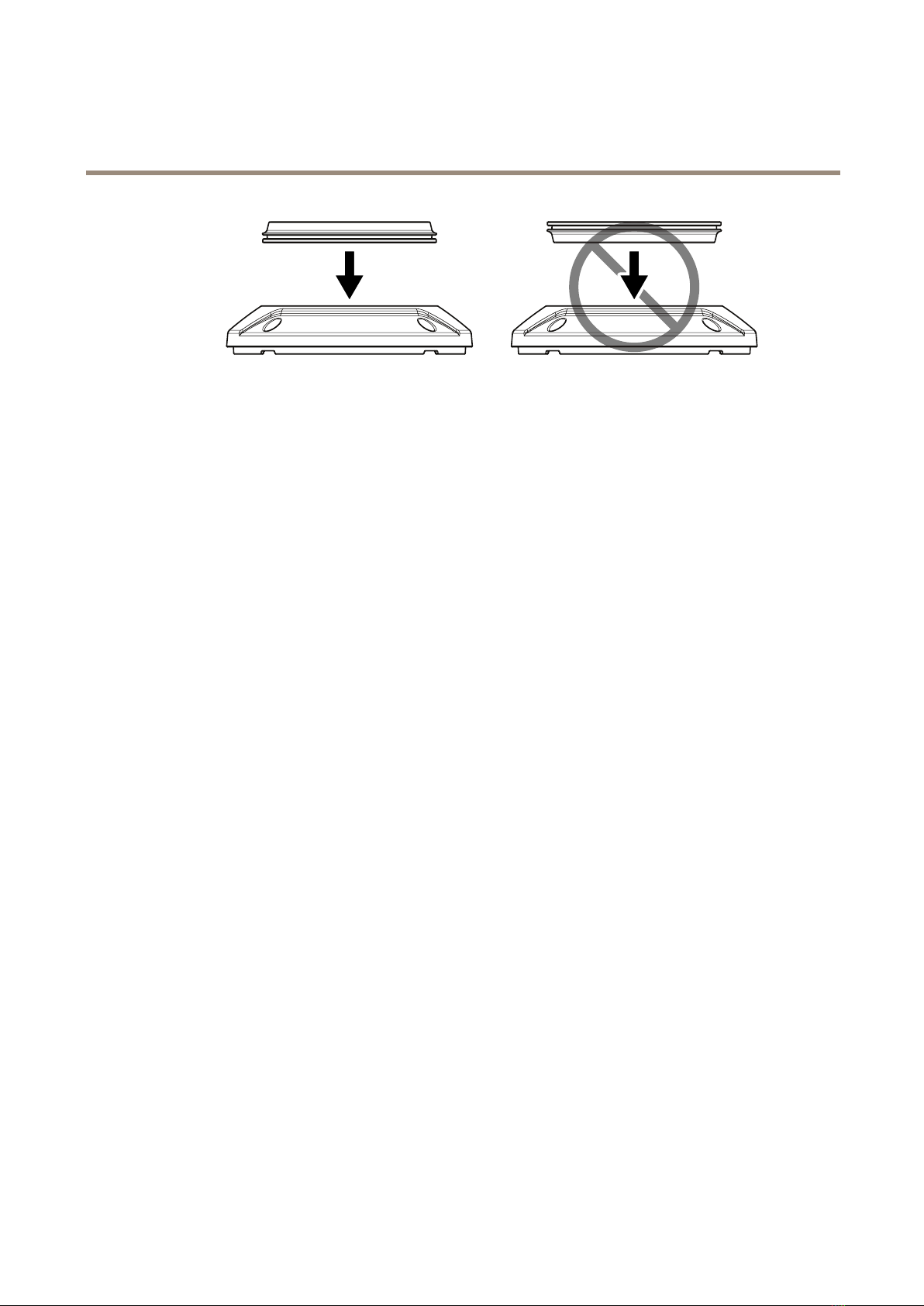

3.Pushthedomeintothetopcover.
4.Assemblethedomeholder,andcross-tightenthescrewswith2.6Nm(1.9lbft).
8
RepaintingInstructionsVer.M1.12
AXISQ35SeriesDate:April2018
©AxisCommunicationsAB,2018PartNo.T101 14179
