INSTRUCTION MANUAL
DV426/DV426-4G
4 Channel DVR Black Box Recorder
with WiFi, GPS & SATA SSD 2YEAR WARRANTY
SPECIFICATIONS
- Record Type Quad
- 4G: DV426-4G Only
- GPS: Yes
- WiFi: Yes
- Vehicle Tracking: Yes
- Max Resolution: 1920 x 1080 (100FPS)
- Real Time Recording: Yes - Auto or Scheduled
- G-Sensor: Yes
- Motion Detection: Yes
- AV Output: VGA, CVBS (RCA Adaptor Included)
- Monitor View: Normal/Mirror Image Selectable
- Video Compression: H.264 for High Quality Video
- Reverse Camera Compatible: Yes
- Camera Connection: 4 x 4-Pin
- Lockable Storage: Yes - 1 x 2.5” SATA SSD (Not Inc), 1 x 128GB SD Card (Not Inc)
- Operating Voltage: 9 to 36V
- Alarm Inputs: 6 CH
- Alarm Outputs: 2 CH
- Ignition Signal: Yes
- Speed Signal: Yes
- Timer Recording: Yes
- Adjustable Frame Rate & Bit Rate: Yes
- User Password Protection: Yes
- Operating Temperature: -20°C to 70°C
- Power Consumption: 15W (Working)
- Dimensions: 183 x 38 x 148mm
- Includes: Keys, Antenna Kit, Remote Control, Power Cable, Alarm Cable, USB Cable
2
1. Specifications
4CH HD DVR
System
Operating system
Linux
Operating interface
Graphical menu operation interface(OSD)
Video permission
Administrator & user setting
Video
Video input
4 x 1080P analog high definition
CVBS output
1CH 6pin aviation
connector output PAL/NSTC
VGA output
1CH VGA output, 1080P
HDMI output
NULL
Video display
1
、
2
、
3
、
4
Video standard
PAL: 25FPS, NTSC: 30FPS
Compression
H.264 main profile
Audio
Audio input
4 channels
Audio output
1 channel
Record format
Synchronized video & audio recording
Audio compression
ADPCM
Digital
processing &
storage
Image resolution
Max 4 x 1080P(1920*1080)
Video bit rate
64kbps~4Mbps/channel
Storage
56~2700MB/(channel*hour)
Audio bit rate
32kbps
Storage
2.5 inch SATA SSD x 1, max 2TB; SD card x
1, max 128GB
Alarm
Alarm input
6 channels
Alarm output
2 channels, 1 buzzer
Motion detection
High/low/off sensitivity adjustable
Interface for
communication
IR
1 channel
RS232
1 channel for RFID
RS485
1 channel for Panic Button
CAN
2 channels
RJ45
1 channel
USB mini-B
1 channel
USB2.0
2 channels
1channel for copying file(SSD、SD) and firmware
upgrade
1 channel for copying SSD file(only for connecting
to computer USB)
3
USB3.0 NULL
Wireless 2G/3G/4G optional
WIFI optional
WIFI hotspot/AP
optional
GPS Internal or external GPS/GLONASS module, coordinate/speed can be
encoded in video stream and uploaded to server by wireless
communication
G-Sensor
/Gyroscope
Available six axis sensor
Software
Windows client
Available
iOS client Available
Web portal
Available
Power
Input
10~32V
Current Draw [email protected]
Max Power
Consumption 60W
Standby Power
Consumption 100mW
Electrical spec
Operating temp. &
humidity -20～70 degree/ <100%
Super Capacitor Available
Clock
Built-in clock, Calendar
4
2. Precautions
1、Motion detection function is set to OFF by default. Alarm files will be created
when there’s motion detected when set ON.G-sensor recording is
recommended to set ON during driving for emergency recording use. G-sensor
level is optional.
2、If the DVR can not boot up, try to remove all storage disks from the DVR,
and then restart the DVR to check whether it can boot normally or not.
3、Make sure the yellow ACC wire is connected to the ignition wire and the
red V+ wire to the positive pole of the battery. In this case, the DVR can
continue to record for sometime after the vehicle engine is off. If the ACC wire
(the yellow one) and the V+ wire (the red one) are connected directly to the
positive pole of the battery, the DVR will still work even if the vehicle is not
started. If the ACC wire and the V+ wire (the red one) are connected directly to
the ignition wire of the vehicle, the recording files will be easily damaged when
the vehicle engine is off.
4、All the disks must be formatted on the DVR before use.
5、The login user name can not be changed. Password is editable.
6、All types of video files including event recording files will be overwritten by
default. If not to overwrite the event files, set [Event Rec. Lock] to OFF. in the
menu of [Event Rec.] under [Record].
7、The corresponding types of SENSOR-IN1~6 on the trigger line are as
follows:
SENSOR-I
N1
SENSOR-I
N2
SENSOR-I
N3
SENSOR-I
N4
SENSOR-I
N5
SENSOR-I
N6
ALARM INPUT 1~4
Reversal
input
Brake
input
5
3. Main Features
Appearance
Smaller than the previous models.
Controlled by touch screen
All settings and operations could be done through the monitor if connected with
the suggested touch screen.
Video and Audio
4 channels * 1080p, 4 video inputs with audio
1 CVBS output(1 * 6 PIN OUT) with audio
Support IPC camera
Recording
4-CH Video & Audio Recorder (with image resolution up to 1920 X 1080), and
with G-sensor data and GPS data
Multiple recording modes: power on recording, normal recording, schedule
recording, event recording (i.e., G-sensor recording, speed recording, motion
detection recording, Alarm recording 1~6, Panic button recording). Cyclic
recording and 15 seconds pre-recording are supported.
Recording files are stored in the SSD or SD card. Cyclic recording is optional.
Real-time recording of license plate numbers,driving speed,G-sensor/Gyroscope
6D accelerated speed, longitude and latitude, and GPS tracks.
Preview and Playback
Support single channel, or 4 channels audio and video play simultaneously.
Support searching recording files by recording date, recording type.
Able to drag the progress bar when playing back.
Indicate recording status, alarm status.
Storage Types
Support SSD, SD cards (SDHC, SDXC)
If both SSD and SD card are used for storage, SSD will be preferred. SD card
can be stored only when SSD is not installed.
SD card can be removed conveniently when not in recording or playing status.
Backup
6
Support USB disk or USB hard disk to backup copy of recording files.
Network
Support LAN, WI-FI, 2G/3G / 4G, automatic network switching;
LAN / Wi-Fi / Cellular connection (default priority: LAN > Wi-Fi > Cellular); auto
switch to LAN / Wi-Fi connection when available to save Cellular traffic.
LAN, WI-FI and 2G/3G/4G have the priority of connections which will switch
automatically to save 2G/3G/4G data;
Wi-Fi supports STATION and AP mode, in which Wi-Fi AP mode supports
mobile direct connection devices, which is convenient for preview and
configuration on mobile;
Support remote real-time video stream, image stream pre-view function
Support alarm recording, alarm information, log information, GPS trajectory
automatic upload function, which is convenient for vehicle abnormal conditions
analysis and vehicle trajectory tracking;
Support remote configuration, remote upgrade which achieve real remote control
function;
Support PC Windows Client, mobile IOS and Android APP. Users can remotely
monitor vehicles on computer or mobile phone
Alarm
6 channels alarm inputs, one channel buzzer output and 2 channels alarm
outputs
Over-speed alarm and accelerated-speed alarm
Motion detection alarm
G-sensor alarm
Panic button alarm
Charger
5V, 1.5A output from the USB interface to mobile devices, such as mobile phone.
Security
User password protection. The DVR can only be accessed with correct
password.
Support account management.
7
4. Wiring Diagram
BLANK
5. Connection - Front Panel
8
5.1 LED
NULL
5.2 Electronic Lock
Close the front cover and turn the groove by the key to the icon “off”, so as to
prevent hard disk drive from moving out. Or turn to the icon “on” to open the front
cover.
Electronic Lock Function: DVR will stop recording and buzzer will beep when the
front cover is open.
5.3 Remote Receiver
The IR Receiver is for the DVR to receive command from the remote control.
Remote control instructions:
①LEDIndicators ⑤IR Receiver
②Electronic lock
⑥SD Card Slot
③Front Cover Buckle ⑦SSD Slot
④USB3.0 Interface ⑧SIM Card Slot
9
5.5 SSD card slot
Hard disk Type: SSD (Max. capacity: 2T )
Size: 2.5 inches(70*100*7mm).
5.4 SD card slot
SD card type: The maximum capacity of each card is 128G.
Insert、remove SD card
Step 1: Use the key to unlock and open front plate
Step 2: Insert SD card to SD card slot
10
Step 3: Close the front plate and use the key to lock
5.6 USB Slot
USB 2.0/3.0, Max. Capacity 2T

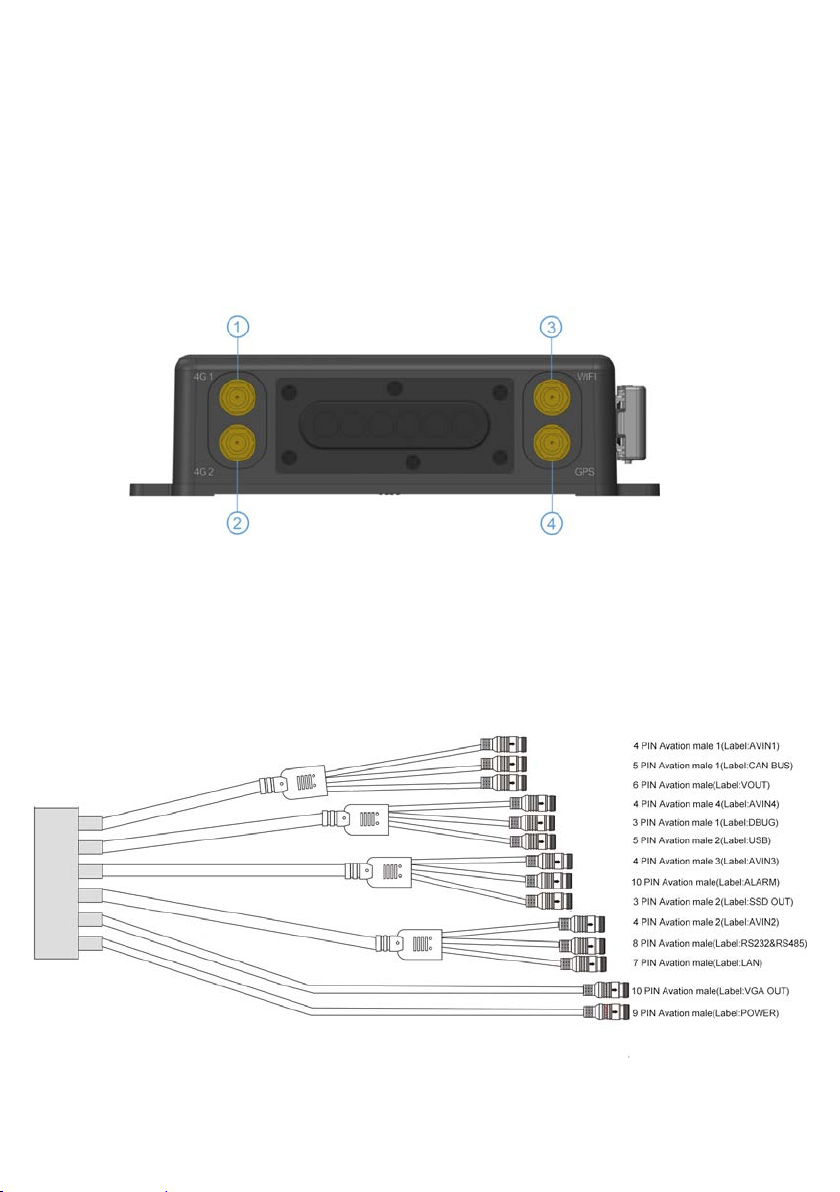

6. Back Plate
①Cellular Connector, TX/RX ③
Wi-Fi Connector
②Cellular Diversity Connector, Rx ④GPS Connector
