THERMAL PRINTER MECHANISM

Mini-Printer

CMBC-XMBC

CMDG-XMDG

User Manual

Issue A, reference 3102473-FDE

April, 1998

CM/XM Series User Manual Page 2/42 Ref: FDE - 3102473 / A

IMPORTANT

This manual contains the basic instructions to run your printer. Read it

carefully before using your printer paying full attention to section concerning

recommendations .

CM/XM Series User Manual Page 3/42 Ref: FDE - 3102473 / A

TABLE OF CONTENTS

1. UNPACKING 5

2. OVERVIEW 5

3. MECHANICAL SPECIFICATIONS 6

3.1. General description 6

3.2. Dimensions of the complete mechanism : 6

3.3. Mechanical views 7

3.4. Optional drive for paper rewinder 9

4. ELECTRICAL SPECIFICATIONS 10

4.1. Nominal Power supply 10

4.2. Nominal Consumption 10

4.3. Description of printhead 10

4.3.1. Function of each 64 bit IC (integrated circuit) 11

4.3.2. Operation of the complete module 12

4.3.3. Electrical specifications of 64-BIT LSI driver 13

4.3.4. Printhead Connection 16

4.4. Unipolar paper feed motor 18

4.4.1. General specification 18

4.4.2. Connection 18

4.4.3. Induction sequence 18

4.5. Bipolar paper feed motor 19

4.5.1. General specification 19

4.5.2. Connections 19

4.5.3. Induction sequence and timing 20

4.5.4. Bipolar stepping motor electric control 21

4.6. Bipolar cutter motor 22

4.6.1. Overview 22

4.6.2. General specification 22

4.6.3. Connection 22

4.6.4. Induction sequence 22

4.6.5. Initialisation Diagram 23

4.6.6. Driving cycle 23

4.7. Unipolar cutter motor 24

4.7.1. Overview 24

4.7.2. General specification 24

4.7.3. Connection 24

4.7.4. Induction sequence 24

4.8. Switch & pitch counter driving 25

CM/XM Series User Manual Page 4/42 Ref: FDE - 3102473 / A

4.9. Cutter micro-switch specifications 26

4.9.1. General specification 26

4.9.2. Connection 26

4.10. Opto-sensor specification 26

4.10.1. Electrical characteristics 26

4.10.2. Connection 27

4.10.3. External circuit 27

5. PRINTER CONTROL TECHNIQUES 28

5.1. Mode 1 28

5.2. Mode 2 29

5.3. Mode 3 30

6. RECOMMENDATIONS 31

6.1. Mechanical recommendations 31

6.2. Housing design recommendations 31

6.3. Energising & de-energising printer 31

6.4. Printing recommendations 31

6.5. Recommendations for paper 32

6.6. General 32

6.7. Cleaning recommendations 32

6.8. Special recommendation for XM** (printer with cutter) 33

7. PAPER SUPPLIERS 34

8. SPARE PARTS 34

9. APPENDICES 35

9.1. APPENDIX 1 : THERMISTOR SPECIFICATIONS 35

9.2. APPENDIX 2 : Paper specification 37

9.3. APPENDIX 3 : Heating time and historical control 38

9.4. APPENDIX 4 : CHANGE PRINTHEAD 41

9.5. APPENDIX 5 : FIT OR CHANGE THE COVER WITH CUTTER 41

9.6. APPENDIX 6 : PRODUCT NAME & CODIFICATION 42

CM/XM Series User Manual Page 5/42 Ref: FDE - 3102473 / A

1. UNPACKING

Each printer mechanism is packaged in an antistatic bag. Observe precautions for handling in

electrostatic protected areas.

2. OVERVIEW

Based on static thermal printing technology, the CM/XM series is a family of user-friendly, highly

reliable devices which have been specially designed to fit in the minimum space.

CMxx : Printer only or printer with optional tear bar cover

XMxx : Printer with cutter

Very small size printer and cutter

Silent mechanism

Option of 4 dots/mm or 8 dots/mm print-heads

Optional cover with tear bar

Optional cover with Guillotine cutter (XMxx)

Easy to connect (only one connector for motor, printhead, opto-sensor and cutter)

Front and bottom paper introduction possible

Optional drive for paper rewinder

SUMMARY OF PRINTER SPECIFICATIONS

ITEM VALUE UNITS

xMBC xMDG -

Printing method Static thermal dot line printing -

Number of resistor dots 192 384 -

Resolution 4 8 Dots/mm

Printing width 48 mm

Paper width 60 mm

Head temperature detection By Thermistor -

Number of steps / dot line 2 1 -

Paper feed / dot line 0.250 0.125 mm

Paper empty detection Opto-sensor -

Operating voltage range Vcc (logic) 4.75-5.25 V DC

Operating voltage range Vch (dot) 20 - 28 20 - 26.4 V DC

Peak printhead current

(all dots ”on ” at nominal value ) 8.25 8.8 A

Current consumption:

V ch (at nominal value) 43 23 mA per resistor dot ”on ”

Current consumption:

V cc (at nominal value) 160 100 µA

CM/XM Series User Manual Page 6/42 Ref: FDE - 3102473 / A

Current consumption:

Stepping motor for paper feed 320 (600 bipolar) mA

Current consumption:

Stepping motor for cutter 500 (1000 bipolar) mA

Storage range - 20 to + 60 °C

Operating range -10 to 50 for CMBC 0 to 50 for CMDG °C

+5 to +45 version with cutter XM**

Electrical life time* 1.2 ×108xMBC 108xMDG pulses

Mechanical life time* 50 50 Km

Relative Humidity (operating) 20 to 85 no condensing *2%

Over all dimensions:

Width (without rewinder)

Depth

Height

CMxx

74.5

CMxx(cover)

74.5

62.5

XMxx

74.8

39.2

Weight 140 200 g

Recommended paper 2320061 / WS 752-57 (60µ) Axiohm reference / Arjo Wiggins

Maximum paper thickness 80 µ

Cutter life time (XMxx) 300 000 cuts (with paper 2320061)

* Per AXIOHM standard test conditions (which are mainly : 24V, 25°C, dot printing duty cycle = 30 %)

* 2 for printer with cutter (XM**) the following curve defines Relative Humidity area

HR %

°C

3. MECHANICAL SPECIFICATIONS

3.1. General description

The mechanism consists in :

- Plastic chassis

- Optional hinged cover with tear bar for CMxx or cutter for XMxx

- Cutter with stepping motor and mechanical switch for position detection (XMxx series)

- Stepping motor

- Gear train

- Printhead

- End of paper opto-sensor

3.2. Dimensions of the complete mechanism :

Height :......................................32 (CMxx) / 36 (CMxx with cover) / 39.2 (XMxx) mm

Depth :....................................... 61 (CMxx) / 62.5 (CMxx with cover) / 67 (XMxx) mm

Width (without rewinder option).. 74.5 (Cmxx) / 74.8 (Xmxx) mm

Weight :..................................... 140 (CMxx) / 200 (XMxx) g

CM/XM Series User Manual Page 7/42 Ref: FDE - 3102473 / A

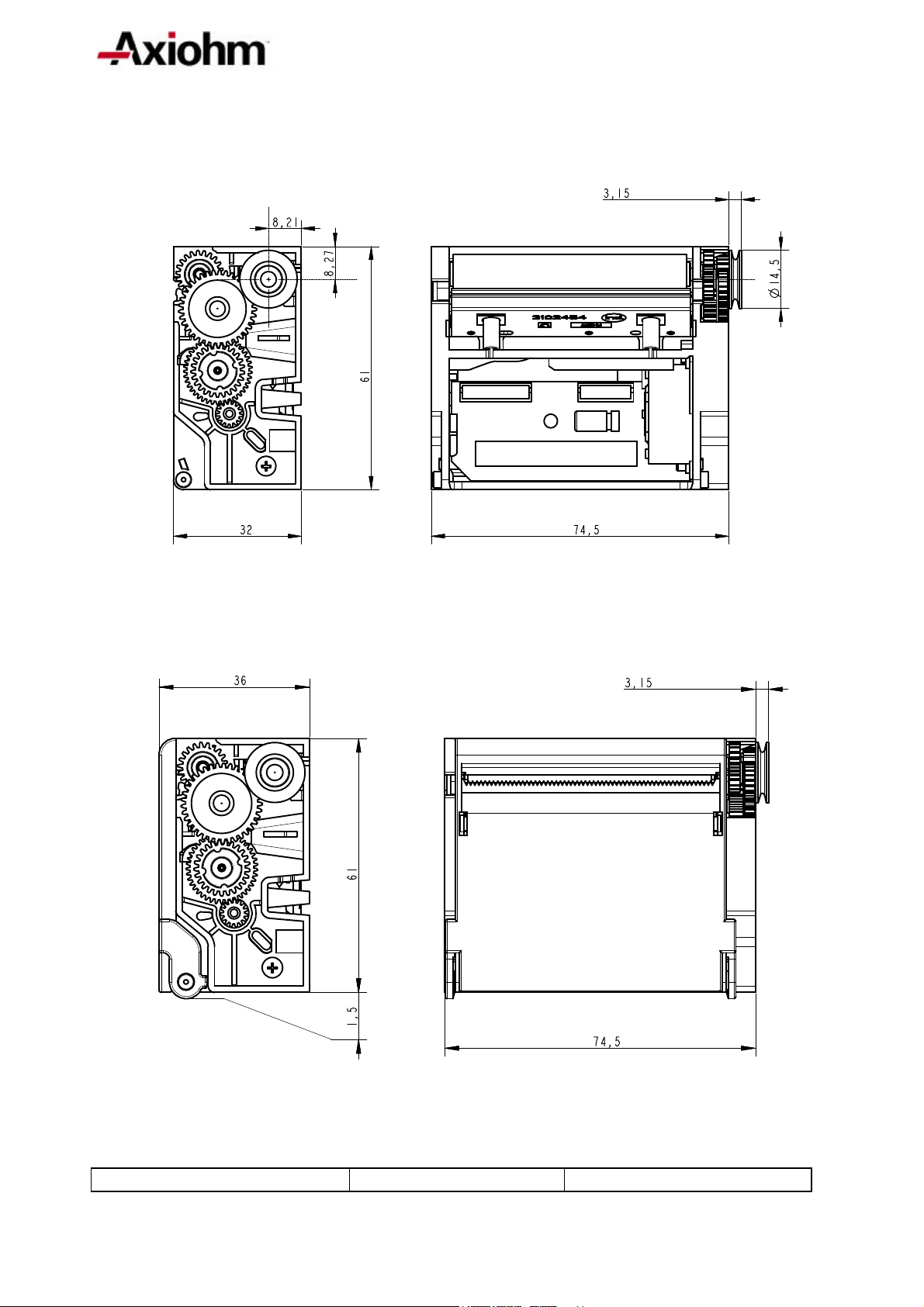

3.3. Mechanical views

Fig. 1 Without cover

Fig. 2 With tear bar cover

CM/XM Series User Manual Page 8/42 Ref: FDE - 3102473 / A

39.2

37.9

61 65

1.8

74.7

40.75

50.1

23.6

Use self threader screws for plastic, the fixing holes diameter being 2.5 mm, use a maximum diameter of

3 mm for screws and a maximum depth in chassis of 7 mm (from the external edge of holes).

Fig.3 With cutter cover

Fig.4 Chassis fixing

Ground

terminal

CM/XM Series User Manual Page 9/42 Ref: FDE - 3102473 / A

This distance is 8 mm for XMxx

Opto- sensor position

The position of the end of paper opto-sensor relatively to the paper allows top off form detection

Paper sensitive layer

paper path

direction

paper inlet 1

paper inlet 2

5.5

Fig. 6 Opto- sensor position

3.4. Optional drive for paper rewinder

An optional pulley can be fitted on the printer side to drive a paper re-winder (see drawings on preceding

pages)

Paper path and distance from line of dots to line of cut

7 mm

Paper inlet 1

Paper inlet 2

Fig.5 paper path

Paper outlet

CM/XM Series User Manual Page 10/42 Ref: FDE - 3102473 / A

4. ELECTRICAL SPECIFICATIONS

4.1. Nominal Power supply

Printer CMBC / DG

XMBC / DG Units

Printhead :

Logic (Vcc)

Dot line 5

24 V DC

V DC

Stepping motor 24 V DC

4.2. Nominal Consumption

Printer CMBC

XMBC CMDG

XMDG Units

Printhead :

Heating

current / dot

(Vch) at nominal values 43 23 mA

Logic current / dot (Vcc) 160 100 µA

Stepping Motor (2 activated

phases) for paper feed 320 unipolar

600 bipolar mA

Stepping Motor (2 activated

phases) for cutter XMxx 500 unipolar

1000 bipolar mA

Maximum instantaneous

current per dot line (at 24V) 8.25 8.8 A

4.3. Description of printhead

Printer CM/XMBC CM/XMDG UNIT

Driver chips

(64 bit BiCMos LSI) 3 6 -

Nominal dot resistance 530 (±15 %) 1000 (±3 %) ohms

Nominal dot energie

(in standard conditions) 2.0 0.8 mJ

Max printing speed (with 24V

power supply)

(with dot historical control)

8 8 cm/sec
