Magnetic Lock
Model
AX-M600L
AX-M600X2L
A. The screw of armature plate should not be fi xed t oo ti ght . Proper elasticity
should b e gua ran tee d for th e rub ber ring so that the armature plate can adjust
itself to the appropriate position.
B. Check the jumper's position before connecting. Figure out it represents 12VDC
or 24VDC.
250Lx48.5Wx25H
Cautions:
12/24VDC 12V/500mA
24V/250mA
12V/500mAx2
24V/250mAx2
280kg(600Lbs) Yes No Single Door
500Lx48.5Wx25H 12/24VDC 280kgx2(600Lbsx2) Yes No Double Door
AX-M600LDS 12V/500mA
24V/250mA
250Lx48.5Wx25H 12/24VDC 280kg(600Lbs) Yes NO(B),NC(R)
COM(Y) Single Door
Size(unit:mm) Voltage Current Holding Force Lock Signal Door Signal Door
Specification
AX-M600L / AX-M600X2L / AX-M600LDS
Diagram(unit:mm)
AX-M600L / AX-M600X2L / AX-M600LDS
Installation
AX-M600L / AX-M600X2L / AX-M600LDS
Required power 0.5Amp(Minimum).
Connect the positive(+)lead from a 12VDC
power source to V +.
Connect the ground(-)lead from a 12VDC
power source to V -.
Check jumper for 12 VDC operation.
A.12VDC Input: B.24VDC Input:
Required power 0.25Amp(Minimum).
Connect the positive(+)lead from a 24VDC
power source to V +.
Connect the ground(-)lead from a 24VDC
power source to V -.
Check jumper for 24 VDC operation.

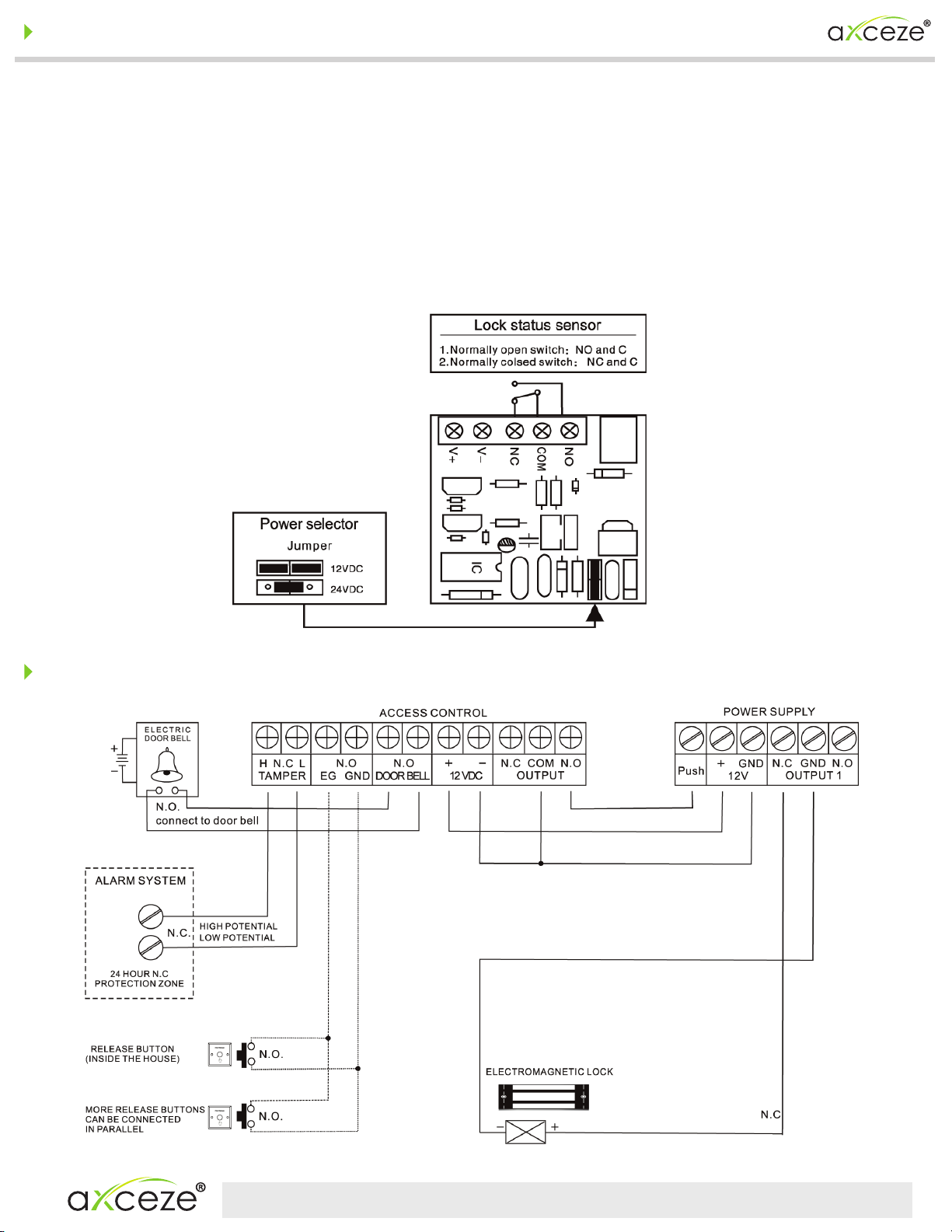

Circuit Board Diagram
Wire Connection
AX-M600L / AX-M600X2L / AX-M600LDS
