AVPro Edge AC-MX-44 Manuel utilisateur

User Manual

18 Gbps True 4K60 4:4:4 4x4 HDMI Matrix

w/Dual Audio De-Embedding, Scaling, and

Auto-Switching

AC-MX-44

INTRODUCTION ��4

FEATURES ��4

WHATS IN THE BOX ��4

SPECIFICATIONS ��5

FRONT AND REAR PANEL OVERVIEW ��6

INITIAL SETUP: WEBUI ��7

ADVANCED SETUP: WEBUI INPUT SETTINGS �� 11

ADVANCED SETUP: WEBUI OUTPUT SETTINGS �� 12

ADVANCED SETUP: WEBUI EXTRACTED AUDIO OUTPUT SETTINGS �� 13

WEBUI: VIDEO MATRIX �� 15

WEBUI: AUDIO MATRIX �� 16

WEBUI: I/O CONFIG - INPUT SETTINGS �� 17

WEBUI: I/O CONFIG - INPUT SETTINGS CONT�� 18

WEBUI: I/O CONFIG - OUTPUT SETTINGS �� 18

WEBUI: I/O CONFIG - OUTPUT SETTINGS CONT �� 19

WEBUI: I/O CONFIG - OUTPUT SETTINGS CONT �� 20

WEBUI: SYSTEM - IP SETTINGS �� 21

WEBUI: SYSTEM - IP CONTROL �� 22

WEBUI: SYSTEM - ADMIN WEB INTERFACE �� 22

WEBUI: SYSTEM - USER WEB INTERFACE �� 23

WEBUI: SYSTEM - CLOUD SERVICES �� 24

WEBUI: SYSTEM - FIRMWARE UPDATE CONT �� 25

WEBUI: SYSTEM - HARDWARE �� 25

WEBUI: DIAGNOSTICS - HDMI IN �� 26

WEBUI: DIAGNOSTICS - HDMI IN CONT �� 27

WEBUI: DIAGNOSTICS - HDMI OUT �� 28

WEBUI: CONSOLE �� 29

FRONT PANEL CONTROL - SWITCHING �� 30

FRONT PANEL CONTROL - SCALING �� 30

FRONT PANEL CONTROL - SCALING CONT �� 31

FRONT PANEL CONTROL - AUDIO BINDING �� 32

AUDIO MATRIX CONTROL: �� 33

FRONT PANEL CONTROL - AUDIO DELAY �� 33

EDID MANAGEMENT: �� 34

DISPLAY IP INFORMATION: �� 35

QUICK NETWORK CONNECT TO WEB INTERFACE: �� 35

IR CONTROL: IR REMOTE �� 36

IR CONTROL: EXTENSION PORT �� 36

TCP/IP CONTROL: �� 37

COMMAND LIST: �� 38

COMMAND LIST CONTINUED: �� 39

EXTRACTED AUDIO: �� 40

BALANCED 5 PIN 2CH AND TOSLINK AUDIO PORT /SPDIF: �� 40

AUDIO OUTPUT LOGIC AND CABLE PREP: �� 41

TROUBLESHOOTING �� 42

BANDWIDTH CHART �� 42

MAINTENANCE �� 43

DAMAGE REQUIRING SERVICE �� 43

SUPPORT �� 44

WARRANTY �� 44

The AC-MX-44 is a 4x4 HDMI matrix switch that supports HDMI 2�0(a/b), HDCP 2�3, up to 4K video resolu-

tion, and up to 18 Gbps bandwidth� This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver,

game consoles, PCs, etc ... ) to show on any connected displays. This matrix equalizes and amplies the

output to ensure the HDMI signal transmits through long HDMI cables without losing quality�

Audio Delay is “On-Board” so integrators can manage lip-sync issues before they become a problem� Video

signal management is also possible with built-in scalers� So, if the installation has a couple of older displays,

integrators don’t need to forfeit 4K signals to pass the signal to all of the displays� In addition to scalers,

this matrix supports complete EDID management, allowing maximum exibility with today’s broad mixture

of sources and displays�

Features

·HDMI 2�0(a/b)

·18Gbps Bandwidth Support

·4K60 4:4:4 Support

·Full HDR Support (HDR 10 & 12 Bit)

·Dolby Vision, HDR10+ and HLG Support

·HDCP 2�3 (and all earlier versions supported)

·Down Scalers on each output

·Advanced EDID Management

·IR, RS-232, and LAN Control Options

·Digital Toslink Out (7CH PCM, DD, DTS)

·Balanced Analog Out (2CH PCM)

·Audio Delay for Digital & Analog Out

·HDBaseT Compatibility mode for mixed systems

·Driver Support For Crestron, C4, RTI, ELAN, and more

·Extracted Audio Now Has 3 Operating Modes� Bound to

Input, Bound to Output, or Independent Matrix

·Built-in Test Pattern on Each Output to Verify Infrastruc-

ture

Whats in the box

·AC-MX-44 (Matrix Switch)

·12V Locking Power Supply

·1 x IR Remote Control (Battery not included)

·1 x IR Extension Cable

·4 x 5-Pin 2 Channel Audio Extraction Cables

·1 x 3 Pin Terminal Connector (For RS232)

·Rack Ears

Introduction

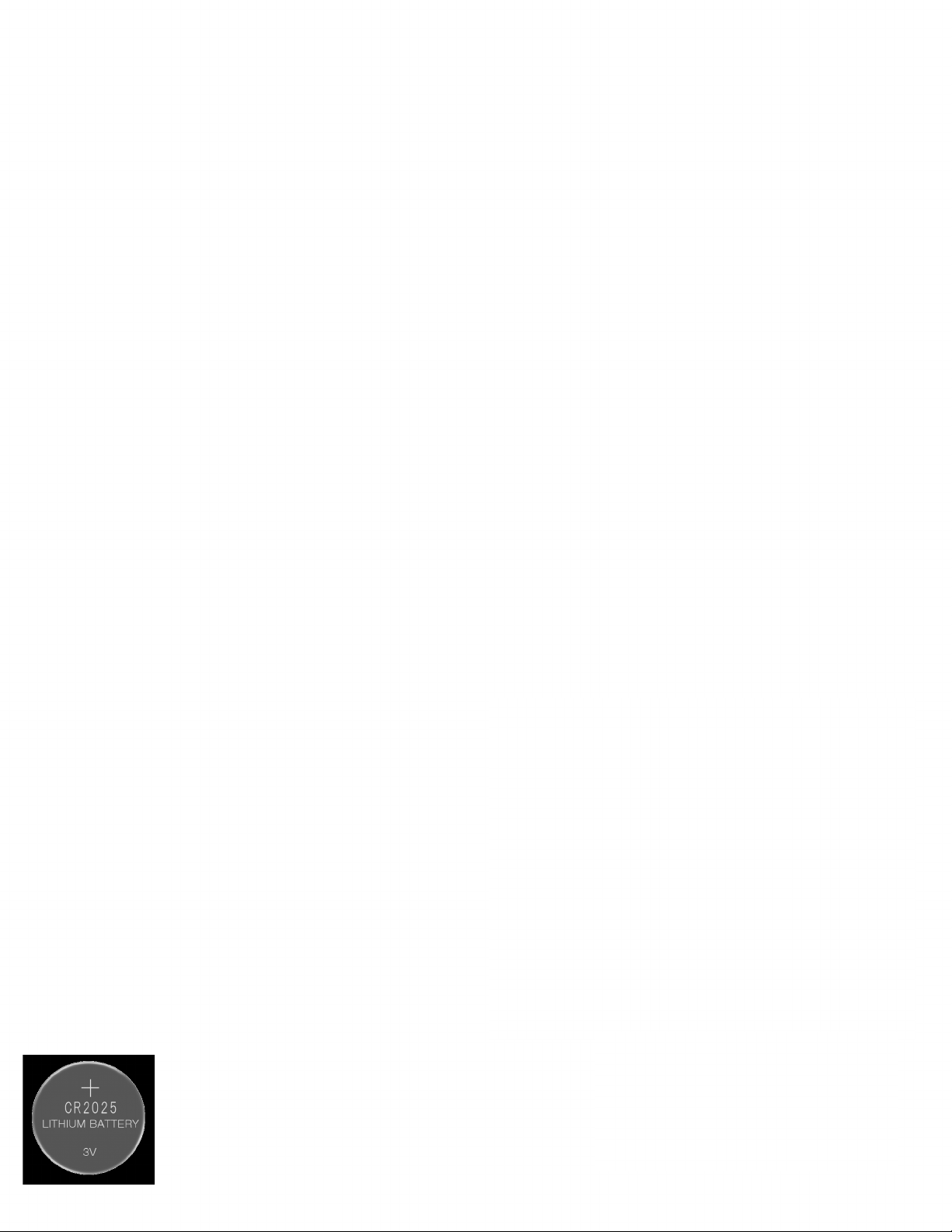

*3V CR2025 Battery Required For IR Remote Control

Not Included

Specications

Front and Rear Panel Overview

Initial Setup: WebUI

1� With the AC-MX-44 placed into its new home (AV Rack, cabinet, table top) take a Phillips

head screwdriver and attach the included yellow ground strap to the back of the chassis

using the pre-installed screw, then attach the other end to a suitable grounded object�

2� Connect the HDMI Input sources to the HDMI Inputs on the back of the matrix�

3� Connect the HDMI/devices to the HDMI Outputs�

4� Connect the network LAN cable to the RJ45 port labeled LAN (between the Micro USB and 3pin RS232

port)�

5� Power on the sources (Inputs)�

6� Power on the Output devices/displays�

7� Connect the 12V power supply to power on the matrix and then to a suitable power source�

8� In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT

4 buttons simultaneously� This screen will change every 3 seconds

showing additional settings (host, net mask, router IP)�

NOTE: This screen starts with the current IP address of the matrix�

9� To Enable/Disable DHCP, press and hold INPUT 1 and INPUT 4 at the same time for 3 seconds� With

the matrix connected to the local network, using a computer on the same network open up a web

browser and type the HIP (Host IP Address) into the address bar to navigate to the WebUI�

10�With the WebUI open, navigate to System� Click on the Privacy Policy and Terms of Use, this will open

these documents in a new tab for review� Once read click on the boxes next to each to agree� When

both are checked the switch for Enable Cloud Services will be selectable (will be red or disabled by

default)� Click to enable (the switch will turn green)�

The AC-MX-44 can be controlled using the Micro USB port, 3pin RS232, or over TCP/IP using the LAN con-

nection� For initial setup it is recommended to connect the matrix to a local area network (LAN) and use a

computer on the same network in conjunction with the built in WebUI� After making all the physical con-

nections, the rst step will be to check for any Firmware Updates. The below steps are an example of this

setup, other control options are covered in separate sections of this user manual�

11�With the Cloud Services enabled under the Hardware section click the Update Firmware button to

check for new Firmware OTA (over the air). This will compare the rmware versions currently loaded

on the AC-MX-44 and compare to the latest available� If it is up to date, you will see a prompt stating

“No update available!”

12�If an update is available, the following prompt will show� Simply click UPDATE�

13�If a new update is available a le will automatically be selected, simply click the UPLOAD button to

load the rmware les to the Matrix. Uploading does not install the Firmware, that is the next step.

14�Once the rmware le has been uploaded, it will display all containing rmware les. Here you can

select individual rmware les to load or simply leave all les/options selected. If the version currently

installed is not newer (does not need to be updated), then that update will be skipped automatically�

Click the UPLOAD button to start�

15�Once the progress bar hits 100% click the CLOSE button, the rmware upgrade process is complete.

16�With the Firmware up to date it’s time to start setting up the matrix� With the AVPro Edge WebUI

open, navigate to the I/O Conifg section� Label the applicable Inputs (Apple TV, Cable Box, Roku, etc)

under the Input Settings - Label�

17� Label the Outputs (Living Room, Bedroom, Den, etc) under the Video Output Settings - Label�

18�Set the HDMI Video Scaling if needed� HDMI outputs can down-scale a 4K signal to 2K (1080P) or

down-scale a 4K 4:4:4 signal down to 4K 4:2:0�

19�With the system and all it’s components powered up it’s time to verify signal path from source to the

sync� For now leave EDID settings to their default 1080P 2CH, the next section Advanced Setup will

cover the more advance settings�

20�Use the Signal Indicator on the HDMI INPUTS� Green means HDMI source is detected, red means that

the source is not detected� If red verify that the input is powered on and that the HDMI cable is prop-

erly connected to the source and to the back of the matrix�

21�Now verify that the connections to the HDMI outputs using the Signal indicator� Green means HDMI

sync is detected, red means that the HDMI sync is not detected� If red verify that the sync devices are

powered on and that the HDMI/HD cables are properly connected to the back of the matrix�

22�With everything connected and powered on, green indicators across the applicable inputs and outputs,

verify you are getting all of your sources on all of your displays�

23�Problems with a source or sync, see the Troubleshooting section for help on page 45�
