AVPro Edge AC-MX-42X Manuel utilisateur

User Manual

AC-MX-42X

INTRODUCTION.................................................................................4

FEATURES ........................................................................................4

WHATS IN THE BOX ...........................................................................4

SPECIFICATIONS ...............................................................................5

FRONT AND REAR PANEL OVERVIEW.....................................................6

INITIAL SETUP: WEBUI ......................................................................7

ADVANCED SETUP: WEBUI INPUT SETTINGS ........................................ 11

ADVANCED SETUP: WEBUI OUTPUT SETTINGS ...................................... 12

ADVANCED SETUP: WEBUI OUTPUT SETTINGS SWITCH MODE ................. 13

ADVANCED SETUP: WEBUI EXTRACTED AUDIO SETTINGS....................... 13

WEBUI: VIDEO MATRIX .................................................................... 14

WEBUI: I/O CONFIG - INPUT SETTINGS.............................................. 15

WEBUI: I/O CONFIG - OUTPUT SETTINGS............................................ 16

WEBUI: I/O CONFIG - OUTPUT SETTINGS CONT. .................................. 17

WEBUI: SYSTEM - IP SETTINGS ......................................................... 18

WEBUI: SYSTEM - TELNET SETTINGS .................................................. 19

WEBUI: SYSTEM - ADMIN WEB INTERFACE .......................................... 19

WEBUI: SYSTEM - USER WEB INTERFACE ............................................ 20

WEBUI: SYSTEM - CLOUD SERVICES ................................................... 21

WEBUI: SYSTEM - FIRMWARE UPDATE CONT........................................ 22

WEBUI: SYSTEM - HARDWARE ........................................................... 22

WEBUI: DIAGNOSTICS - HDMI IN ...................................................... 23

WEBUI: DIAGNOSTICS - HDMI IN CONT. ............................................. 24

WEBUI: DIAGNOSTICS - HDMI OUT .................................................... 25

WEBUI: CONSOLE ............................................................................ 26

FRONT PANEL CONTROL - FUNCTIONAL MODE BUTTON.......................... 27

FRONT PANEL CONTROL - MATRIX MODE SWITCHING ........................... 27

FRONT PANEL CONTROL - DA MODE SWITCHING .................................. 27

FRONT PANEL CONTROL - SCALING IN MATRIX MODE ........................... 28

FRONT PANEL CONTROL - SCALING IN DA MODE .................................. 28

AUDIO OUTPUT ............................................................................... 28

FRONT PANEL CONTROL - EDID MANAGEMENT: .................................... 29

IR CONTROL: IR REMOTE.................................................................. 31

RS-232 AND TCP/IP CONTROL:.......................................................... 32

COMMAND LIST: .............................................................................. 33

COMMAND LIST CONTINUED:............................................................. 34

TROUBLESHOOTING ......................................................................... 35

BANDWIDTH CHART ......................................................................... 36

BANDWIDTH CHART: CONTINUED....................................................... 37

MAINTENANCE ................................................................................ 38

DAMAGE REQUIRING SERVICE ........................................................... 38

SUPPORT........................................................................................ 39

WARRANTY ..................................................................................... 39

The AC-MX-42X is a four input by dual output HDMI matrix switcher. It supports HDMI 2.1, HDCP 2.3, and

up to 8K video resolution with 40Gbps bandwidth capacity. This matrix switcher is perfect for working with

the latest gaming consoles, streaming devices, and satellite receivers, connecting them to 8K TVs and

projectors. In addition, this matrix equalizes and amplies the output to ensure HDMI signals will transmit

through long HDMI cables without loss of quality.

Our best developers have been hard at work bringing our integrators an easy-to-use web based user

interface that allows them to set up, troubleshoot, and control this 8K 4x2. The AVPro Edge user interface

(AEUI) allows for easy conguration and sets up the 8K 4x2. This 8K matrix switcher also comes with a

screen on the unit that can tell you the IP address for connecting directly to your control system.

From built-in scaling to complete EDID control and conguring, you can customize every aspect of this

device to work perfectly for your system.

Features

·HDMI 2.1

·FRL (5)

·HDCP 2.3

·40Gbps Bandwidth Support

·8K60 4:2:0 Support4K resolutions at 120 frames per

second

·8K resolutions at 60 frames per second

·Full HDR Support (HDR 10 & 12 Bit)

·Dolby Vision, HDR10+ and HLG Support

·HDCP 2.3 (and all earlier versions supported)

·8K > 1080p Down Scaler (Out 2)

·Perfect AVR Bypass deliver 40Gbps to Display and un-

compressed audio to AVR

·Advanced EDID Management

·IR, RS-232 and LAN Control Options

·Digital Toslink Out (7CH PCM, DD, DTS)

·Balanced Analog Out (2CH PCM)

·Down-scaling mode for mixed systems

·Driver Support for Crestron, C4, RTI, ELAN and more

·Extracted Audio Supports DD+, DTS Master Audio on

Toslink

·Extracted Audio bound to output 1 or 2

Whats in the box

·AC-MX-42X (Matrix Switch)

·5V/2A Locking Power Supply

·1 x IR Remote Control (Battery not included)

·1 x 3 Pin Terminal Connector (For RS232)

·Mounting Ears

Introduction

*3V CR2025 Battery Required For IR Remote Control

Not Included

Specications

Front and Rear Panel Overview

Front Panel

Display

OUT1 Input

Select Button

OUT2 Input

Select Button

Output Mode

Button

OUT2 Scaler

Button

Micro USB

Port

IR Receiving

Eye

LAN Connection Extracted

Audio

Power

Port

RS-232

Port

HDMI

Outputs

HDMI

Inputs

Initial Setup: WebUI

1. Connect the HDMI Input sources to the HDMI Inputs on the back of the matrix.

2. Connect the HDMI/devices to the HDMI Outputs.

3. Connect the network LAN cable to the RJ45 port labeled IP CONTROL.

4. Power on the sources (Inputs).

5. Power on the Output devices/displays.

6. Connect the 5V power supply to power on the matrix and then to a suitable power source.

7. To Enable/Disable DHCP, press and hold the Functional Mode select button for 3 seconds. With the

matrix connected to the local network, using a computer on the same network open up a web browser

and type the HIP (Host IP Address) into the address bar to navigate to the WebUI.

The AC-MX-42X can be controlled using the Micro USB port, 3pin RS232, or over TCP/IP using the LAN

connection. For initial setup it is recommended to connect the matrix to a local area network (LAN) and

use a computer on the same network in conjunction with the built in WebUI. After making all the physical

connections, the rst step will be to check for any Firmware Updates. The below steps are an example of

this setup, other control options are covered in separate sections of this user manual.

DHCP Enabled

OUT1 Input LEDs will ash once.

DHCP Enabled

OUT2 Input LEDs will ash once.

Default Network Settings

·RouterIP192.168.001.001

·HostIP192.168.003.247

·NetworkMask255.255.252.000

·TIP23

·DHCP0(OFF)

NOTE: To view the current IP Address press any

button to wake up the front screen then press and

hold the OUT2 SELECT button and the Scaler for OUT2

button at the same time for approximately 6 seconds.

*Requires Firmware Main V0.93.01/NET V1.09 or higher*

OUT2 Input

Select Button

OUT2 Scaler

Button

8. With the WebUI open, navigate to System. Click on the Privacy Policy and Terms of Use, this will open

these documents in a new tab for review. Once read click on the boxes next to each to agree. When

both are checked the switch for Enable Cloud Services will be selectable (will be red or disabled by

default). Click to enable (the switch will turn green).

9. With the Cloud Services enabled under the Hardware section click the Update Firmware button to

check for new Firmware OTA (over the air). This will compare the rmware versions currently loaded

on the AC-MX-42X and compare to the latest available. If it is up to date, you will see a prompt stating

“No update available!”

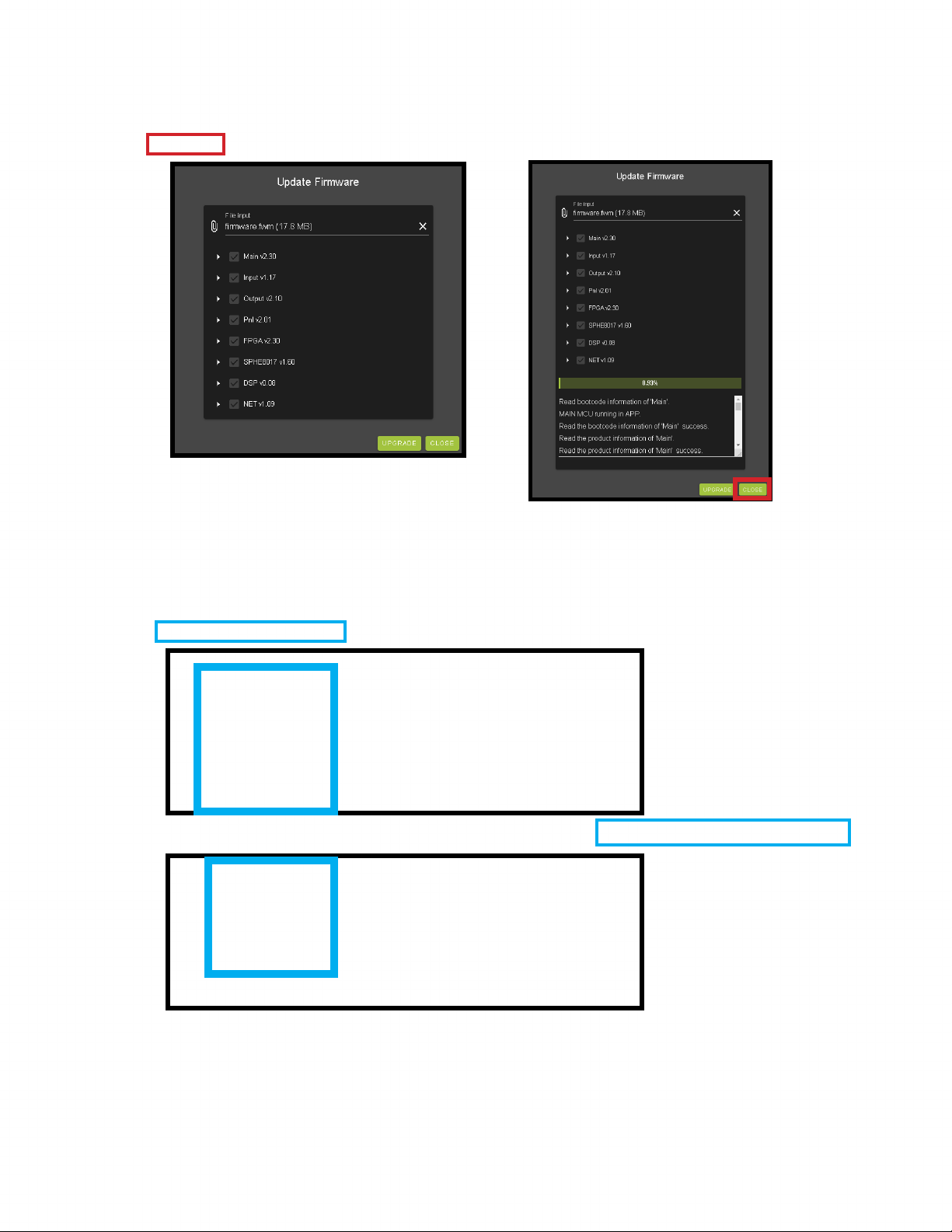

10.If an update is available, the following prompt will show. Simply click UPDATE.

11.If a new update is available a le will automatically be selected, simply click the UPLOAD button to

load the rmware les to the Matrix. Uploading does not install the Firmware, that is the next step.

12.Once the rmware le has been uploaded, it will display all containing rmware les. Here you can

select individual rmware les to load or simply leave all les/options selected. If the version currently

installed is not newer (does not need to be updated), then that update will be skipped automatically.

Click the UPLOAD button to start.

13.Once the progress bar hits 100% click the CLOSE button, the rmware upgrade process is complete.

14.With the Firmware up to date it’s time to start setting up the matrix. With the AVPro Edge WebUI

open, navigate to the I/O Conifg section. Label the applicable Inputs (Apple TV, Cable Box, Roku, etc)

under the Input Settings - Label.

15.Label the Outputs (Living Room, Bedroom, Den, etc) under the Video Output Settings - Label.

16.Set the HDMI Video Scaling if needed. HDMI OUT 2 has two options for scaling, they are:

·4K/8K->2K Thiswilldownscaleboth4Kand8Kresolutionsdownto2K(1080P).

·8k->4k Thiswilldownscalean8Ksignaldownto4K

17. With the system and all it’s components powered up it’s time to verify signal path from source to the

sync. For now leave EDID settings to their default 1080P 2CH, the next section Advanced Setup will

cover the more advance settings.

18.Navigate to the Diagnostics Page and use the Signal Present indicator light under HDMI INPUTS

to verify the connection. Green means HDMI source is detected, red means that the source is not

detected. If red verify that the input is powered on and that the HDMI cable is properly connected to

the source and to the back of the matrix.

19.Now verify that the connections to the HDMI outputs. If detected the HDMI OUT tab will display some

of the connected sync’s EDID information like Manufacturer, Preferred Timing, and Deep Color Support.

If these elds are blank verify that the sync devices are powered on and that the HDMI/HD cables are

properly connected to the back of the matrix.

20.With everything connected and powered on, veried you are getting all of your sources on all of your

displays.

21.Problems with a source or sync, see the Troubleshooting section for help on page 36.
