Avocent LongView Wireless Instructions d'installation et d'entretien

Installer/User Guide

LongView®Wireless

INSTRUCTIONS

This symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

DANGEROUS VOLTAGE

This symbol is intended to alert the user to the presence of uninsulated

dangerous voltage within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

PROTECTIVE GROUNDING TERMINAL

This symbol indicates a terminal which must be connected to earth ground

prior to making any other connections to the equipment.

LongView®Wireless

Installer/User Guide

Avocent, the Avocent logo, The Power of Being There and

LongView are registered trademarks of Avocent Corporation

or its affliates. All other marks are the property of their

respective owners.

USA Notification

Warning: Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at his own expense.

Canadian Notification

This digital apparatus does not exceed the Class A limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the Canadian

Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de la classe A prescrites

dans le Règlement sur le brouillage radioélectrique édictépar le Ministère des

Communications du Canada.

Safety and

EMC Standards

FCC class A, UL, cUL

Table of Contents

Chapter 1: Product Overview

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . 3

Compatibility with Peripherals . . . . . . . . . . . . . . . . 5

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chapter 2: Installation

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing a LongView Wireless Extender . . . . . . . 10

Chapter 3: Operations

Powering the LongView Wireless Extender . . . . . . 15

Informational Messages . . . . . . . . . . . . . . . . . . . . . 15

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Fine-Tuning the Image Settings . . . . . . . . . . . . . . . 16

Image Adjustment Using

the LongView Wireless Extender OSD . . . . . . . 17

Appendices

Appendix A: Technical Specifications . . . . . . . . . . 21

Appendix B: Technical Support . . . . . . . . . . . . . . . 22

Appendix C: Troubleshooting . . . . . . . . . . . . . . . . . 23

Contents

Product Overview

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . 3

Compatibility with Peripherals . . . . . . . . . . . . . . . . 5

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chapter 1: Product Overview 3

Chapter 1: Product Overview

Features and Benefits

The Avocent LongView®Wireless extender connects Keyboard, Video, Mouse

(KVM) and audio peripherals wirelessly to your computer, from up to 100

feet away. The LongView Wireless extender is a digital system that processes

analog video, inbound and outbound, utilizing a unique, proprietary

compression engine. At the heart of the compression engine is a multimedia

DSP and an FPGA that are coupled to an IEEE 802.11a radio board.

Its industry standard design makes the LongView Wireless extender

compatible with virtually any PC, display technology and operating system.

Installation is essentially Plug and Play requiring no new drivers or software.

Figure 1.1: LongView Wireless Extender Model

The LongView Wireless extender On-Screen Display (OSD)

The LongView Wireless extender OSD makes it simple to set up and adjust

your video parameters. Accessed from the receiver side, the OSD makes

tuning your video fast and convenient.

S1 S2 PWR

4LongView Wireless Installer/User Guide

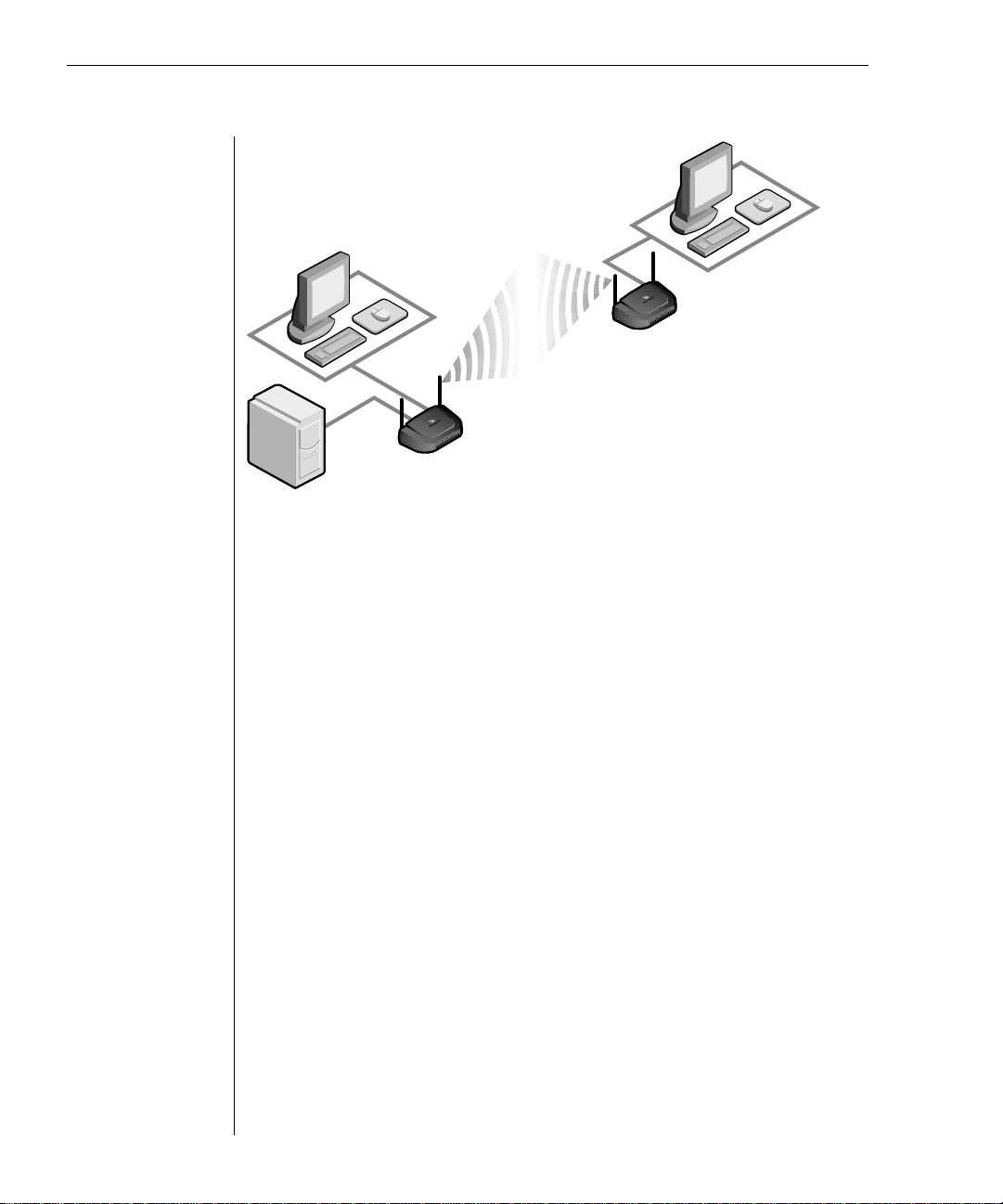

Figure 1.2: Example LongView Wireless Extender Configuration

Secure connectivity and 802.11a standards-based design

Advanced Encryption Standard (AES) provides secure connections through

a proprietary design based on the 802.11a standard.

The LongView Wireless transmitter

The LongView Wireless transmitter connects directly to your computer

and serves as the radio interface device enabling the computer to transmit

audio and video data. It also acts as the receiver for keyboard and mouse

signals from extended devices. The LongView Wireless transmitter contains

five chassis-mounted connectors for local video, keyboard and mouse

peripherals, in addition to power and audio in from the computer. It includes

a 3.5 foot cable with video and PS/2 keyboard and mouse connectors. Power

is supplied to the transmitter from a universal input 12 V DC switching

power supply (included).

The LongView Wireless receiver

The LongView Wireless receiver connects directly to your user interface

devices (keyboard, video monitor and mouse) and serves as the radio

interface device for these components. It receives audio and video data from

the source computer and sends keyboard and mouse data from the user

interface devices to the source computer. The LongView Wireless receiver

has five chassis-mounted connectors for video, keyboard, mouse and audio

peripherals and power. Power is supplied to the transmitter from a universal

input 12 V DC switching power supply (included).

Server

LongView Wireless

Transmitter

LongView Wireless

Receiver

Extended

Access User
