Avlite AV-RMU Supplément

"We Believe Technology

Improves Navigation."

Remote Monitoring Unit

AV-RMU

Installation & Service Manual - V1.0

2Remote Monitoring Unit

AV-RMU

Version No. Description Date Reviewed Approved Design

1.0 AV-RMU Manual Launch April 2021 P. Naidu W. Evans M. Sugars

Manual Update Register

Want the latest product information?

Visit www.avlite.com 3

Contents

1.0 Introduction................................................................................................................................................................................ 4

2.0 Technology...................................................................................................................................................................................5

3.0 AV-RMU ....................................................................................................................................................................................... 6

4.0 AV-RMU Data Sheet...................................................................................................................................................................8

5.0 Safety Information .................................................................................................................................................................... 9

6.0 Operation and Setup ...............................................................................................................................................................10

7.0 Unpacking, Installation, Wiring and Setup......................................................................................................................... 11

7.1 Unpacking................................................................................................................................................................................ 11

7.2 Installation .............................................................................................................................................................................. 11

7.2.1 Warnings and Cautions ............................................................................................................................................... 11

7.2.2 Factory Conguration ................................................................................................................................................. 11

7.2.3 Cabling Requirements.................................................................................................................................................12

7.2.4 Installation Recommendation...................................................................................................................................13

8.0 Maintenance and Servicing................................................................................................................................................... 24

9.0 Replacement Parts................................................................................................................................................................... 24

10.0 Warranty .................................................................................................................................................................................... 24

11.0 Troubleshooting ...................................................................................................................................................................... 25

12.0 Notes...........................................................................................................................................................................................31

4Remote Monitoring Unit

AV-RMU

1.0 Introduction

Congratulations! By choosing to purchase an Avlite product, you have become the owner of one of the most advanced

products in the world.

Avlite Systems draws on more than 25 years of experience in the design and manufacture of navigation aids, and par-

ticular care has been taken to ensure your product gives years of trouble-free service.

As a commitment to producing the highest quality products for our customers, Avlite has been independently certied

as complying with the requirements of ISO 9001:2015 quality management system.

By taking a few moments to browse through this booklet, you will become familiar with the versatility of your lighting

solution, and be able to maximise its operating function.

Please remember to complete the Avlite warranty registration card accompanying your product.

Want the latest product information?

Visit www.avlite.com 5

2.0 Technology

Avlite Systems is a world-class solar lighting systems manufacturer with a proven reputation for rapid, innovative, and

agile technology solutions designed specically for defence, government, civil and humanitarian aid operations in the

most remote, toughest environments.

Electronics

Avlite employs leading in-house electronic engineers in the design and development of software and related circuitry.

All individual electronic components are sourced directly by Avlite procurement sta ensuring that only the highest

quality components are used in our products.

LED Technology

All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major ad-

vantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess

of 100,000 hours, resulting in substantial savings to maintenance and servicing costs.

Precision Construction

Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases

and a range of other components ensures that all Avlite products are of a consistent and superior quality.

Optical Performance

Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. The company has superior in-

house lens manufacturing capabilities to support outstanding optical performance.

Award-winning, Patented Technology

Several United States and Australian patent registrations are held on Avlite’s range of innovative designs, with other

regional patents pending in Canada, United Kingdom and Europe.

6Remote Monitoring Unit

AV-RMU

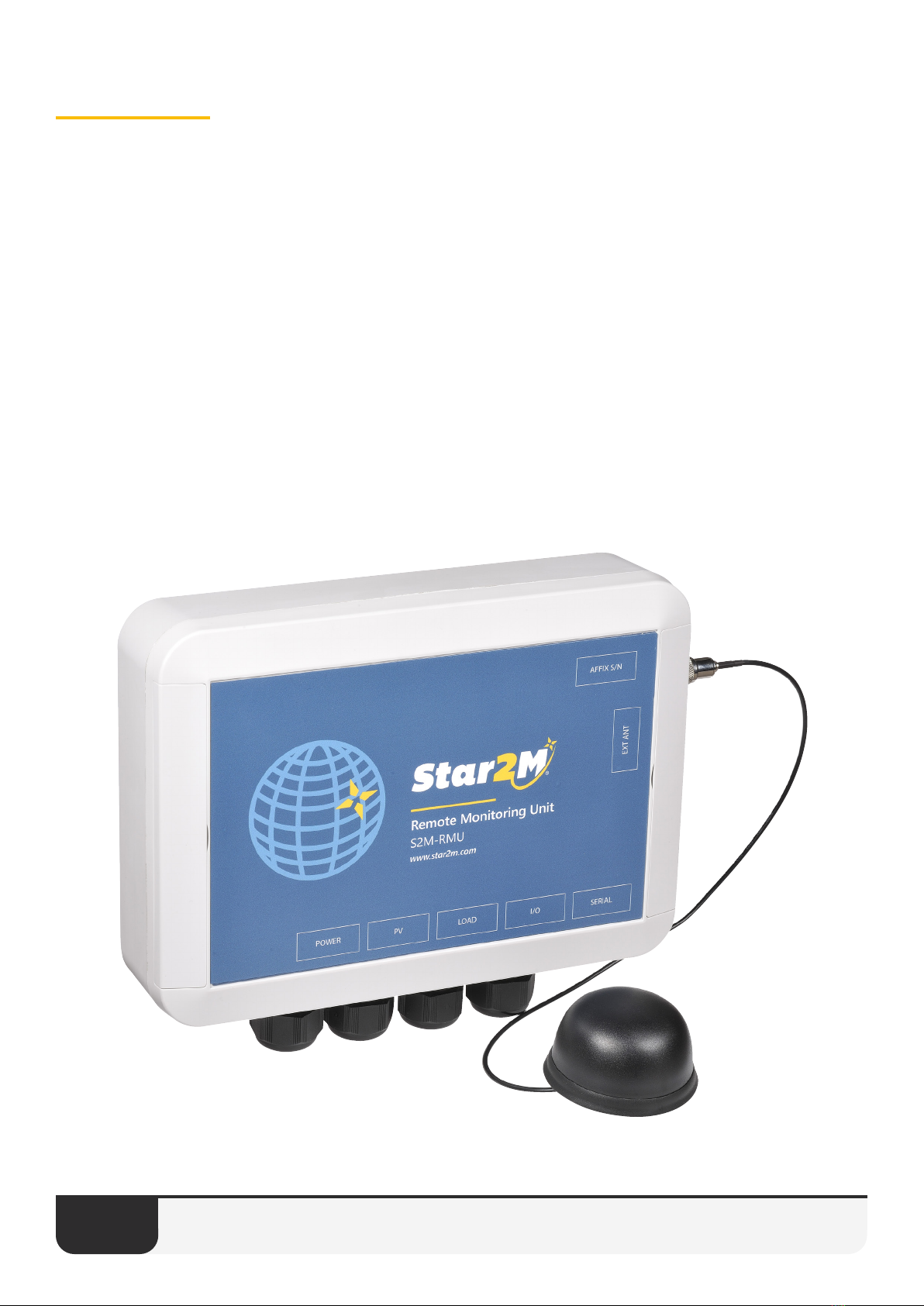

3.0 AV-RMU

The Remote Monitoring Unit (RMU) is a connectivity device that allows products without internal telemetry hardware

to still be able to transfer data and communicate with an overarching Control and Monitoring or Asset Management

System. As a result, the product is able to be remotely monitored, managed, maintained and controlled by asset own-

ers.

Designed to perfectly integrate and supplement Avlite products, the RMU is able to receive data from a connected

asset (and power supply) and transfer this to a high-level control and monitoring system such as Star2M using its

SATCOM interface connected through Iridium.

When connected with Star2M, the RMU supports bi-directional communication, meaning that commands can also be

sent back to the connected product for control or monitoring purposes. As standard, the RMU supports a minimum

of four discrete IOs via General Purpose Inputs (2) and Outputs (2). The SATCOM interface supports the transmission

of a minimum of two generic alarms which the user can then map to the two General Purpose Inputs via a customised

Alarm Conguration in the Star2M Web Portal.

The RMU is available as a complete, standalone mechanical assembly and supports either a low current or high current

variant.

Note: This installation and service manual must be used in conjunction with the Star2M manual

Want the latest product information?

Visit www.avlite.com 7

Remote Monitoring Unit

Note: Mounting bracket hardware and serial communication cable are included.

87654321

-A3

Visio 2016

Drawn in:-

Units

Sheet Size:-

nat uralFinish:-

ELEVATION DRAWING

N/A

Wt.(Kg) each:-

Ma t e ri al /Q ua nt i ty

N/A

Gen eral To leran ces

Lin e ar

X.X

X.X X

±1.2

±0.3

±0.1

Ang ular

X.X

±1.0 °

±0.5 °

±2.0

±0.5

Rad i i

X.X Drawing Rev:-

D ra w n: -

Approved:-

Checked:-

Qt y p er Ass 'y: -

Drawing No:

File Name:-

Sheet

Scale

Projection

Next Assy:-

N.T.S

Model Re v:-

Sealite

4of 7

D.Freeland

Rev Model Rev ECR No. D esc ri pt io n Date:- Drawn:- Ap pr ov ed: -C he cke d: -

-N/A N/A - - - --

25/03/2021

002778-000_ MOD62_S L-PS-12-M0062_M AN UFACTURING PA CK_Rev1

002778-000

2.5°

280 44 12

37.9 37.9 33 .137.933.1

19.0

21.25

200200

8Remote Monitoring Unit

AV-RMU

Electrical Characteristics

Input Voltage 12 - 48 VDC

Operating Temperature -40 to 55°C

Max Rated Load Low Current: 3A High Current: 12A

Max Rated Charge Low Current: 3A High Current: 12A

Power Consumption

Peak 8.66W

Average 0.07W

Interfaces

Standard • Serial Communication Interface

• Input Power Monitoring

• Solar Charge Monitoring

• Load monitoring

• Discrete IO via General Purpose Input/Outputs

• Satellite Communication

Control and Monitoring Star2M

Physical Characteristics

Body Material White, ASA UL94HB

Height (mm/inches)

• Enclosure

• SATCOM Antenna

64.92 / 2.56

36.50 / 1.44

Width (mm/inches)

• Enclosure

• SATCOM Antenna

280 / 11.02

78 / 3.07

Depth (mm/inches)

• Enclosure

• SATCOM Antenna

200 / 7.87 (excluding mounting bracket)

78 / 3.07

Mass (kg/lbs)

• Enclosure

• SATCOM Antenna

1.559 / 3.437 (excluding mounting bracket)

0.152 / 0.336 (Antenna + Cable)

Service Life 12+ years

Environmental Standards

Shock MIL-STD-202G, method 213B

Vibration MIL-STD-202G, method 204D

Humidity 0 to 90%

Compliance

FCC (North America) FCC Part 415B/ICES 003

CE (Europe) EN 301489-1/17/19/20/52

EN 301908-1, EN 301441, EN 300328, EN 303413, EN 62311

EN 61000-6-2:2019

EN 61000-6-4:2019

RCM (Australia/New Zealand) EN 55032, AS/CA S042.1, AS/CA S042.4, RSE

AS/NZS 62368.1, AS/NZS 2772.2, IEC 62368.1, IEC 60529

ARPANSA RPS3

Quality Assurance ISO9001:2015

Protection Rating IP67

Other

Intellectual Property AVLITE® is a registered trademark of Avlite Systems.

Star2M® is a registered trademark of Sealite Pty Ltd.

Warranty* 3 years

Terms and Conditions Warranty Terms and Conditions available on www.avlite.com

AV-RMU DC

4.0 AV-RMU Data Sheet

Want the latest product information?

Visit www.avlite.com 9

5.0 Safety Information

Before proceeding with installation or service, make sure the following conditions are met:

• Ensure power lines are not ‘live’ (NO ELECTRICAL HAZARD).

• Avoid touching live circuits!

• Avoid touching any component or any part of the circuitry while the unit is operating. Do not change components

or make adjustments inside the unit with power on.

• When installing, comply with all local electrical code(s).

• Mains power should always be disconnected when work is being done in close proximity to electrical ttings, and

electrical work should only be done by a licensed electrician.

• To ensure that the equipment functions safely and correctly, use cable in compliance with the eective local elec-

trical code.

• Dispose of the product according to the local laws and regulations for your region, for example, at a recycling

centre that accepts electronic devices.

10 Remote Monitoring Unit

AV-RMU

6.0 Operation and Setup

The RMU allows a means of communication between Avlite supplied products and Star2M via its SATCOM interface,

connected via Iridium.

As a result, the RMU is able to provide monitoring of input power, load and solar charge of a connected lantern and

power supply. This information is relayed from the lantern to the RMU via the Serial communication interface in con-

junction with integrated current and voltage sensing circuits. The information is then transmitted to Star2M in the form

of a daily update which includes the following parameters:

• Load Current-Instantaneous

• Charge Current-Instantaneous

• Battery Voltage-Instantaneous

• Maximum Charge Current-24hr

• Total Charge Current-24hr

• Total Load Current-24hr

• Maximum Battery Voltage-24hr

• Minimum Battery Voltage-24hr

The transmission of generic alarms from the lantern to Star2M is also supported via two General Purpose Inputs when

triggered by the lantern or power supply.

Mounting hardware in the form of a bracket is included with the RMU enclosure for pole mounting, although wall

mounting is also suitable (mounting accessories not supplied). A mounting bracket is also provided for the external

SATCOMs Antenna.

Serial Communication is achieved either via serial cable (supplied) or direct wiring.
