AVLink WVGA-L Manuel utilisateur
VGA EXTENDER
WVGA-L / WVGA-E2
(Local)
WVGA-R WVGA-RS
(Remote)
USER MANUAL V1.1
Package Contents for WVGA-E
WVGA-L Local Unit
WVGA-R Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
4 M4*10mm screws
4 P6*14mm screws
Package Contents for WVGA-ES
WVGA-L Local Unit
WVGA-RS Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
4 M4*10mm screws
4 P6*14mm screws
Package Contents for WVGA-E2
WVGA-E2 Local Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
2 M4*10mm screws
2 P6*14mm screws
Package Contents for WVGA-R
WVGA-R Remote Unit
1 user manual
1 power adapter DC 12V/600mA
2 M4*10mm screws
2 P6*14mm screws
Package Contents for WVGA-RS
WVGA-RS Remote Unit
1 user manual
1 power adapter DC 12V/600mA
2 M4*10mm screws
2 P6*14mm screws
Any thing missed, please contact with your vendor.
Features
Through the WVGAExtender, you can use one PC to display identical image and extension
of VGA signal up to 300 meter on monitors.
Equalization length is adjustable.
VGA signal gain is adjustable.
62ns total delay. (For WVGA-RS)
2ns delay step increments. (For WVGA-RS)
Memorize function. (For WVGA-RS)
Button locked function. (For WVGA-RS)
Specifications
Function WVGA-L WVGA-R WVGA-RS WVGA-E2
VGA In/Out Connector HD-15 Female x 1
Cable Connector 6 Pole Captive screw 2x 6 Pole Captive screw
Max. Resolution 1280x1024 60Hz
Cable Distance 300 m (Max.)
Power Adapter (Min.) DC 12V 600mA
Housing Metal
Weight 136g 136g 145g 139g
Dimensions (LxWxH) 105x42x38 mm
LOCAL FRONT VIEW
WVGA-L / WVGA-E2
1. HD-15 Female Connector
2. Power LED
3. Control H/V signal inverting switch
The default setting of SW1 is “OFF”. If SW1 is set to “ON”, the H signal is inverting output.
The default setting of SW2 is “OFF”. If SW2 is set to “ON”, the V signal is inverting output.
If the local end changes the logic with the H/V signal or the logic of the H/V signal, please
use then this function.
LOCAL REAR VIEW
WVGA-L
1. Power Connector
2. Output Cable Connector
WVGA-E2
1. Output 1 Cable Connector
2. Power Connector
3. Output 2 Cable Connector
REMOTE FRONT VIEW
WVGA-R
1. HD-15 Female Connector
2. EQ – Equalization length adjust (Adjust it and weak characters be sharp)
3. GAIN – Adjust brightness
4. Power LED
5. Control H/V signal inverting switch
The default setting of SW1 is “OFF”. If SW1 is set to “ON”, the H signal is inverting output.
The default setting of SW2 is “OFF”. If SW2 is set to “ON”, the V signal is inverting output.
If the local end changes the logic with the H/V signal or the logic of the H/V signal, please
use then this function.
WVGA-RS
1. EQ / R SKEW up button
2. EQ / R SKEW down button
3. GAIN / G SKEW up button
4. GAIN / G SKEW down button
5. B SKEW up button
6. B SKEW down button
7. VGA Output
8. Indicate LED
9. Select button
REMOTE REAR VIEW
WVGA-R / WVGA-RS
1. Power Connector
2. Input Cable Connector
Installation
1. Turn off the PC.
2. Connect WVGA-Extender Local Unit HD-15 female input connector with HD-15 male to male
cable from PC.
3. Connect WVGA-Extender Local Unit HD-15 female output connector with HD-15 male to male
cable from monitor.
4. Connect WVGA-Extender Local and Remote Unit with CAT.5 cable.
5. Connect WVGA-Extender Remote Unit HD-15 female connector with HD-15 male to male
cable from monitor.
6. Connect the power cord on each side.
7. Turn on the monitor and PC.
WVGA-RS Operation
A. General Mode:
The LED shines after the power is on and all buttons have no function except the select button.
B. Adjust Mode:
In general mode, push select button to entry EQ/GAIN adjust mode. When finish the adjust
mode, push select button again to entry RGB SKEW adjust mode. Push one more select
button, you can quit the adjust mode and will save the adjusted data, go into the general
mode.
EQ/GAIN adjust mode: (RGB SKEW function can not work)
1. Push select button and the LED extinguishment, will entry the EQ/GAIN adjust mode.
2. Push EQ up/down button to increase or decrease the signal compensation, when push two
buttons at the same time, the signal compensation will go back to zero.
3. Push GAIN up/down button to increase or decrease the brightness, when push two buttons
at the same time, the brightness will go back to zero.
RGB SKEW adjust mode: (EQ/GAIN function can not work)
1. Push select button and the LED shines, will entry the RGB SKEW adjust mode.
2. Push R SKEW up/down button to increase or decrease the delay time, when push two
buttons at the same time, the delay time is zero.
3. Push G SKEW up/down button to increase or decrease the delay time, when push two
buttons at the same time, the delay time is zero.
4. Push B SKEW up/down button to increase or decrease the delay time, when push two
buttons at the same time, the delay time is zero.
5. Push select button after you adjusted, the LED shines means you can quit the adjust mode
and will save the adjusted data, go into the general mode.
Wiring Information & Coding
6 Pole Captive screw Connector
WVGA-L / WVGA-E2 WVGA-R
Color Code for
Conductor
Ro-/Ro1-/Ro2- RI- White-Blue
Ro+/Ro1+/Ro2+ RI+ Blue
Go-/Go1-/Go2- GI- White-Orange
Go+/Go1+/Go2+ GI+ Orange
Bo-/Bo1-/Bo2- BI- White-Green
Bo+/Bo1+/Bo2+ BI+ Green
Bo-Bo+
Ro-
Ro+ Go-
Go+ BI-BI+RI-RI+ GI-
GI+
WVGA-L
POWER DC 12V
+ NC -
POWER DC 12V
+ NC -
DC 12V/600mA
CAT.5 CABLE WVGA-R
DC 12V/600mA
Bo1-Bo1+
Ro1-
Ro1+ Go1-
Go1+ BI-BI+RI-RI+ GI-
GI+
WVGA-E2
POWER DC 12 V
+ NC -
POWER DC 12V
+ NC -
DC12V/600mA
CAT.5 CABLE WVGA-R
DC12V/600mA
Bo2- Bo2+ Ro2- Ro2+Go2- Go2+
BI-BI+RI-RI+ GI-
GI+
POWER DC 12V
+ NC -
WVGA-R
DC12V/600mA
CAT.5 CABLE
Adaptor Output Polarity
PIN # Output Level Color Code for
Conductor
1 +12V Black-White
2 RTN(-) Black
Red Sleeve
Black Sleeve
PIN1
PIN2
+
-

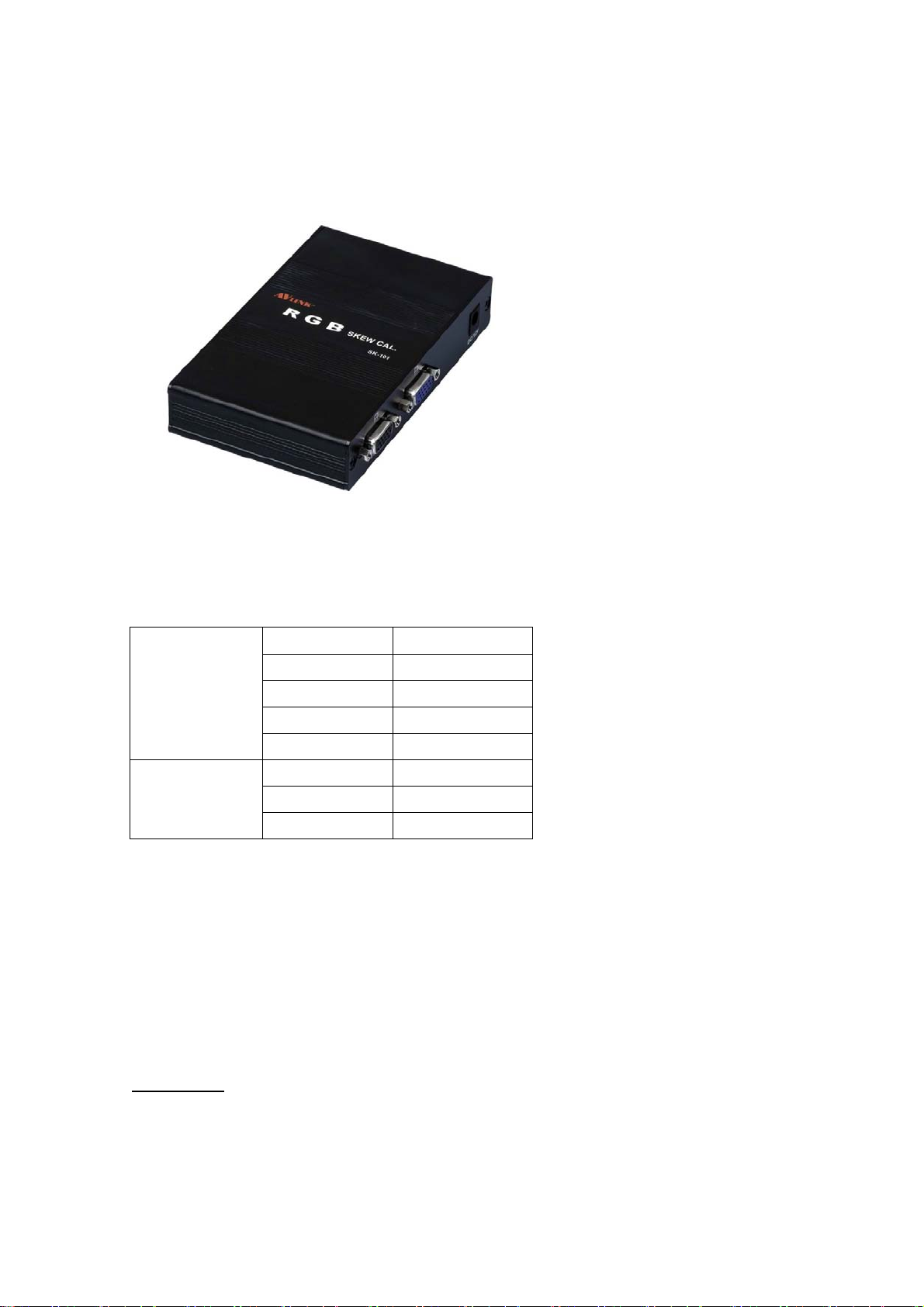

Additional Options
Select any additional options you may require. (WVGA-RS not need.)
It provides perfect skew delay correction, we suggest when distances over 150M it is needed.
(Item No: SK-101)
Distances and Resolutions for CAT.5/5E and CAT.6
cables
50M 2048x1536
100M 1280x1024
180M 1024x768
200M 800x600
CAT.5/5E
300M 640x480
30M 1920x1440
50M 1280x1024
CAT.6
100M 800x600
PS. We suggest to use CAT.5 cable because the performance is better than others.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names referred to this manual are the
trademarks or registered trademarks belonging to their respective companies.
