AVLink DVI-LD Manuel utilisateur

DVI

EXTENDER

(Support EDID copy)

DVI-LD

(Local)

DVI-R

(Remote)

USER MANUAL V1.2

DVI-ED

Package Contents-

DVI Extender Local Unit

DVI Extender Remote Unit

1 user manual

2 power adapter DC 5V 1A

Anything missed, please contact with your vendor.

Introduction

The extension of DVI-ED video signal device up to 30/50

meter away by using DVI extender and one CAT.5 cable,

and it support “EDID COPY” ability. The DVI-LD can read

and remember the EDID of your monitor by you push

“EDID COPY” button. Make the PC send out the beat

resolution to match monitor for your application.

DVI extender is ideal for:

Test bench facilities

Data Center

Help desks

Features

PC resolution to 1600x1200 60Hz / 30 meter.

PC resolution to 1280x1024 60Hz / 50 meter.

Support DVI-D.

Support EDID copy.

Use CAT.5 cable to install easily.

Specifications

Function DVI-LD

DVI-R

Input Connector 1 DVI Female 1 RJ-45 Female

Output Connector 1 RJ-45 Female 1 DVI Female

Max. Resolution 1600x1200 60Hz /

1280x1024 60Hz

Cable Distance 30/50 m (Max.)

Power Adapter (Min.) DC 5V 1A

Housing Metal

Weight 141g

Dimensions (LxWxH) 67x52x38 mm

-1-

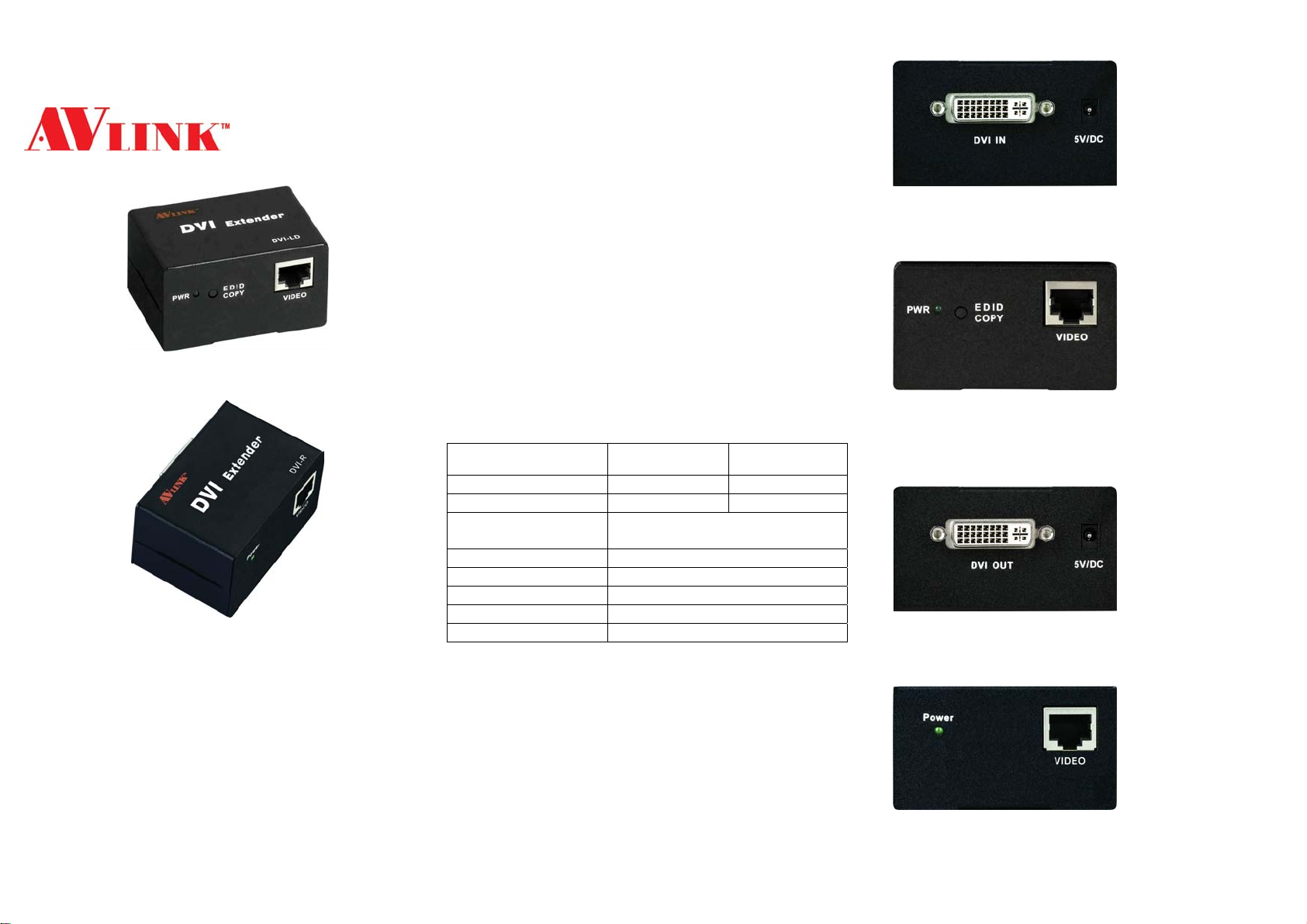

LOCAL FRONT VIEW

1. “DVI In” Port

2. Power Jack

LOCAL REAR VIEW

1. Power LED

2. “EDID COPY” Button

3. “CAT.5” Port

REMOTE FRONT VIEW

1. “DVI Out” Port

2. Power Jack

REMOTE REAR VIEW

1. Power LED

2. “CAT.5” Port

-2-

Installation

1. Turn off the PC and monitor.

2. Plug the 5V power supply into the DVI-LD and DVI-R.

3. Turn on the monitor, and connect monitor to the “DVI In”

port on the DVI-LD with DVI cable.

4. Push “EDID COPY” button had completed EDID

read/Write after LED flash 3 times.

5. Remove the monitor cable from the DVI-LD and plug in

the “DVI Out” port

on the DVI-R.

6. Connect the CAT.5 cable between the DVI-LD “CAT.5”

port and the DVI-R “CAT.5” port of extender.

7. Turn on the PC.

Technical Specifications

Input/Output Signal

Pin # Signal Pin # Signal

1 T.M.D.S Data 2- 16 Hot Plug Detect

2 T.M.D.S Data 2+ 17 T.M.D.S Data 0-

3 T.M.D.S Data 2/4 Shield 18 T.M.D.S Data 0+

4 T.M.D.S Data 4- 19 T.M.D.S Data 0/5

Shield

5 T.M.D.S Data 4+ 20 T.M.D.S Data 5-

6 DDC Clock 21 T.M.D.S Data 5+

7 DDC Data 22 T.M.D.S Clock Shield

8 Analog Vert. Sync 23 T.M.D.S Clock+

9 T.M.D.S Data 1- 24 T.M.D.S Clock-

10 T.M.D.S Data 1+

11 T.M.D.S Data 1/3 Shield C1 Analog Red

12 T.M.D.S Data 3- C2 Analog Green

13 T.M.D.S Data 3+ C3 Analog Blue

14 +5V Power C4 Analog Horz Sync

15 GND C5 Analog Ground

-3-

Wiring Information & Coding

Conductor

Identification RJ45 Pin

Assignment Color Code for

Conductor

5 White-Blue

Pair 1 4 Blue

1 White-Orange

Pair 2 2 Orange

3 White-Green

Pair 3 6 Green

7 White-Brown

Pair 4 8 Brown

-4-

Trademarks:

All the companies, brand names, and product names

referred to this manual are the trademarks or

registered trademarks belonging to their respective

companies.
