AVLink HDM-LNW Manuel utilisateur

HDMI OVER IP

Extender

HDM-LNW

HDM-RNW

USER MANUAL V1.1

HDM-ENW

Package Contents-

 1x HDM-LNW and HDM-RNW Unit

 1x user manual

 2x Power adapter DC 12V with lock

 4x screws

 8x foot pads

 1x IR receiver cable

 1x IR blaster cable (Peak Wavelength 940nm)

Any thing missed, please contact with your vendor.

Features

 HDTV resolution up to 1080p@60.

 HDMI signal up to 100 meter on HDTV.

 Use CAT.5/5E/6 cable to install easily.

 Support RS-232.

 HDMI Compliant.

 HDCP Compliant.

 RS-232 Extender.

 Supports Web server system setup.

Specifications

Function

HDM

LNW

HDM

RNW

HDMI Input Connector

Type Female)

NONE

HDMI Output Connector

1 (A-Type Female)

LED

indicators

POWER

LINK

45 Connector x 1

IR IN NONE 3.5ψ Stereo Jack

x 1

355g

IR OUT 3.5ψ Stereo Jack

x 1 NONE

Carrier Frequency

20KHz ~ 60KHz

BAUD RATE SETTING

3 PIN DIP SWITCH

DIP SW

8 PIN DIP SWITCH

Power Adapter (Min.)

DC 12V (LOCKING JACK)

HDMI Output Max.

Resolution

1080p@60 (8Bits)

1080P@60 (8Bits)

HDMI Output (Color

Space

)

YCbCr 4:4:4 RGB

Cat.5e Cable Distance

100 meters (Max.)

RS-232 Connector DB9 Female x 1

Baud Rate 2400 up to 115200 bps; 8 data bits,

1 stop bit, no parity

Housing

Metal

Weight

Dimensions (LxWxH)

-1-

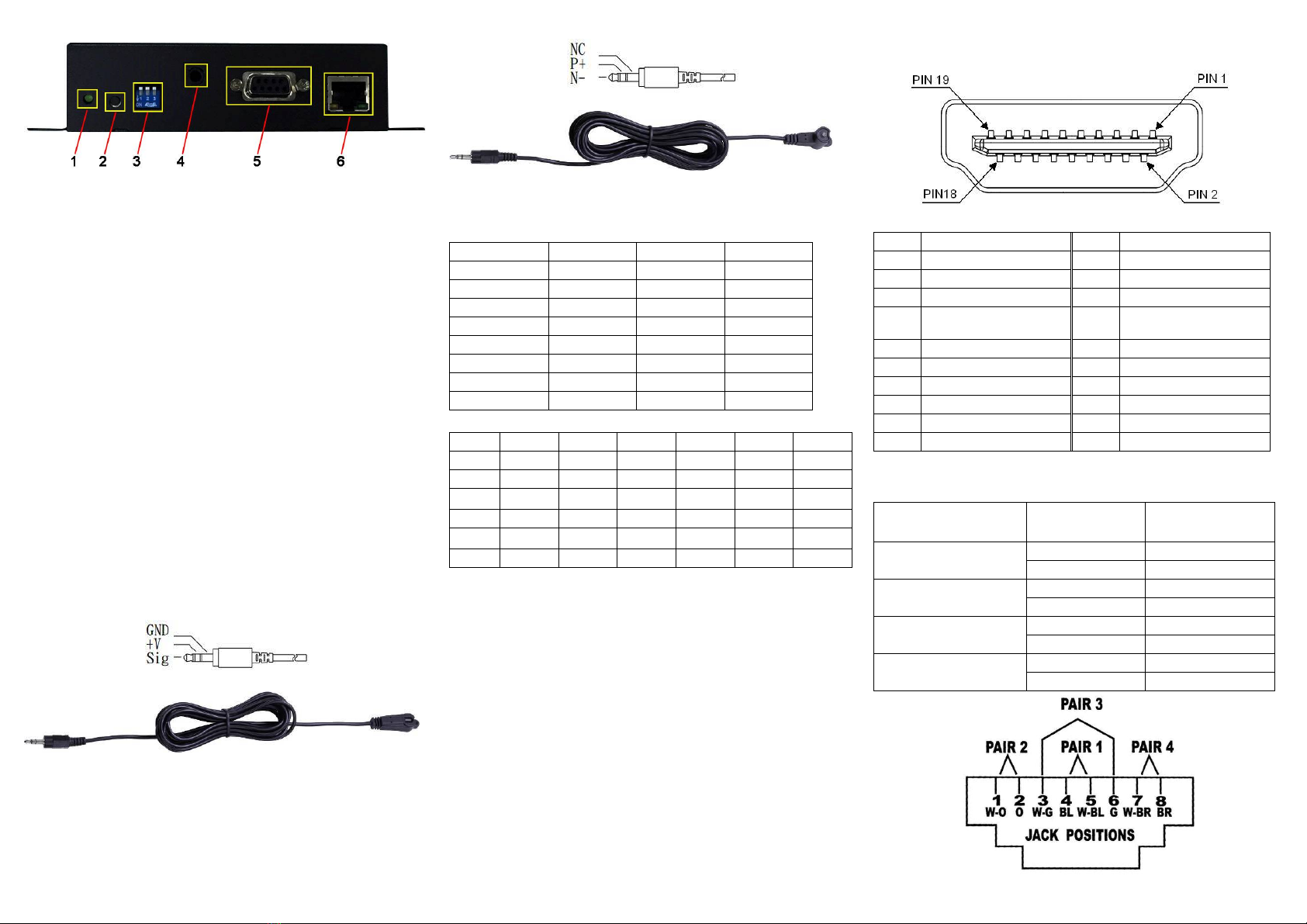

FRONT VIEW

HDM-LNW

1. 1x HDMI Output Connector (A-Type Female)

2. 1x HDMI Input Connector (A-Type Female)

3. 8 Pin DIP Switch

4. Power jack (12V DC In)

HDM-RNW

1. 1x HDMI Output Connector (A-Type Female)

2. 8 Pin DIP Switch

3. Power jack (12V DC In)

REAR VIEW

HDM-LNW

1. Power LED

2. System Reset

3. Baud Rate Setting

4. IR Out

5. RS-232 (DB9 Female)

6. Link (RJ-45 Connector)

-2-

HDM-RNW

1. Power LED

2. System Reset

3. Baud Rate Setting

4. IR In

5. RS-232 (DB9 Female)

6. Link (RJ-45 Connector)

Installation

1. Turn off the HDMI source and HDMI display.

2. Connect the HDMI cable between the HDMI source and

the “HDMI IN” port of HDM-LNW.

3. Connect the HDMI cable between the HDMI display and

the “HDMI OUT” port of HDM-LNW / HDM-RNW.

4. Connect the CAT.5/5e/6 cables between the HDM-LNW

“LINK” port and the HDM-RNW “LINK” port of extender.

5. Connect the power cord of HDM-LNW and HDM-RNW.

5. Turn on the HDMI source and display.

※HDM-LNW ID and HDM-RNW ID must be the same.

IR Receiver Cable Directions:

Put it into the HDM-RNW “IR IN” port and place the IR

Receiver Cable, so that you can point to it easily with your

IR remote controller.

IR Blaster Cable Directions:

Plug IR blaster cable plug into HDM-LNW “IR OUT” port, It

sits in front of the DVD receiver’s IR sensor, which is

located on the front-panel.

-3-

DIP Switch Setting

Buad Rate Setting

Buad Rate

PIN1 PIN2 PIN3

2400 OFF OFF OFF

4800 ON OFF OFF

9600 OFF ON OFF

19200 ON ON OFF

28800 OFF OFF ON

38400 ON OFF ON

57600 OFF ON ON

115200 ON ON ON

ID Setting

ID PIN1

PIN2

PIN3

PIN4

PIN5

PIN6

0 OFF

OFF

1 ON OFF

OFF

︰︰︰︰︰︰︰

7 ON ON ON OFF

OFF

︰︰︰︰︰︰︰

63 ON ON ON ON ON ON

-4-

Technical Specifications Output Signal

Pin #

Signal

Pin #

Signal

1 TMDS Data 2+ 11 TMDS Clock Shield

2 TMDS Data 2 Shield 12 TMDS Clock -

3 TMDS Data 2- 13 CEC

4 TMDS Data 1+ 14 Reserved

(N.C. on device)

5 TMDS Data 1 Shield 15 SCL

6 TMDS Data 1- 16 SDA

7 TMDS Data 0+ 17 DDC/CEC Ground

8 TMDS Data 0 Shield 18 +5V Power

9 TMDS Data 0- 19 Hot Plug Detect

10 TMDS Clock+

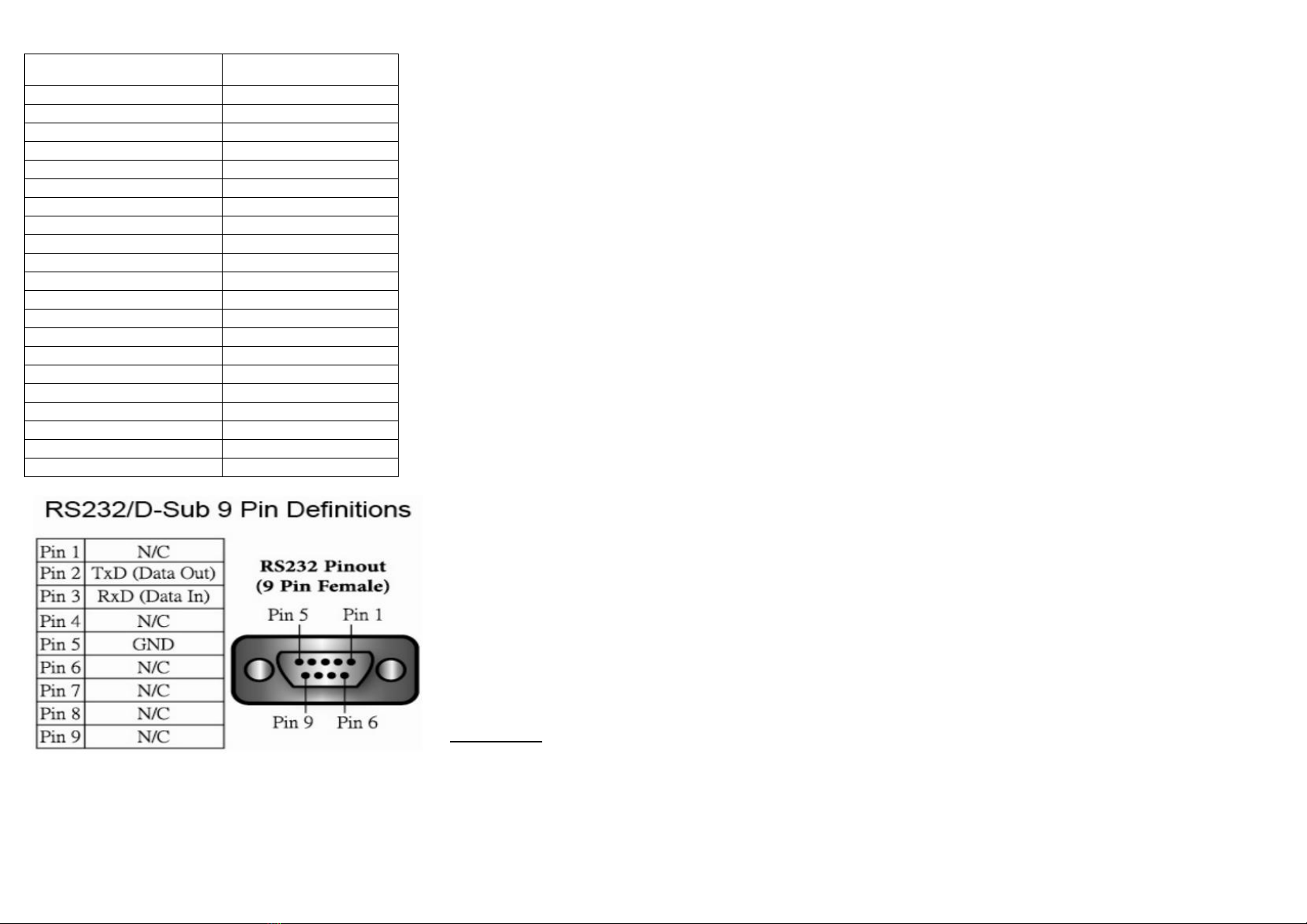

Wiring Information & Coding

Conductor

Identification

RJ-45 Pin

Assignment

Color Code for

Conductor

Pair 1 5 White-Blue

4 Blue

Pair 2 1 White-Orange

2 Orange

Pair 3 3 White-Green

6 Green

Pair 4 7 White-Brown

8 Brown

-5-

Support Resolution

Resolution Frequency(Hz)

640x480 60

800x600 60

1024x768 60

1280x768 60

1280x800 60

1280x960 60

1280x1024 60

1360x768 60

1366x768 60

1440x900 60

1400x1050 60

1440x1050 60

1600x900 60

1680x1050 60

480i 60

480p 60

576i 50

576p 50

1080i 50/60

1080p 25/30/50/60

720p 50/60

-6-

Web server system setup

HDM-LNW (Server side)

Web setting address as below:

http://IP address (Default IP address TX board: 169.254.x.x

when no DHCP server assign IP address).

username: admin

password: 123456

HDM-LNW web server support feature: video bit

rate/resolution, DHCP/Fix IP, multicast group ID, update

f/w.

File to Upgrade Firmware: XXX.PKG

File to Upgrade Encoder Firmware: XXX.bin

HDM-RNW (Client side)

Web setting address as below:

http://IP address (Default IP address RX board:169.254.x.x

when no DHCP server assign IP address).

HDM-LNW side web server support feature: DHCP/Fix IP,

multicast group ID, update f/w.

File to Upgrade Firmware: XXX.PKG

Please don’t power off or reset/reboot device while board

f/w upgrade. HDM-ENW will reboot by self automatically

when upgrade successful and see below info in web page.

Trademarks:

All the companies, brand names, and product names

referred to this manual are the trademarks or registered

trademarks belonging to their respective companies.

-7-
